SECCO Series

Share:

Description

  • Protect angle>30, UGR<17.
  • Uniform light spot.
  • Structural improvement.
  • Cost-effective Provide three construction.

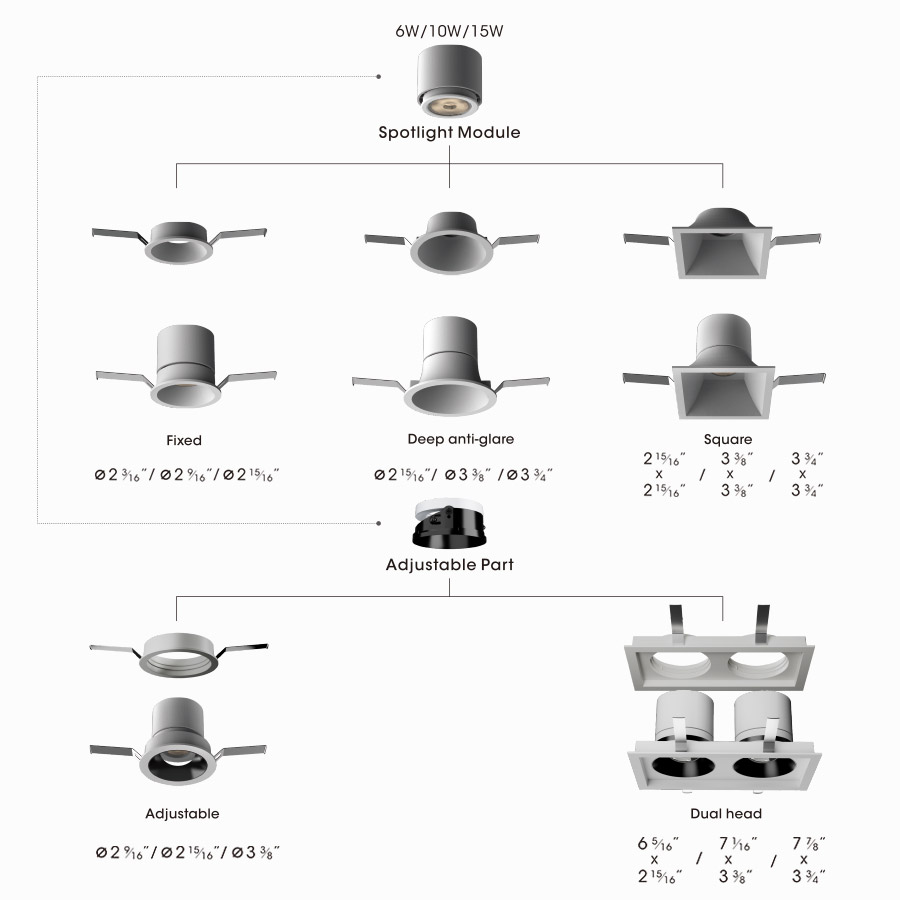

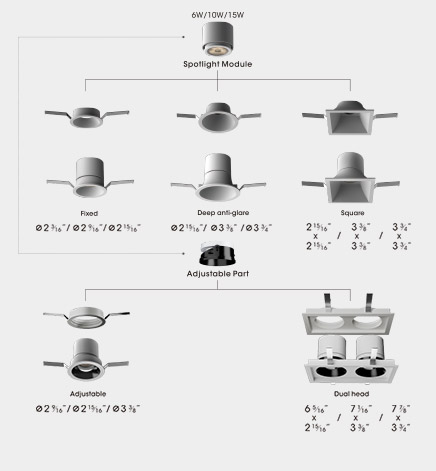

  • Modular design, different front rings optional.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

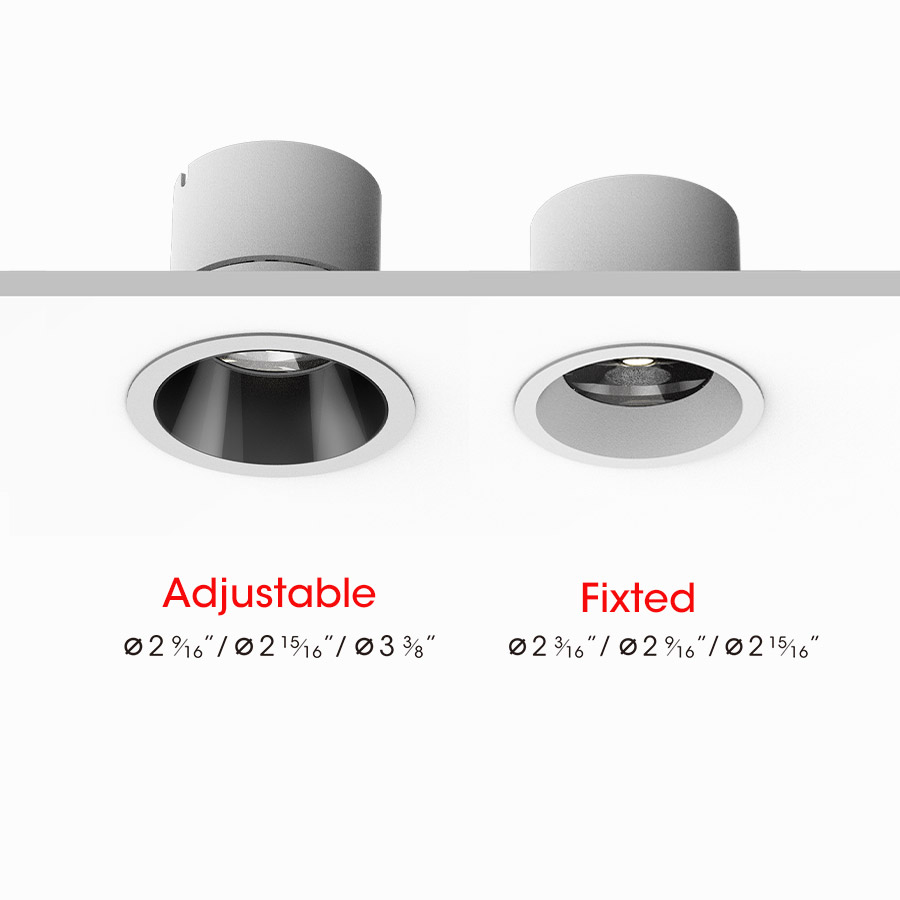

SECCO Series Downlight （Fixted） R1408/R1409/R1410

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1408 15° / 24° / 36° / 50° 6W 80 lm/W 480 lm Ø2 3/16''  2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1409 15° / 24° / 36° / 50° 10W 80 lm/W 800 lm Ø2 9/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1410 15° / 24° / 36° / 50° 15W 80 lm/W 1200 lm Ø2 15/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
SECCO Series Downlight （Adjustable） R1411/R1412/R1413

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1411 15° / 24° / 36° / 50° 6W 80 lm/W 480 lm Ø2 9/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1412 15° / 24° / 36° / 50° 10W 80 lm/W 800 lm Ø2 15/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1413 15° / 24° / 36° / 50° 15W 80 lm/W 1200 lm Ø3 3/8'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC

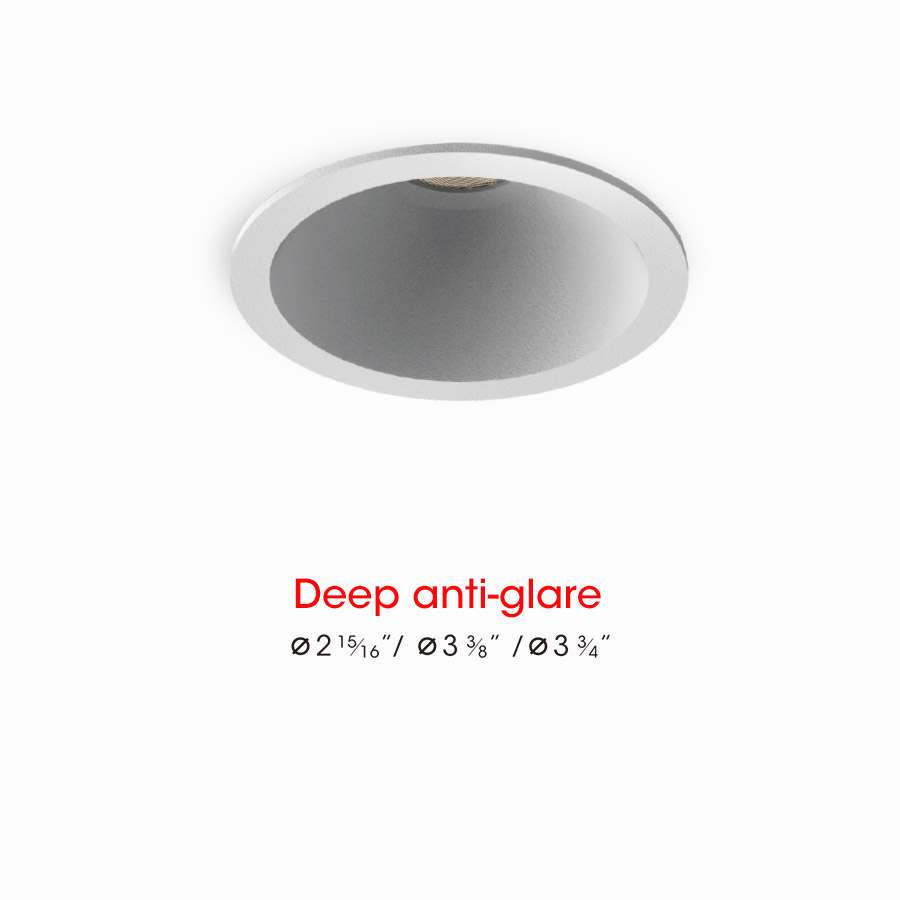

SECCO Series Downlight （Deep anti-glare） R1414/R1415/R1416

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1414 15° / 24° / 36° / 50° 6W 80 lm/W 480 lm Ø2 15/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1415 15° / 24° / 36° / 50° 10W 80 lm/W 800 lm Ø3 3/8'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1416 15° / 24° / 36° / 50° 15W 80 lm/W 1200 lm Ø3 3/4'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC

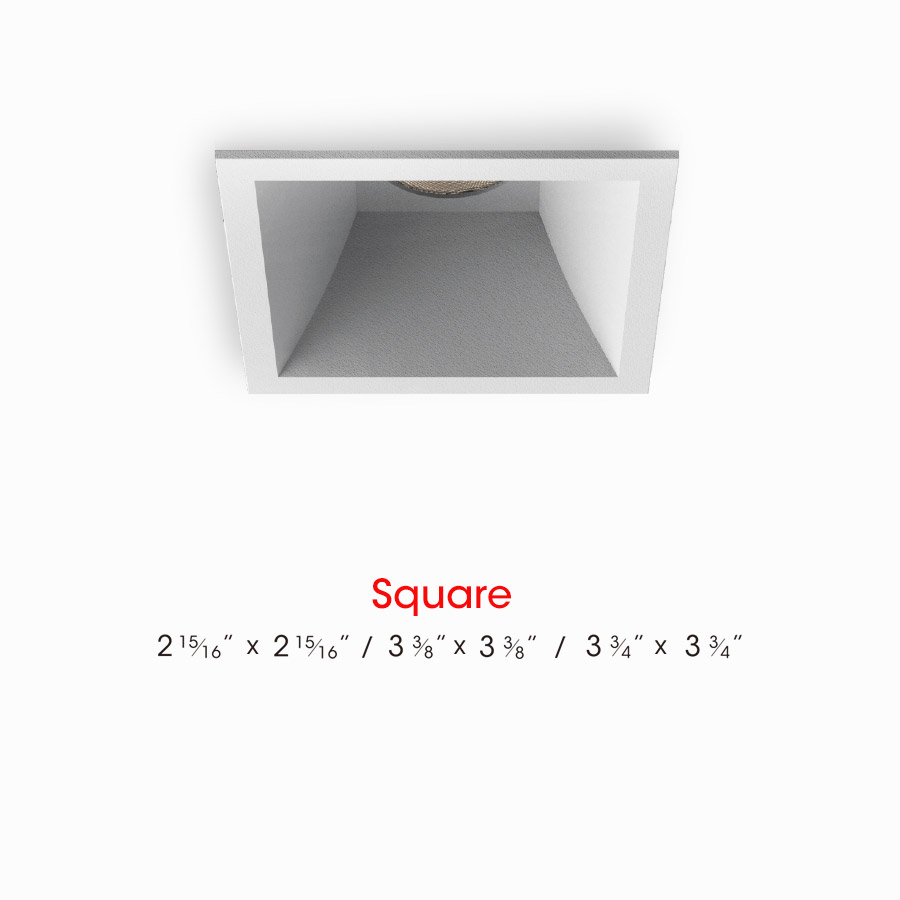

SECCO Series Downlight （Square） R1417/R1418/R1419

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1417 15° / 24° / 36° / 50° 6W 80 lm/W 480 lm 2 15/16'' * 2 15/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1418 15° / 24° / 36° / 50° 10W 80 lm/W 800 lm 3 3/8'' * 3 3/8'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1419 15° / 24° / 36° / 50° 15W 80 lm/W 1200 lm 3 3/4'' * 3 5/6'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC

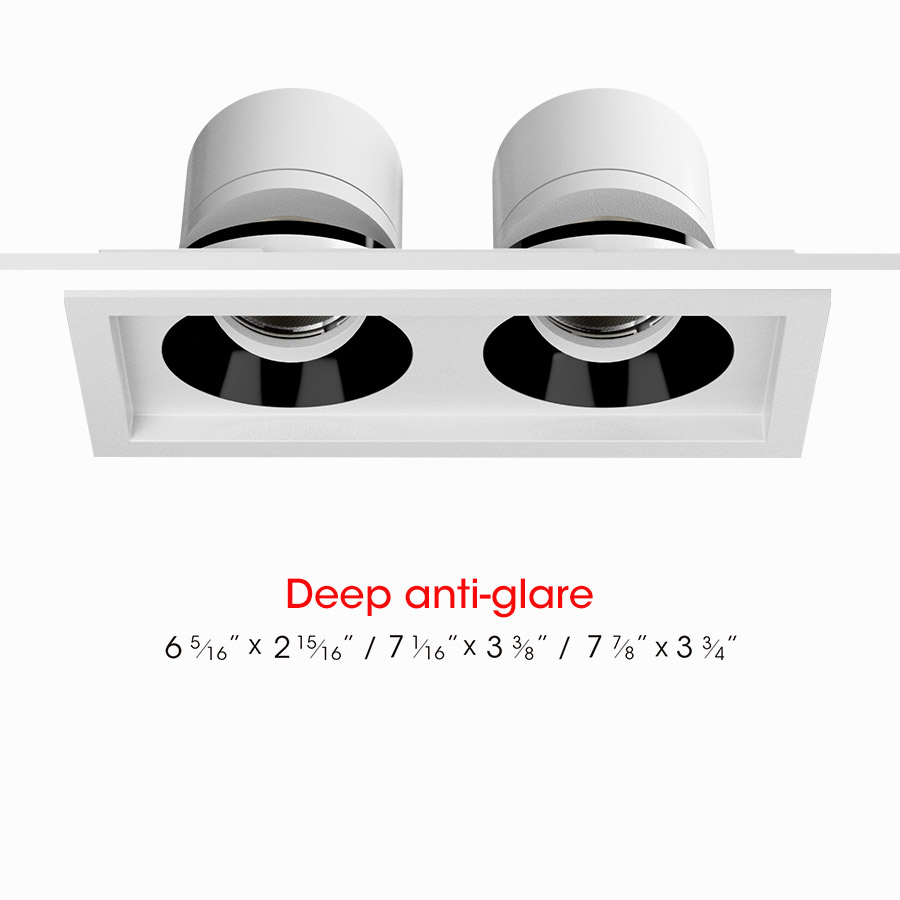

SECCO Series Downlight （Dual head） R1429/R1430/R1431

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1014 Product R1429 15° / 24° / 36° / 50° 2x6W 2x80 lm/W 2x480 lm 6 5/16'' * 2 15/16'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1430 15° / 24° / 36° / 50° 2x10W 2x80 lm/W 2x800 lm 7 1/16'' * 3 3/8'' 2700K-3000K-3500K-4000K-5000K >90 TYANSHINE COB ZenYuan ON/OFF TRIAC
R1014 Product R1431 15° / 24° / 36° / 50° 2x15W 2x80 lm/W 2x1200 lm 7 7/8'' * 3 3/4'' 2700K-3000K-3500K-4000K-5000K  >90 TYANSHINE COB ZenYuan ON/OFF TRIAC

Product Video

Share:

Features

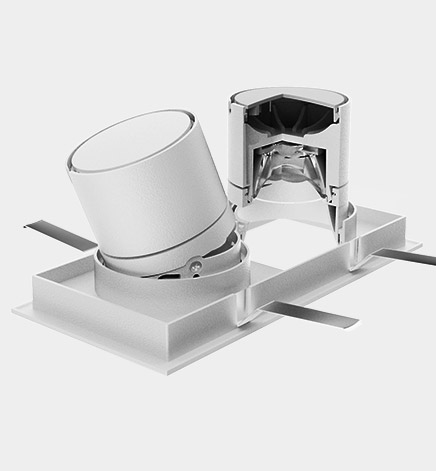

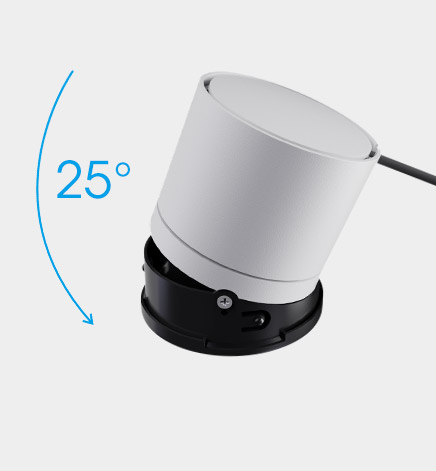

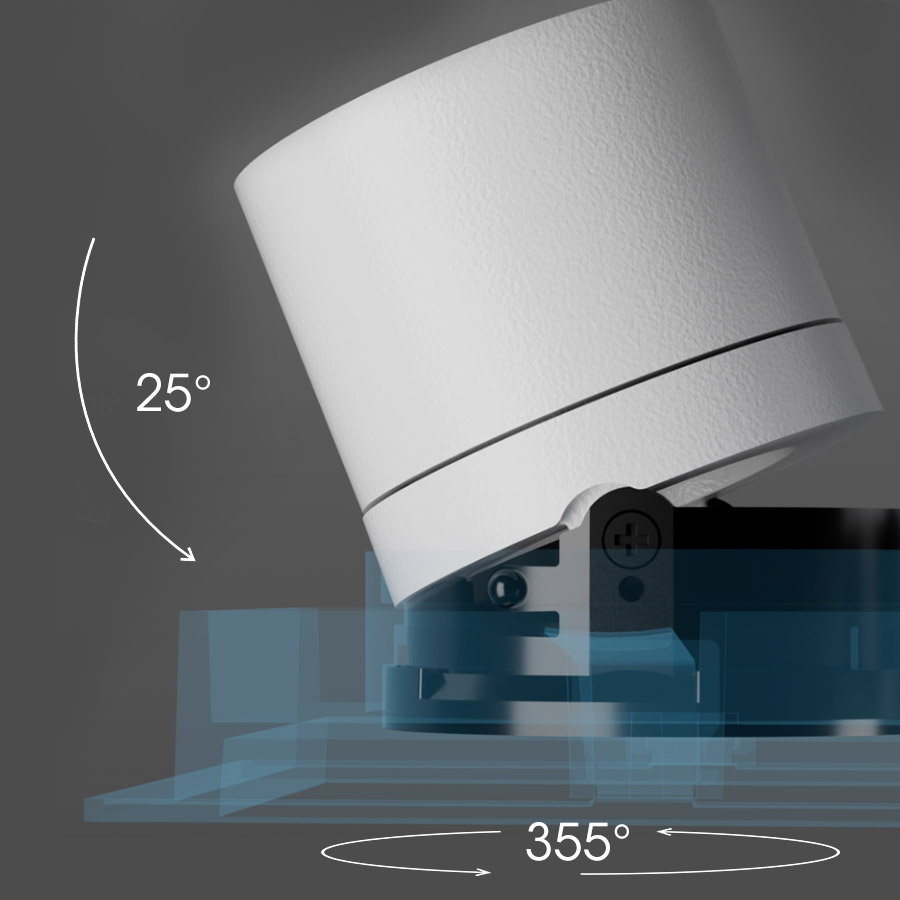

  • 25° swing

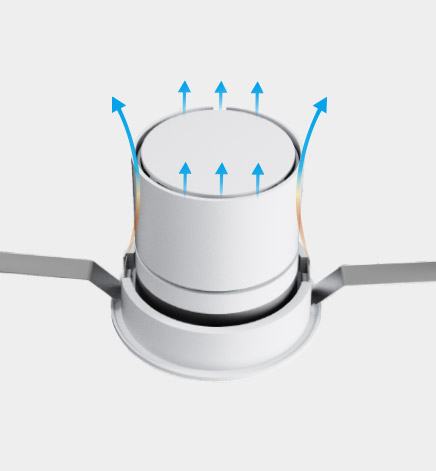

  • High efficiency heat dissipation

  • Structural improvement.

  • Modular design

Light effect

  • 15°Spot
  • 24°Flood
  • 36°Flood
  • 50°Wide flood

Application

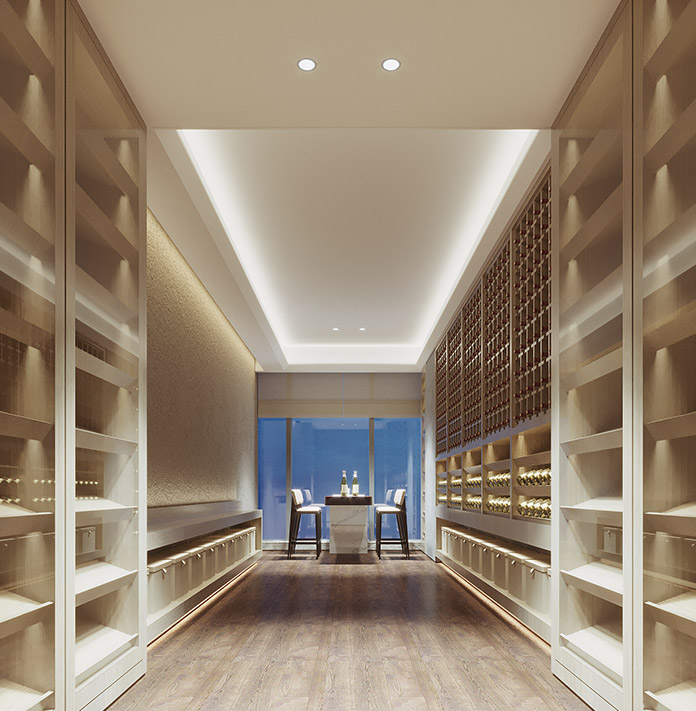

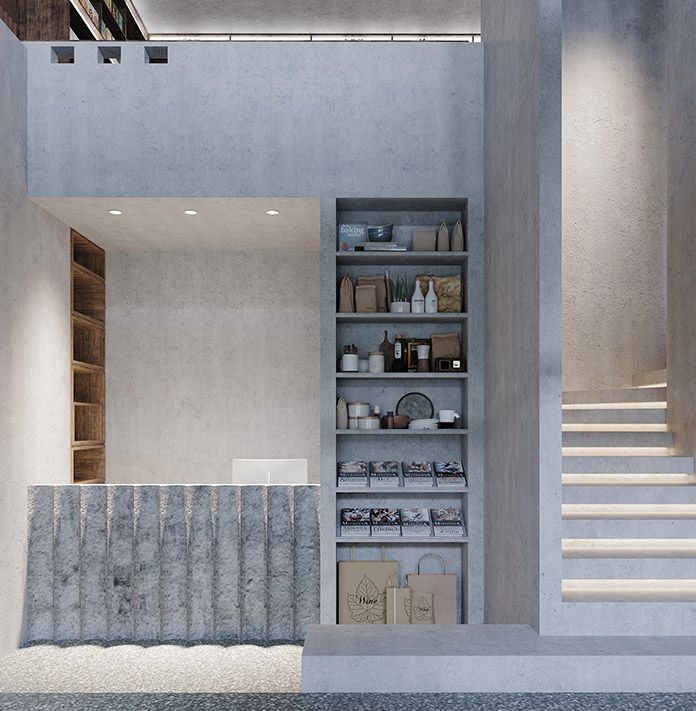

 Product application in Store Lighting, Mall Lighting

Mounting

SECCO Series Downlight （Fixted）

  • Install the track on the ceiling
  • Line up bottom edge of hanging bars with bottom of wood joist and hammer in tabs. Nail or screw hanging bars into place.
  • 3a-Position trim hole to desired location by sliding housing. Horizontally or Vertically.
    3b-Use centering holes on either side of base plate to line up a row of fixtures.
  • To hold housing in place,bend tab with pliers into hanging bar.
  • Cutting a ∅ 2 15/16'' hole on the ceiling.
  • Connect the input end of the driver with the power line.
  • Finally put the whole lamp into the pre-opened hole.
  • Installation complete.
SECCO Series Downlight （Square）

  • Install the track on the ceiling
  • Line up bottom edge of hanging bars with bottom of wood joist and hammer in tabs. Nail or screw hanging bars into place.
  • 3a-Position trim hole to desired location by sliding housing. Horizontally or Vertically.
    3b-Use centering holes on either side of base plate to line up a row of fixtures.
  • To hold housing in place,bend tab with pliers into hanging bar.
  • Cutting a 3 3/4'' X 3 3/4'' hole on the ceiling.
  • Connect the input end of the driver with the power line.
  • Finally put the whole lamp into the pre-opened hole.
  • Installation complete.
SECCO Series Downlight （Dual head）

  • Install the track on the ceiling
  • Line up bottom edge of hanging bars with bottom of wood joist and hammer in tabs. Nail or screw hanging bars into place.
  • 3a-Position trim hole to desired location by sliding housing. Horizontally or Vertically.
    3b-Use centering holes on either side of base plate to line up a row of fixtures.
  • To hold housing in place,bend tab with pliers into hanging bar.
  • Cutting a 7 7/8'' X 3 3/4'' hole on the ceiling.
  • Connect the input end of the driver with the power line.
  • Finally put the whole lamp into the pre-opened hole.
  • Installation complete.
