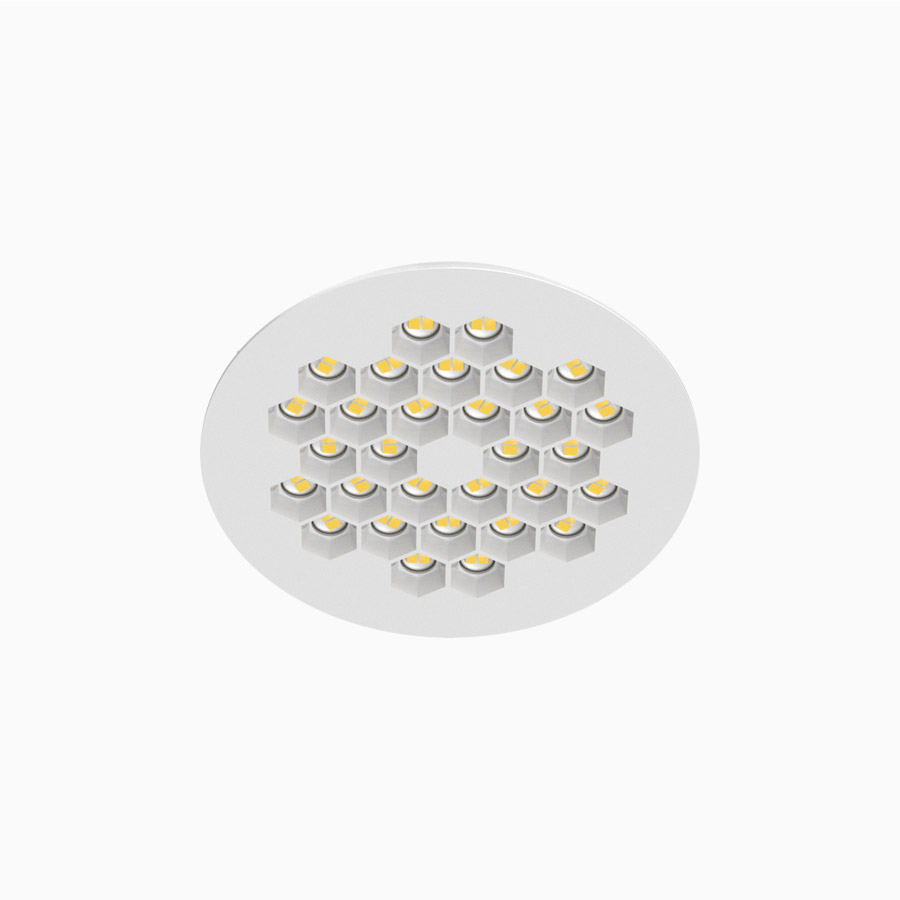

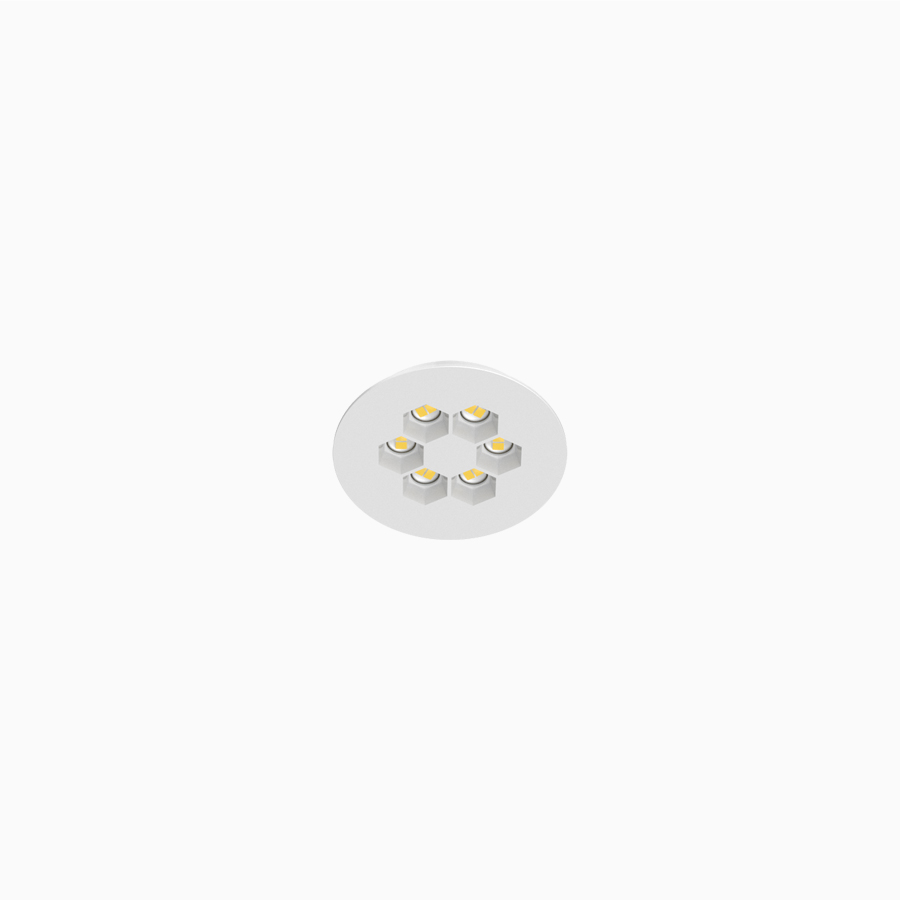

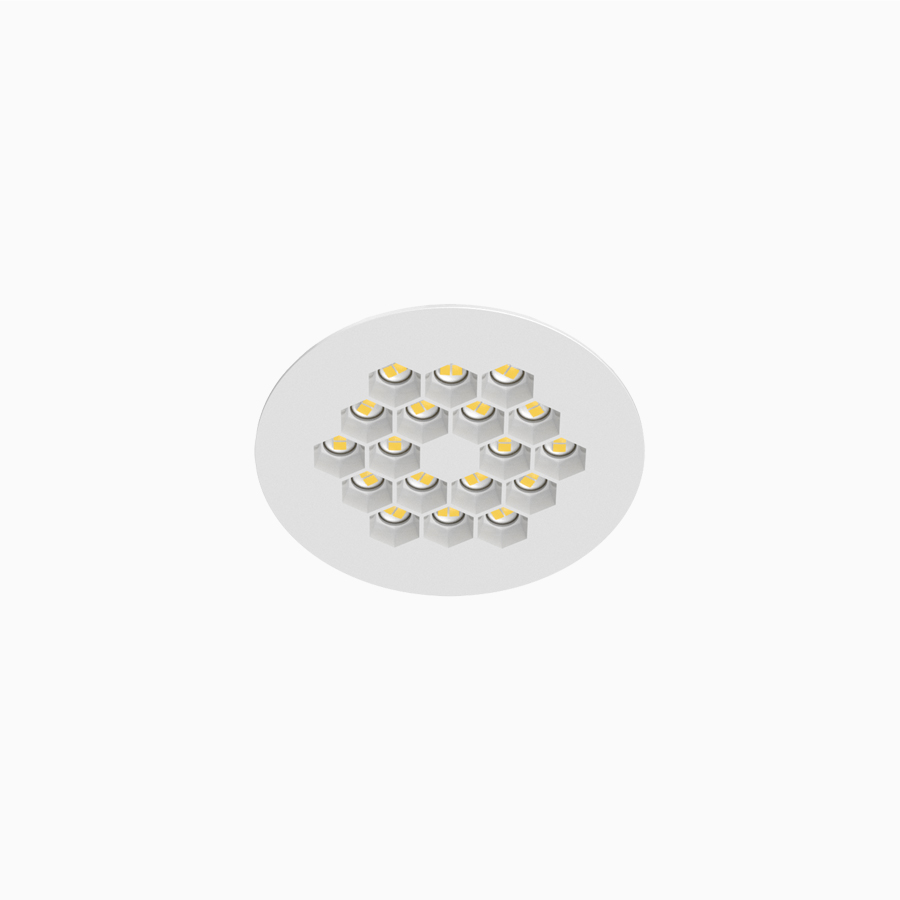

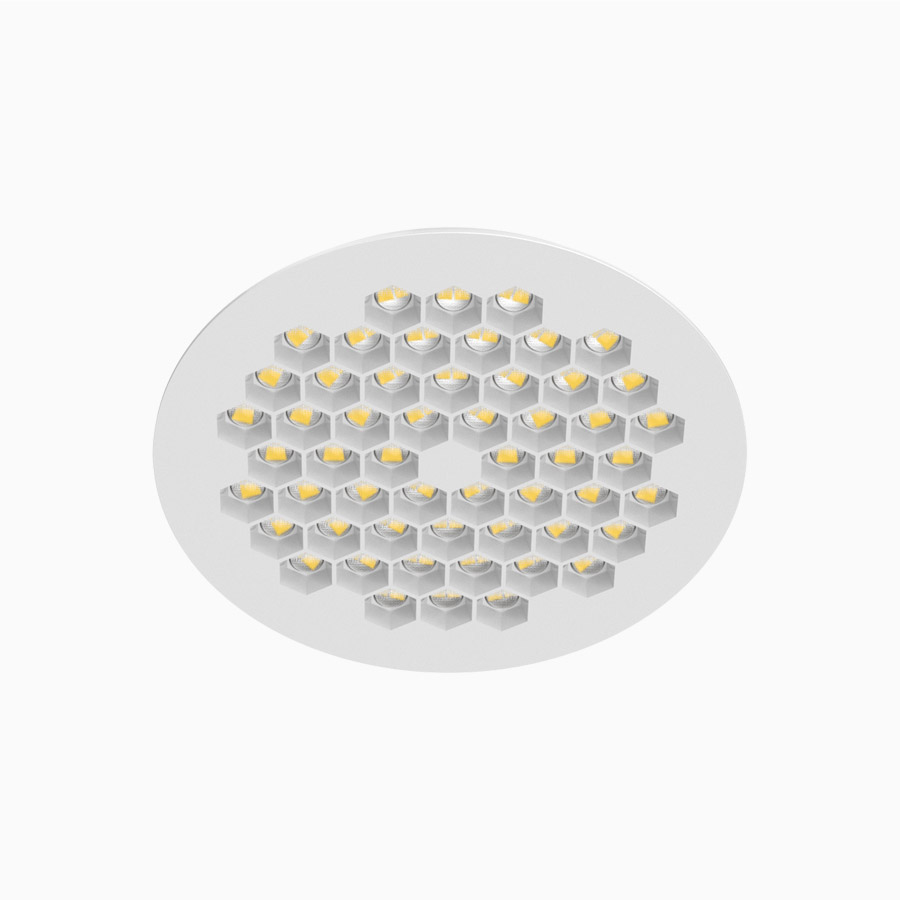

HEX Series Downlight R1644 / R1645 / R1646 / R1647

Item No	Max Power	Efficiency	Luminous Flux	CCT	Beam Angle	Ceiling cut out	CRI	COB	Drive	Control Method
R1644	6W	125lm/W	800LM	3000K/3500K/4000K	60°/80°	Ø75	>90	SMD	LEDTU	N/A
R1645	8W/10W/12W	150lm/W	1200/1500/1800LM	3000K/3500K/4000K	60°/80°	Ø115	>90	SMD	LEDTU	N/A
R1646	11W/13W/15W	150lm/W	1650/1950/2250LM	3000K/3500K/4000K	60°/80°	Ø135	>90	SMD	LEDTU	N/A
R1647	16W/18W/20W	155m/W	2480/2790/3100LM	3000K/3500K/4000K	60°/80°	Ø170	>90	SMD	LEDTU	N/A

HEX Series Downlight R1644-T / R1645-T / R1646-T / R1647-T

Item No	Max Power	Efficiency	Luminous Flux	CCT	Beam Angle	Ceiling cut out	CRI	COB	Drive	Control Method
R1644-T	6W	125lm/W	800LM	3000K-3500K-4000K	60°/80°	Ø75	>90	SMD	LEDTU	N/A
R1645-T	8W/10W/12W	150lm/W	1200/1500/1800LM	3000K-3500K-4000K	60°/80°	Ø115	>90	SMD	LEDTU	N/A
R1646-T	11W/13W/15W	150lm/W	1650/1950/2250LM	3000K-3500K-4000K	60°/80°	Ø135	>90	SMD	LEDTU	N/A
R1647-T	16W/18W/20W	155m/W	2480/2790/3100LM	3000K-3500K-4000K	60°/80°	Ø170	>90	SMD	LEDTU	N/A

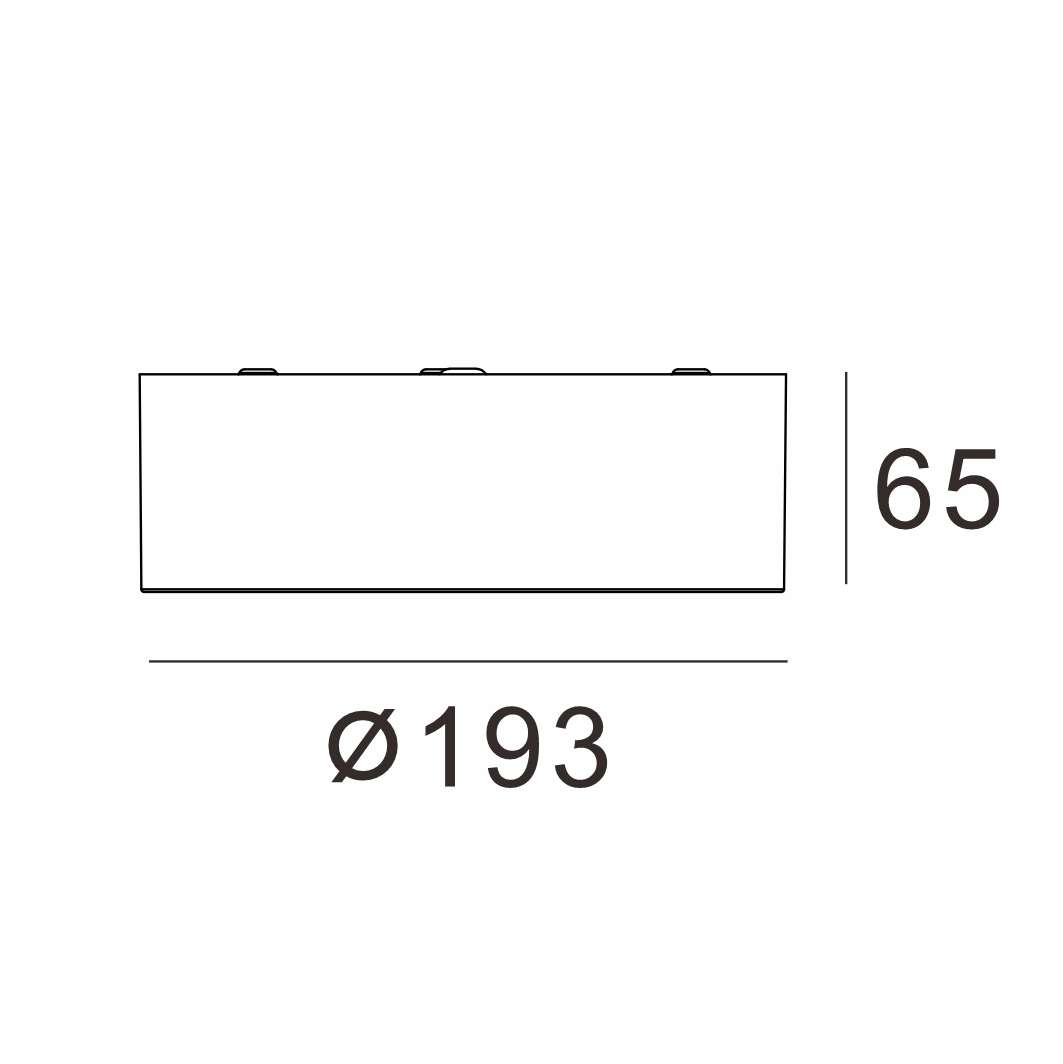

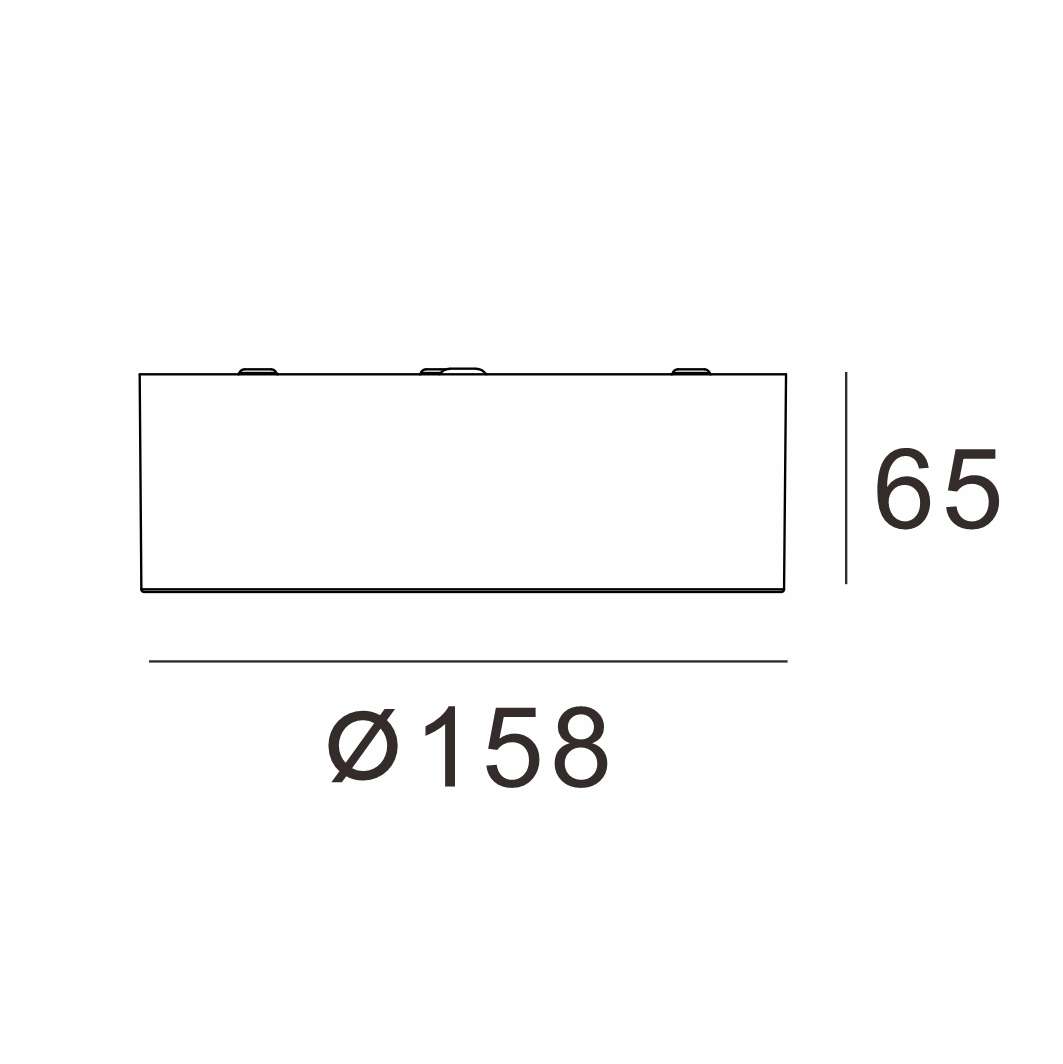

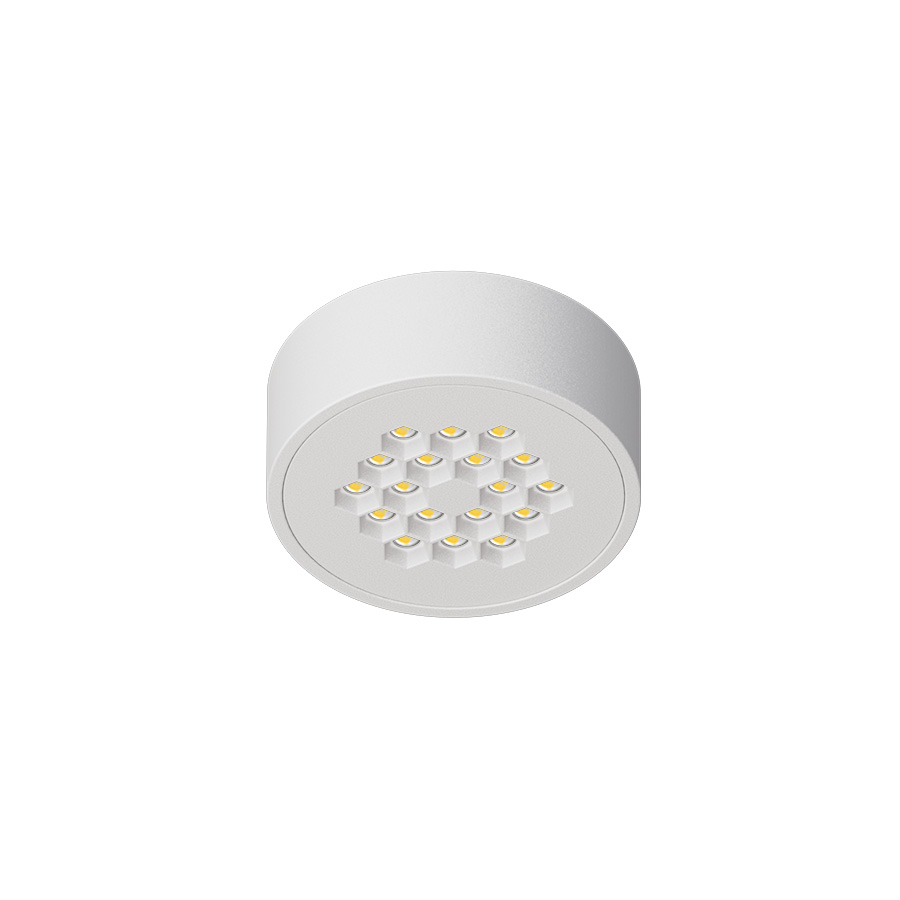

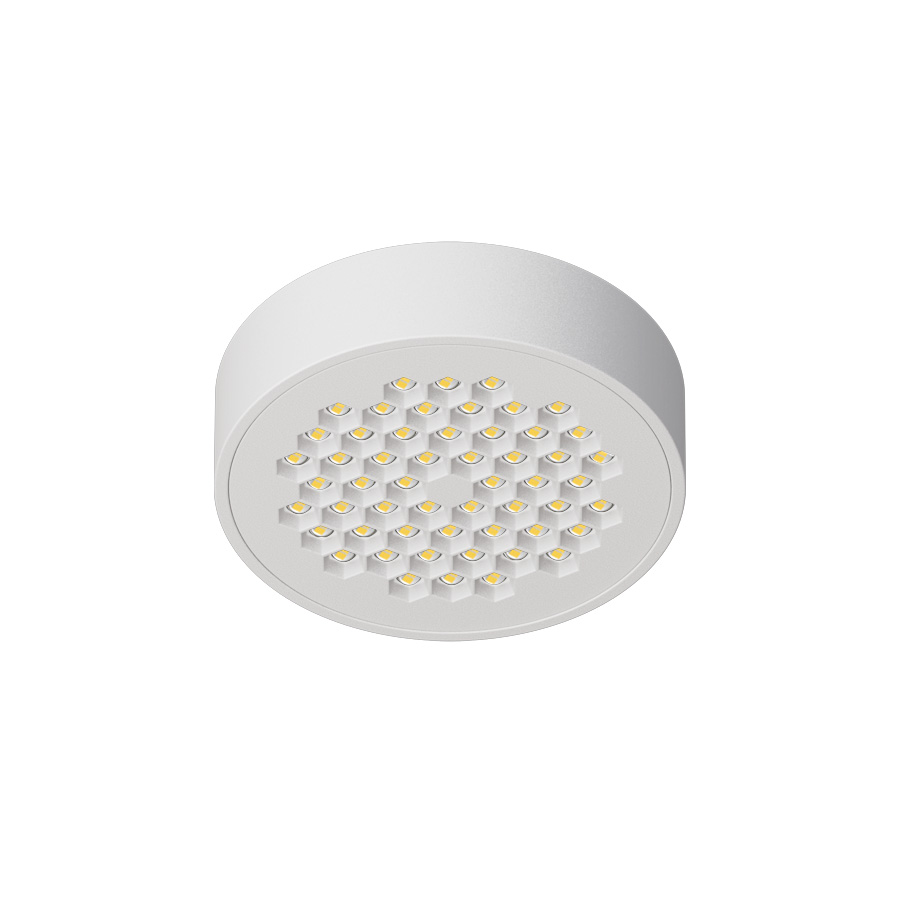

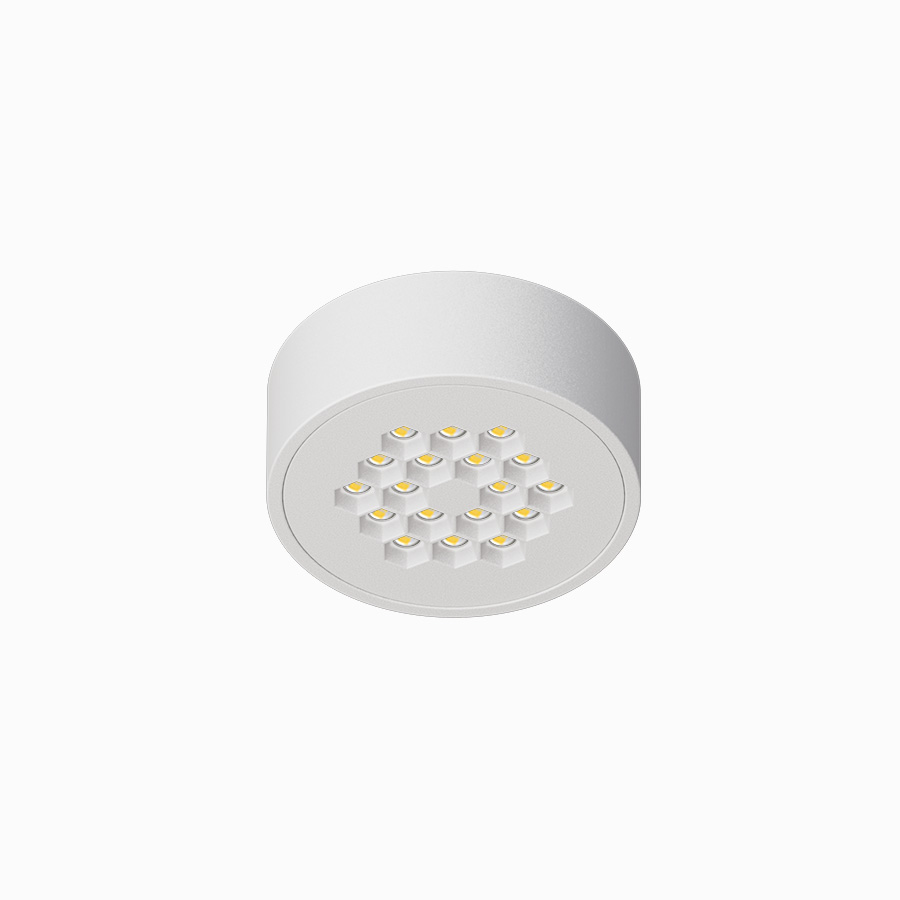

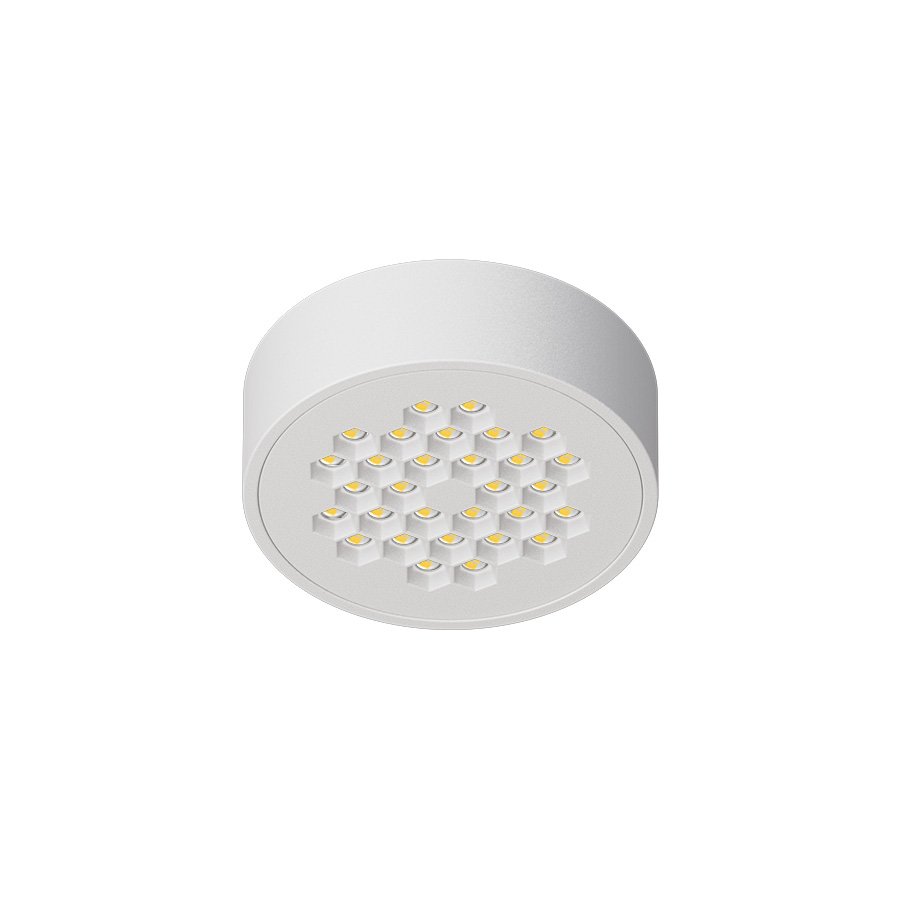

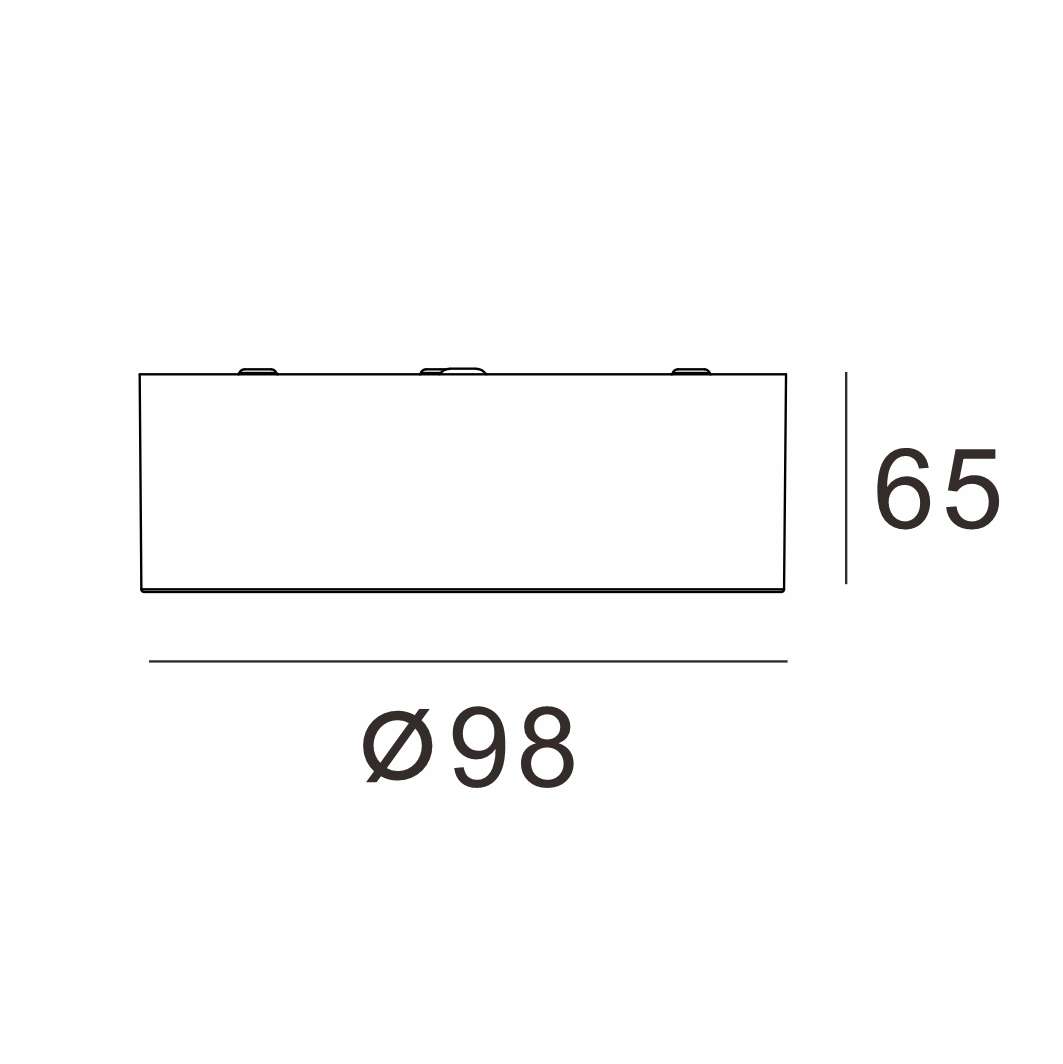

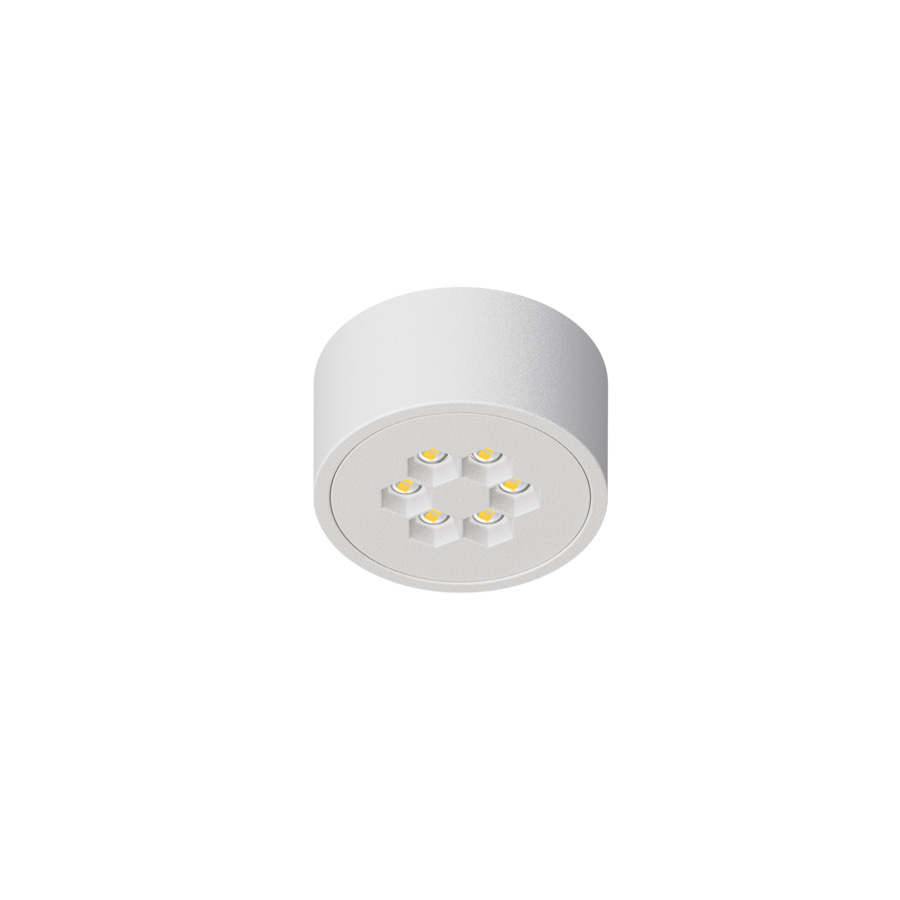

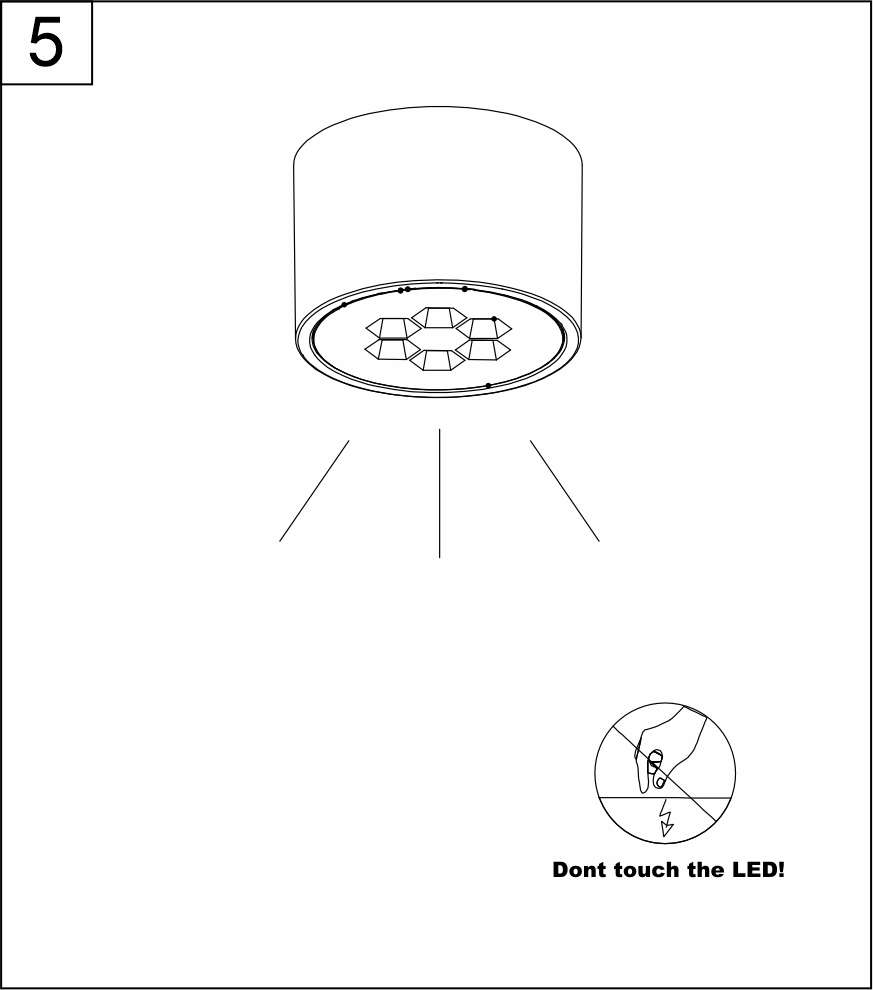

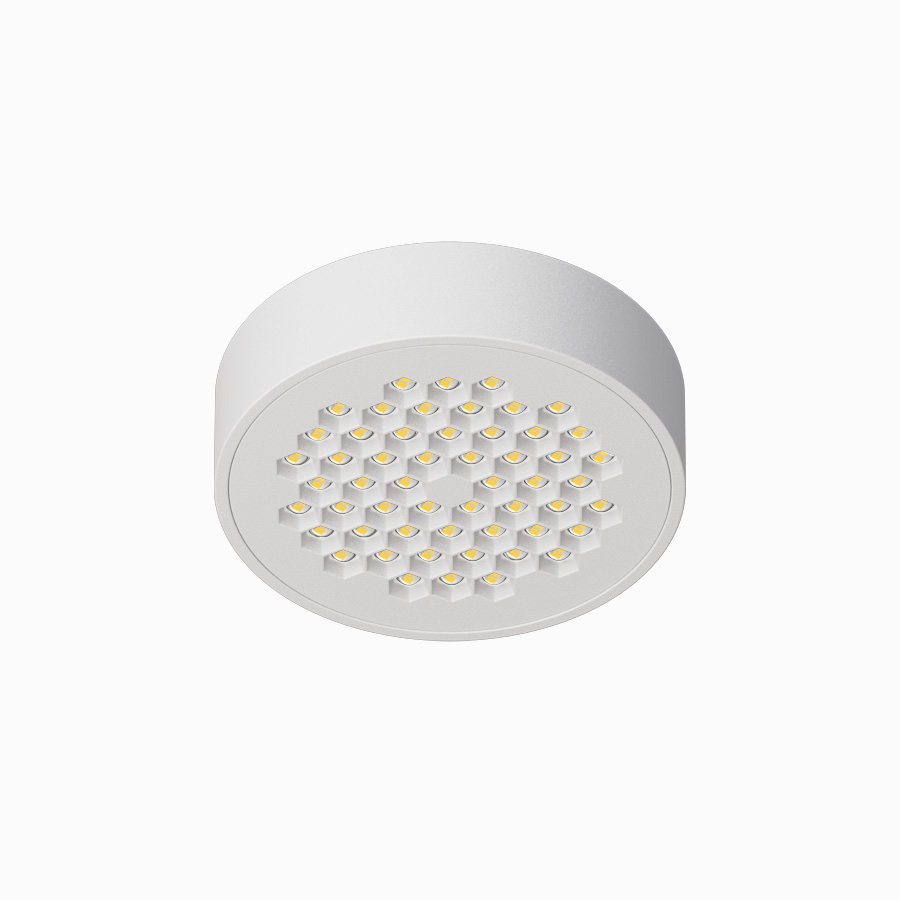

HEX Series Surface Mounted Downlight PL1021 / PL1022 / PL1023 / PL1024

Item No	Max Power	Efficiency	Luminous Flux	CCT	Beam Angle	CRI	COB	Drive	Control Method
PL1021	6W	125lm/W	800LM	3000K/4000K/5000K	60°/80°	>90	SMD	KGP	N/A
PL1022	8W/10W/12W	150lm/W	1200/1500/1800LM	3000K/4000K/5000K	60°/80°	>90	SMD	LEDTU	N/A
PL1023	11W/13W/15W	150lm/W	1650/1950/2250LM	3000K/4000K/5000K	60°/80°	>90	SMD	LEDTU	N/A
PL1024	16W/18W/20W	155m/W	2480/2790/3100LM	3000K/4000K/5000K	60°/80°	>90	SMD	LEDTU	N/A

HEX Series Surface Mounted Downlight PL1021-T / PL1022-T / PL1023-T / PL1024-T

Item No	Max Power	Efficiency	Luminous Flux	CCT	Beam Angle	CRI	COB	Drive	Control Method
PL1021-T	6W	125lm/W	800LM	3000K-3500K-4000K	60°/80°	>90	SMD	KGP	N/A
PL1022-T	8W/10W/12W	150lm/W	1200/1500/1800LM	3000K-3500K-4000K	60°/80°	>90	SMD	LEDTU	N/A
PL1023-T	11W/13W/15W	150lm/W	1650/1950/2250LM	3000K-3500K-4000K	60°/80°	>90	SMD	LEDTU	N/A
PL1024-T	16W/18W/20W	155m/W	2480/2790/3100LM	3000K-3500K-4000K	60°/80°	>90	SMD	LEDTU	N/A

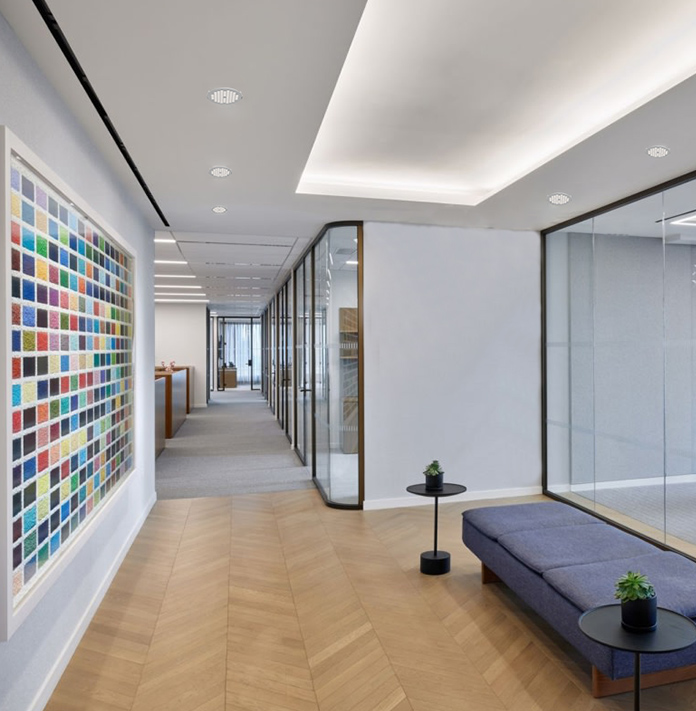

Product application in Store Lighting, Mall Lighting
