Description

  • Up to 120lm/W,savings of up to 35% are possible.
  • High performance refector,LOR 96%.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

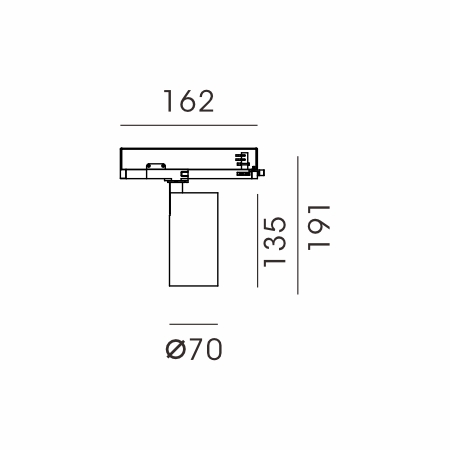

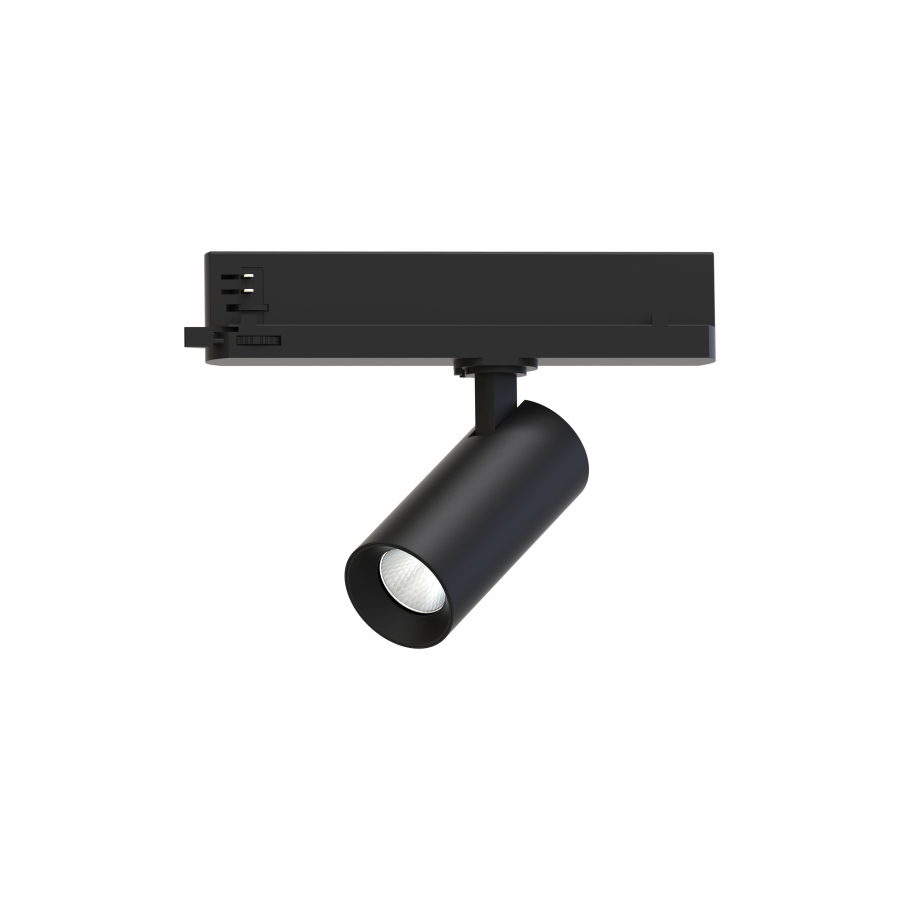

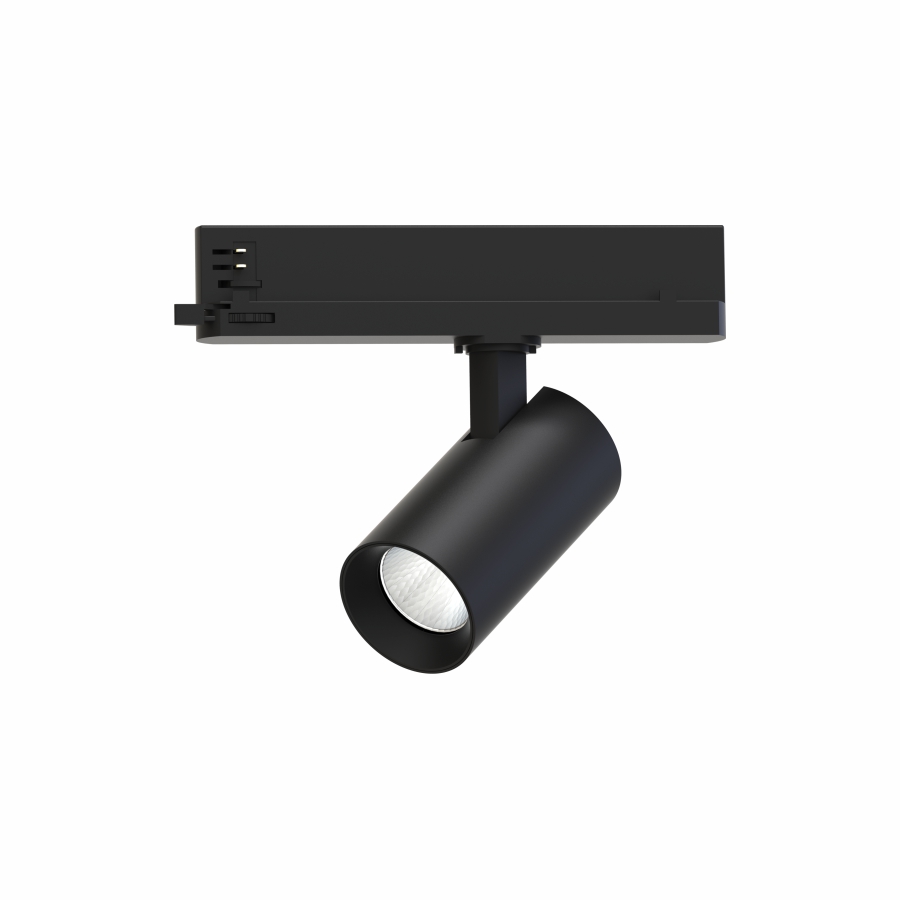

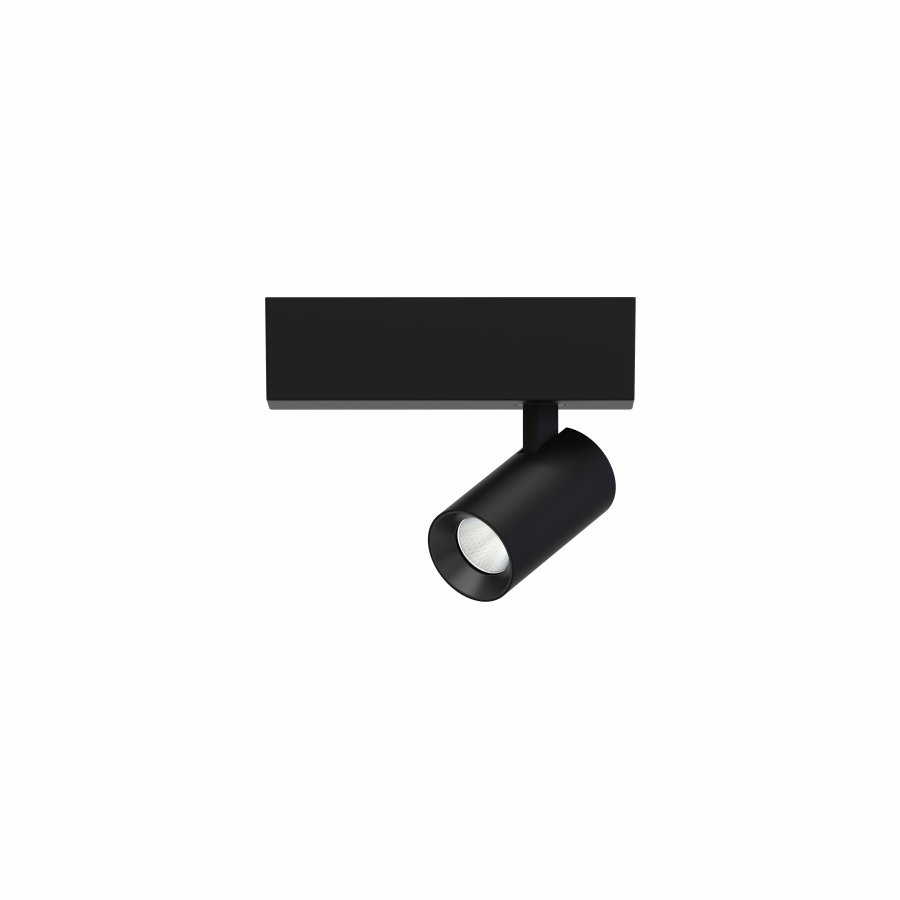

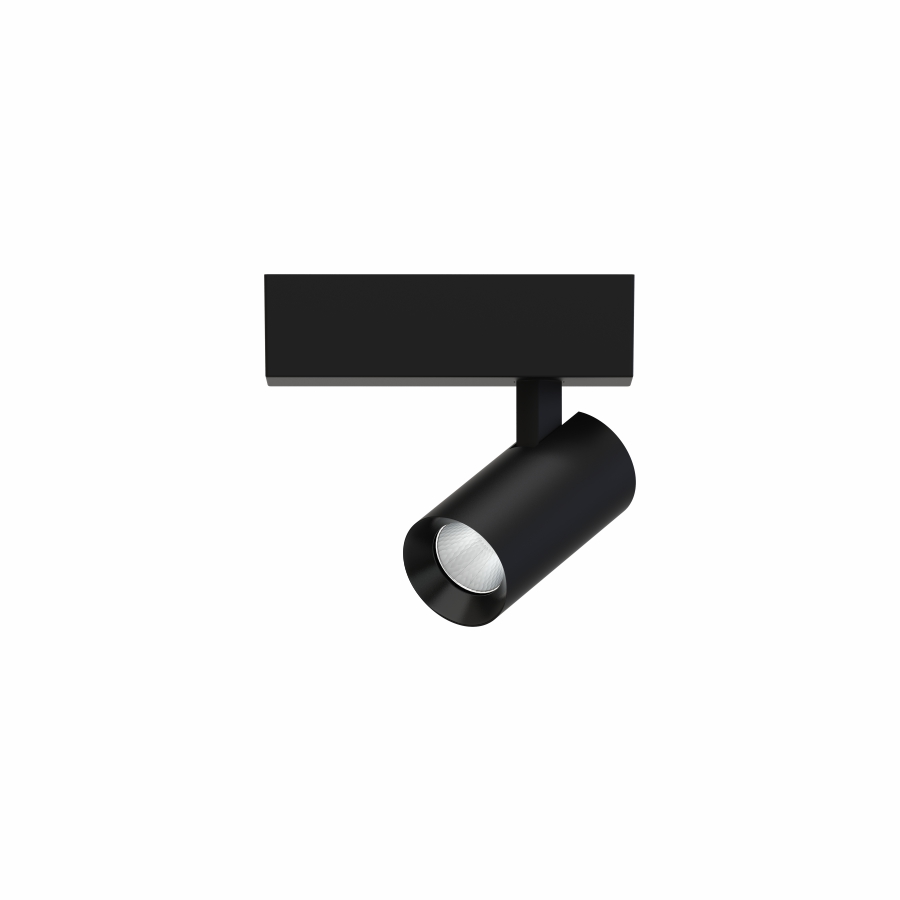

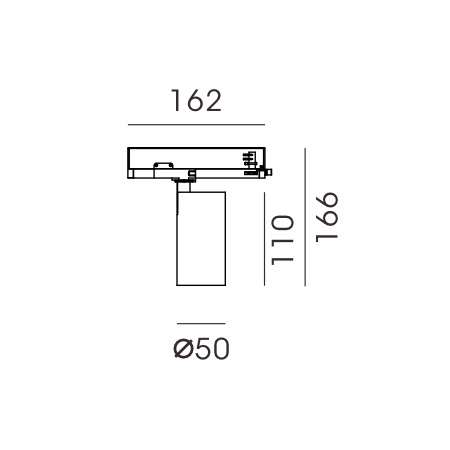

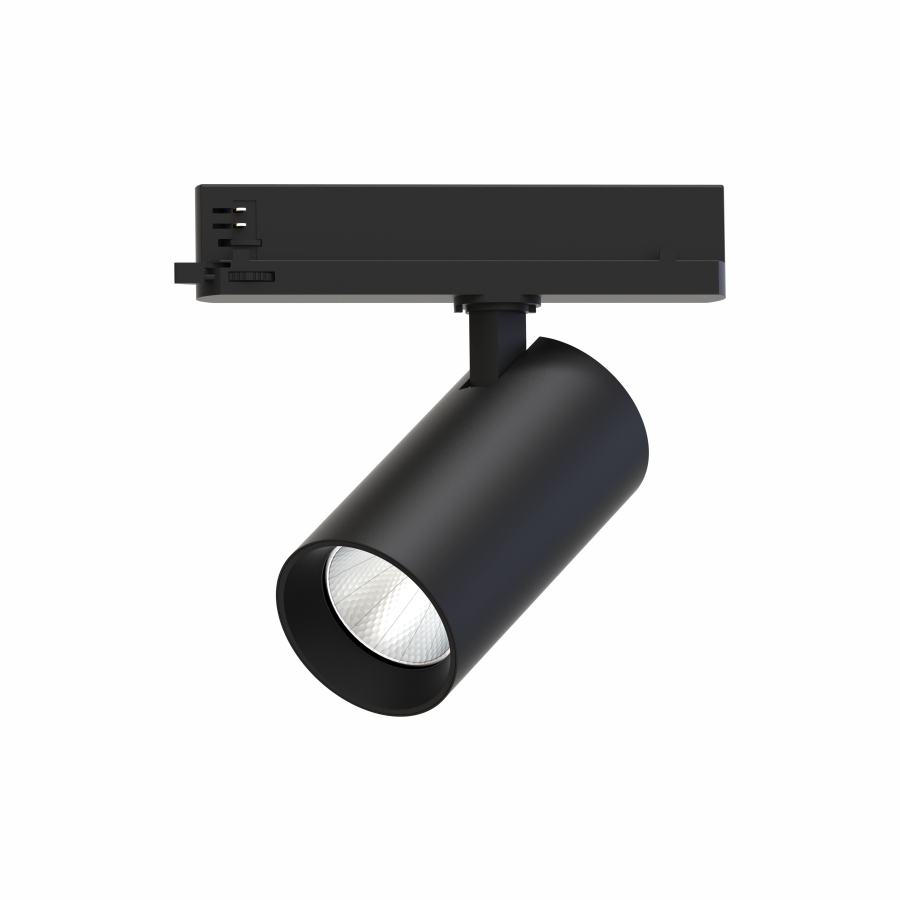

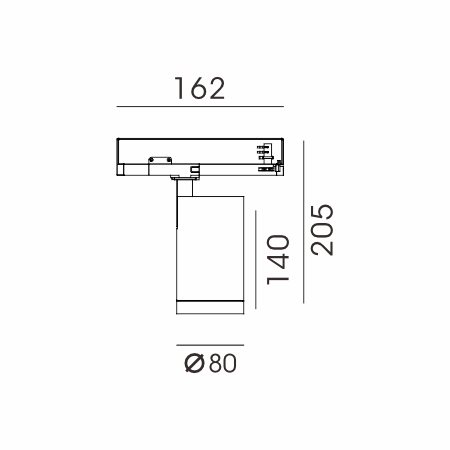

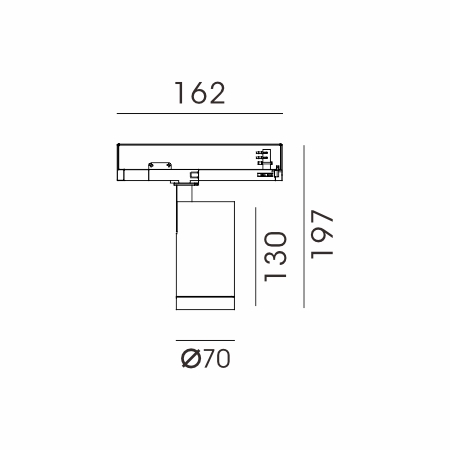

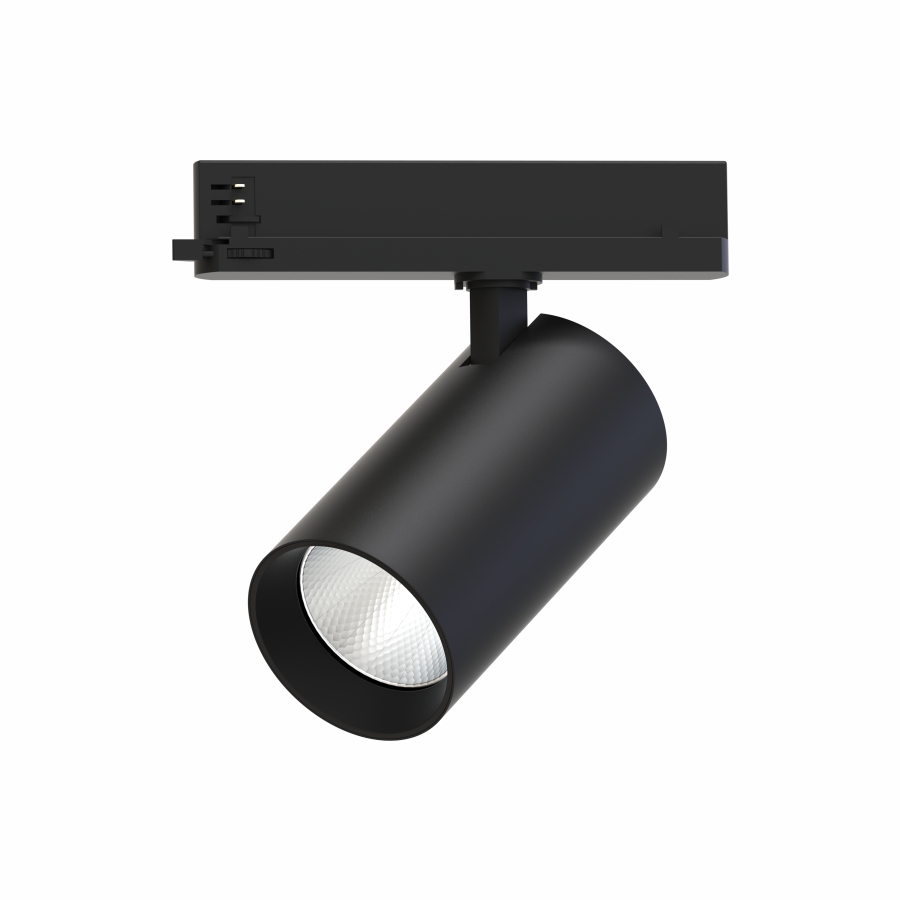

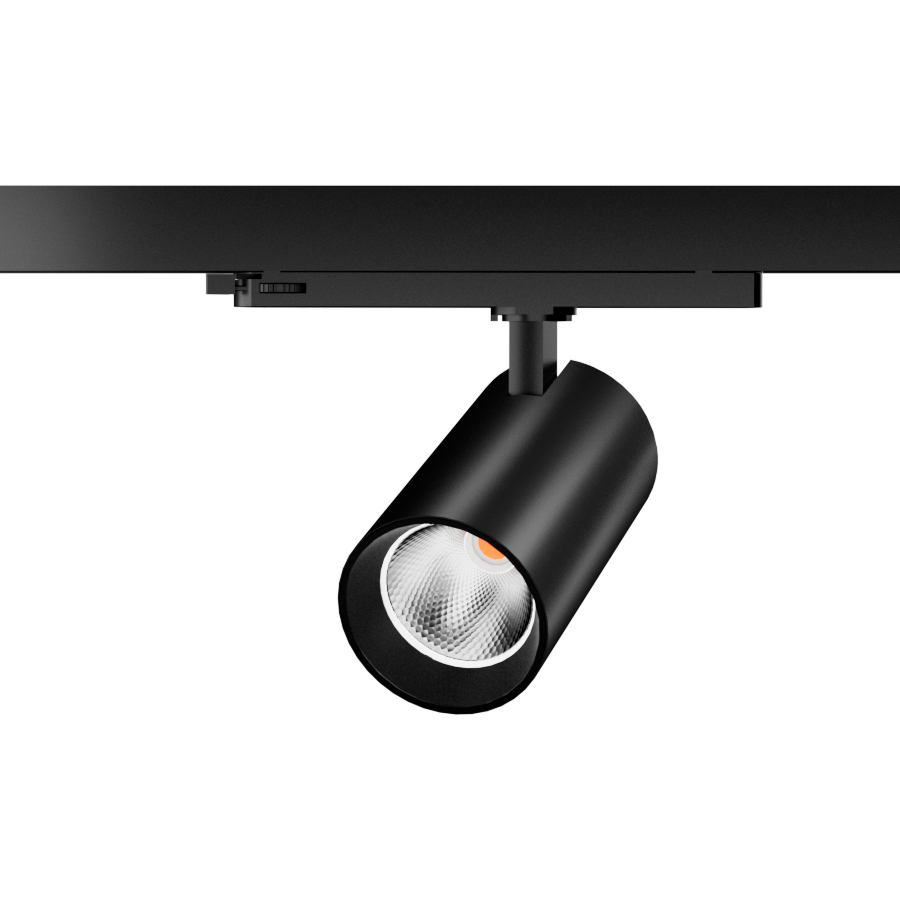

PRO Series Track Light T1233 / T1155 / T1156 / T1157 / T1158

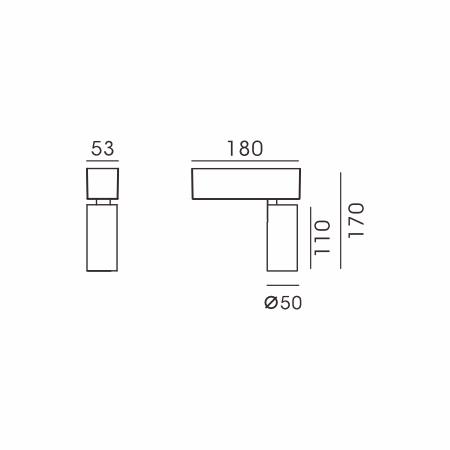

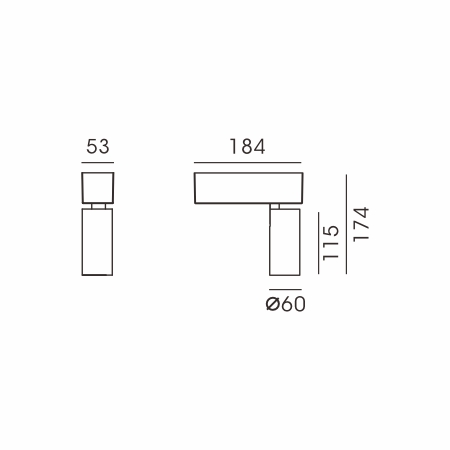

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product T1233 18° / 26° / 38° / 45° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1155 18° / 26° / 38° / 45° 15W 125 lm/W 1900 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1156 18° / 26° / 38° / 45° 20W 125 lm/W 2300 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1157 18° / 26° / 38° / 45° 28W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1158 18° / 26° / 38° / 45° 40W 125 lm/W 5000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

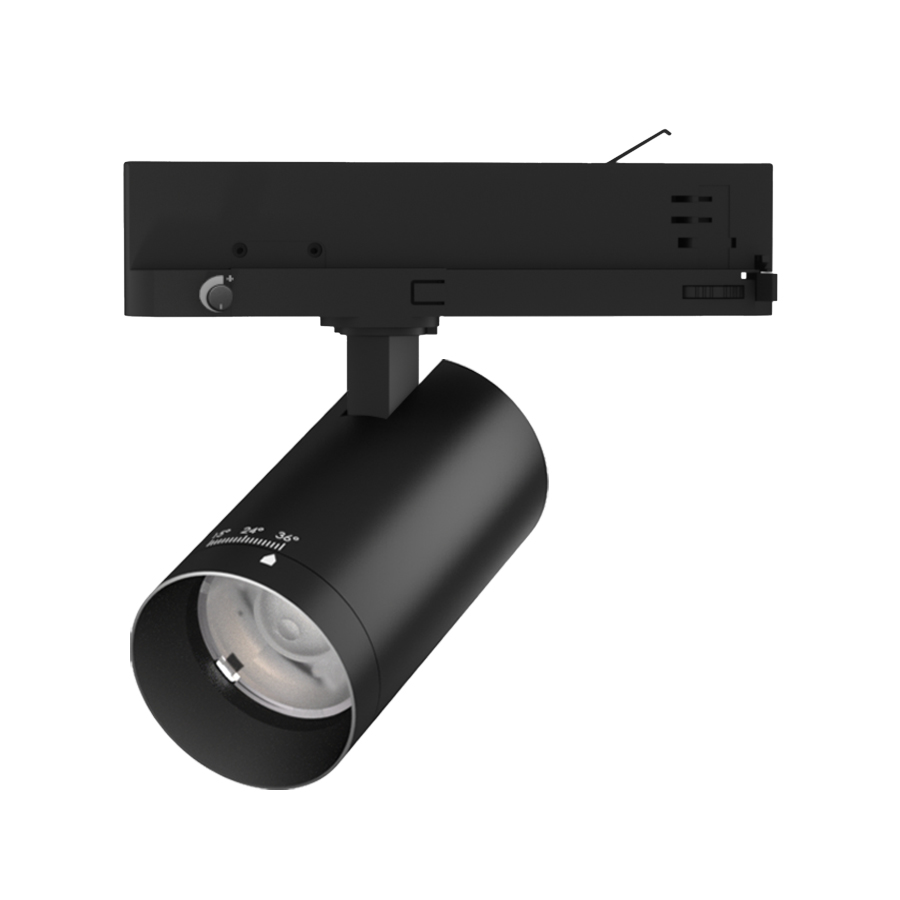

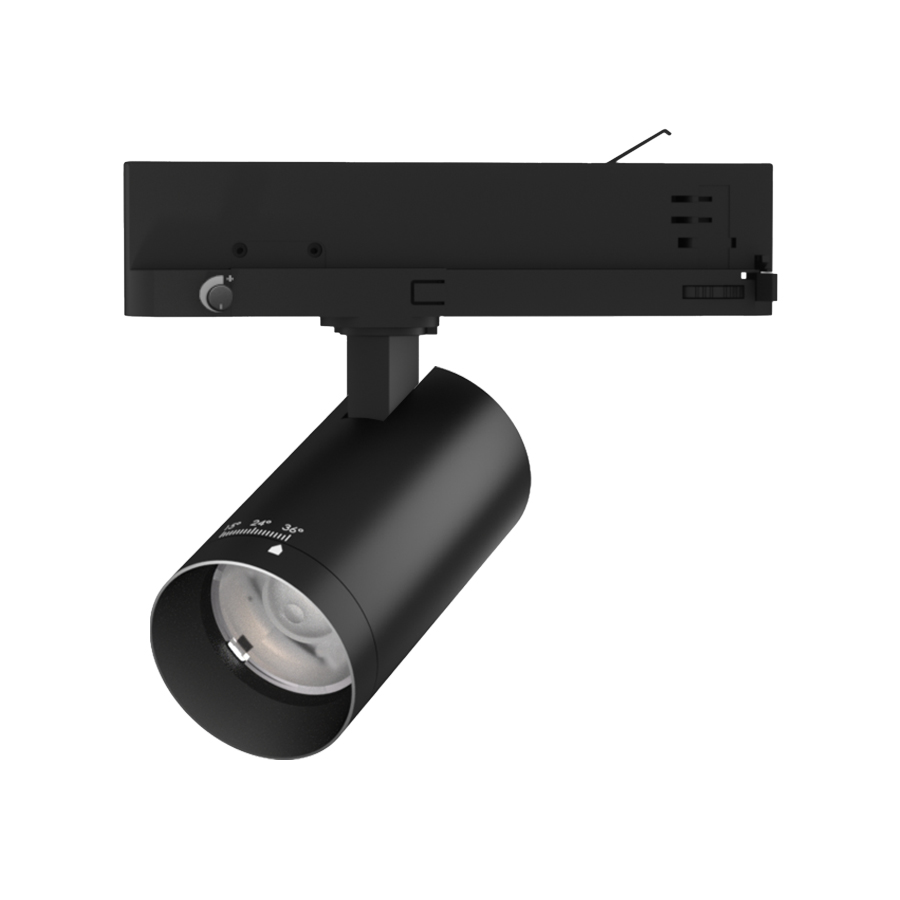

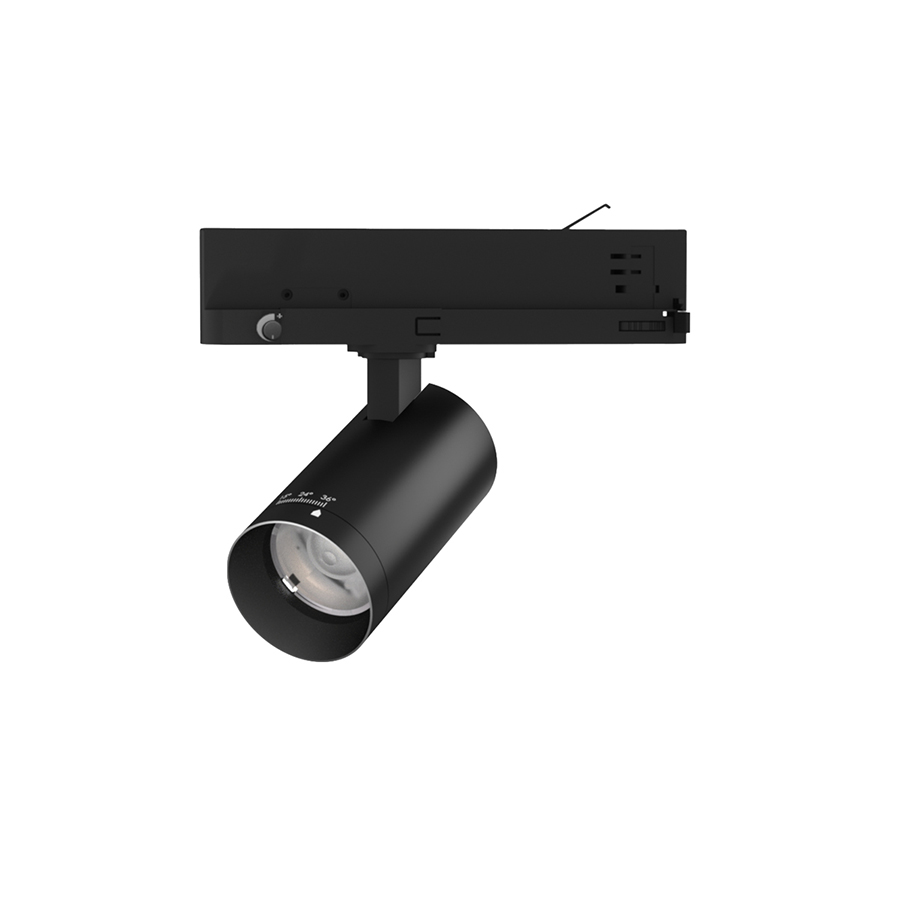

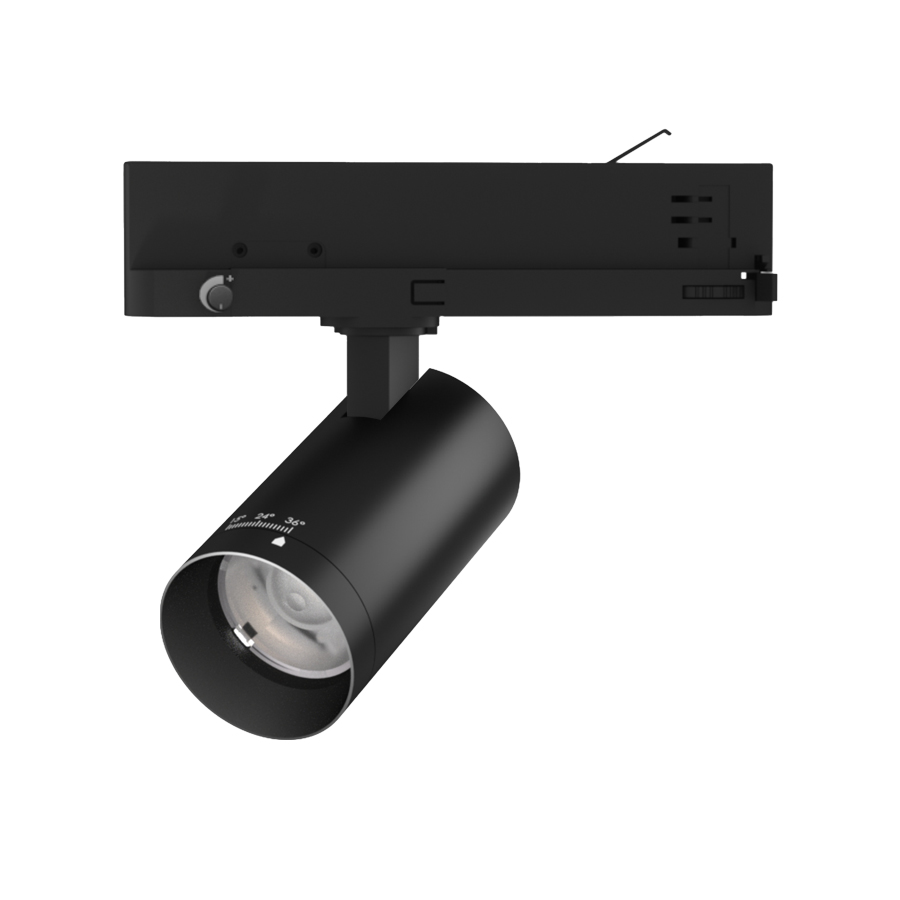

PRO Series Track Light T1155-ZOOM / T1156-ZOOM / T1157-ZOOM / T1158-ZOOM

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product T1155-ZOOM 16° - 36° 10W 120 lm/W 1200 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1156-ZOOM 16° - 36° 15W 113lm/W 1700 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1157-ZOOM 16° - 36° 20W 120lm/W 2400 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product T1158-ZOOM 16° - 36° 28W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

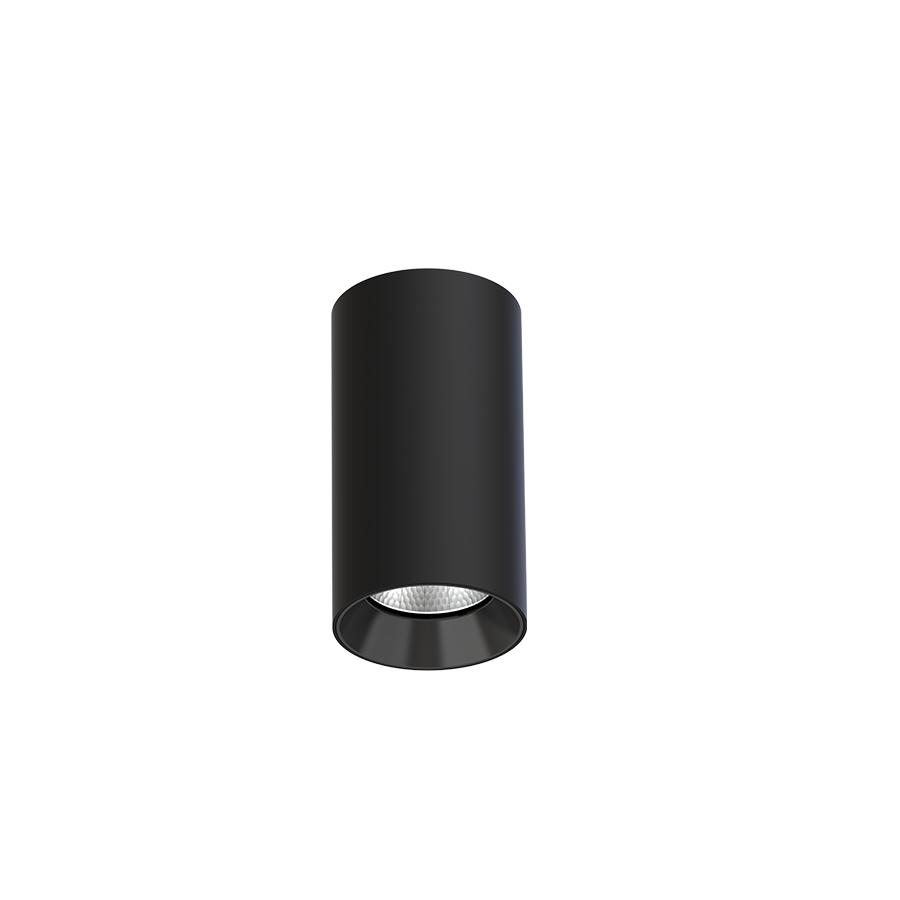

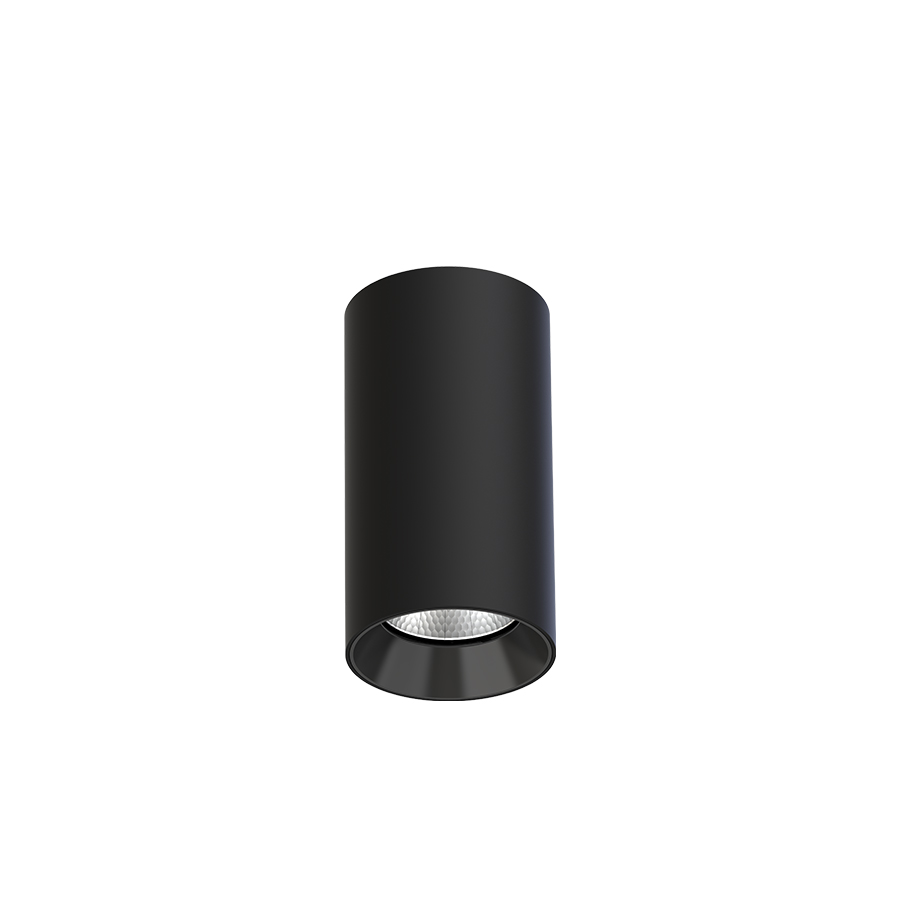

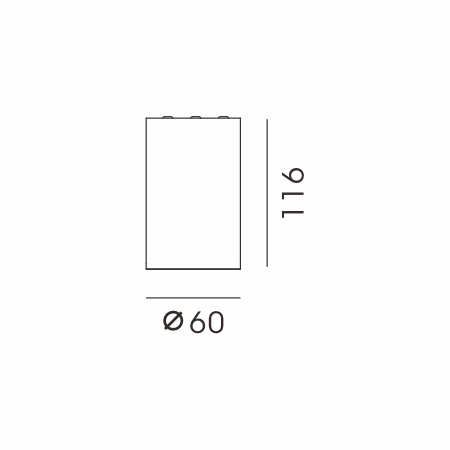

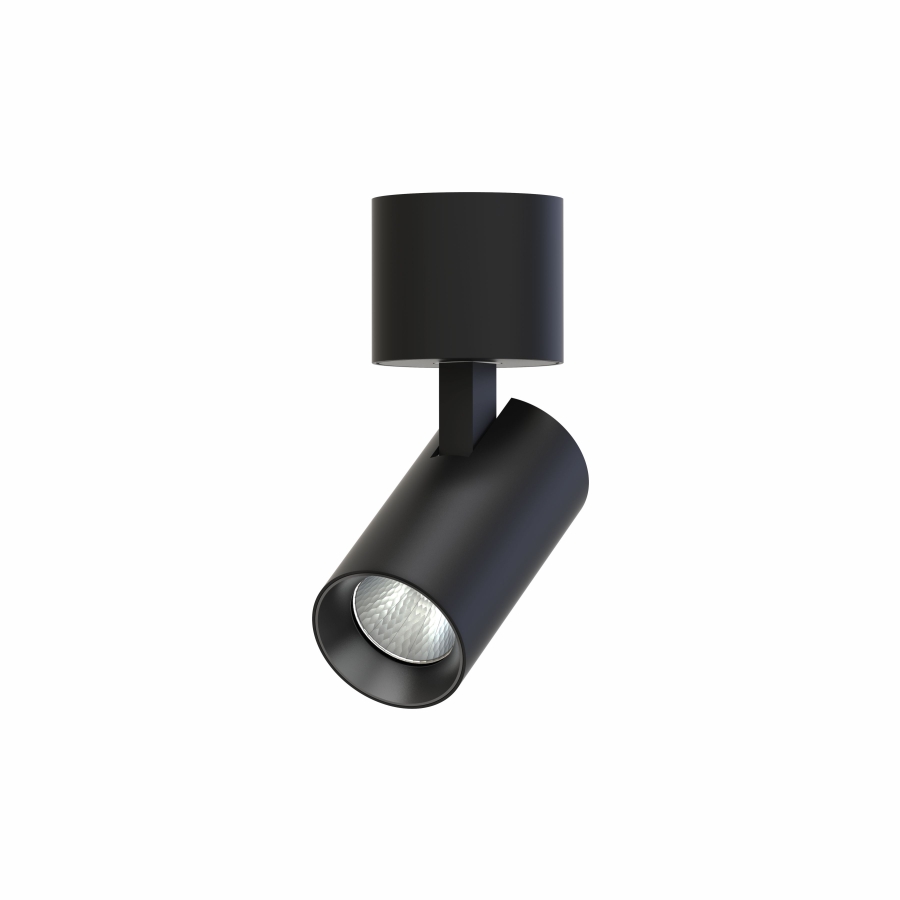

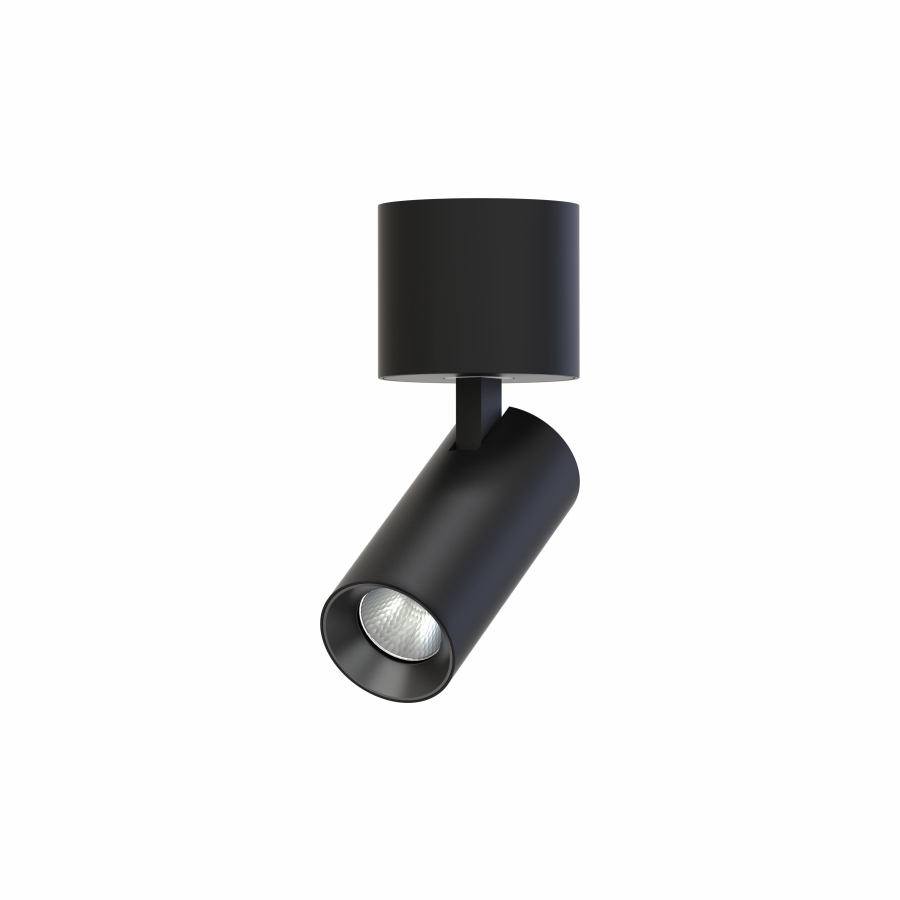

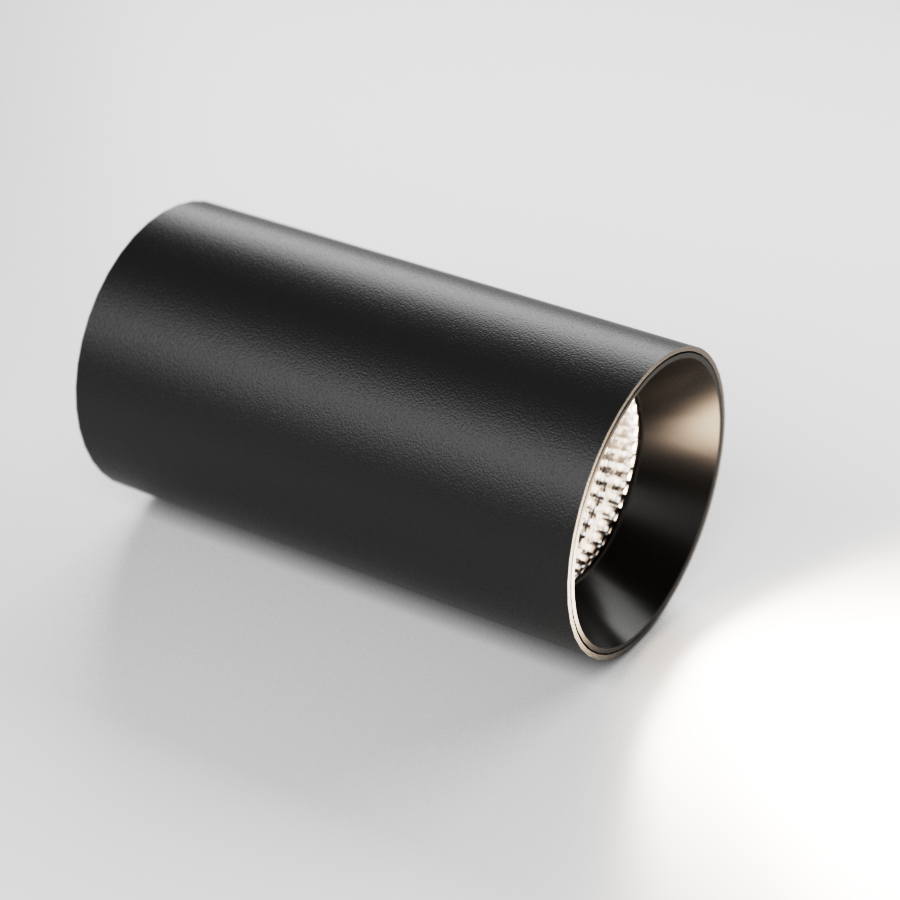

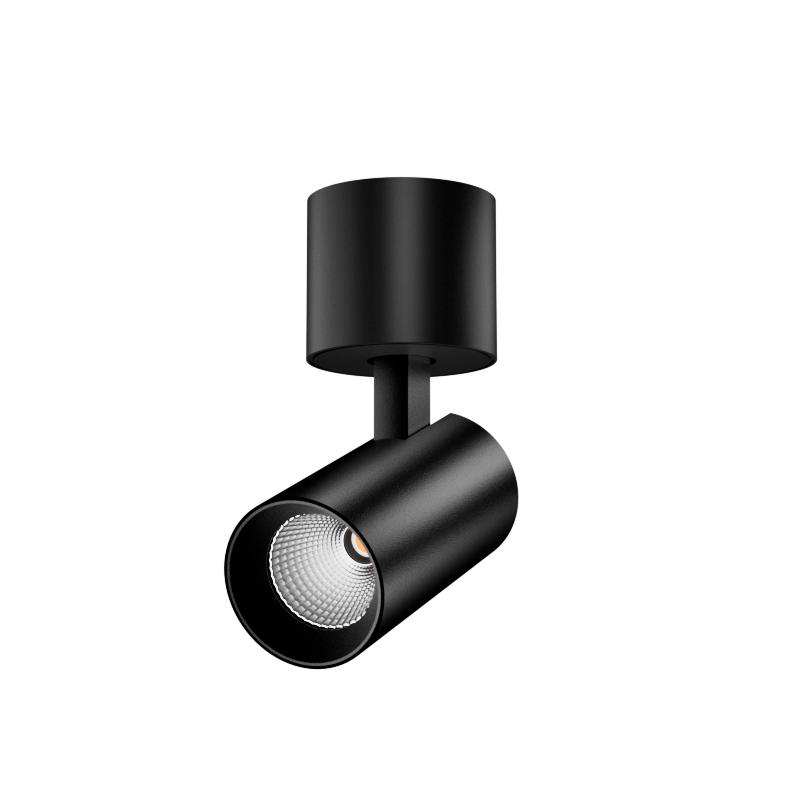

PRO Surface Mounted / Spot D1303 / D1304 / D1305 / D1306 / D1307

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product D1303 18° / 26° / 38° / 45° 8W 120 lm/W 1200 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1304 18° / 26° / 38° / 45° 15W 113lm/W 1700 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1305 18° / 26° / 38° / 45° 20W 120lm/W 2400 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1306 18° / 26° / 38° / 45° 28W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1307 18° / 26° / 38° / 45° 36W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

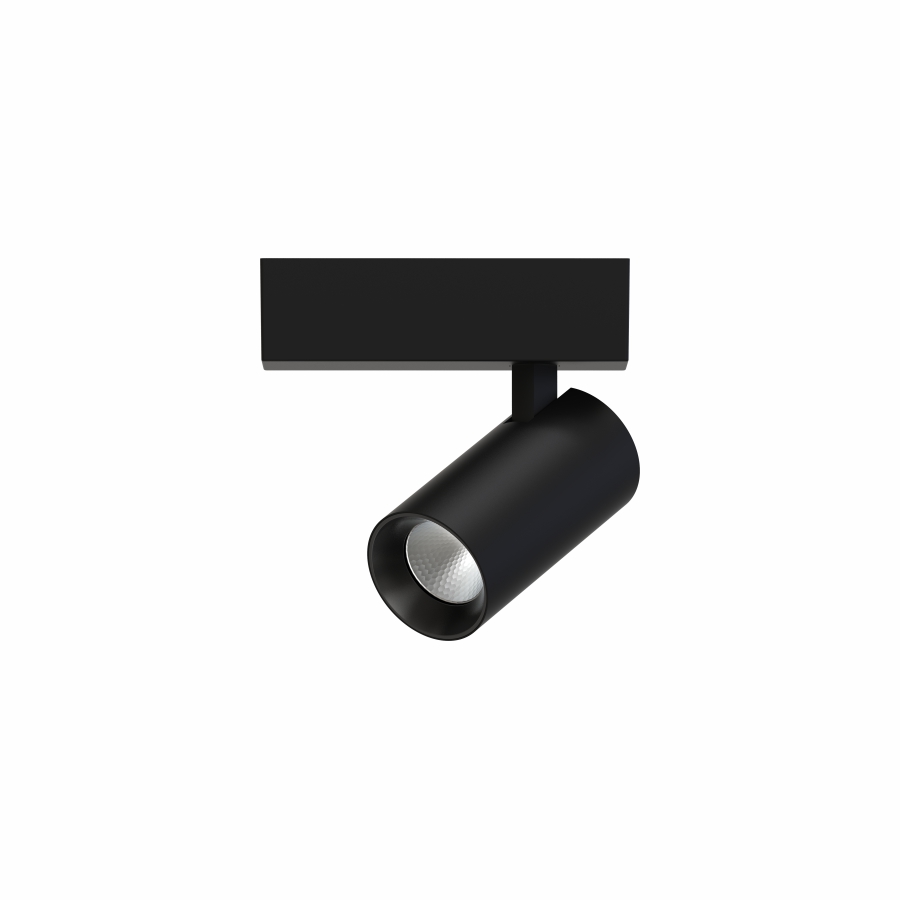

PRO Series Track Light D1308 / D1309 / D1310 / D1311

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product D1308 18° / 26° / 38° / 45° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1309 18° / 26° / 38° / 45° 12W 133lm/W 1600 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1310 18° / 26° / 38° / 45° 15W 126lm/W 1900 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1311 18° / 26° / 38° / 45° 20W 130 lm/W 2600 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

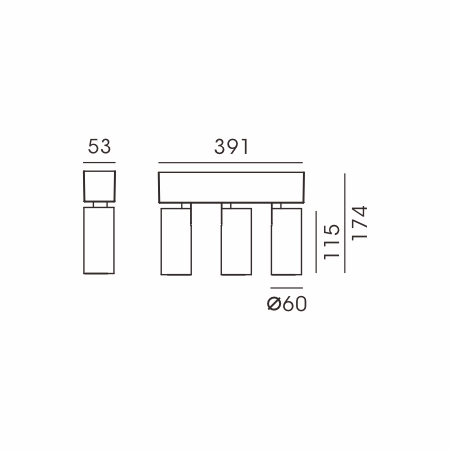

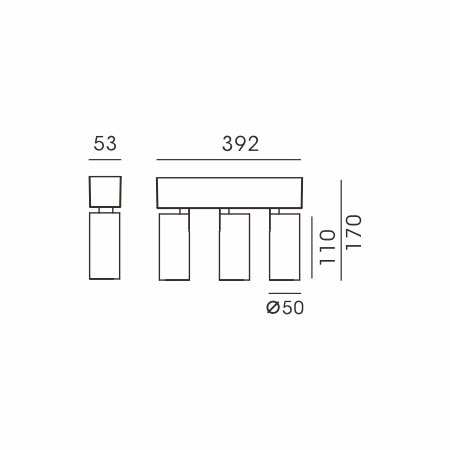

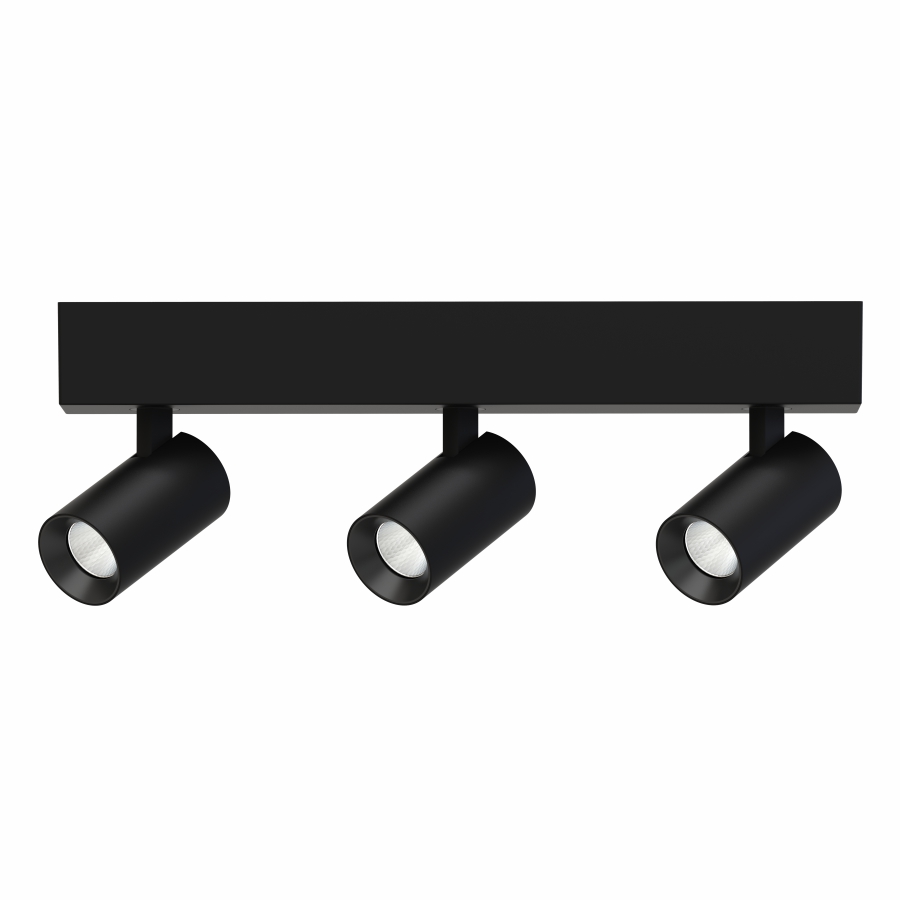

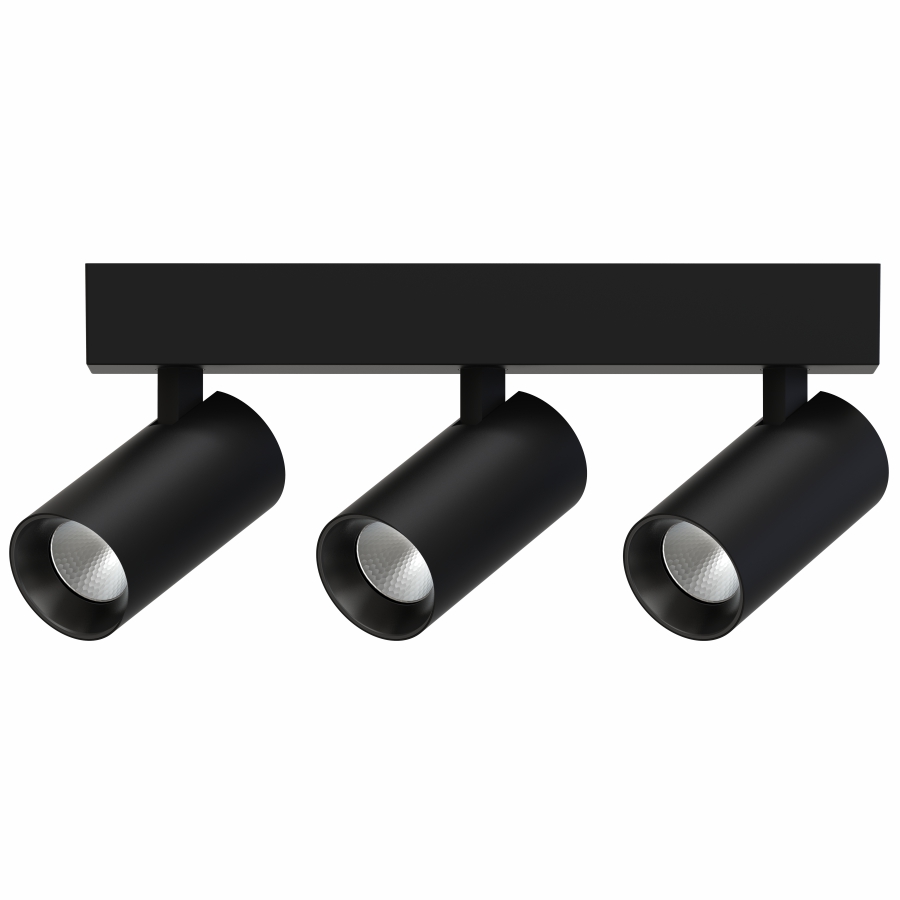

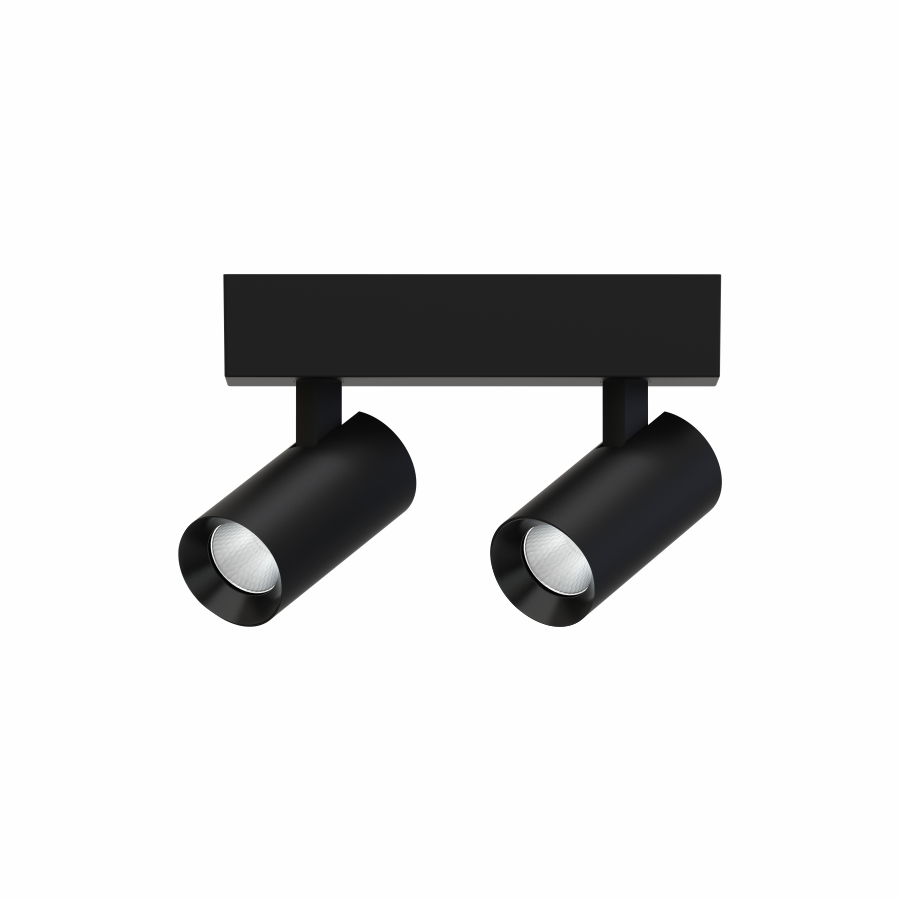

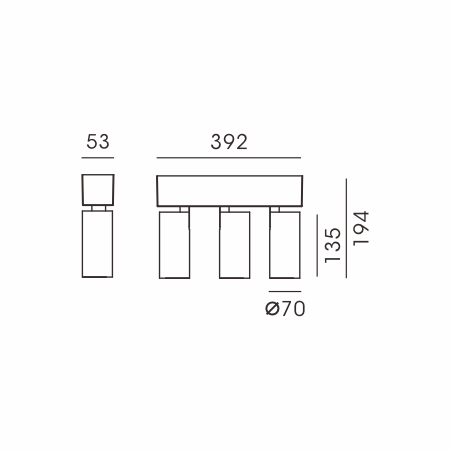

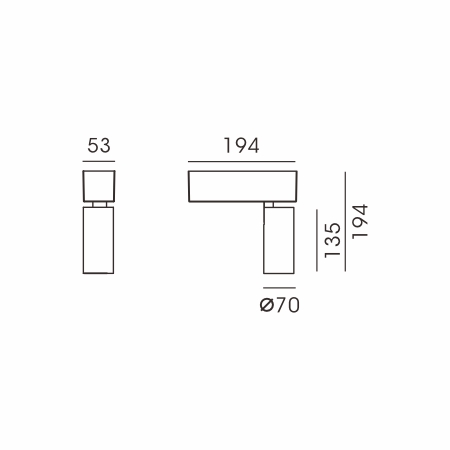

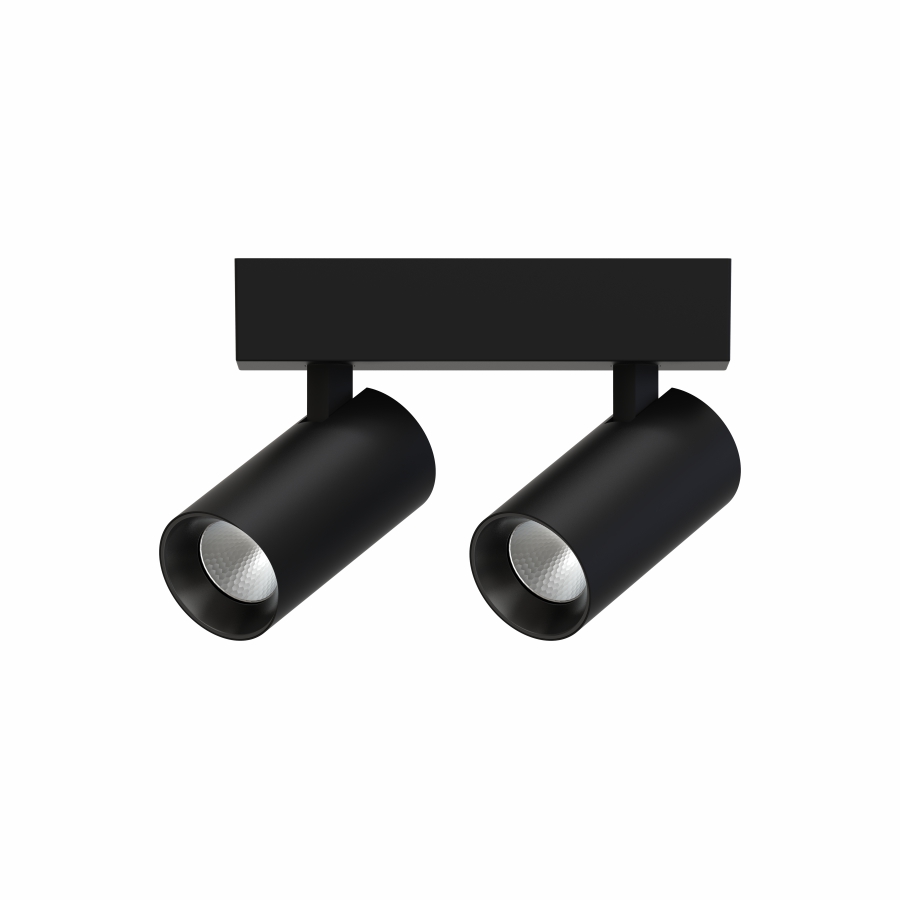

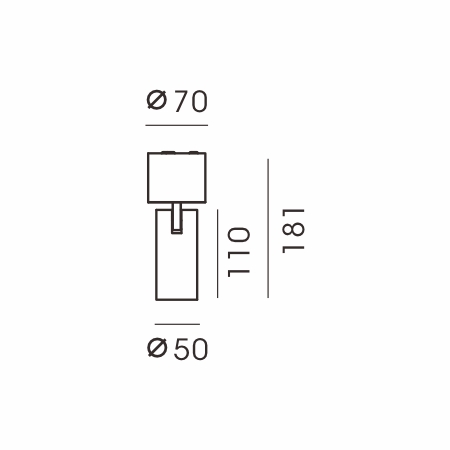

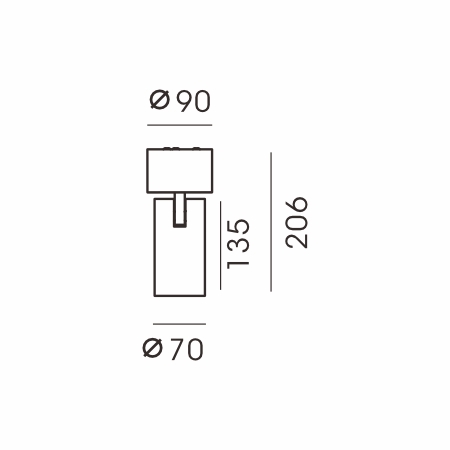

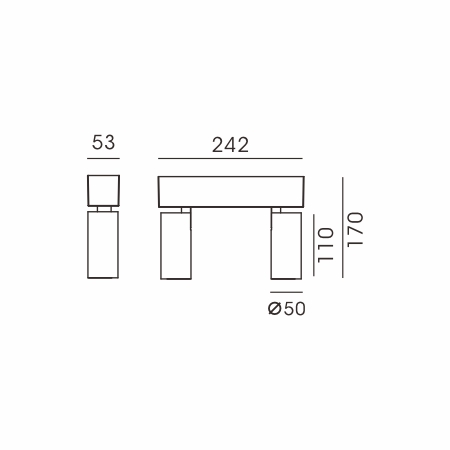

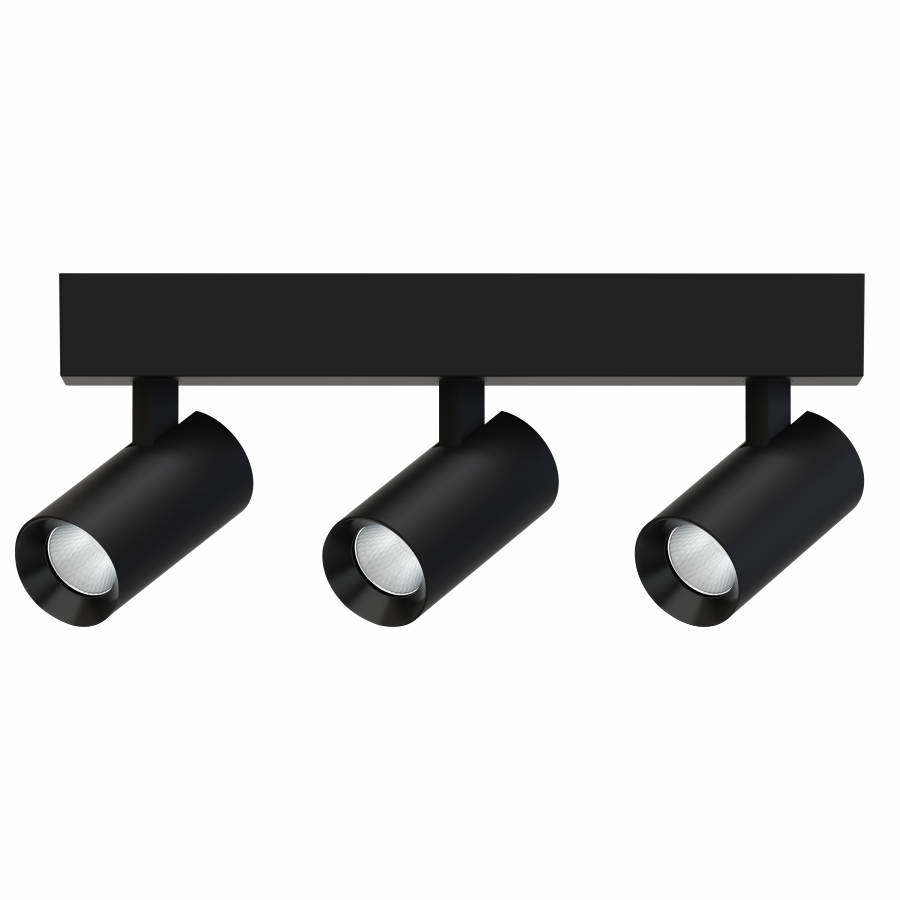

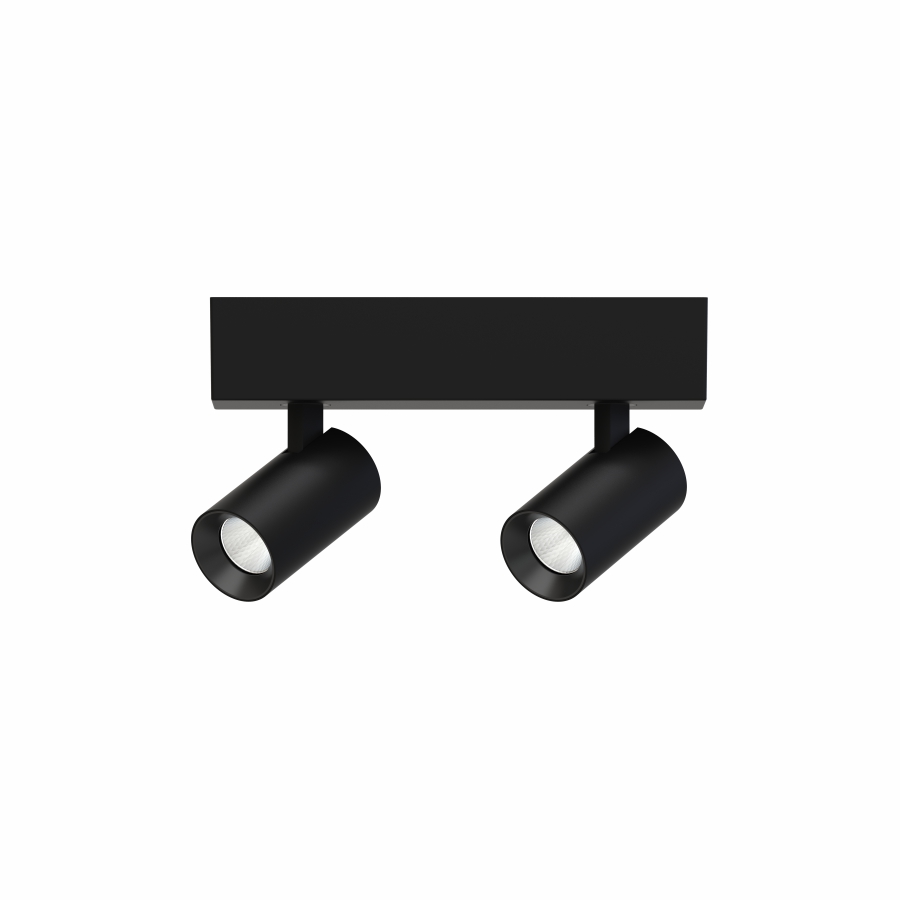

PRO Series Surface Mounted / Spot D1291 / D1292 / D1294 / D1295 / D1296 / D1297 / D1298 / D1299

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product D1291 18° / 26° / 38° / 45° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1292 18° / 26° / 38° / 45° 2*8W 125lm/W 2*1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1293 18° / 26° / 38° / 45° 3*8W 125lm/W 3*1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1294 18° / 26° / 38° / 45° 15W 125 lm/W 1900lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1295 18° / 26° / 38° / 45° 2*15W 125 lm/W 2*1900lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product

D1296

 18° / 26° / 38° / 45° 3*15W 125 lm/W 3*1900lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1297 18° / 26° / 38° / 45° 20W 125 lm/W 2300lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1298 18° / 26° / 38° / 45° 2*20W 125lm/W 2*2300lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product D1299 18° / 26° / 38° / 45° 3*20W 125lm/W 3*2300lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

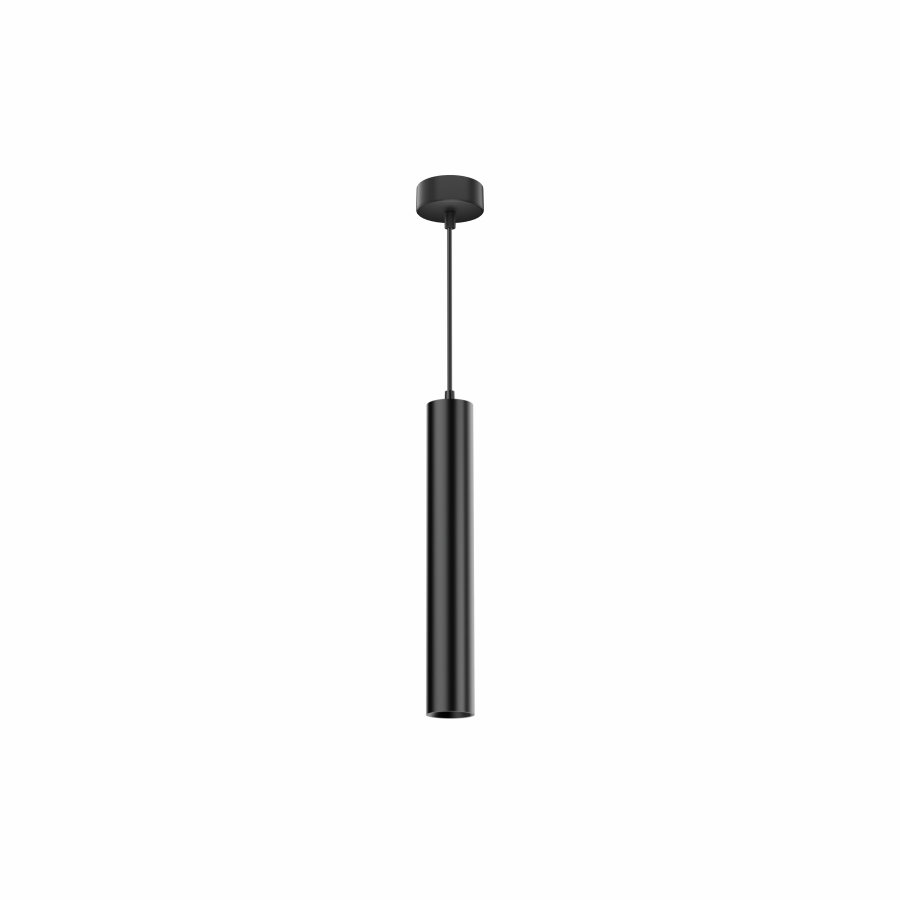

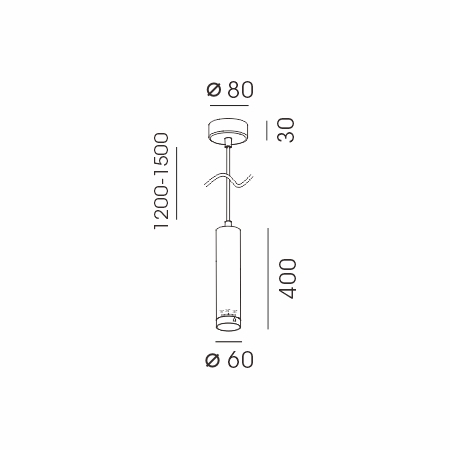

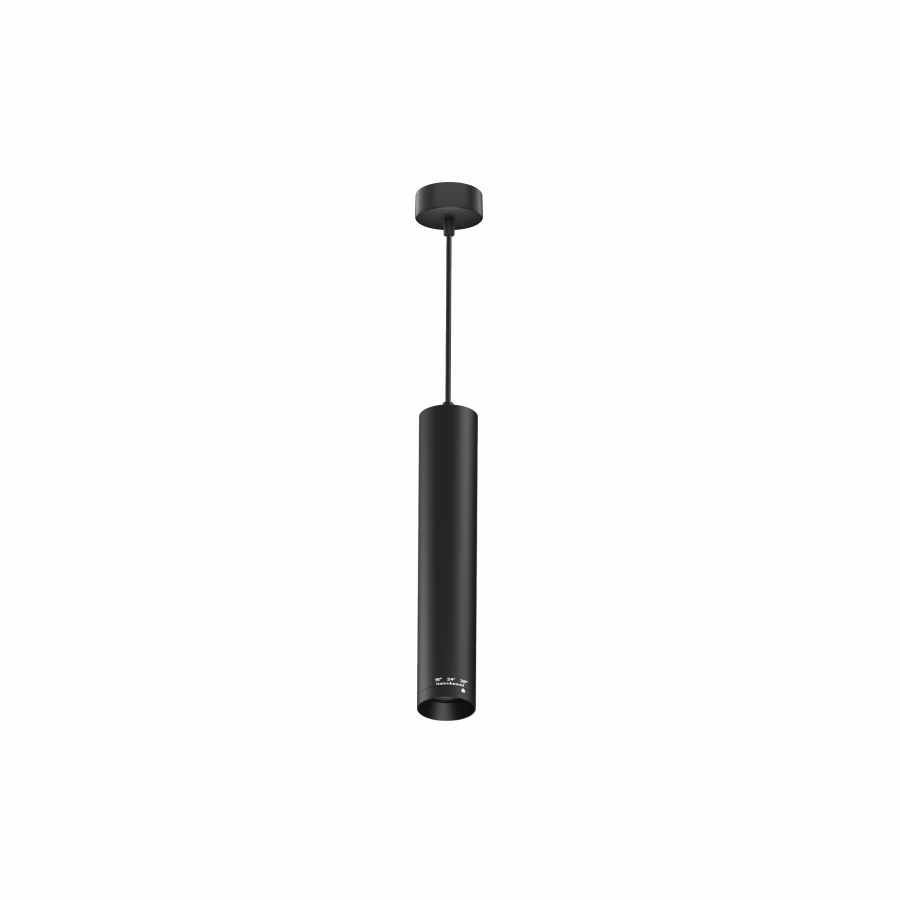

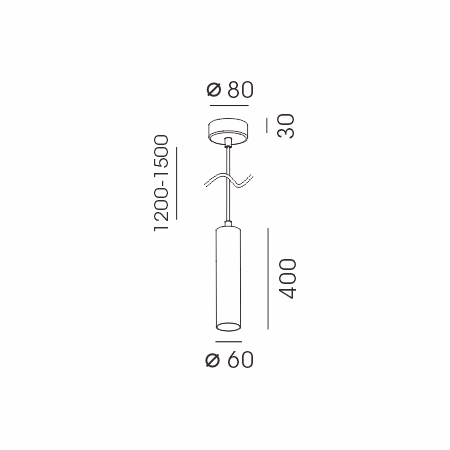

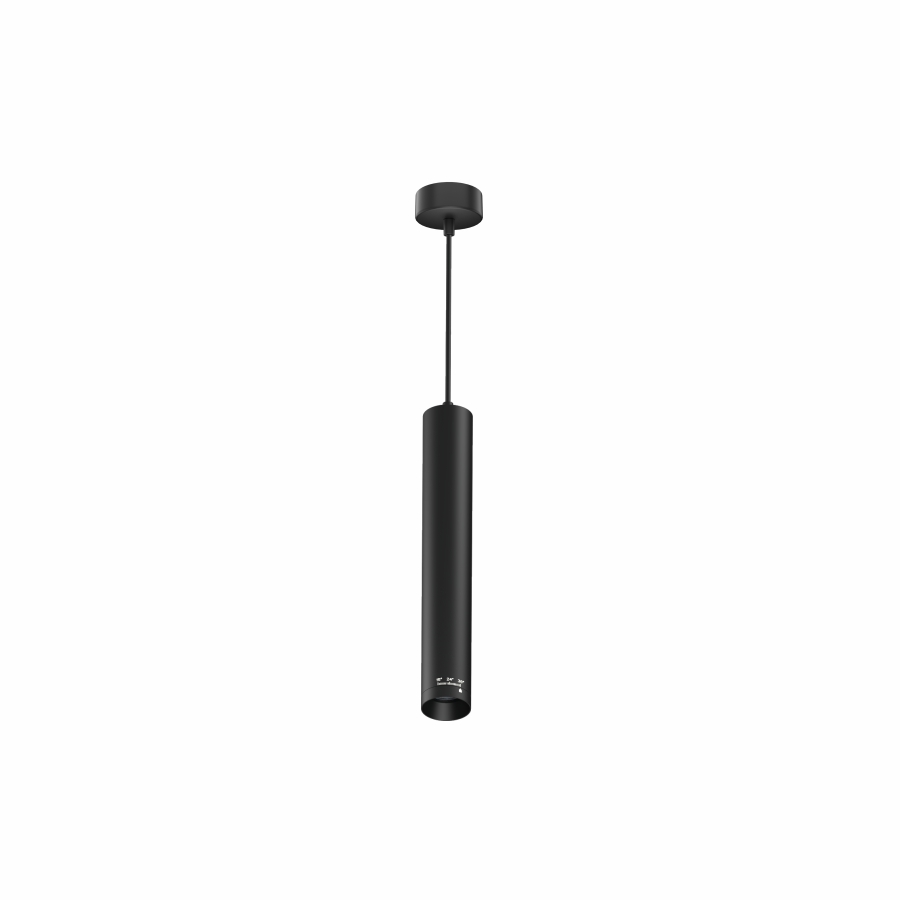

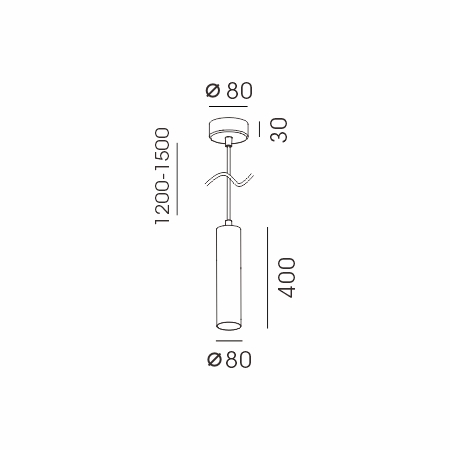

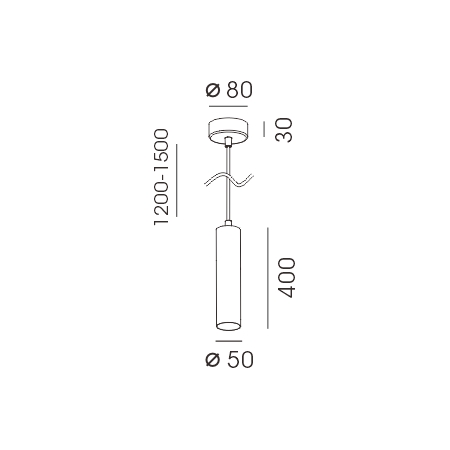

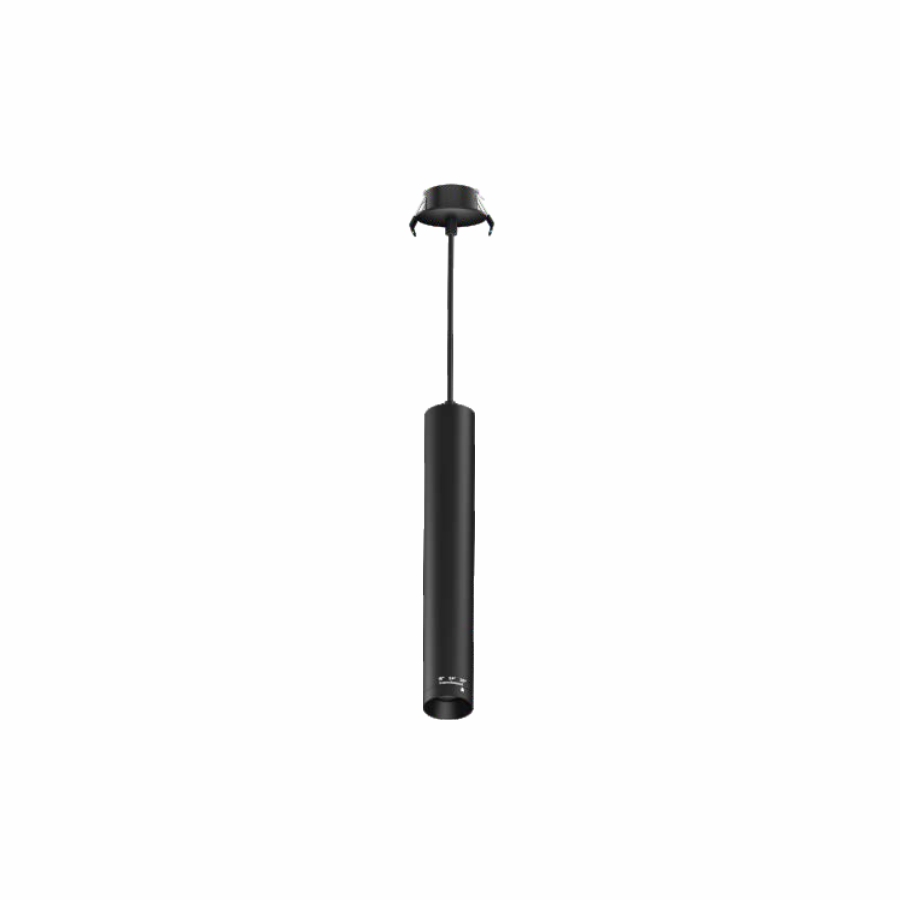

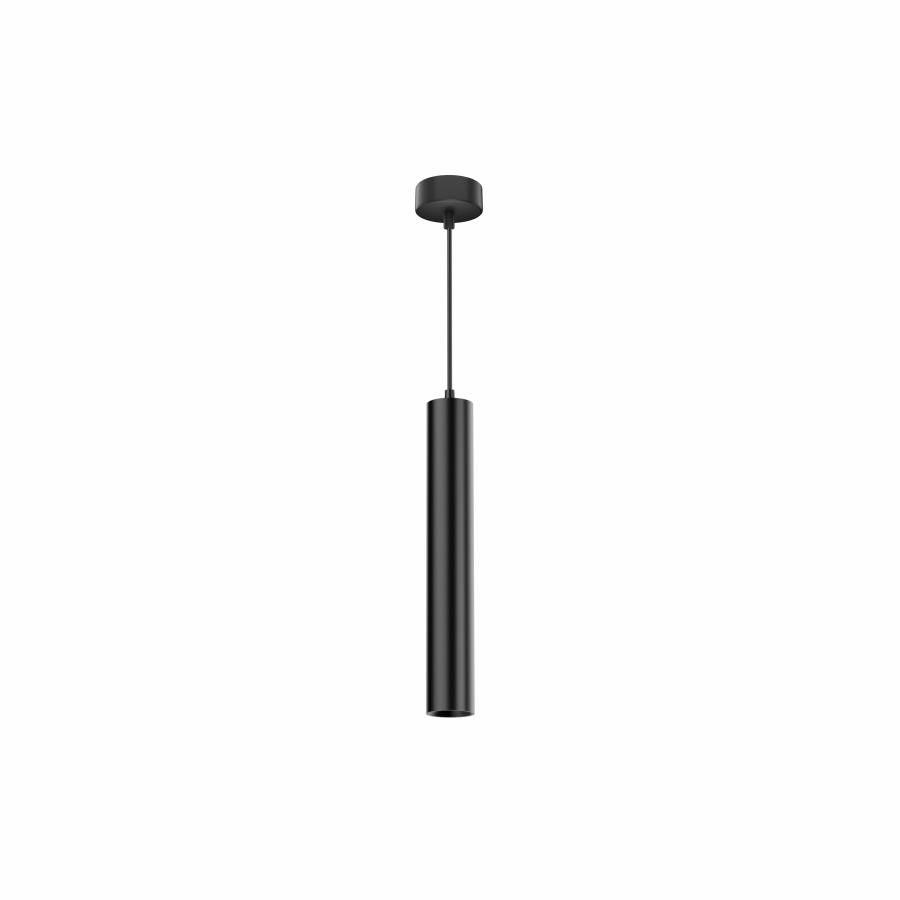

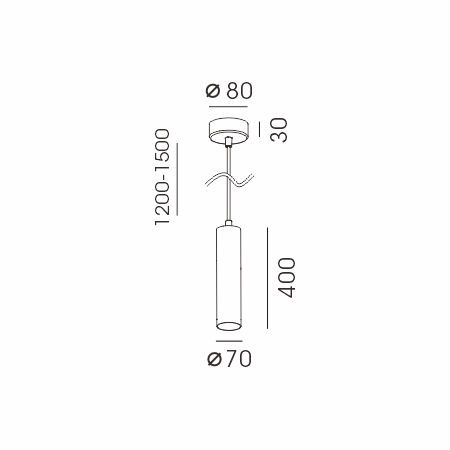

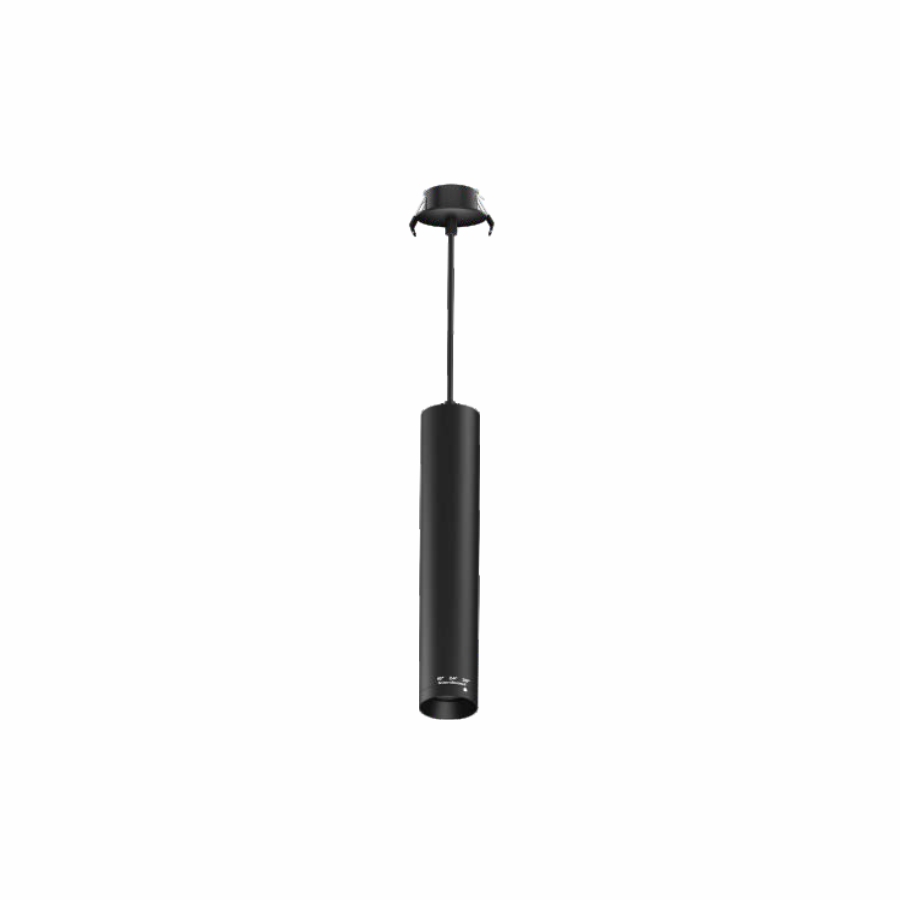

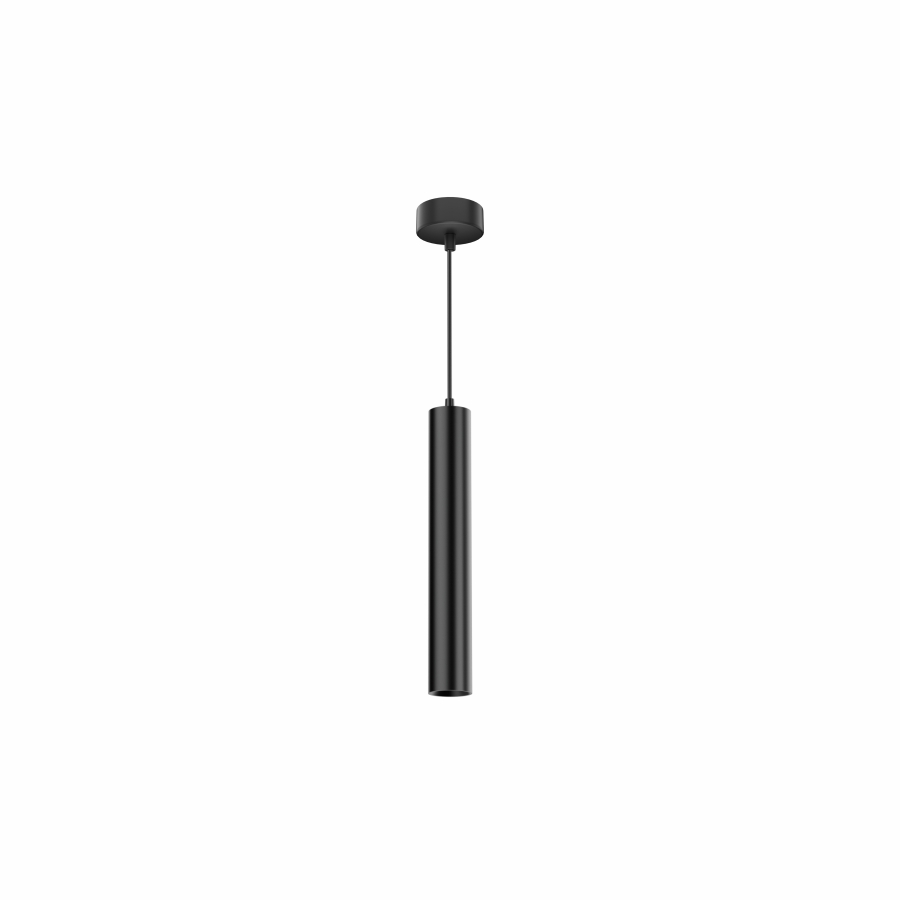

PRO Series Pendant Lamp P1075 / P1076 / P1077 / P1078 / P1079

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product P1075 18° / 26° / 38° / 45° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1076 18° / 26° / 38° / 45° 10W 120 lm/W 1200 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1077 18° / 26° / 38° / 45° 20W 115 lm/W 2300 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1078 18° / 26° / 38° / 45° 28W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1079 18° / 26° / 38° / 45° 36W 125 lm/W 4500 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
PRO Series Pendant Lamp P1080-ZOOM / P1081-ZOOM/ P1082-ZOOM

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product P1080-ZOOM 15° - 36° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1081-ZOOM 15° - 36° 10W 120 lm/W 1200 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1082-ZOOM 15° - 36° 15W 113 lm/W 1700 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
PRO Series Pendant Lamp P1075-ZOOM / P1076-ZOOM/ P1077-ZOOM

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1157 Product P1075-ZOOM 15° - 36° 8W 125 lm/W 1000 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1076-ZOOM 15° - 36° 10W 120 lm/W 1200 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No
T1158 Product P1077-ZOOM 15° - 36° 15W 113 lm/W 1700 lm 3000K / 4000K / 5000K >90 TOYONIA COB Tridonic No

Product Video

Share:

Features

  • Quality of Light

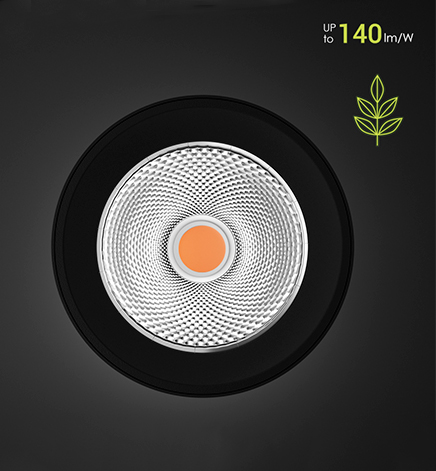

    High Efficiency up to 140lm/w. LOR 93%. High efficiency optical systemSavings of up to 35% are possible.

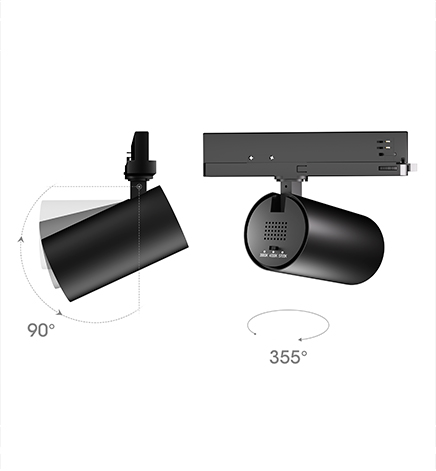

  • Flexible adjust beam angles

    Flexible adjust beam angles 355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

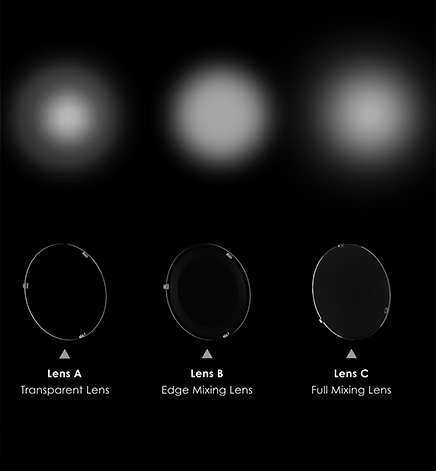

  • Accurate and efficient light control

    Accurate and efficient light control The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • High efficiency heat dissipation

    High efficiency heat dissipation & 3-CCT Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

Light effect

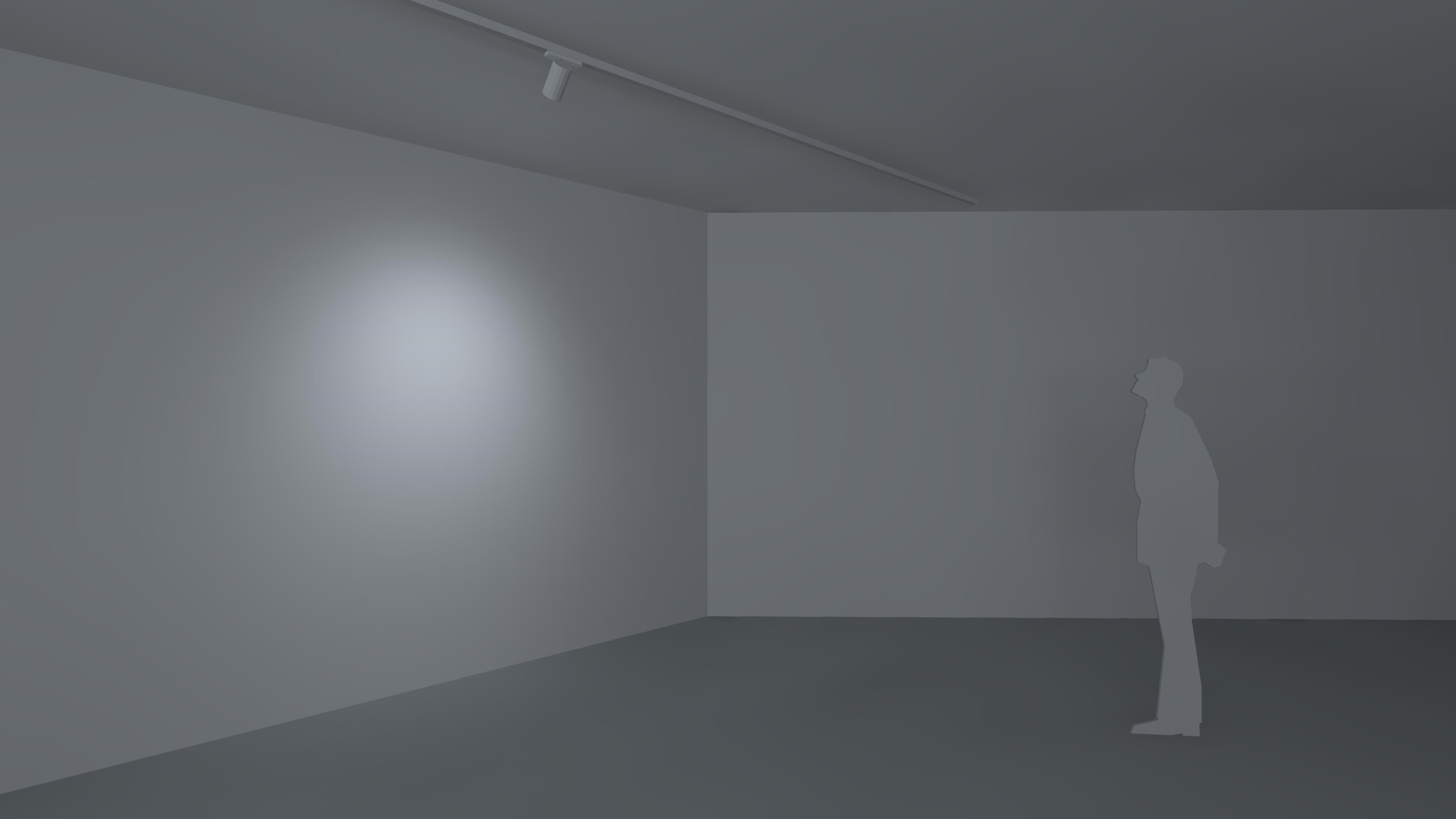

  • 18°Spotlights

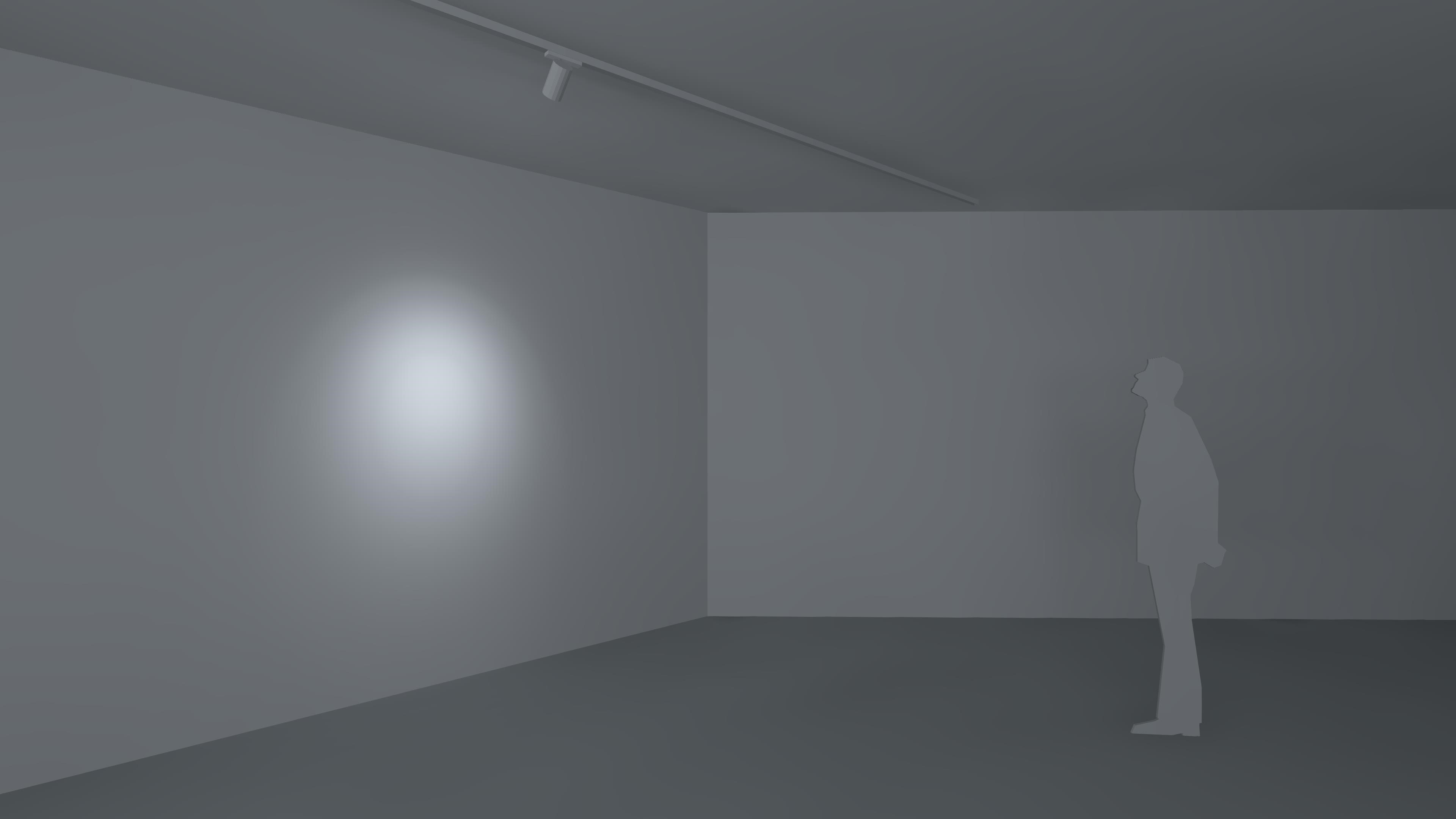

  • 26°Spot
  • 38°Flood

Application

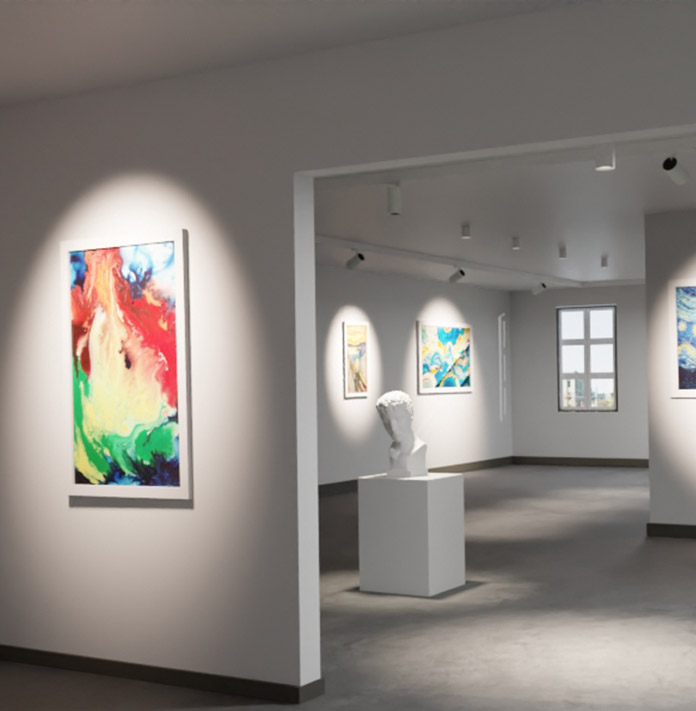

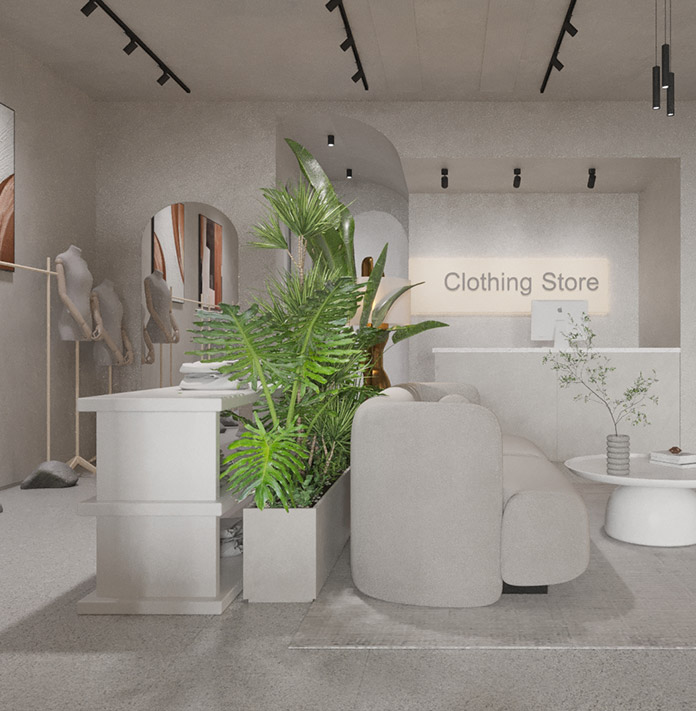

Product application in Store Lighting, Mall Lighting

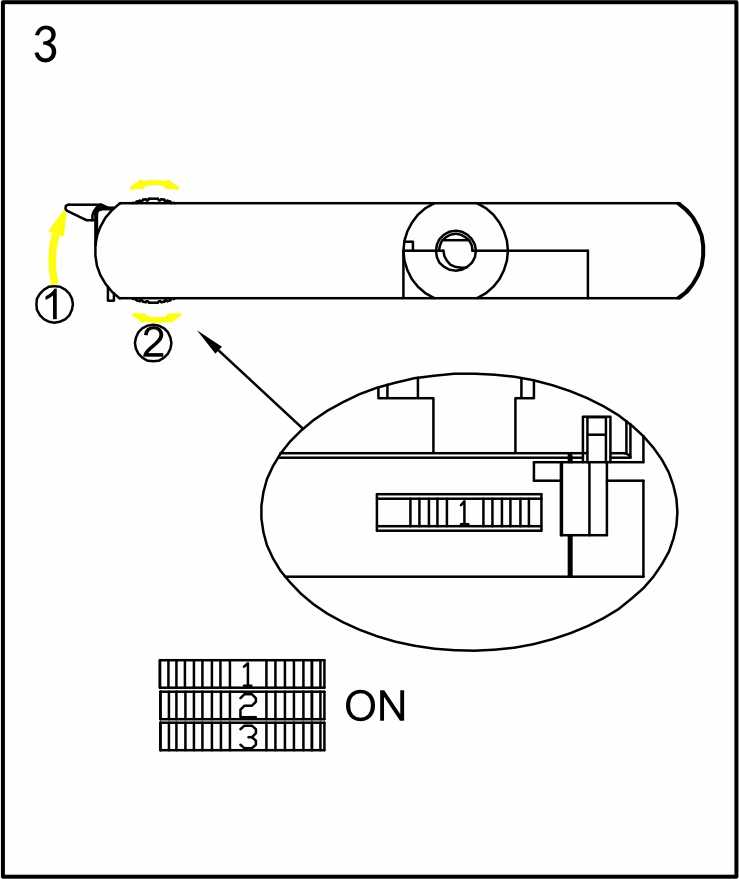

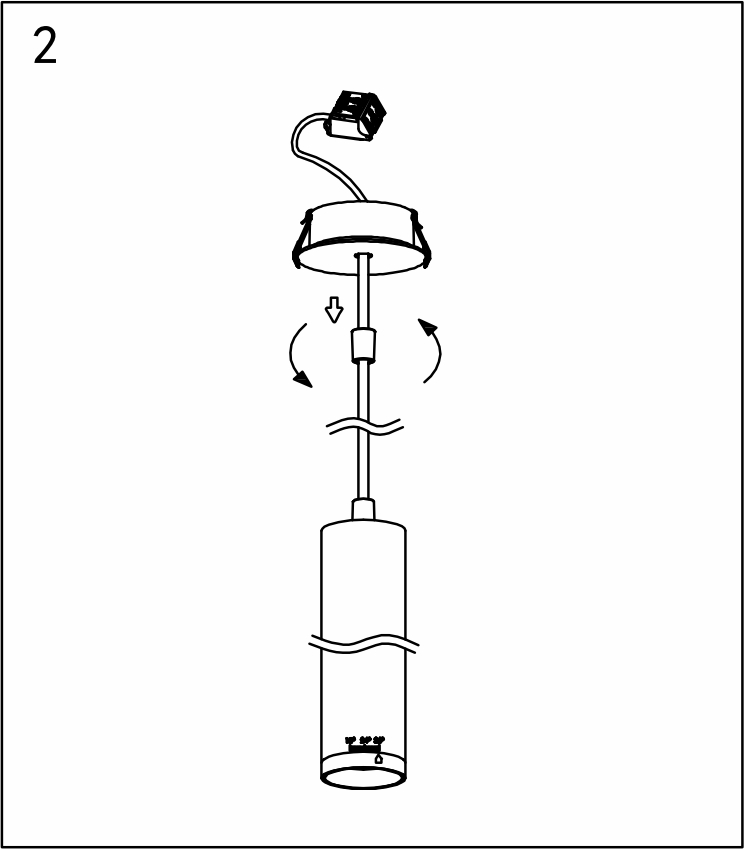

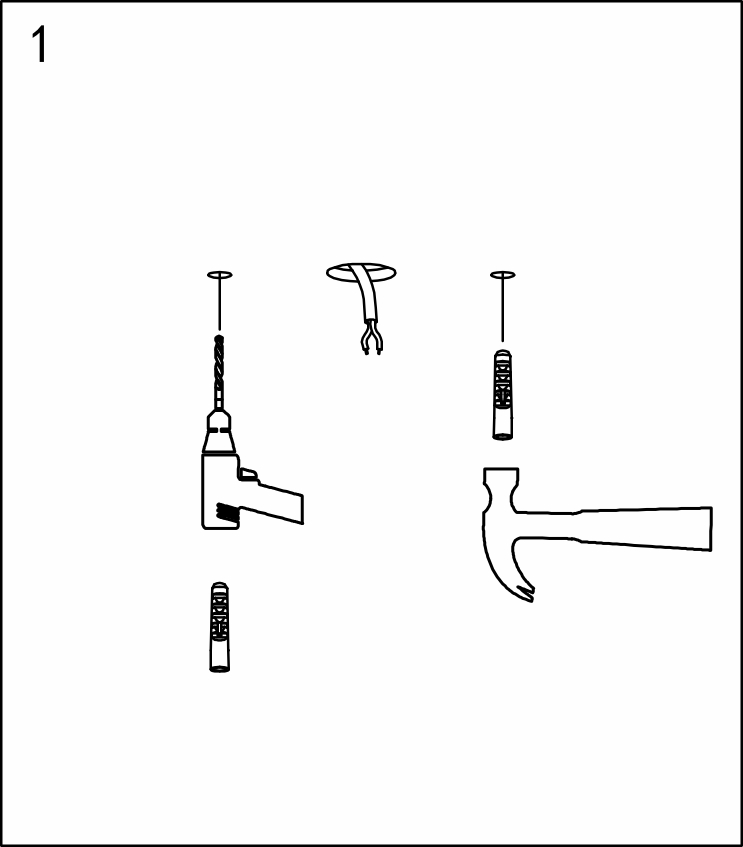

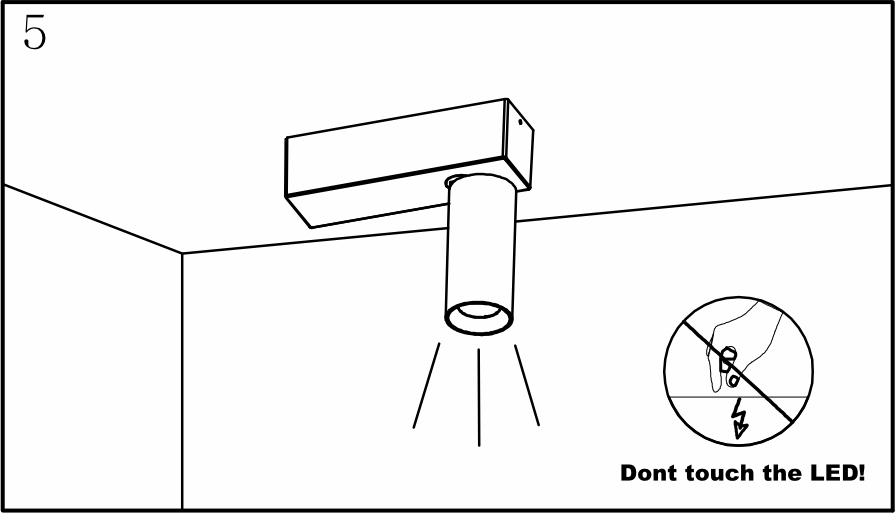

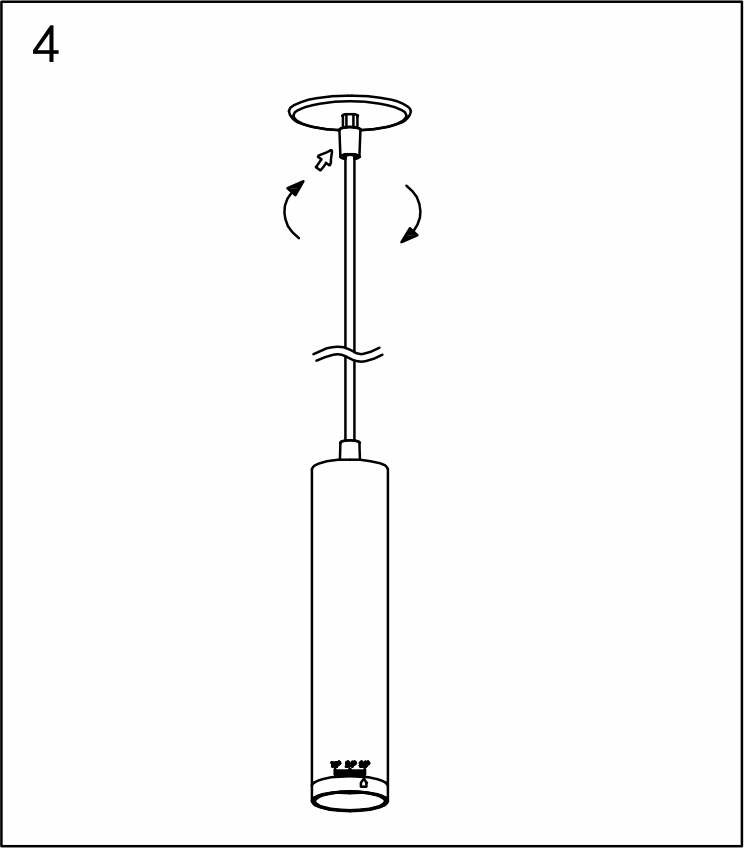

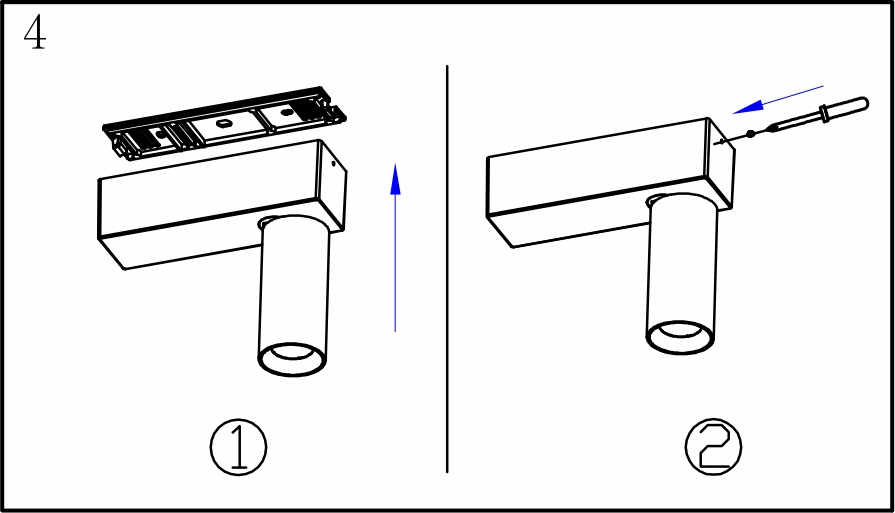

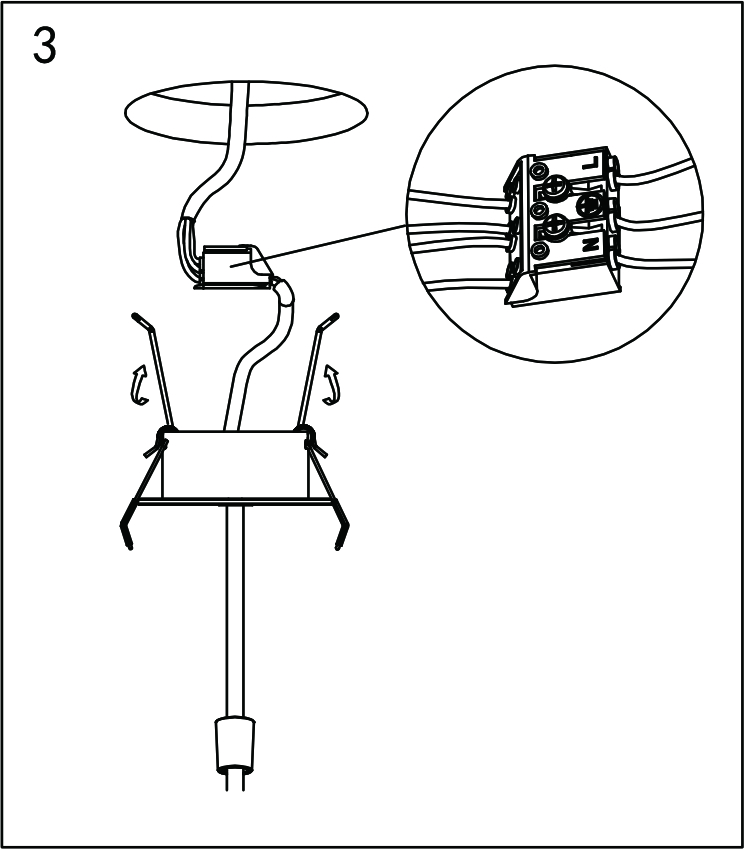

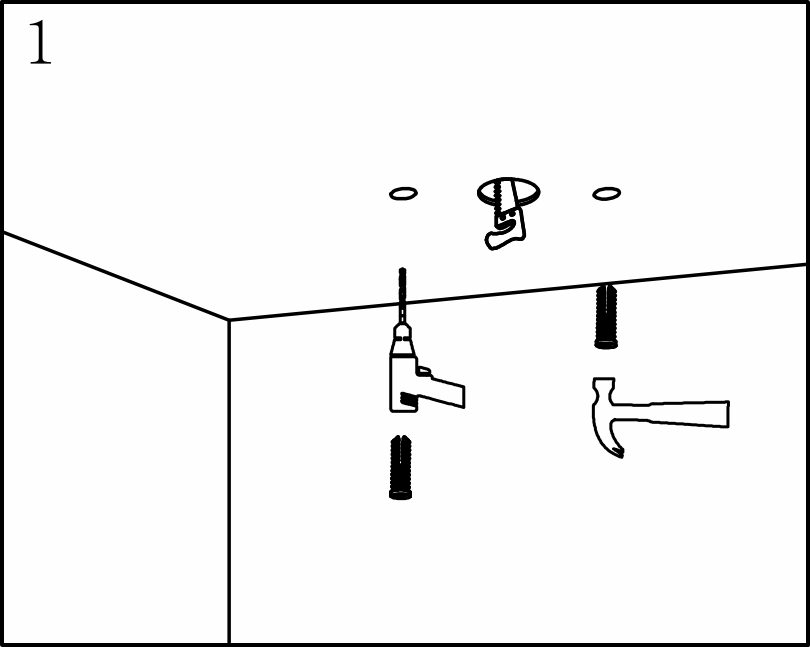

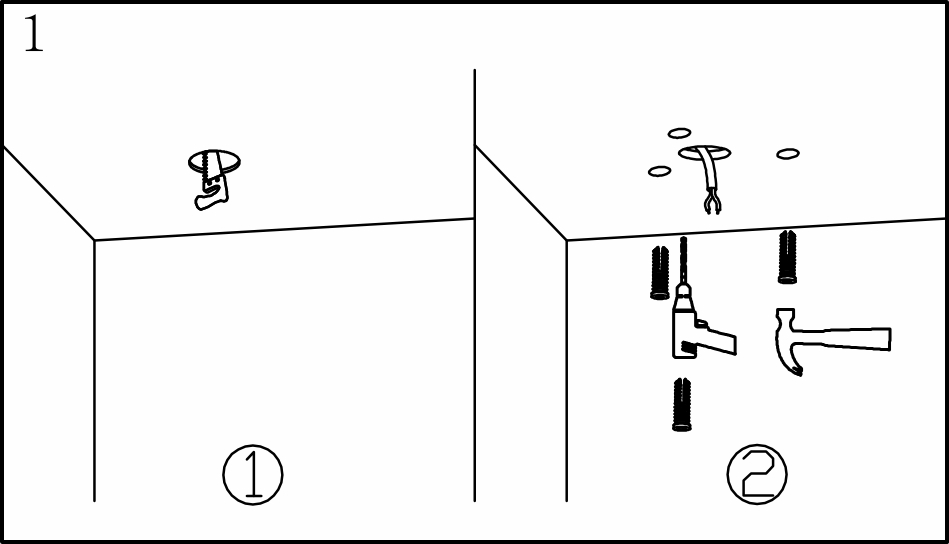

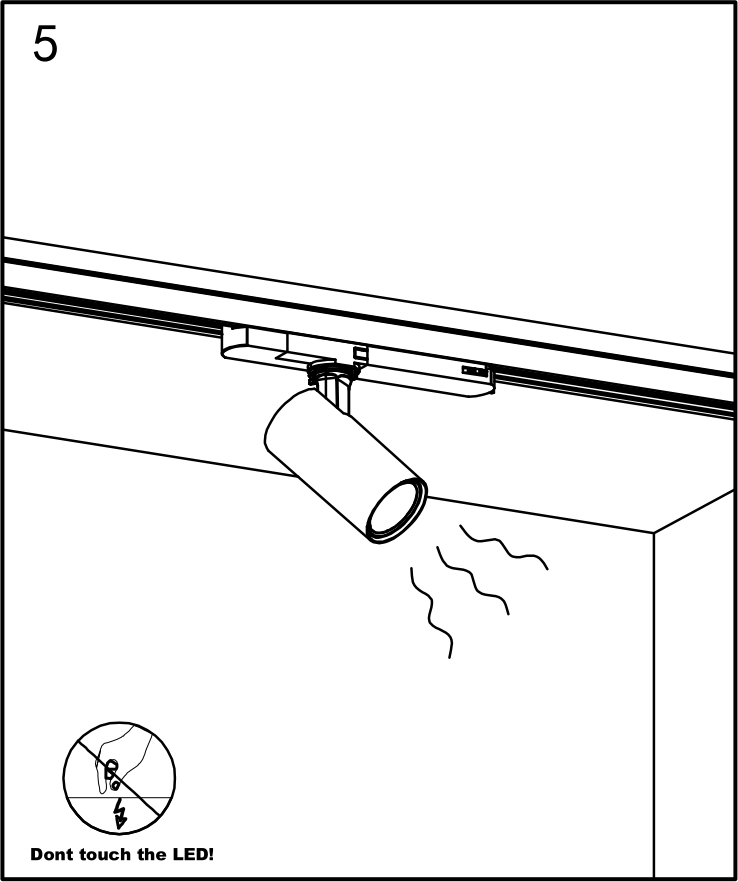

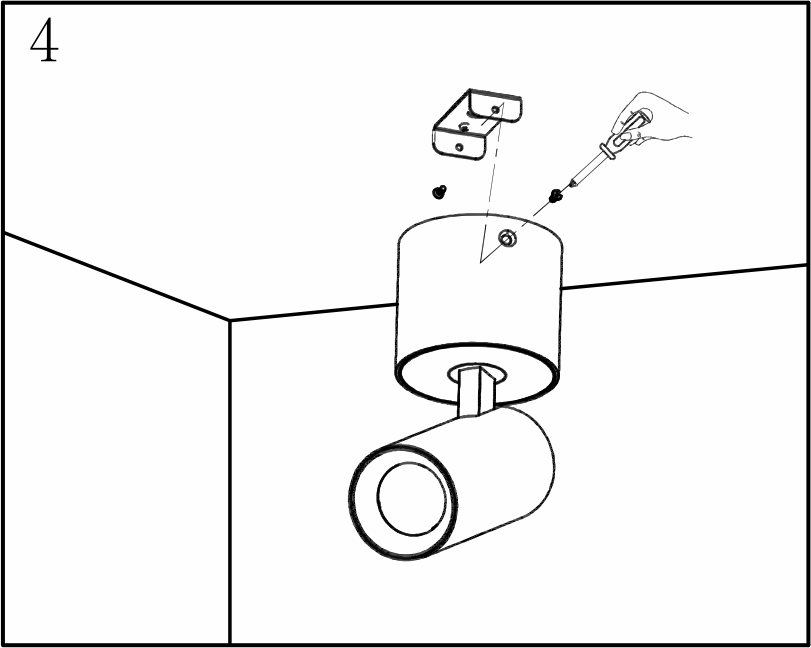

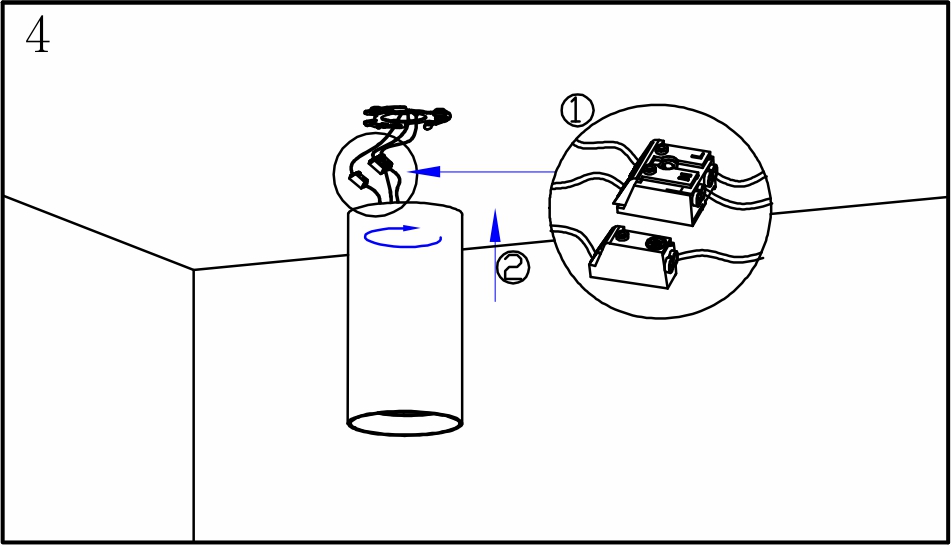

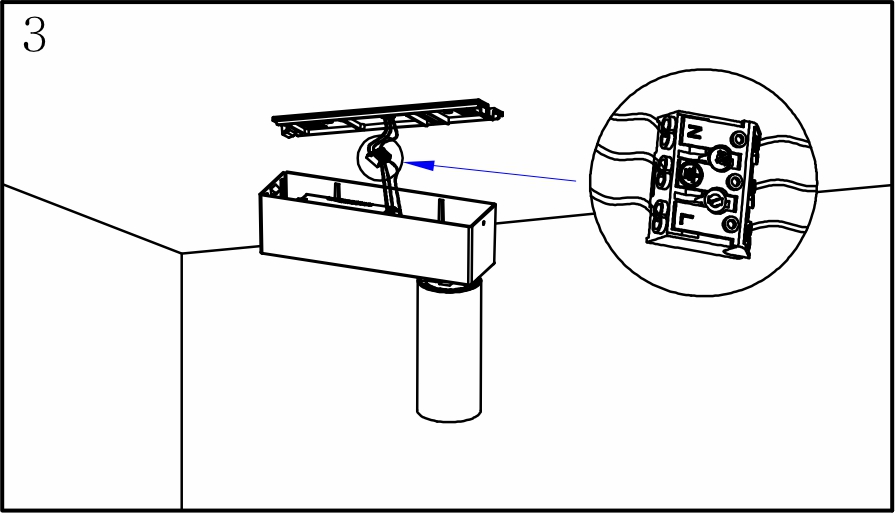

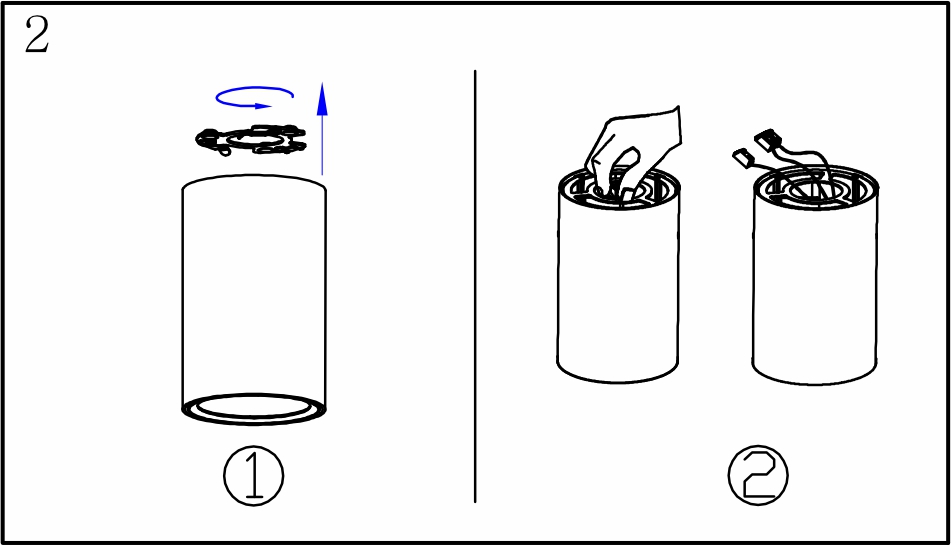

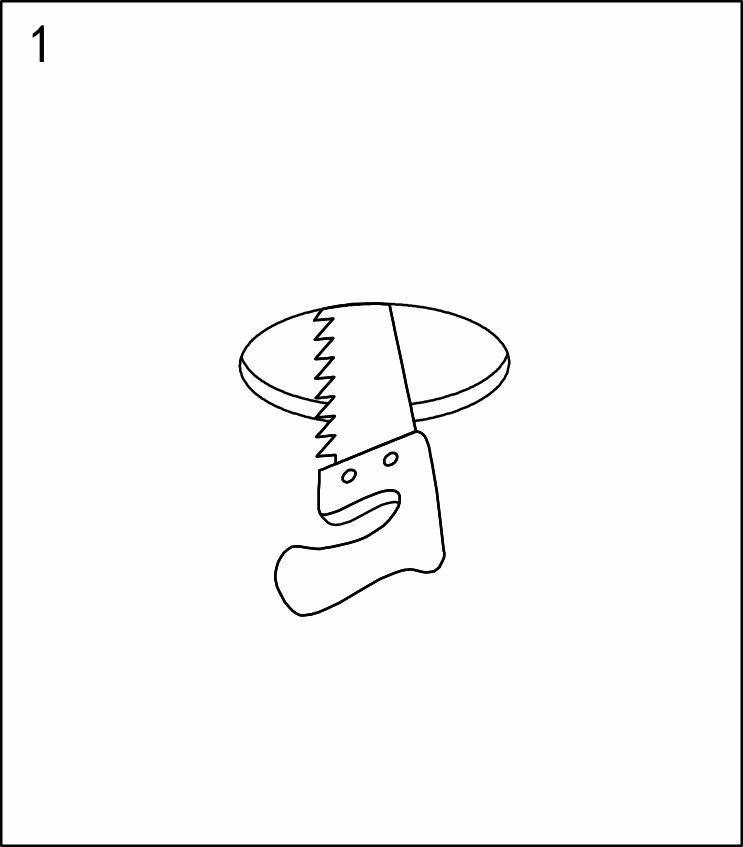

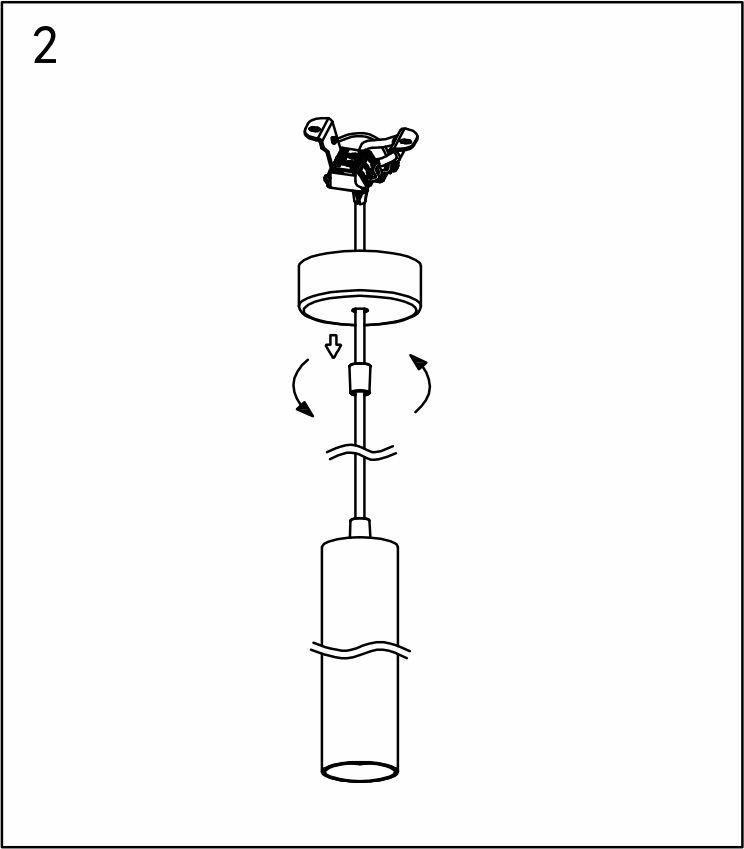

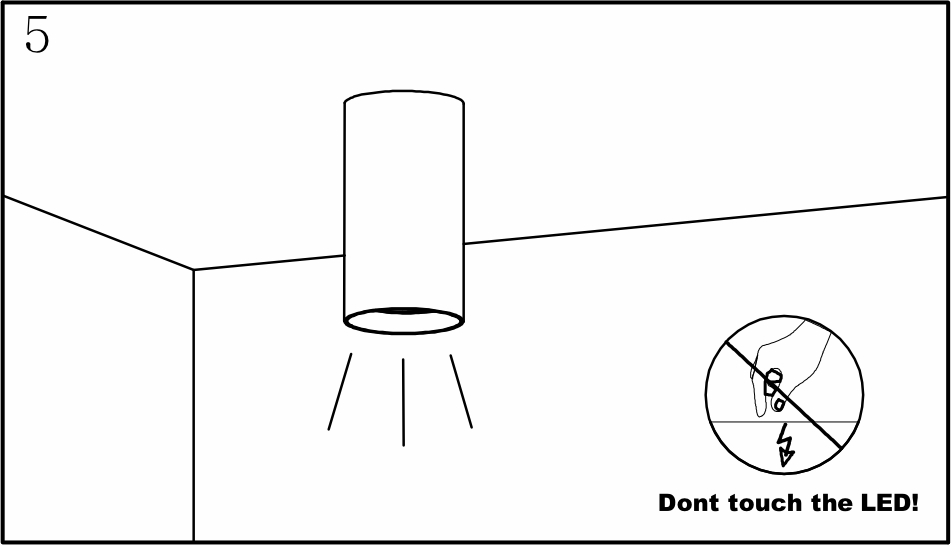

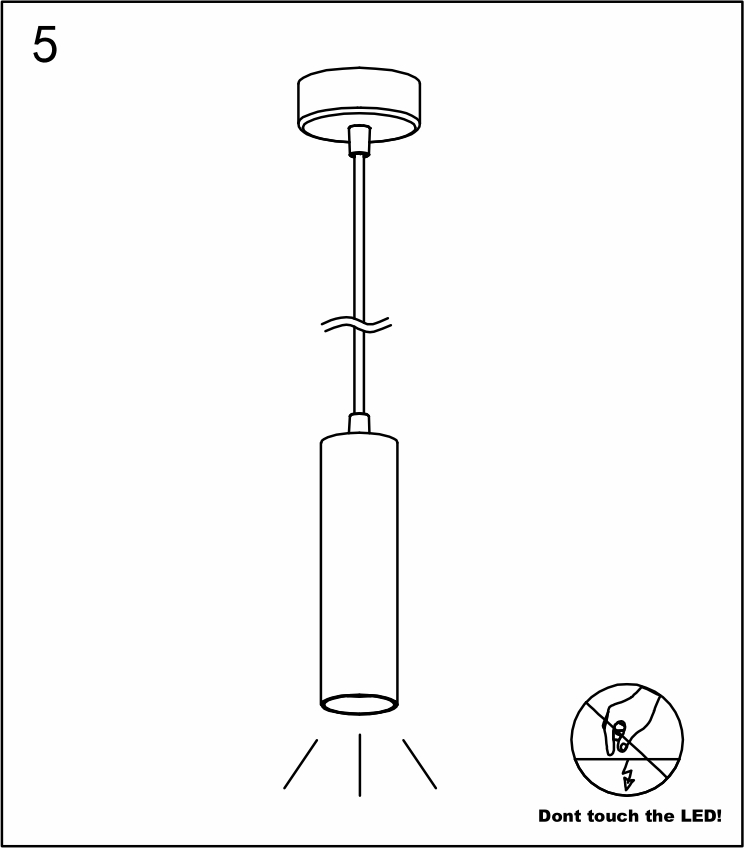

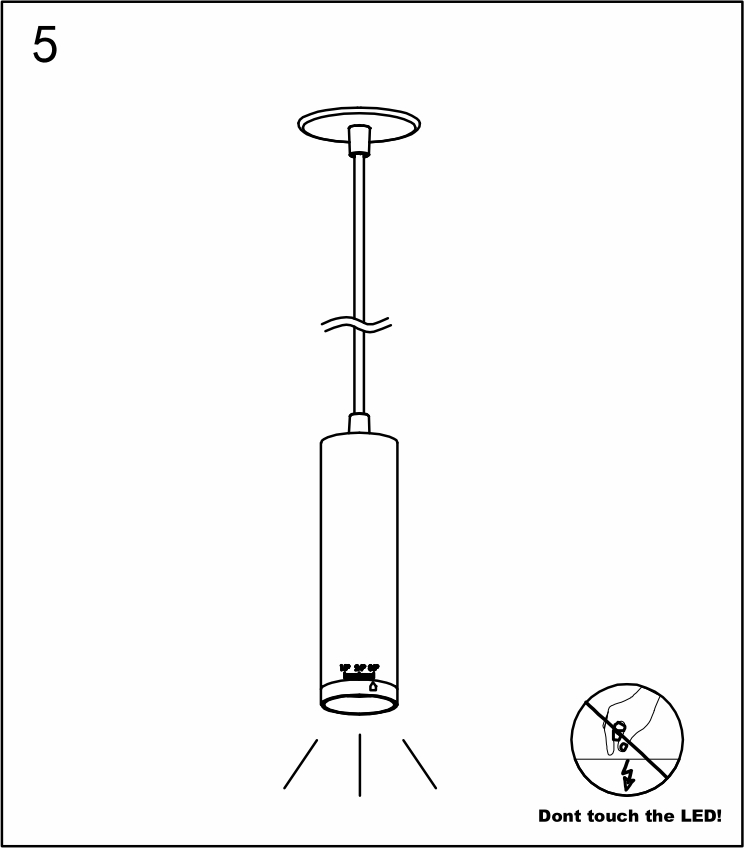

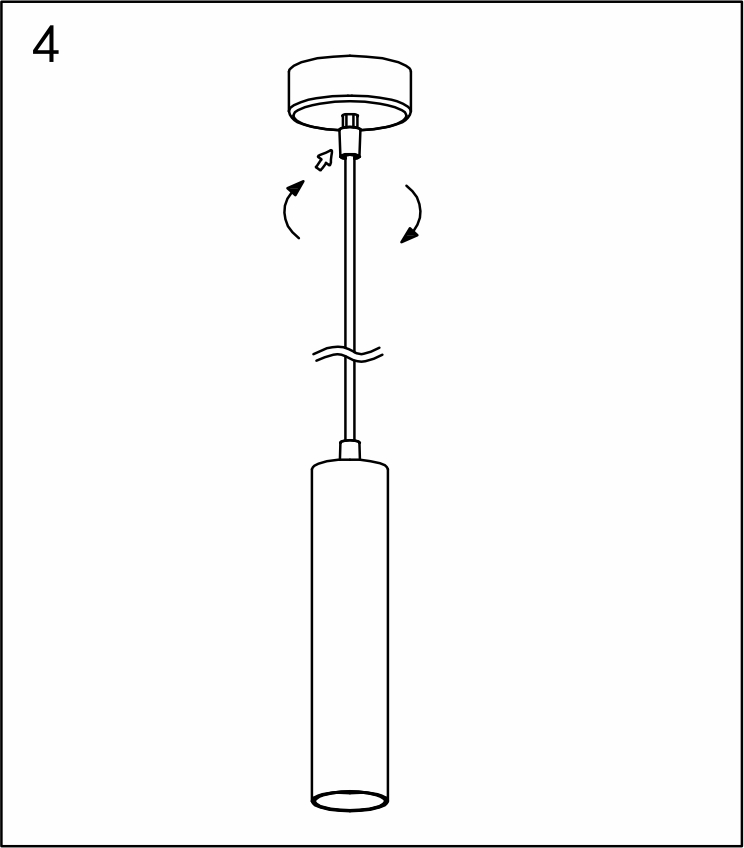

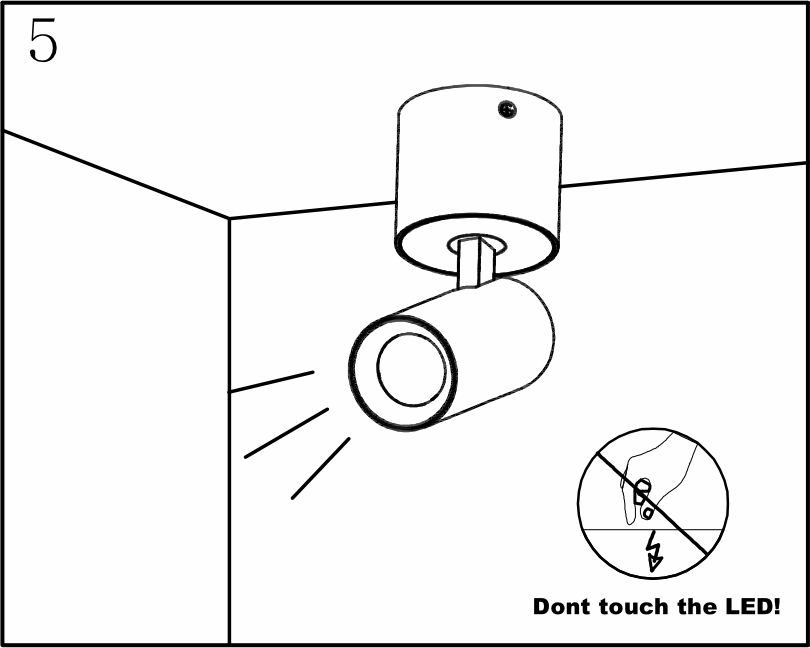

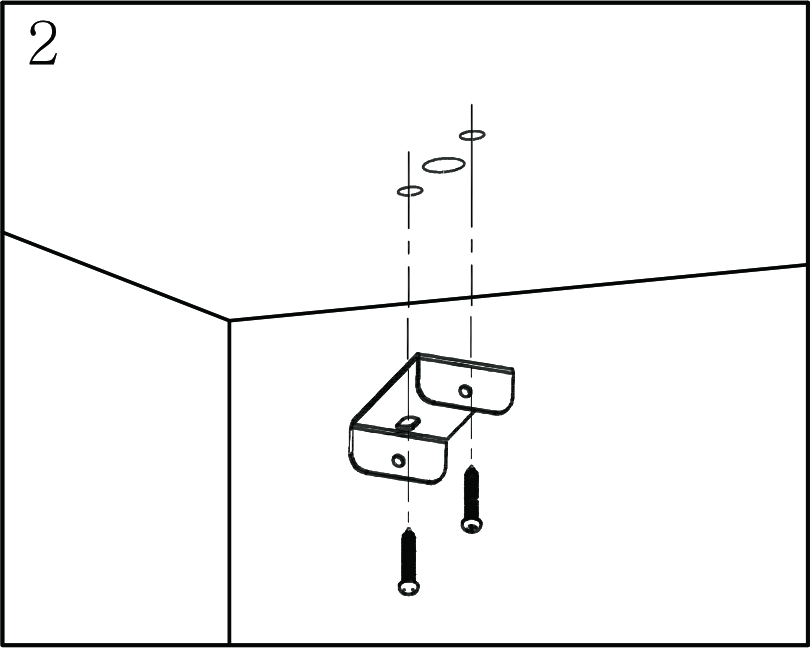

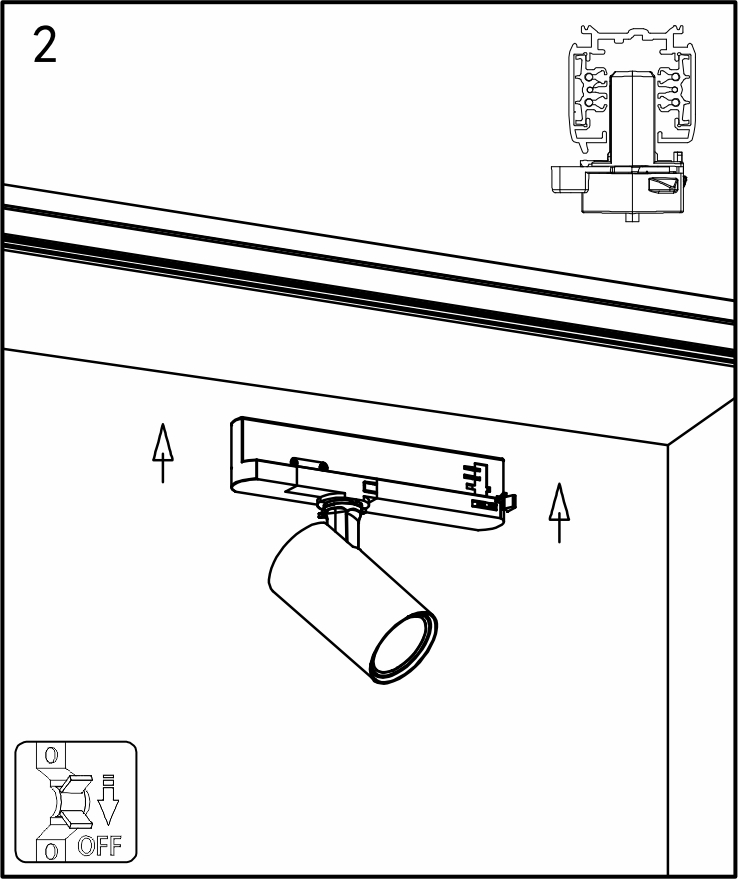

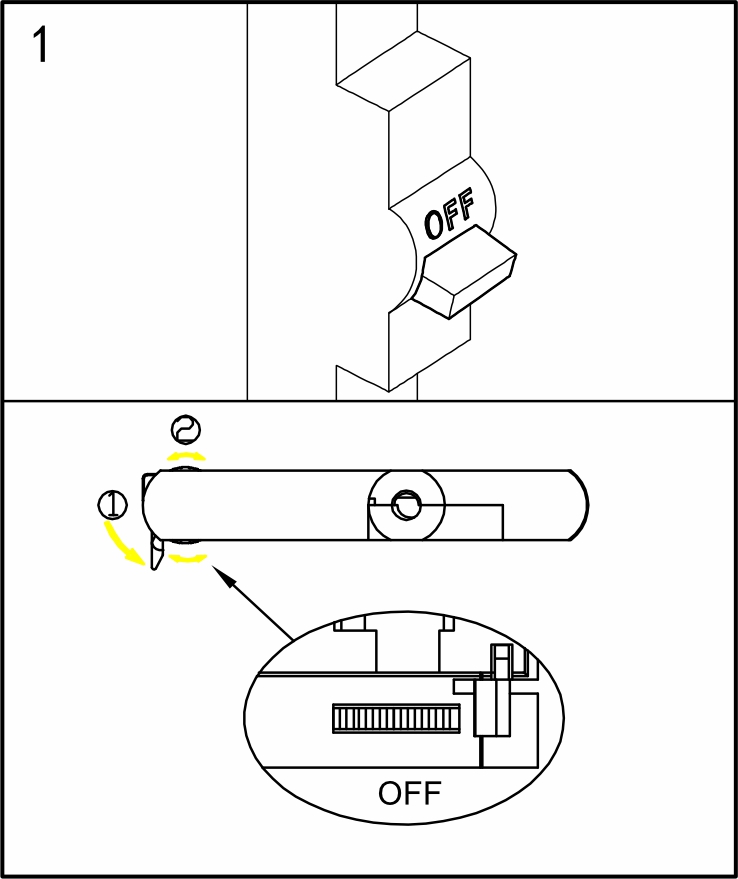

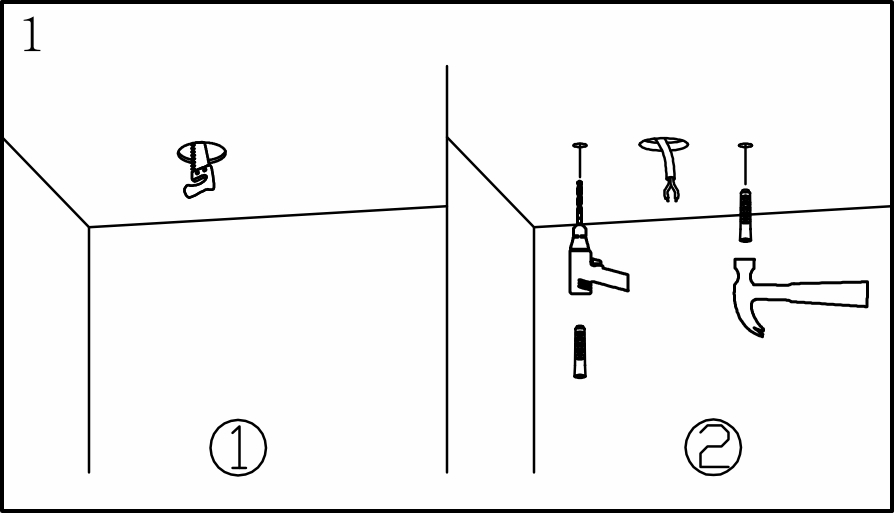

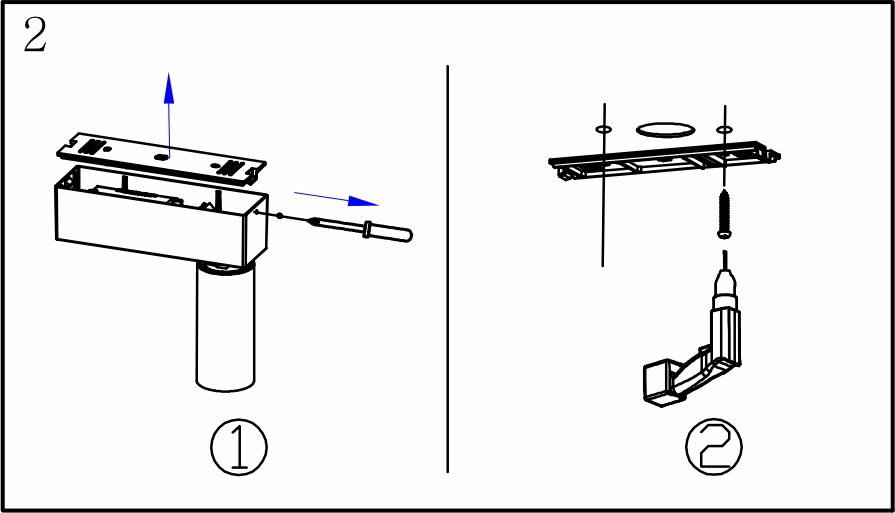

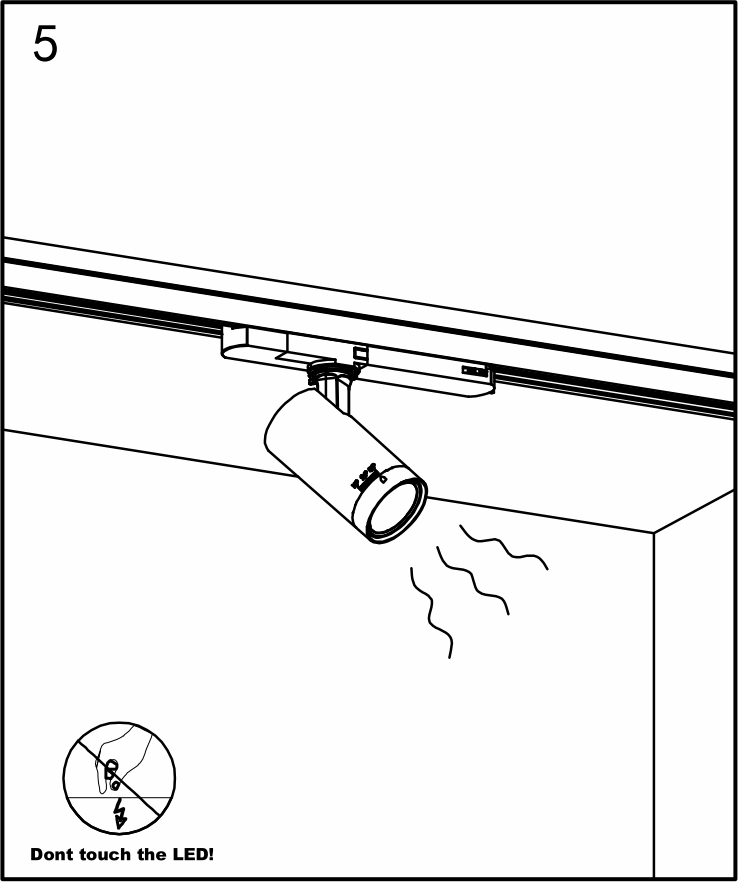

Mounting

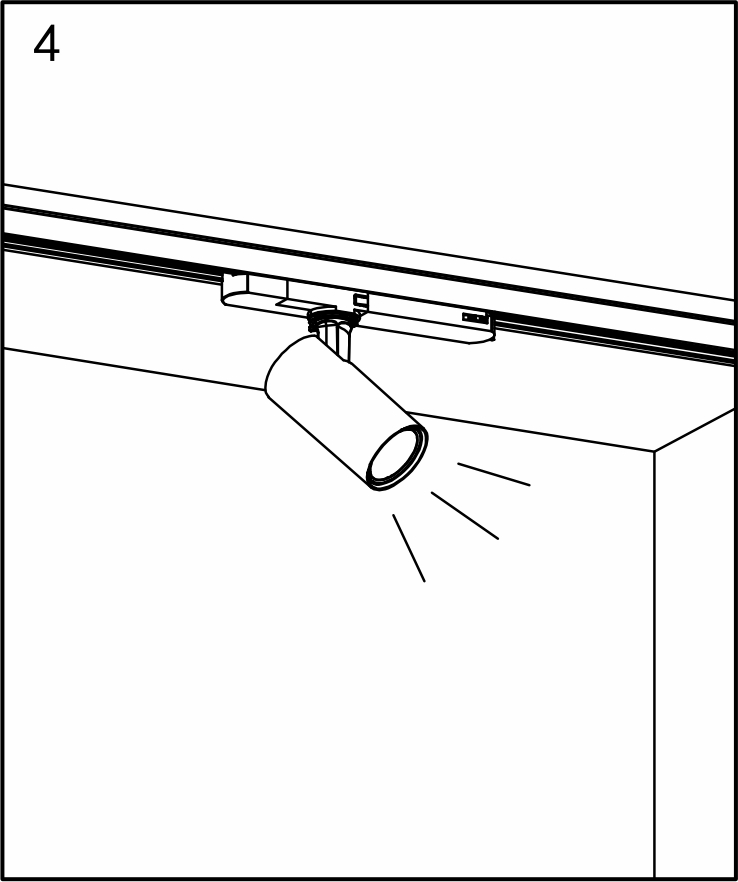

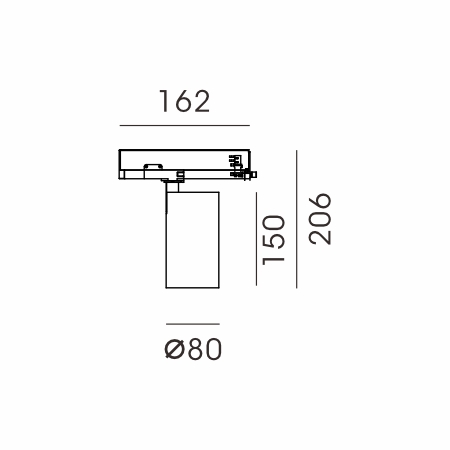

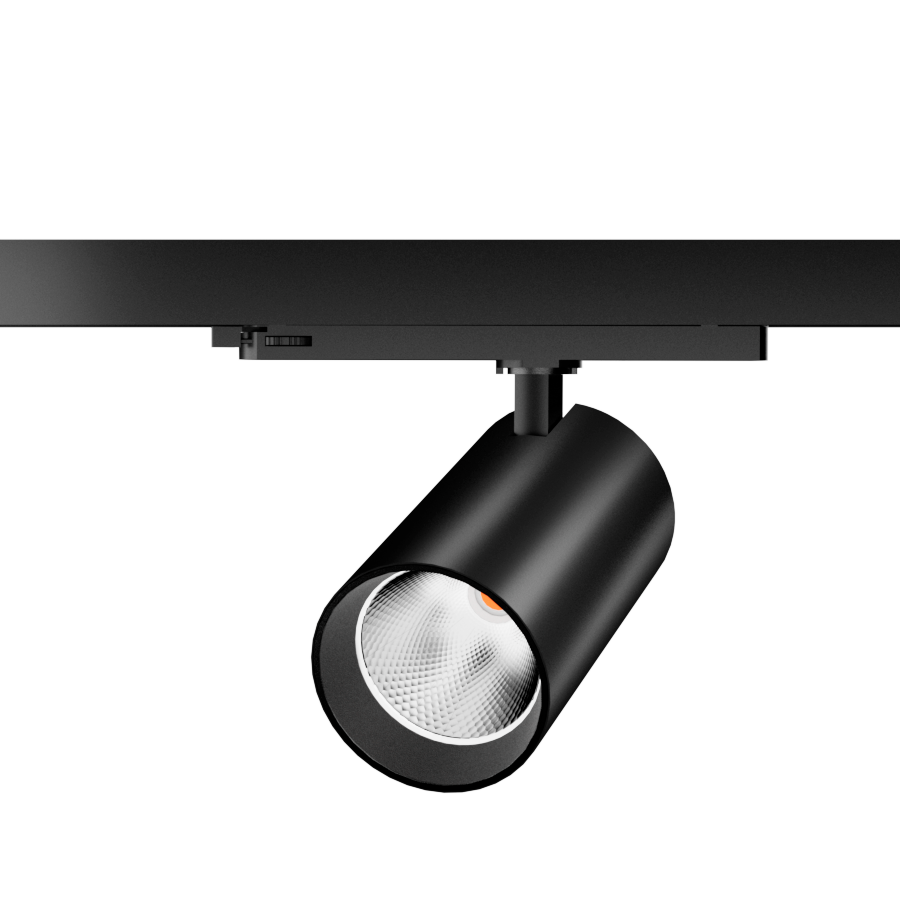

PRO Series Track Light T1233 / T1155 / T1156 / T1157 / T1158

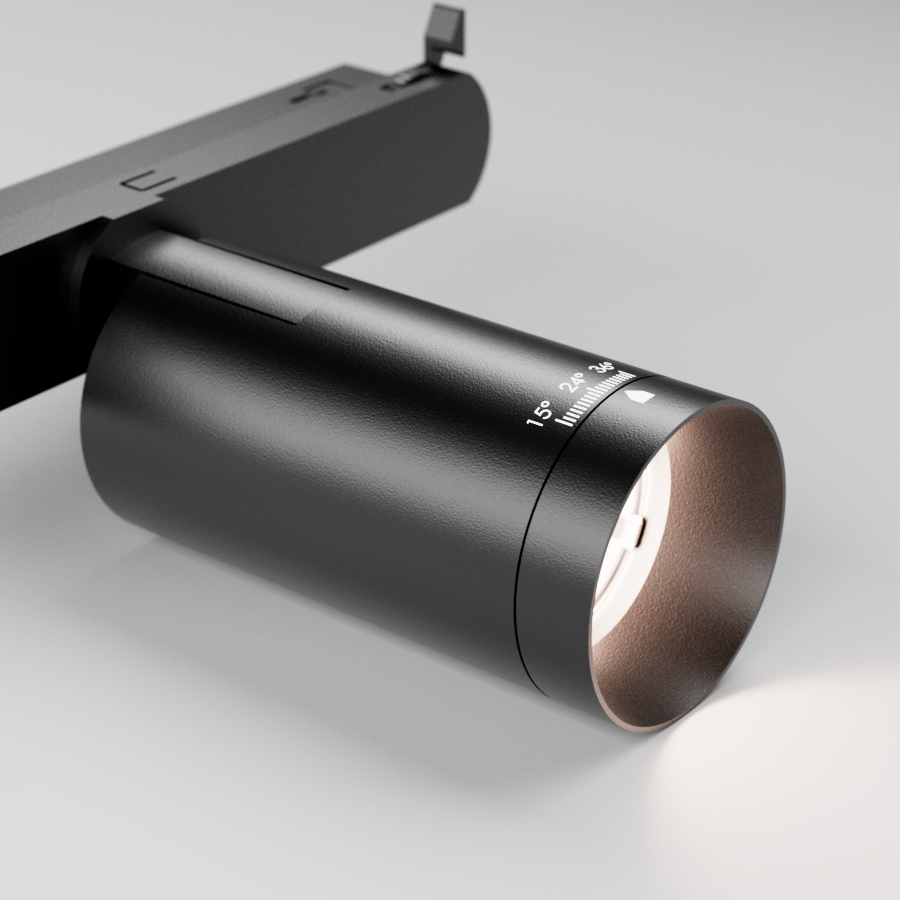

PRO Series Track Light T1155-ZOOM / T1156-ZOOM / T1157-ZOOM / T1158-ZOOM

PRO Series Track Light D1308 / D1309 / D1310 / D1311

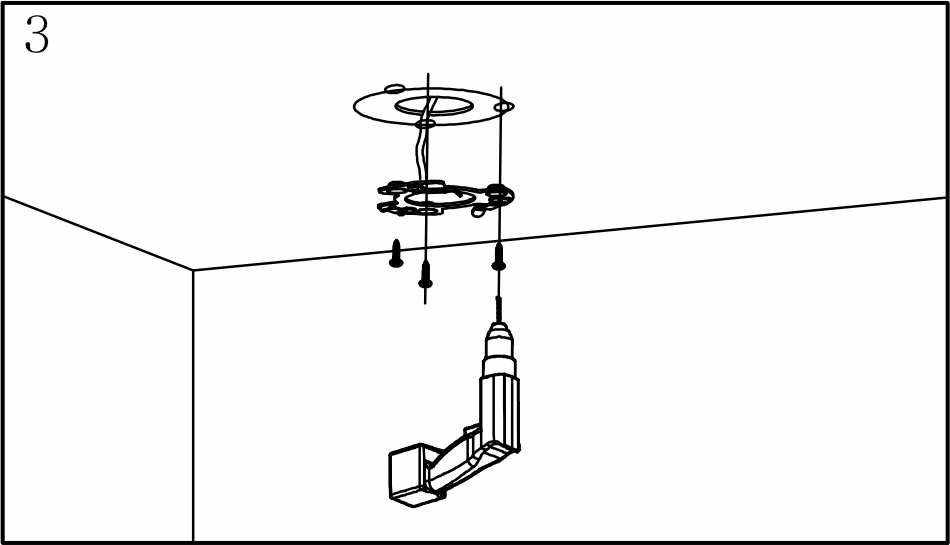

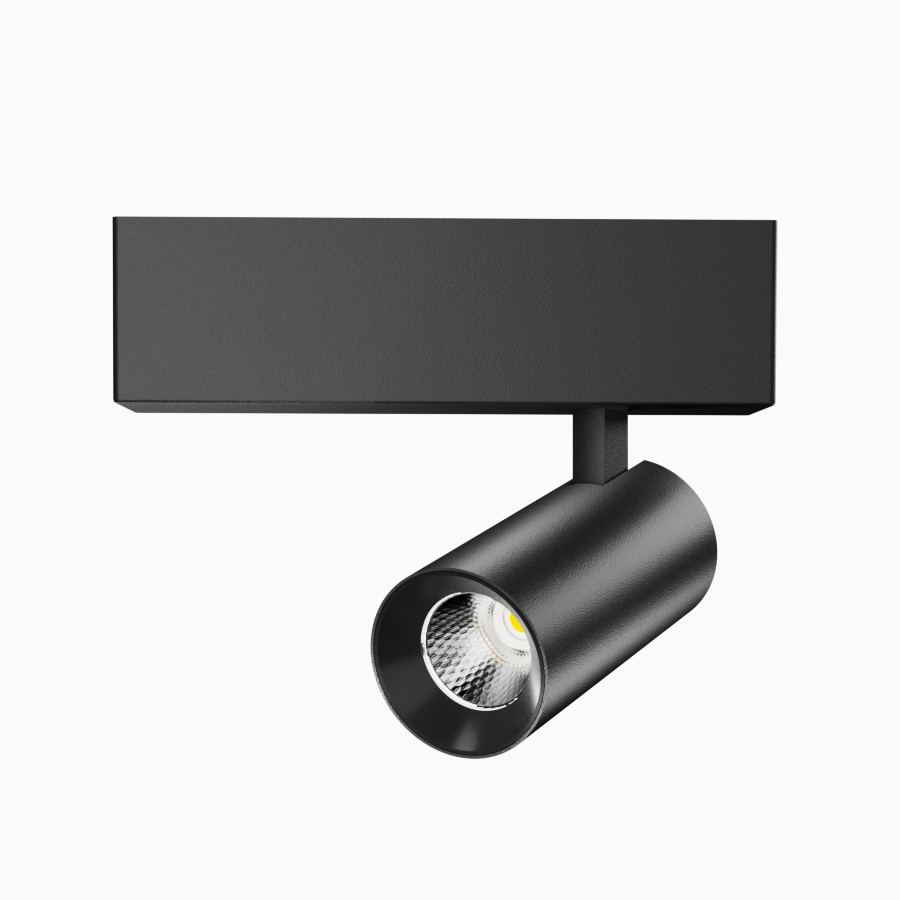

PRO Surface Mounted / Spot D1303 / D1304 / D1305 / D1306 / D1307

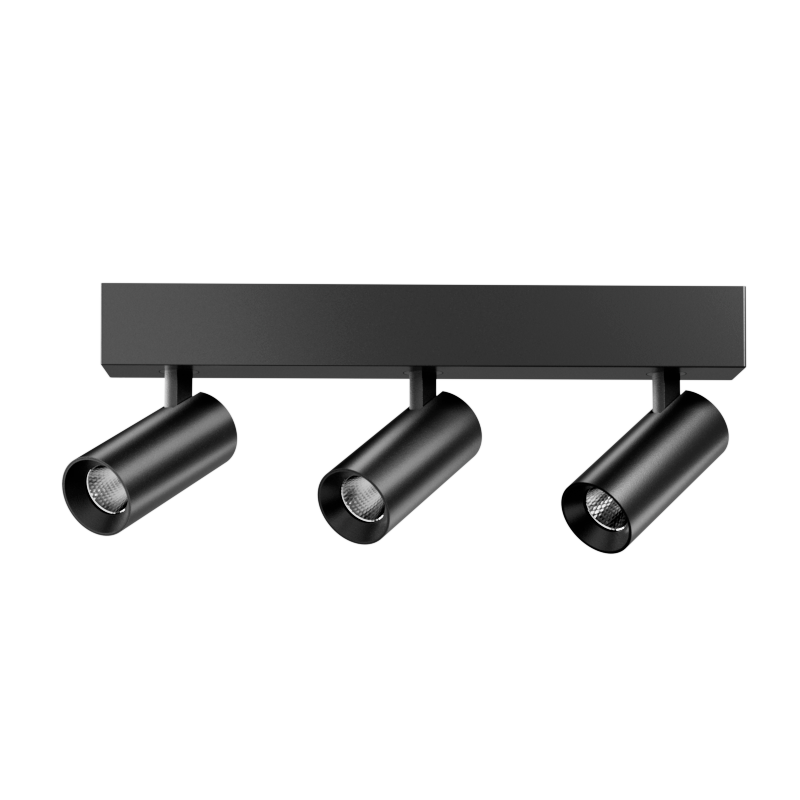

PRO Series Surface Mounted / Spot D1291 / D1292 / D1294 / D1295 / D1296 / D1297 / D1298 / D1299

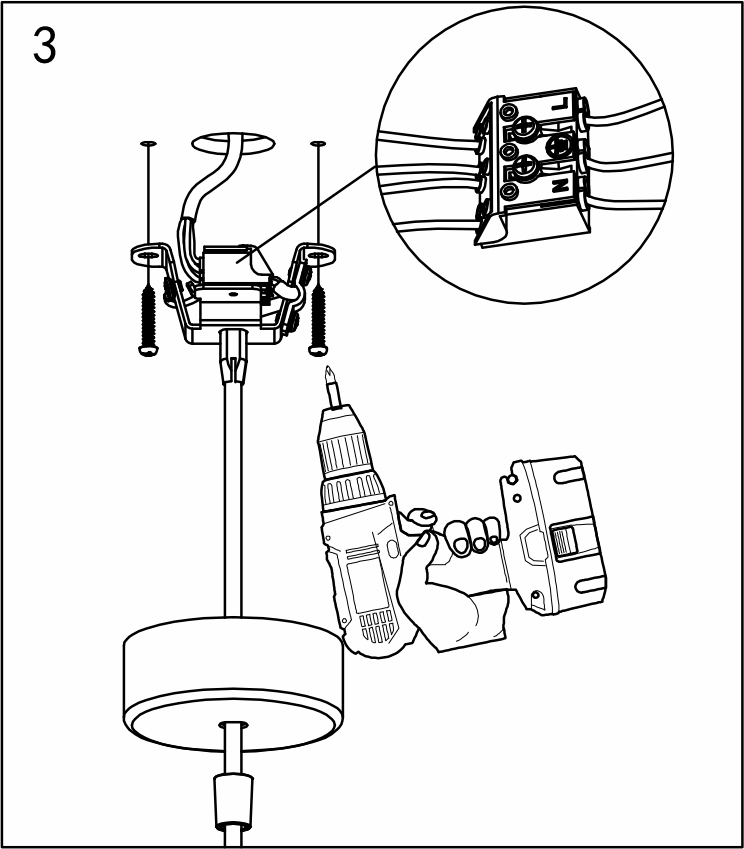

PRO Series Pendant Lamp P1075 / P1076 / P1077 / P1078 / P1079

PRO Series Pendant Lamp P1080-ZOOM / P1081-ZOOM/ P1082-ZOOM
