PRO Series Track light T1155A / T1156A / T1157A / T1158A

Share:

Description

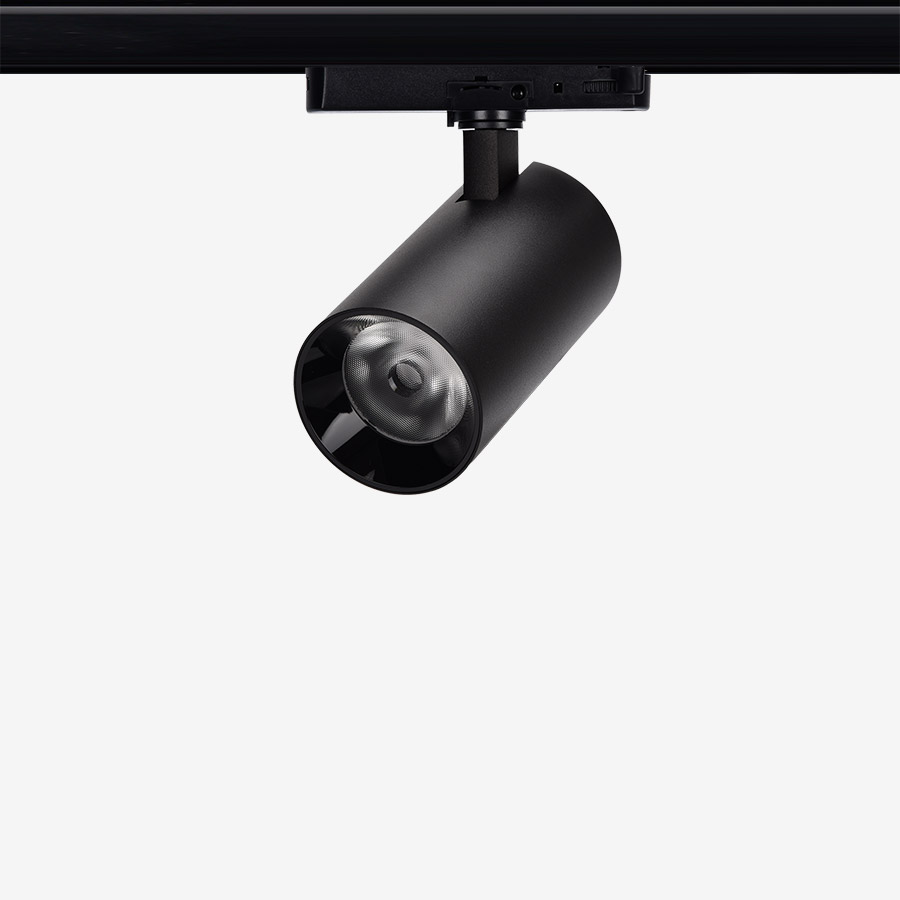

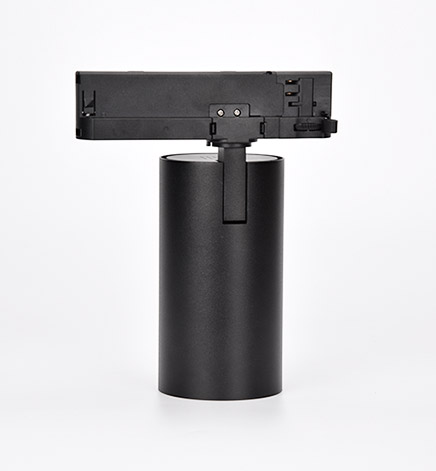

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
T1189 Product T1155A 15W 1200LM 15° / 24° / 38° 137 x60 x174 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Alloking Aluminum Alloy No
T1190 Product T1156A 20W 1600LM 15° / 24° / 38° 137 x70 x194 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Alloking Aluminum Alloy No
T1191 Product T1157A 30W 240LM 15° / 24° / 38° 137 x80 x210 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Alloking Aluminum Alloy No
T1192 Product T1158A 40W 320LM 15° / 24° / 38° 137 x90 x224 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Alloking Aluminum Alloy No

Product Video

Share:

Features

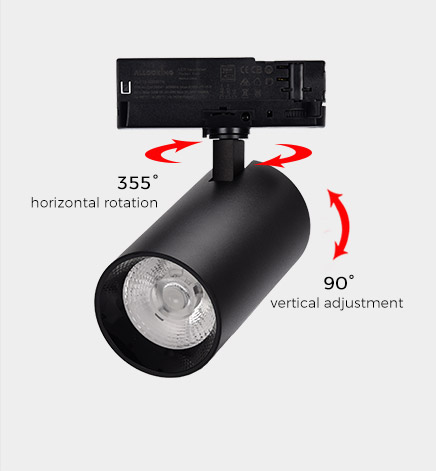

  • Flexible angle adjustment

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

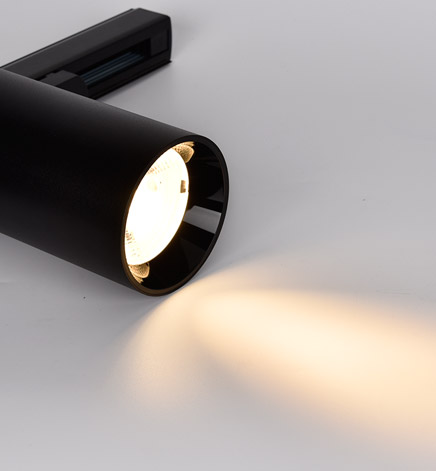

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

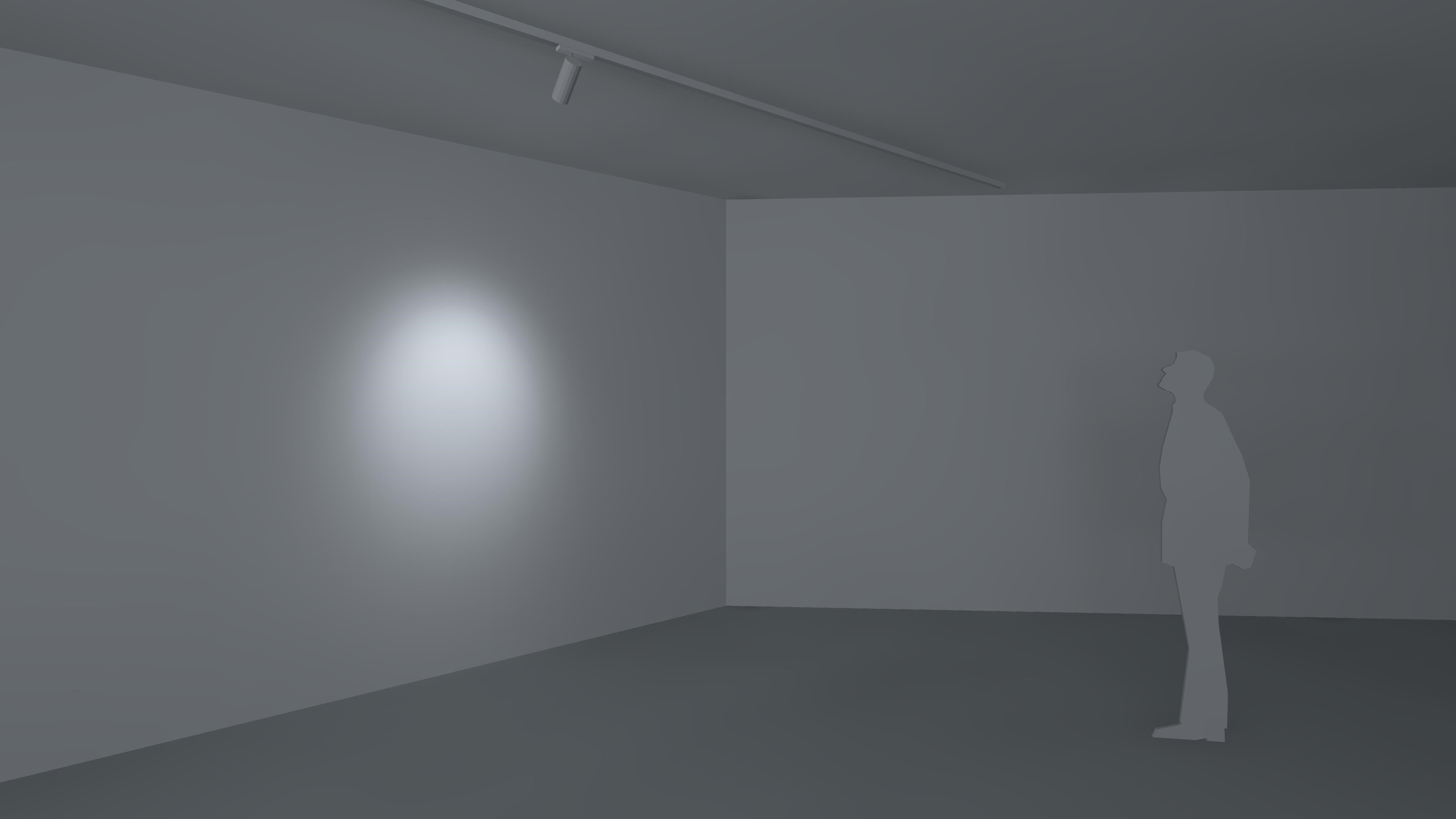

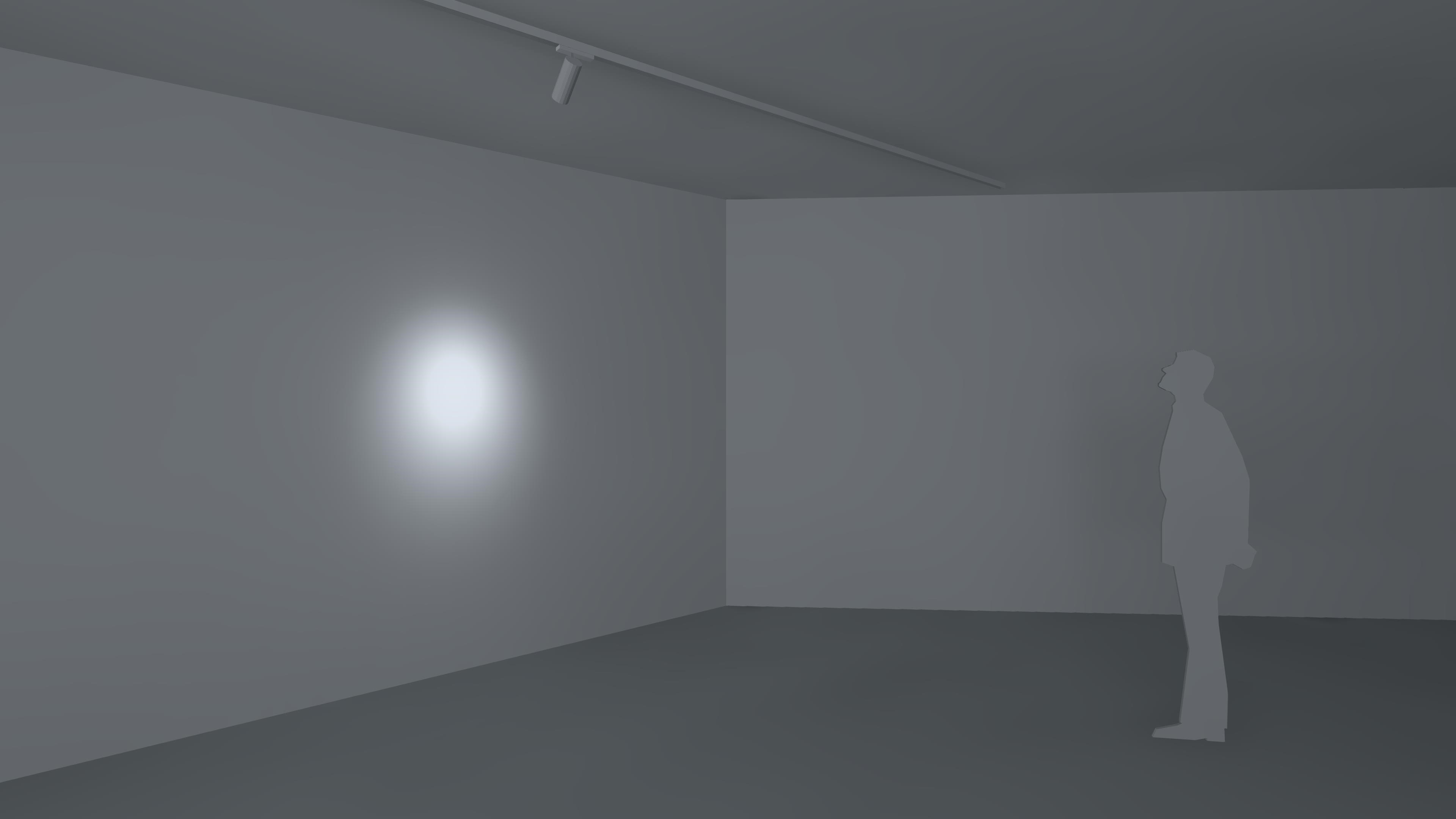

  • 15°Spot
  • 24°Flood

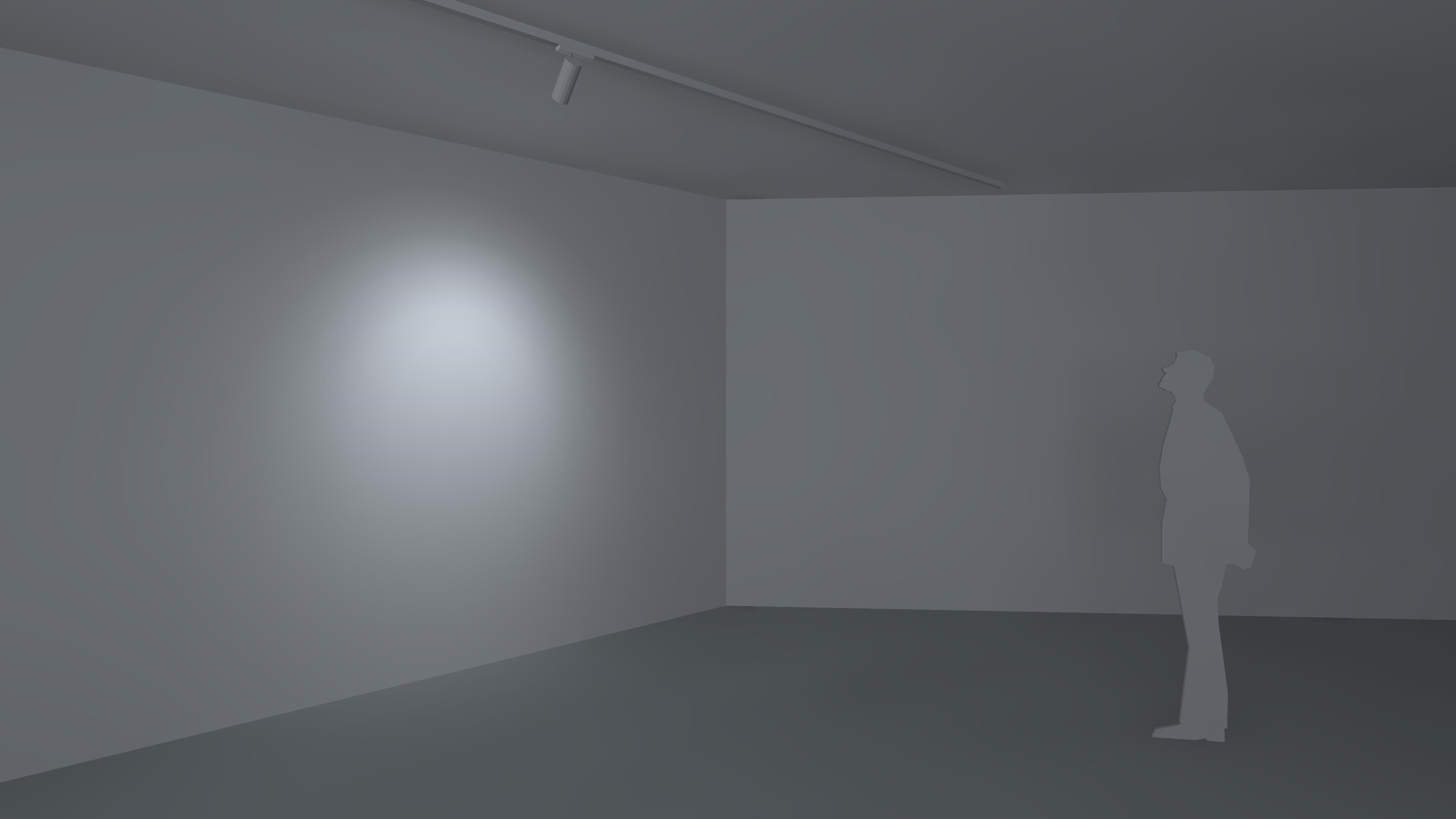

  • 38°Flood

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
  • Rotate the shift to 90 degree
  • Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
  • Turn the power supply to "off" position and Rotate the shift to 90 degree
  • Pull out of the head of track downward
