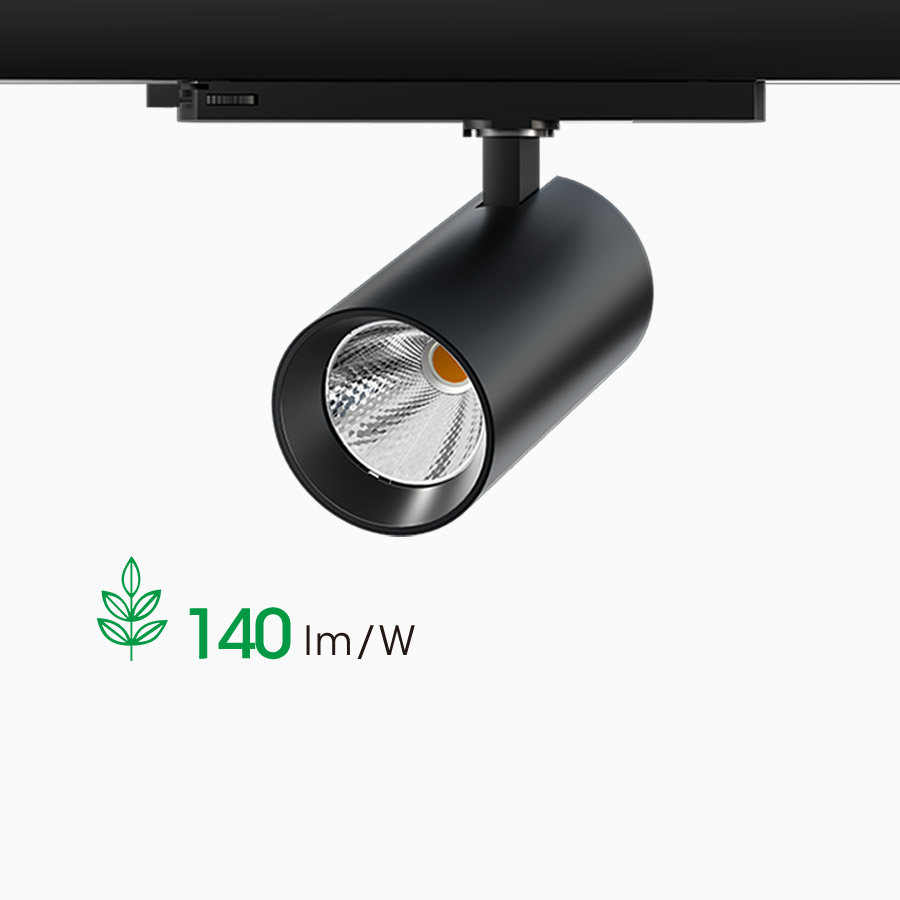

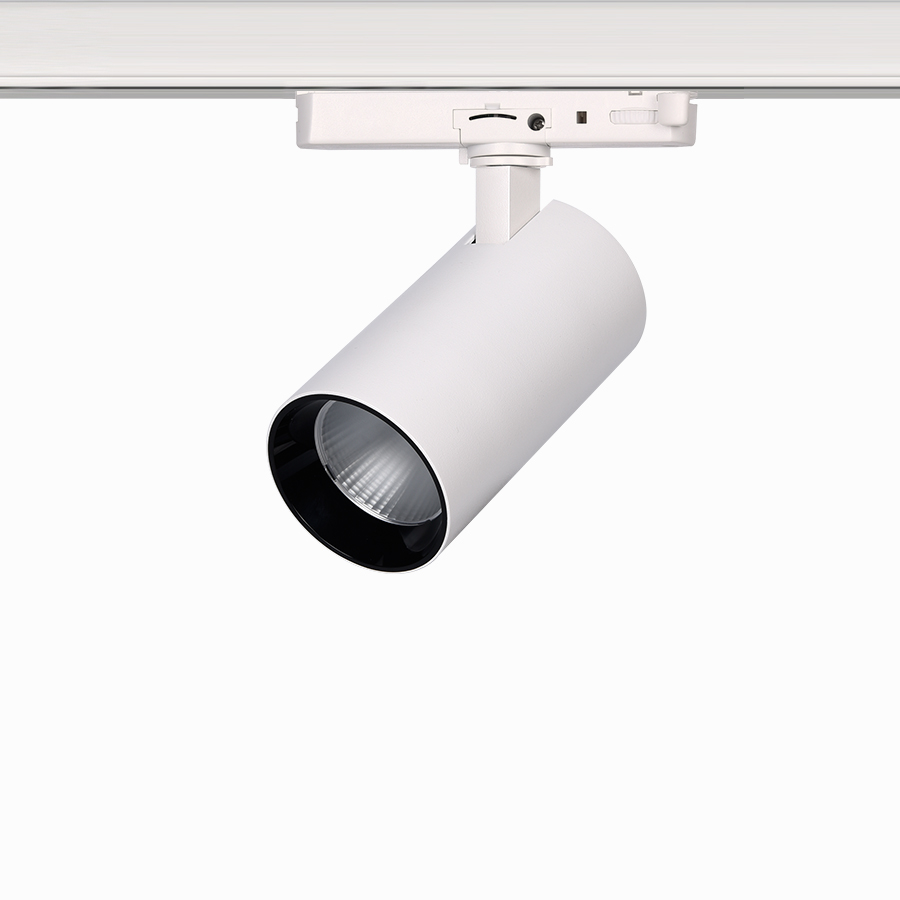

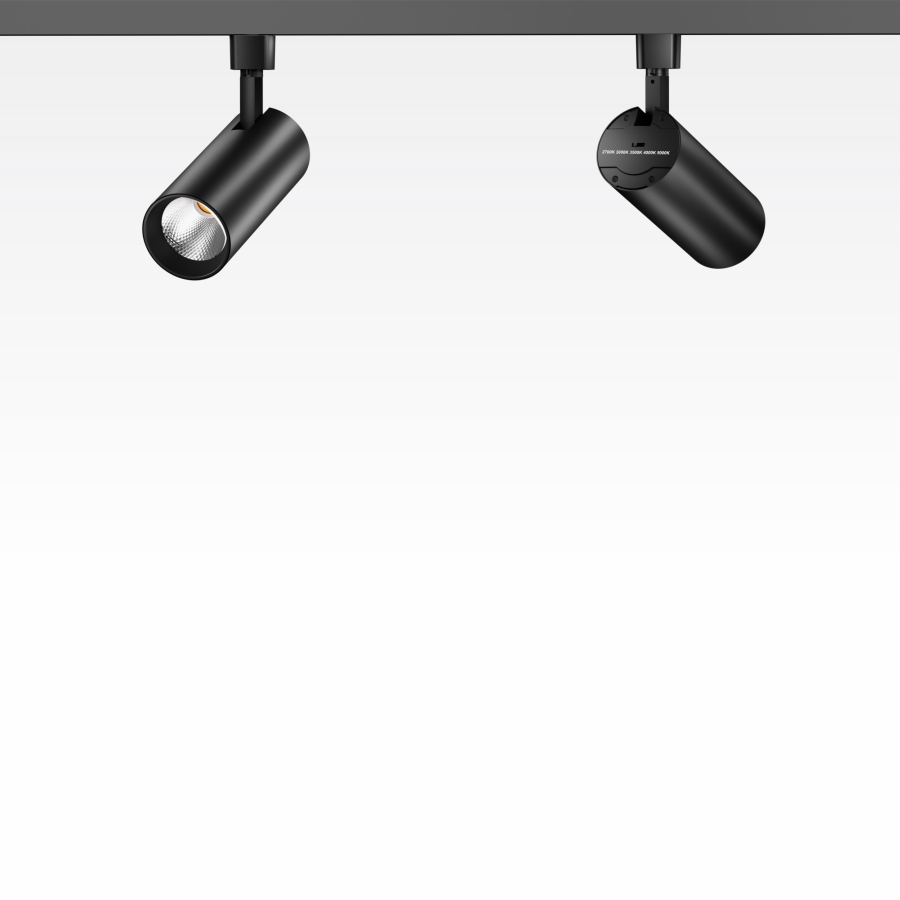

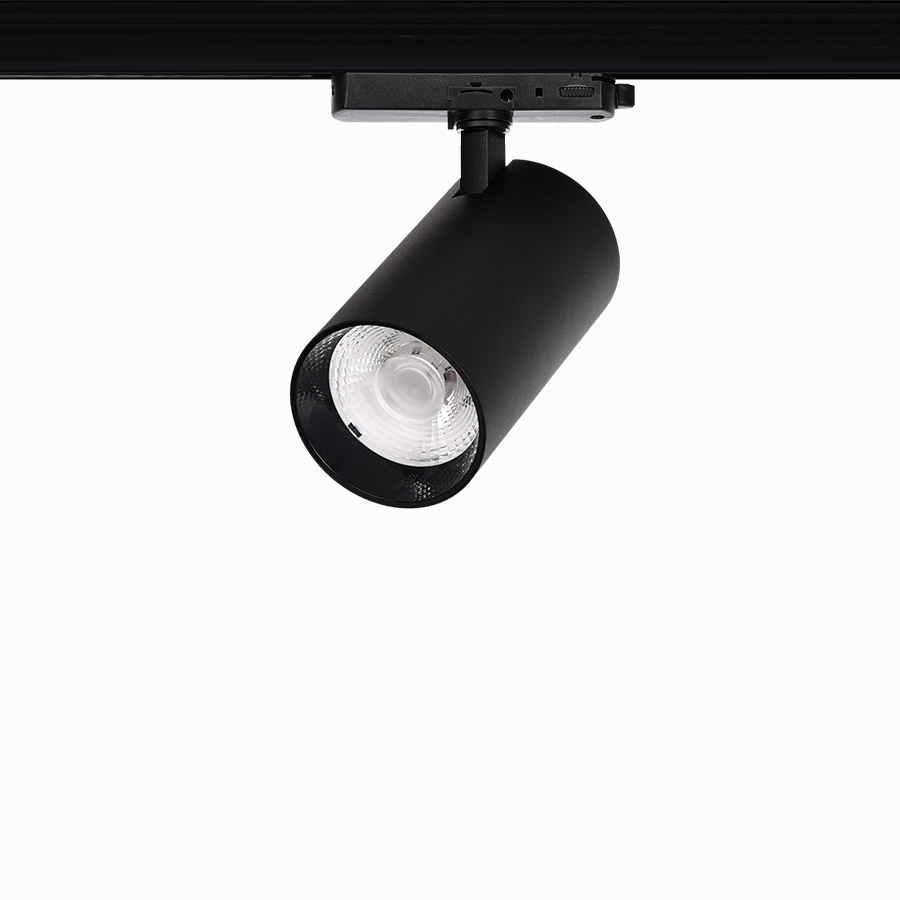

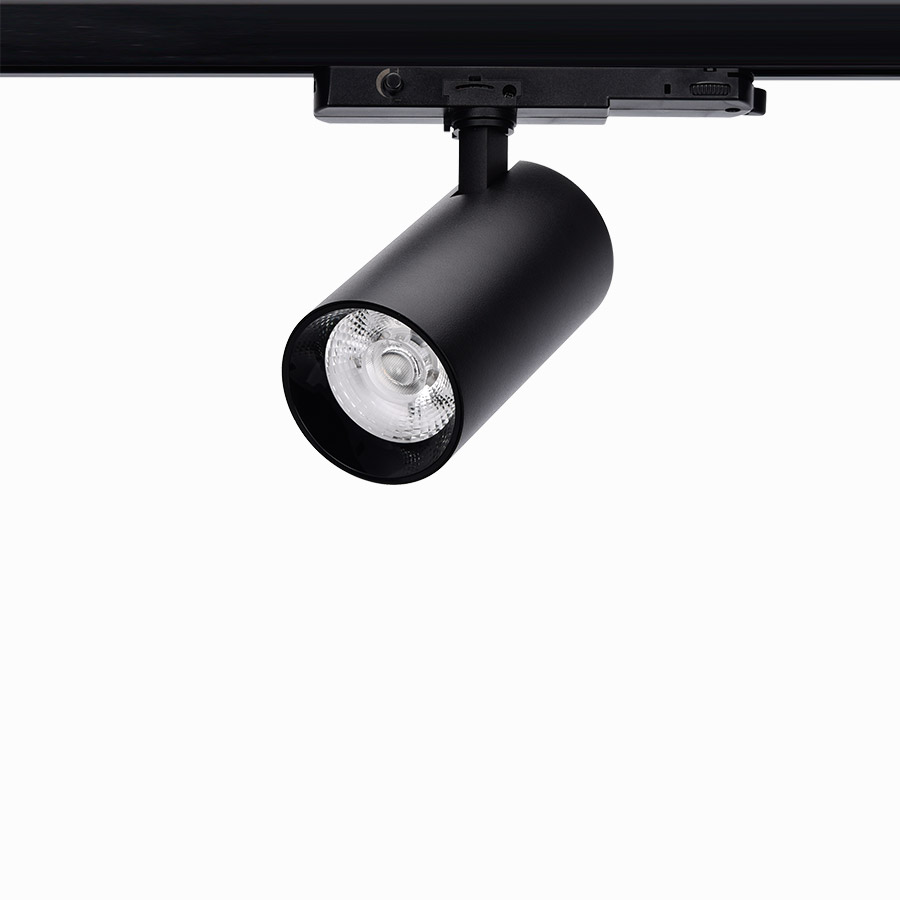

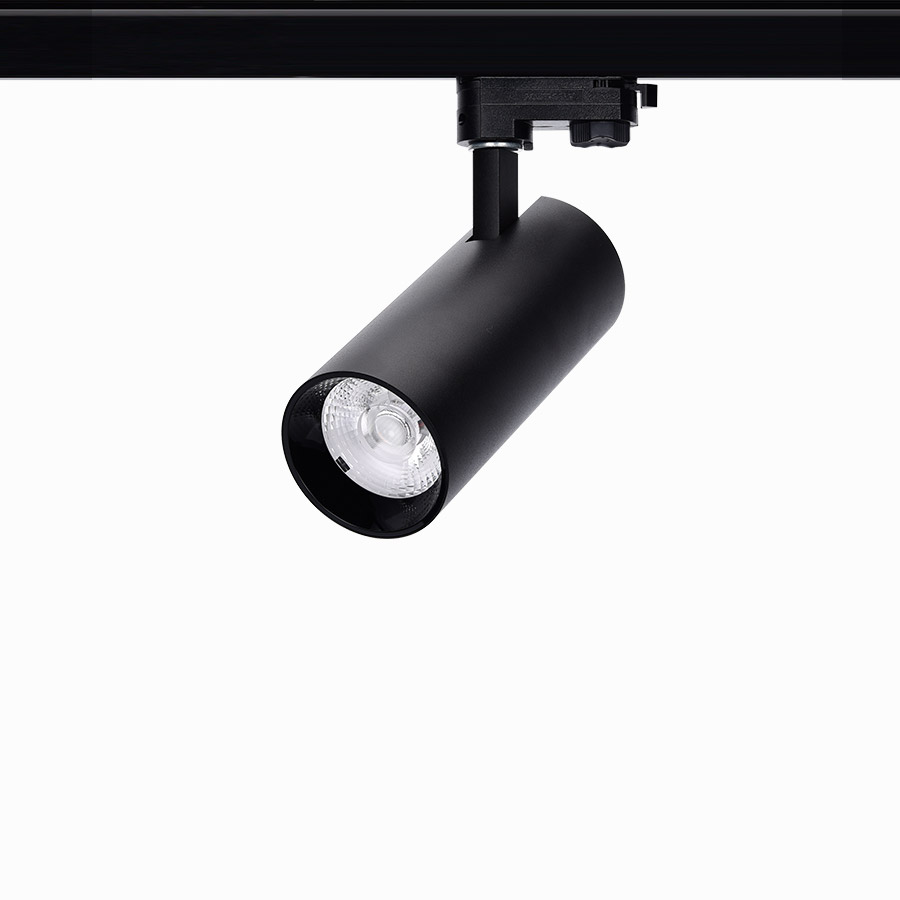

PRO Series Track light T1189 / T1190 / T1191 / T1192

Description

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Max Power	Luminous Flux	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
T1189	15W	1200LM	15° / 24° / 38°	189 x60 x 174	3000K / 4000K / 5700K	>80, >90	Black / White	Lumileds COB	Alloking	Aluminum Alloy	No
T1190	20W	1600LM	15° / 24° / 38°	189 x 70 x 194	3000K / 4000K / 5700K	>80, >90	Black / White	Lumileds COB	Alloking	Aluminum Alloy	No
T1191	30W	2400LM	15° / 24° / 38°	189 x 80 x 210	3000K / 4000K / 5700K	>80, >90	Black / White	Lumileds COB	Alloking	Aluminum Alloy	No
T1192	40W	3200LM	15° / 24° / 38°	189 x 90 x 224	3000K / 4000K / 5700K	>80, >90	Black / White	Lumileds COB	Alloking	Aluminum Alloy	No

Features

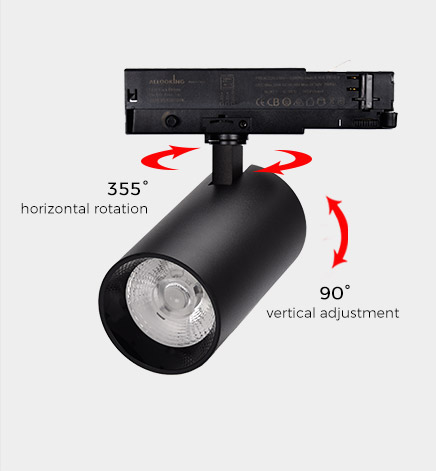

Flexible angle adjustment
355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

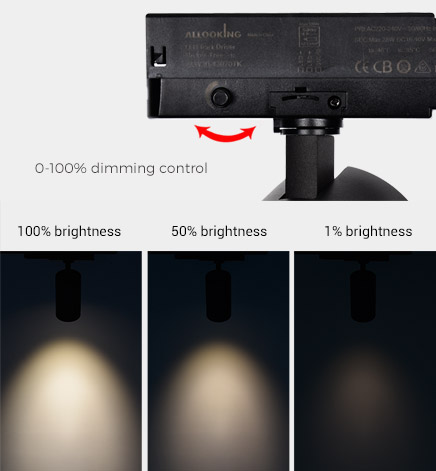

non-polar dimming
0-100% dimming control, compatible with different solution.

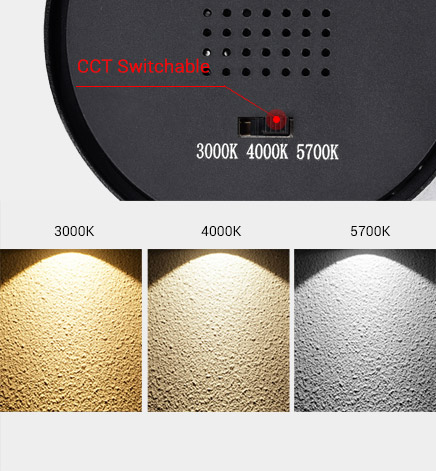

Switchable CCT
CCT（3000K/4000K/5700K） Switchable.

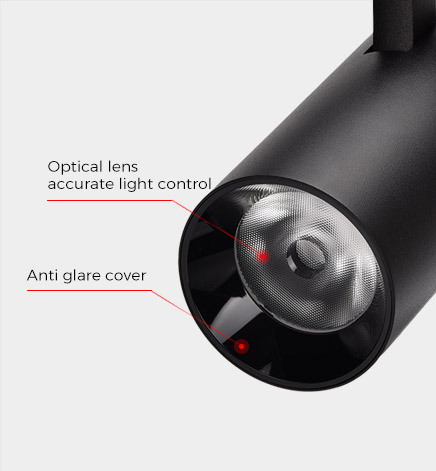

Professional optical lens
High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

Light effect

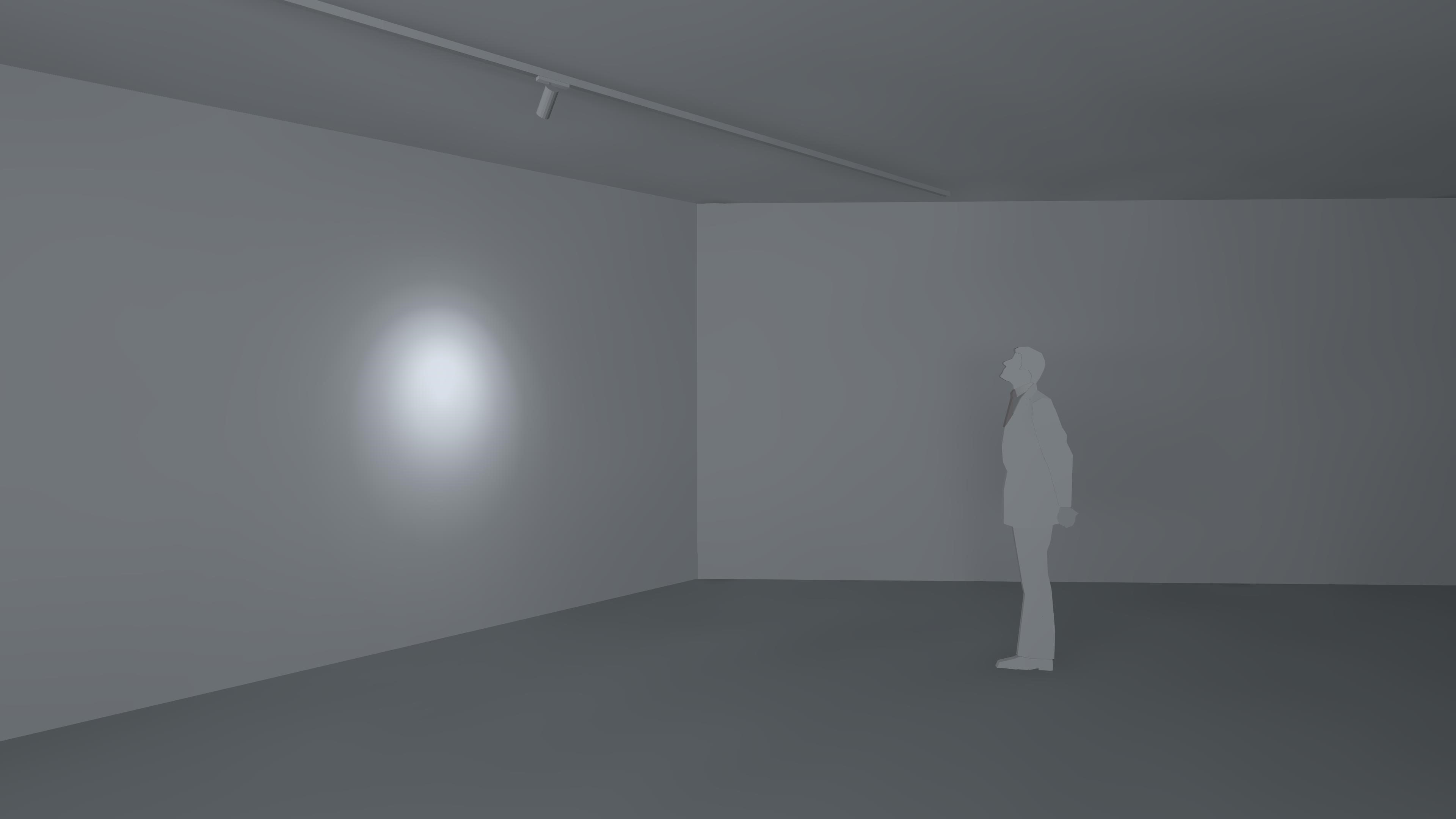

15°Spot

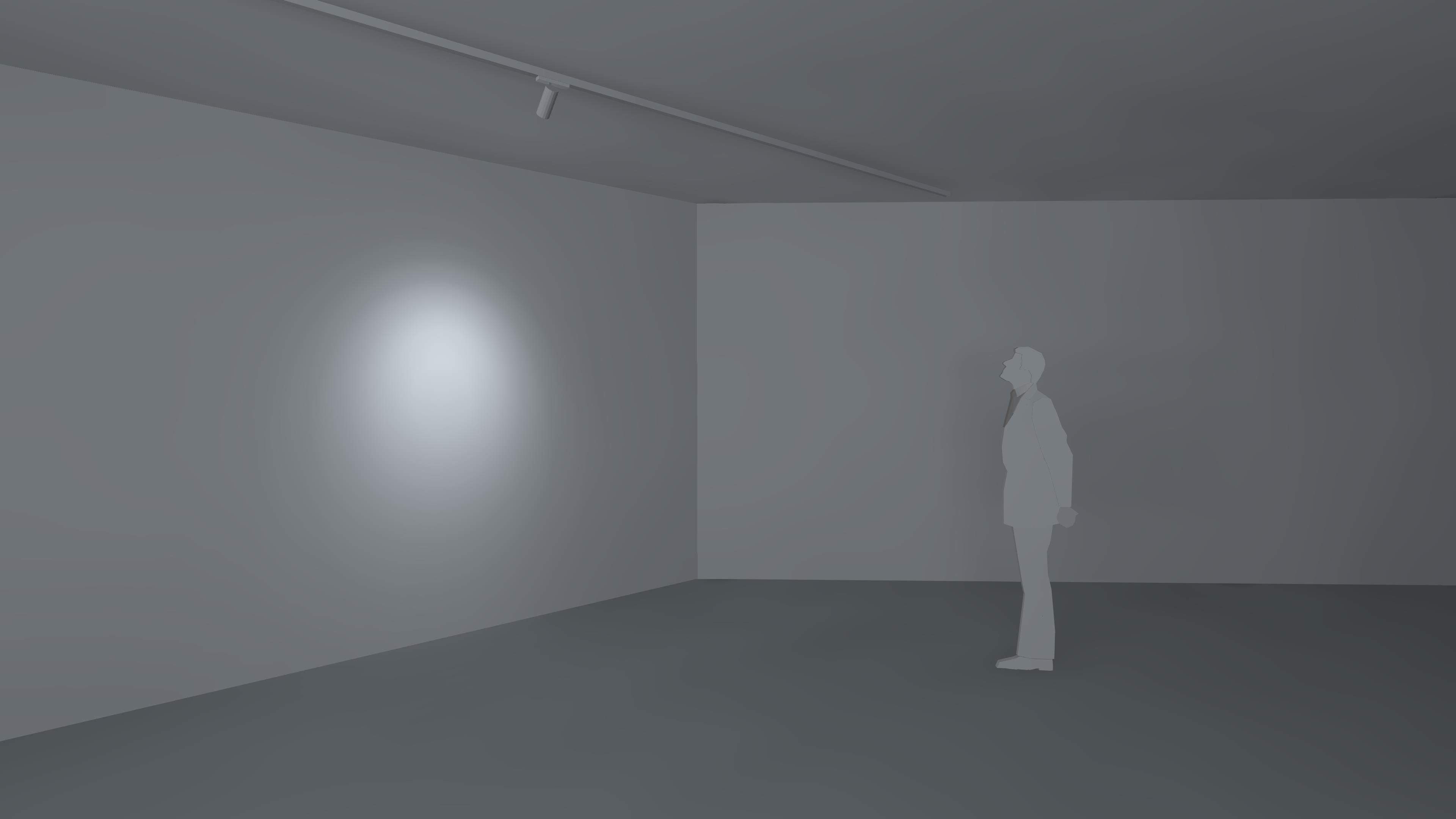

24°Flood

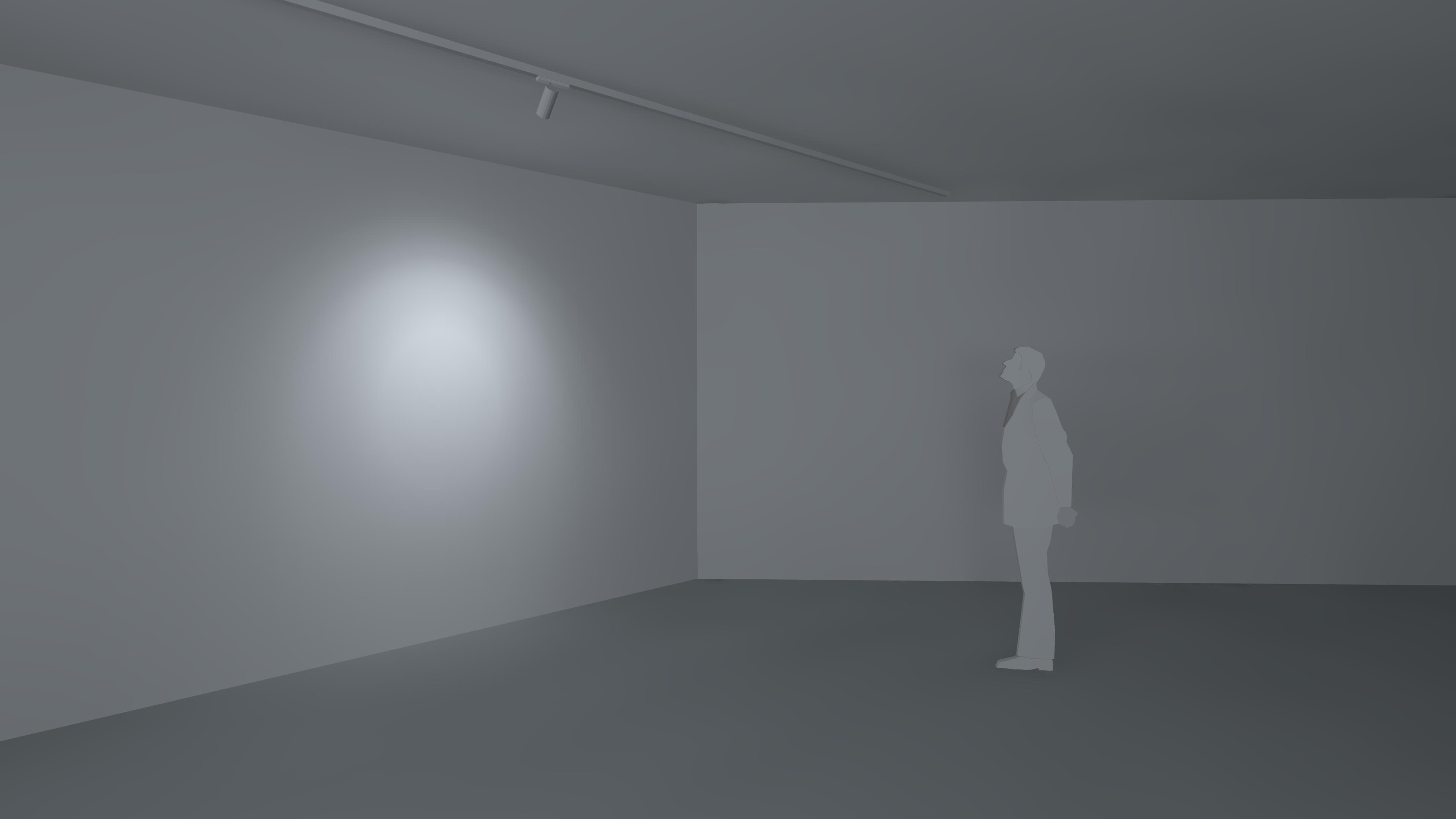

38°Flood
°
°
°
°
°
°

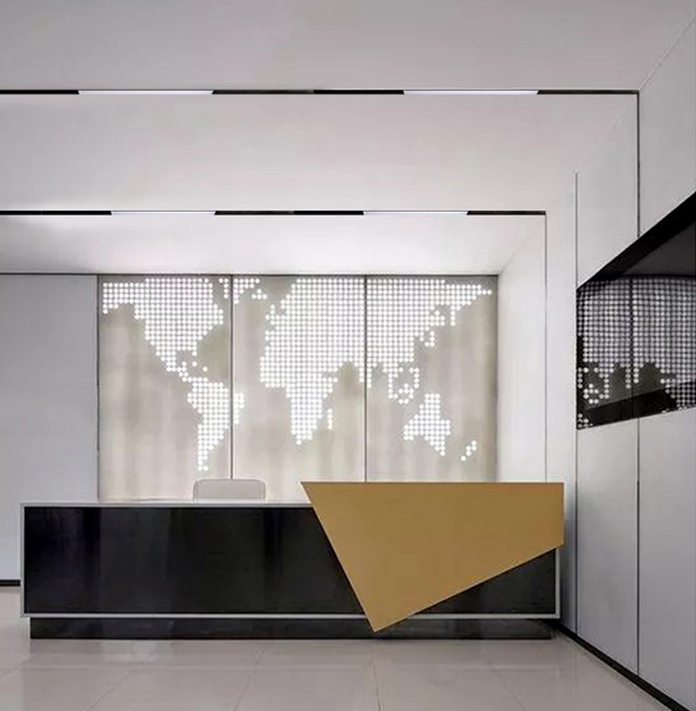

Application

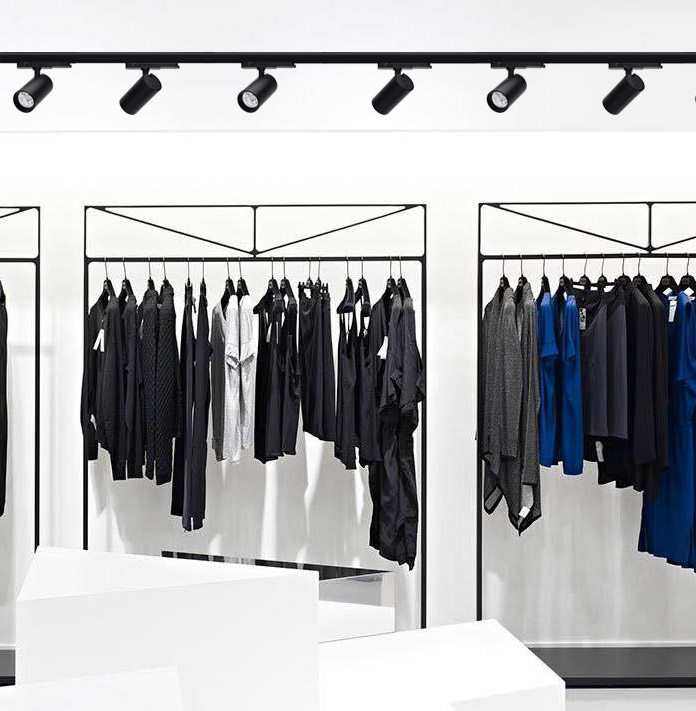

Product application in Store Lighting, Mall Lighting

Mounting

Install the track on the ceiling
Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
Rotate the shift to 90 degree
Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
Installation complete

Turn the power supply to "off" position and Rotate the shift to 90 degree
Pull out of the head of track downward
