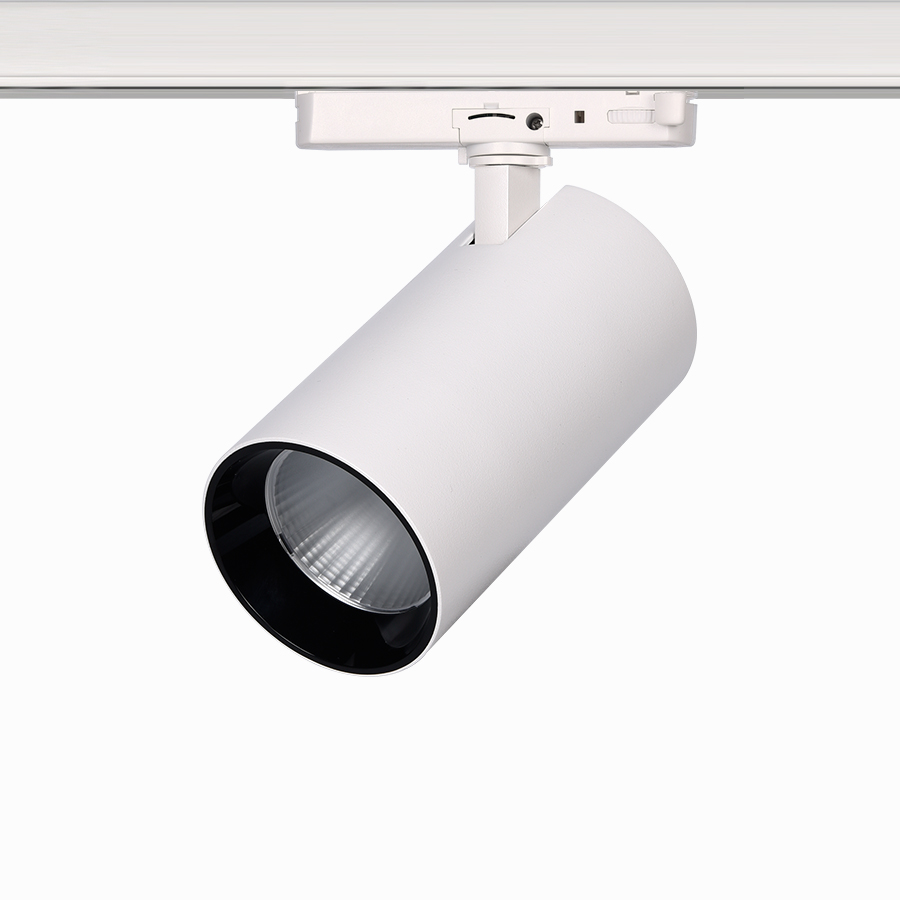

PRO Series Track light T1156 / T1157 / T1158

Share:

Description

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1156 Product T1156 18° / 24° / 36° / 45° 20 W 115 lm/W 2300 lm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
T1157 Product T1157 18° / 24° / 36° / 45° 28 W 125 lm/W 3500 lm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
T1158 Product T1158 18° / 24° / 36° / 45° 40 W 125 lm/W 5000 lm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

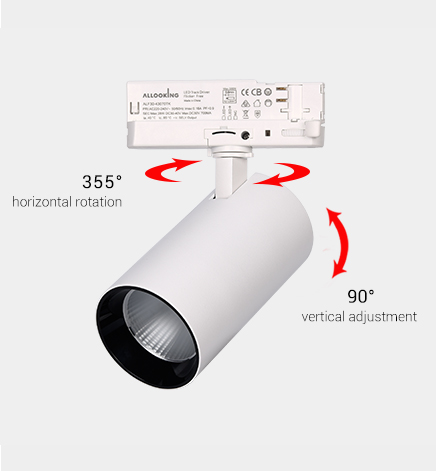

  • Flexible angle adjustment

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

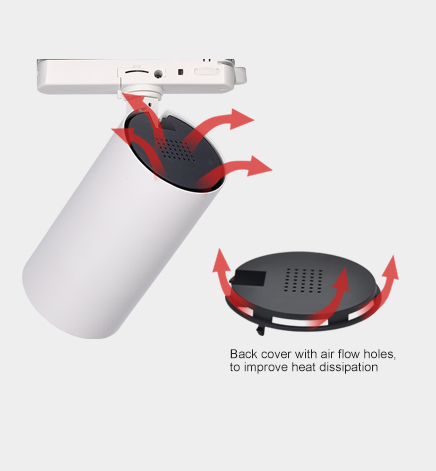

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

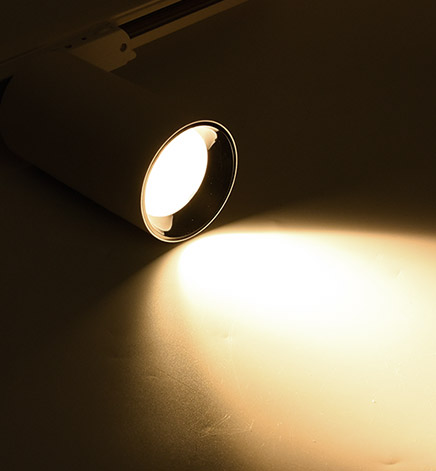

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

  • 15°Spotlights
  • 24°Spotlights
  • 36°Spotlights

Application

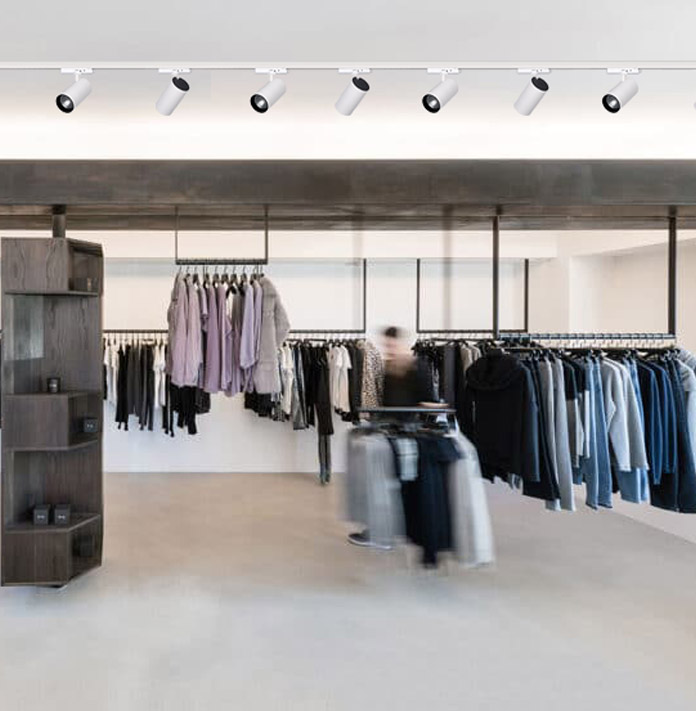

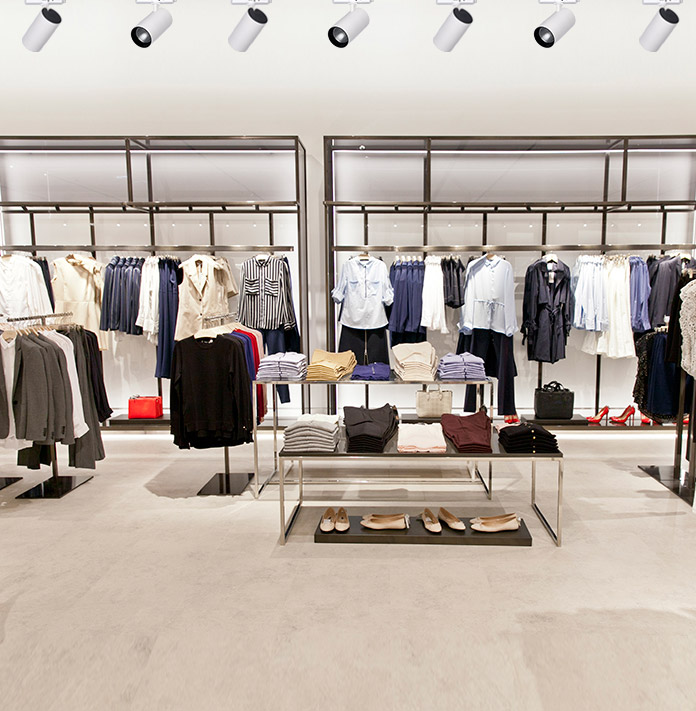

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
  • Rotate the shift to 90 degree
  • Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
  • Turn the power supply to "off" position and Rotate the shift to 90 degree
  • Pull out of the head of track downward
