SOUDOU Series Track light T1153 / T1154 / T1176

Description

SOTEN LIGHTING-SOUDOU Series is high quality led track light with 5 year warranty. Providing varius beam angles reflectors(15°/25°/35°X 75°/75°X 75°/60°/rectangular/Wall washer effect etc) for choice and easy installation by hands only.

SOTEN LED track light SOUDOU with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
T1154 20W 1600LM 12°/ 35°/ 55°/ 75°/ 35 x 35°/55x55°/75x75°/40x80°/ Wall-washer 198 x108 x 96 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
T1176 25W 1900LM 12°/ 35°/ 55°/ 75°/ 35 x 35°/55x55°/75x75°/40x80°/ Wall-washer 207 x 109 x 96 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
T1153 30W 2500LM 12°/ 35°/ 55°/ 75°/ 35 x 35°/55x55°/75x75°/40x80°/ Wall-washer 198 x 108 x 96 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No

Features

  • Muti-angle on options

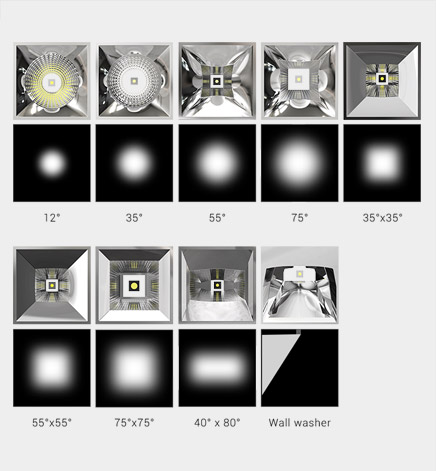

    Professional optical design, each luminous module 5 W, 100 lm/W, with nine different type of light, such as circular beams, rectangular beam, trapezoidal, oval, rectangle different type of light.

  • Easy to convert

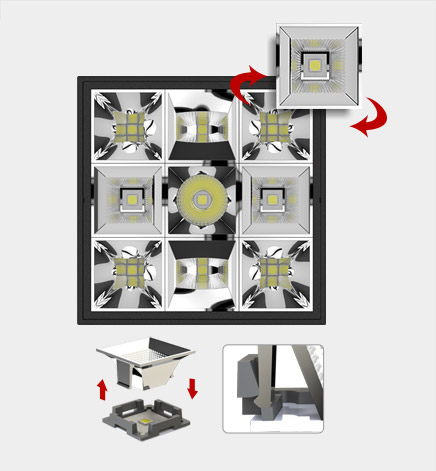

    Modular optical control device, high quality aluminum alloy radiator and light body combination, modular structure forfast assembly.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 95% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

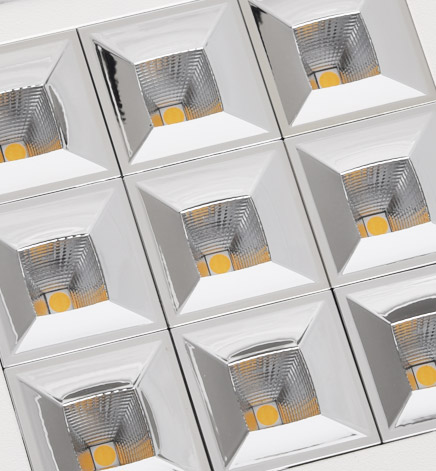

    Soft light effect, deep design for smd source, large shading Angle, better anti-glare effect.

Application

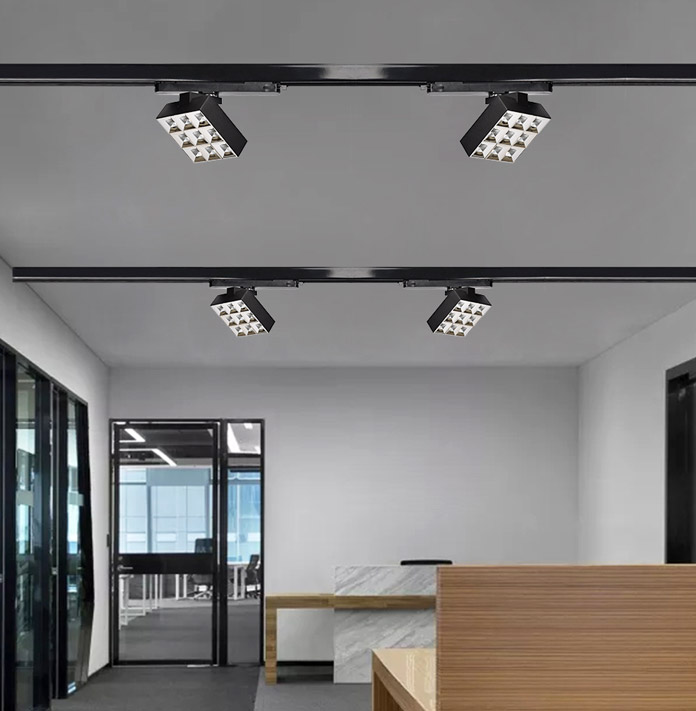

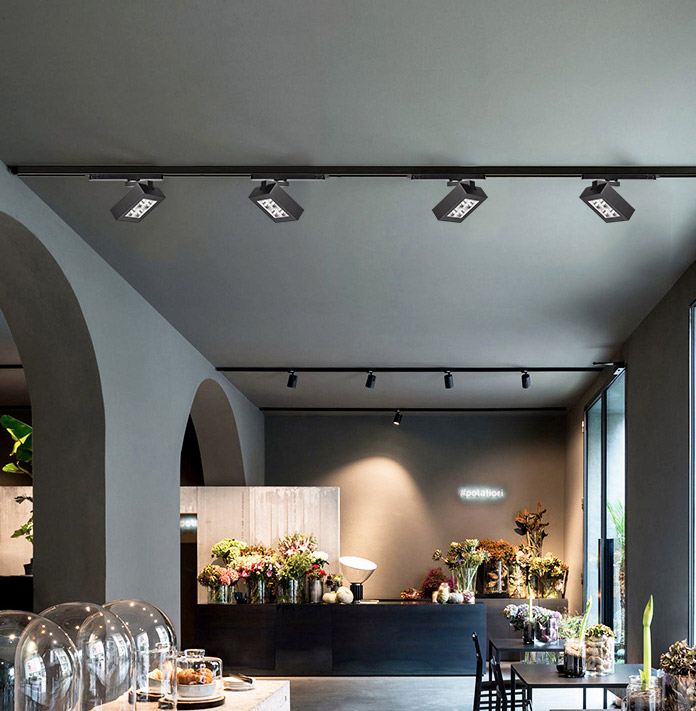

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "1"position and rotate the shift
  • Assembly the track head into track
  • Rotate the shift to 90 degree as picture I4,rotate "1/2/3" as your requirement 3 switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
