SOUDOU Series Downlight R1199 / R1200 / R1213 / R1214 / R1215 / R1216

Share:

Description

It can be adjusted at 3000k-6500k. Brightness 10%-100% adjustable. The size of the lamp can be increased or decreased according to the base of 420mm.

SOTEN LIGHTING-SOUDOU Series is high quality led track light with 5 year warranty. Providing varius beam angles reflectors(15°/25°/35°X 75°/75°X 75°/60°/rectangular/Wall washer effect etc) for choice and easy installation by hands only.

Led downlight shapes including square type, linear type with multiple combination. This series modified to be recessed type, trimless type, surface mounted type,pendant type and track light type.DALI dimmable with 2-3 channels available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1199 33W 2300-3000LM 434 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 439 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
R1215 44W 3065-4000LM 573 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 580 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
R1216 55W 3830-5000LM 713 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 720 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
R1213 66W 4600-6000LM 857 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 862 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
R1214 77W 5365-7000LM 995 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 1002 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
R1200 98W 6900-9000LM 1279 x 42mm 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 1284 x 48 x 41 3000K / 4000K / 5000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No

Product Video

Share:

Features

  • Muti-angle on options

    Professional optical design, each luminous module 5 W, 100 lm/W, with nine different type of light, such as circular beams, rectangular beam, trapezoidal, oval, rectangle different type of light.

  • Easy to convert

    Modular optical control device, high quality aluminum alloy radiator and light body combination, modular structure forfast assembly.

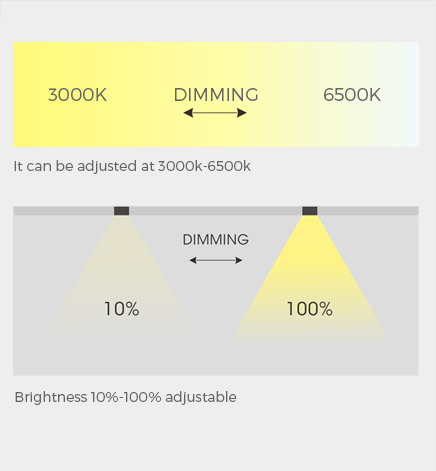

  • Stepless dimming and Stepless color palette

    It can be adjusted at 3000k-6500k. Brightness 10%-100% adjustable.

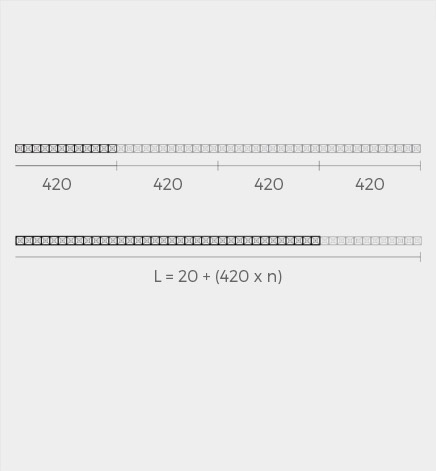

  • The length can be customized

    The size of the lamp can be increased or decreased according to the base of 420mm.

Application

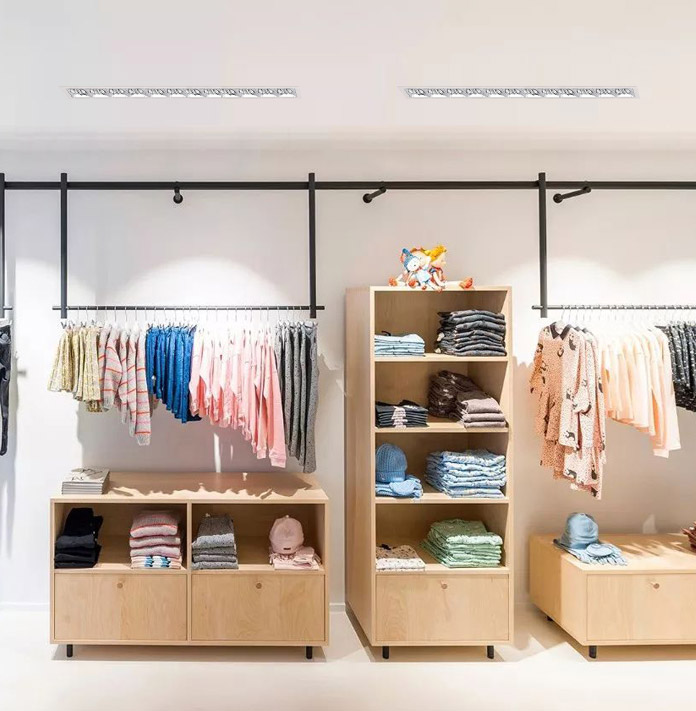

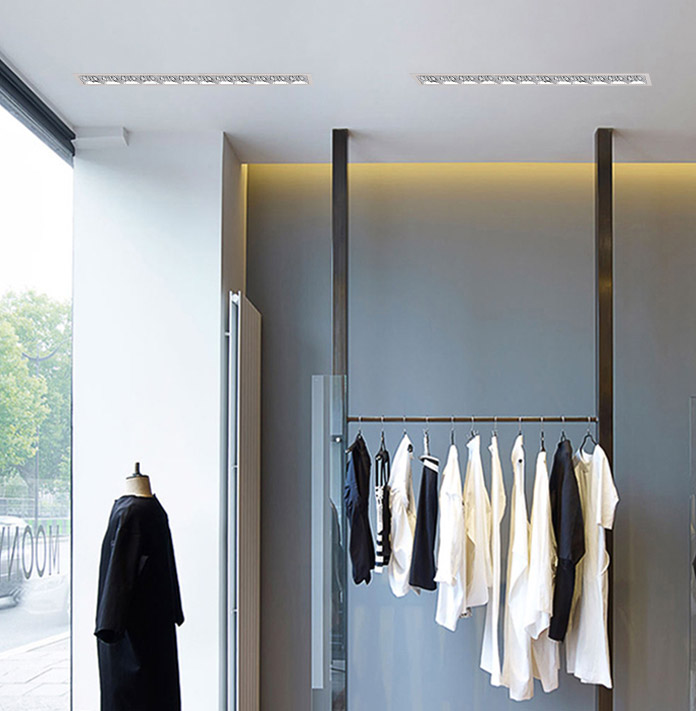

Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a  hole on the ceiling
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third:Installation complete
  • Disassemble step: First:Catch and hold the lamp and pull it out
