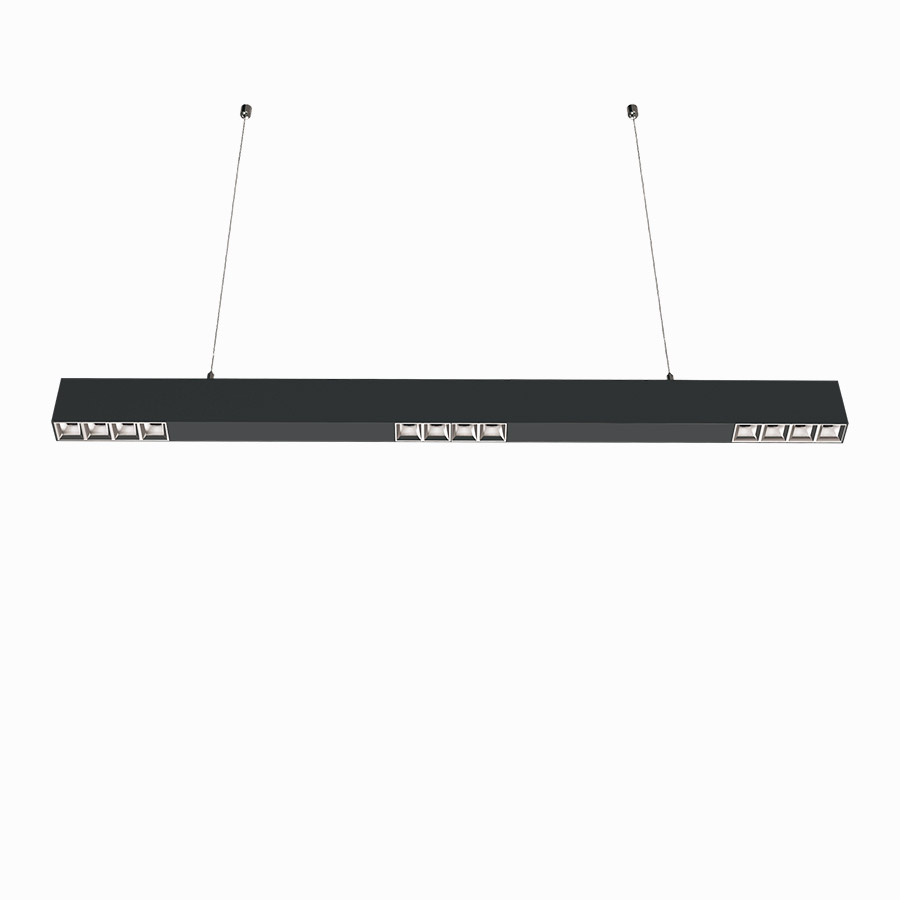

SOUDOU Series Pendant light P1028 / P1030

Share:

Description

SOTEN LIGHTING-SOUDOU Series is high quality led track light with 5 year warranty. Providing varius beam angles reflectors(15°/25°/35°X 75°/75°X 75°/60°/rectangular/Wall washer effect etc) for choice and easy installation by hands only.

Pendant light SOUDOU with CRI90+, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Led Pendant light shapes including square type, linear type with multiple combination. This series modified to be recessed type, trimless type, surface mounted type,pendant type and track light type.DALI dimmable with 2-3 channels available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
P1028 Product P1028 33W 2000LM 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 100 x 38 x 75 3000K / 4000K / 5000K >80, >90 Black / White Luminus Lufid Aluminum Alloy No
P1030 Product P1030 38W 3000LM 12°/ 35°/ 55°/ 75°/ 35*35°/ 55*55°/ 75*75°/ 40*80°/ Wall-washer 100 x 38 x 75 3000K / 4000K / 5000K >80, >90 Black / White Luminus Lufid Aluminum Alloy No

Product Video

Share:

Features

  • Muti-angle on options

    Professional optical design, each luminous module 5 W, 100 lm/W, with nine different type of light, such as circular beams, rectangular beam, trapezoidal, oval, rectangle different type of light.

  • Easy to convert

    Modular optical control device, high quality aluminum alloy radiator and light body combination, modular structure forfast assembly.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 95% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for smd source, large shading Angle, better anti-glare effect

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Drill a hole in the ceiling installation position. Put the rubber plug into the drilled hole.
  • Fix the hanging plate and base to the ceiling with self-tapping screws.
  • Loose the wire lock of the ceiling box, take out the hanging plate, loosen and take out the base of the suspension wire assembly. Connect the input wire to the terminal, pay attention to the "L","N" and "G" position. Adjust the suitable height, and then lock the ceiling box and suspension wire assembly with the wire lock.
  • Power on, use the remote control to adjust the lamp, then the unstallation is finished.
