SOUDOU Series Downlight G1066 / G1067

Description

SOTEN LIGHTING-SOUDOU Series is high quality led track light with 5 year warranty. Providing varius beam angles reflectors(15°/25°/35°X 75°/75°X 75°/60°/rectangular/Wall washer effect etc) for choice and easy installation by hands only.

Downlight SOUDOU with CRI90+, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Led downlight shapes including square type, linear type with multiple combination. This series modified to be recessed type, trimless type, surface mounted type,pendant type and track light type.DALI dimmable with 2-3 channels available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product	Item No	Max Power	Luminous Flux	Ceiling Cut Out	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
	G1066	16W	1100LM	90 x 82mm	12°/ 35°/ 55°/ 75°/ 3535°/ 5555°/ 7575°/ 4080°/ Wall-washer	121 x 81.5 x 40	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds SMD	Tridonic	Aluminum Alloy	No
	G1067	30W	2100LM	128 x 119mm	12°/ 35°/ 55°/ 75°/ 3535°/ 5555°/ 7575°/ 4080°/ Wall-washer	158 x 118 x 40	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds SMD	Tridonic	Aluminum Alloy	No

Features

Muti-angle on options
Professional optical design, each luminous module 5 W, 100 lm/W, with nine different type of light, such as circular beams, rectangular beam, trapezoidal, oval, rectangle different type of light.
Easy to convert
Modular optical control device, high quality aluminum alloy radiator and light body combination, modular structure forfast assembly.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 95% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for smd source, large shading Angle, better anti-glare effect

Application

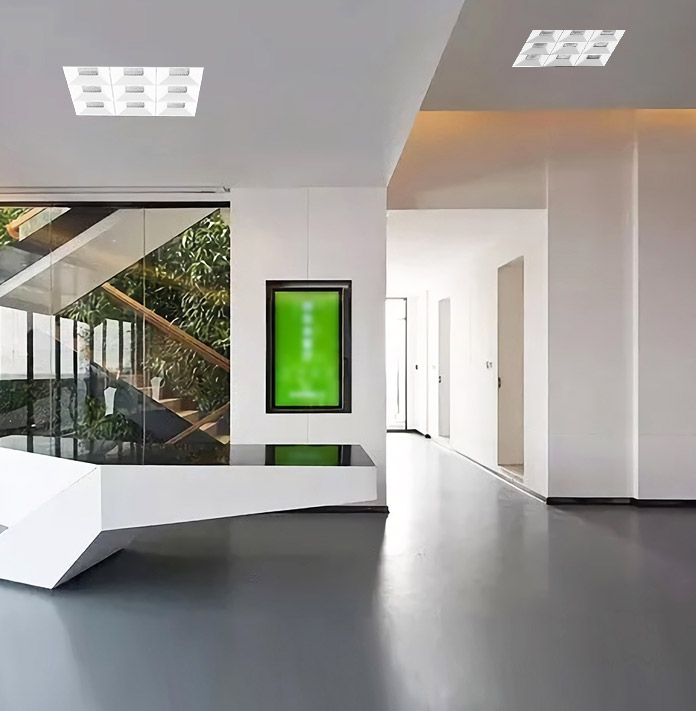

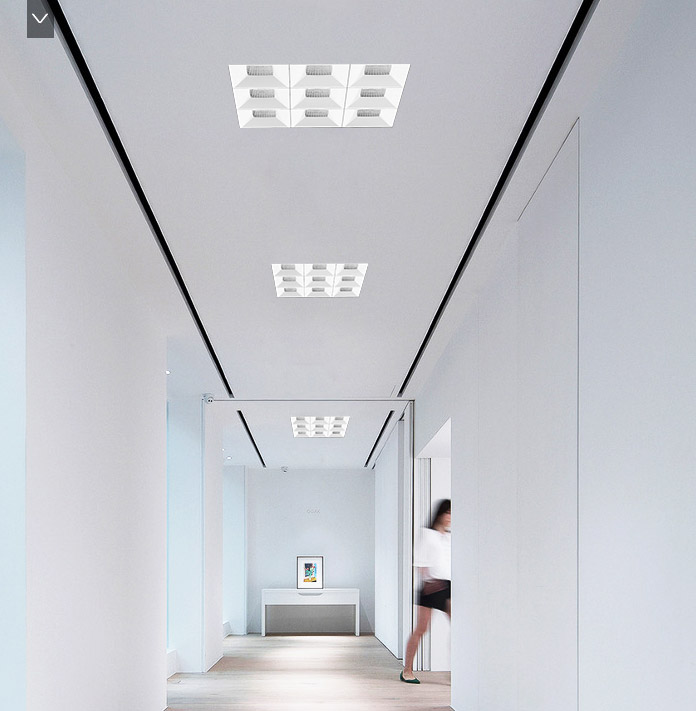

Product application in Store Lighting, Mall Lighting

Mounting
