GYRO Series Recessed spot light R1223 / R1224



355 degrees horizontal rotation, 30 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

SOTEN Recessed spot light with high power 20-35W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1079 Product R1223 15° / 24° / 36° 15 W 74 lm/W 1123 lm 120 x 120x 116mm Ø110 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1081 Product R1224 15° / 24° / 36° 15 W 74 lm/W 1123 lm 174 x 112 x 116mm Ø115 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

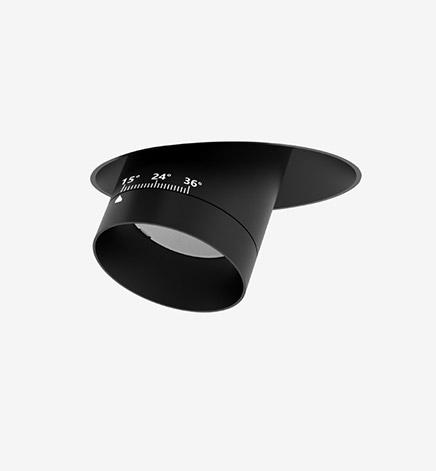

  • ZOOM type

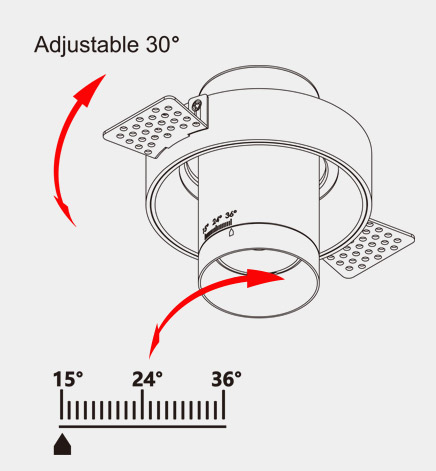

    Stepless adjustment of 15-36°beam angle,Diplex Variable angle structure 30°and 350°adjustable freely.

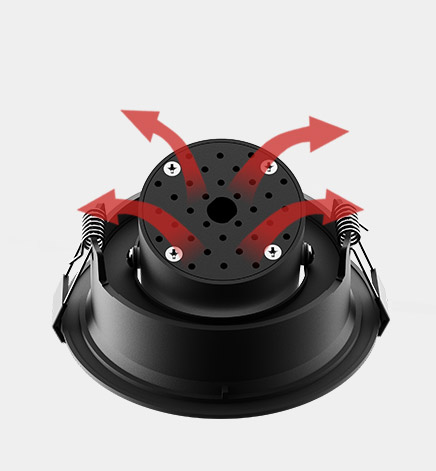

  • High efficiency heat dissipation

    Adopt strong air convection design, fast heat dissipation, ensure internal temperature stability and safety.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

Light effect

  • 15-36°Spotlights
  • 15-36°Spotlights

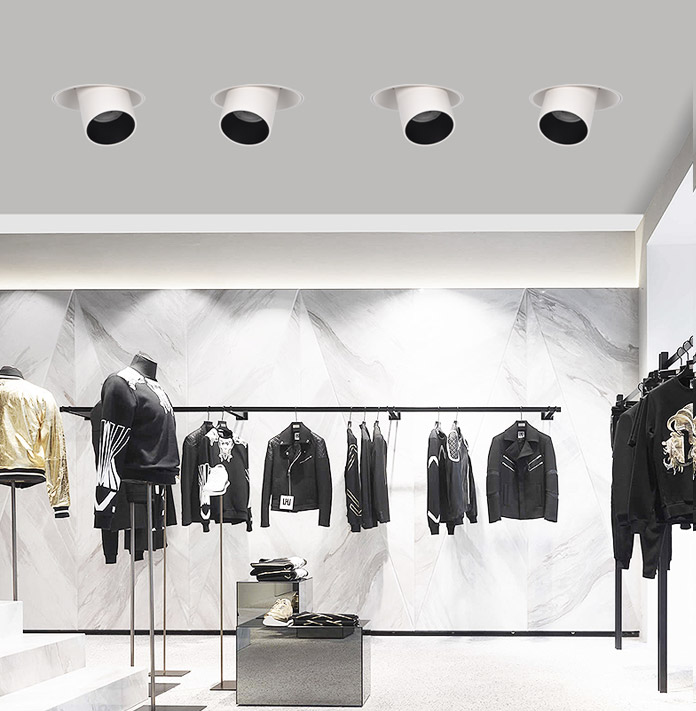

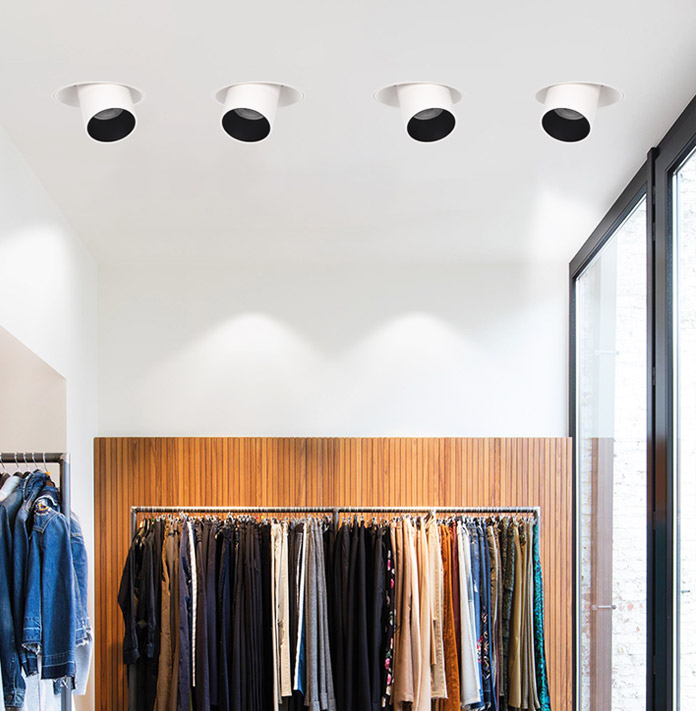

Product application in Store Lighting, Mall Lighting


  • First: Cutting a φ125mm or φ150mm hole on the ceiling
  • Second: Use screw to fixate the outer frame in ceiling plate.
  • Third: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • four: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
