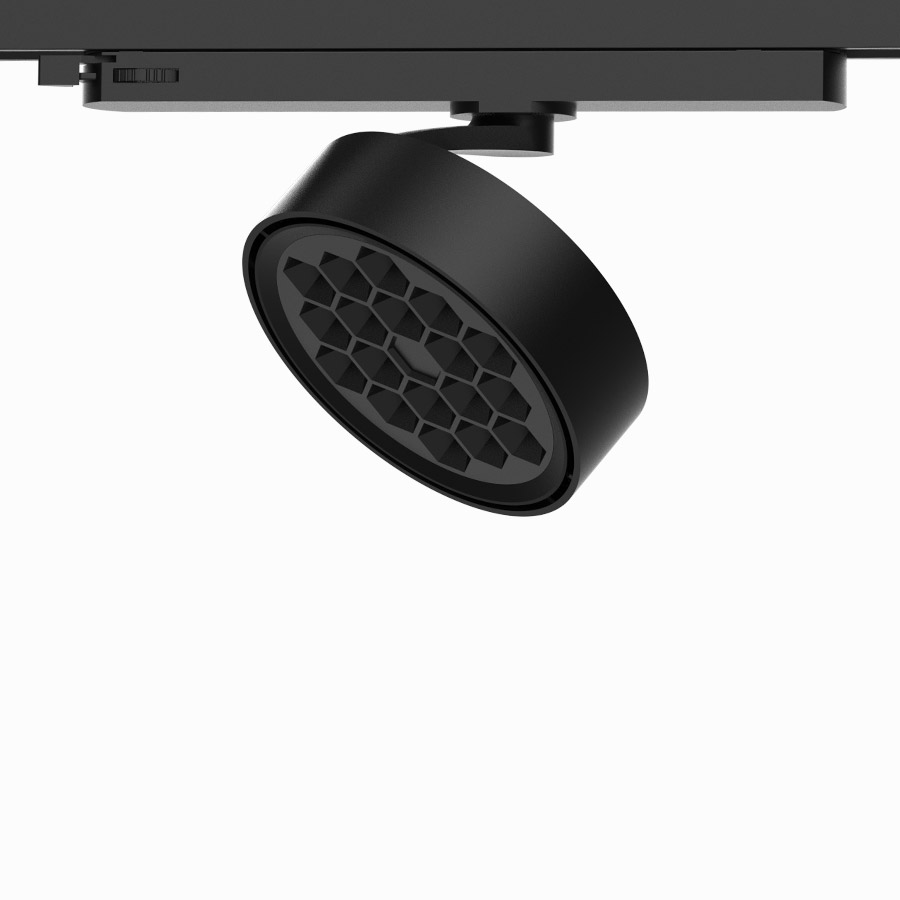

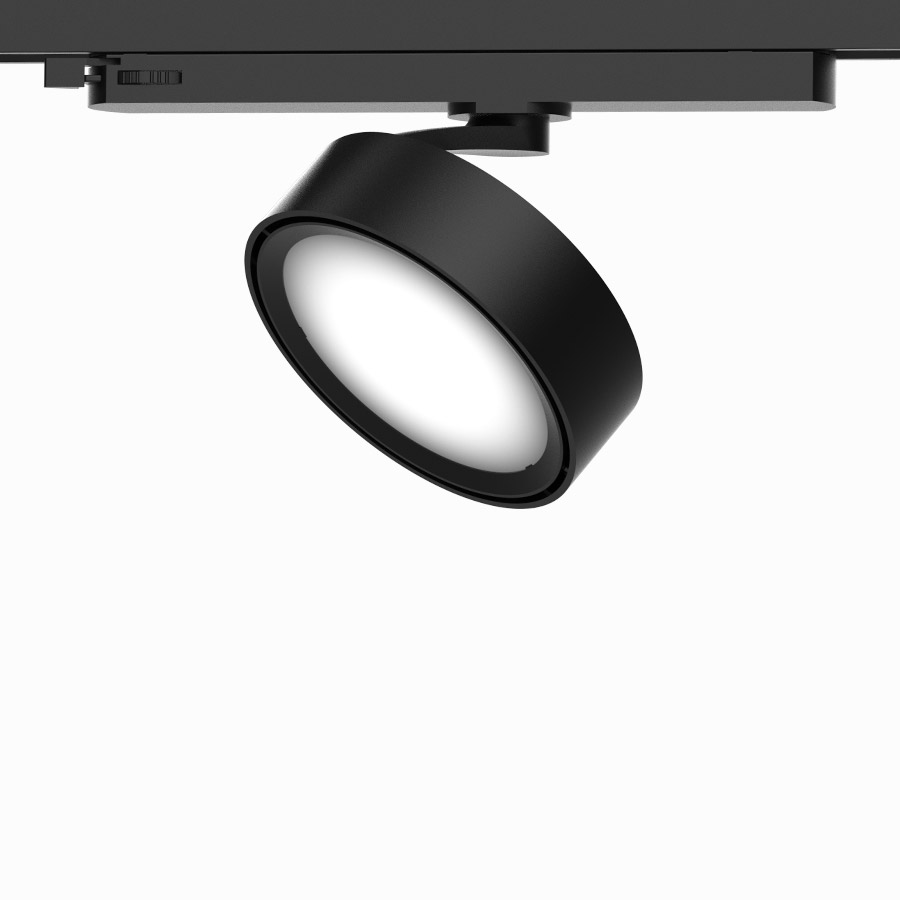

PUPIL Series

Simple and thin appearance, thickness: 3.5cm.
Integrated die casting body with convection heat dissipation design.
4 beam angles, 4 types lenses for options.

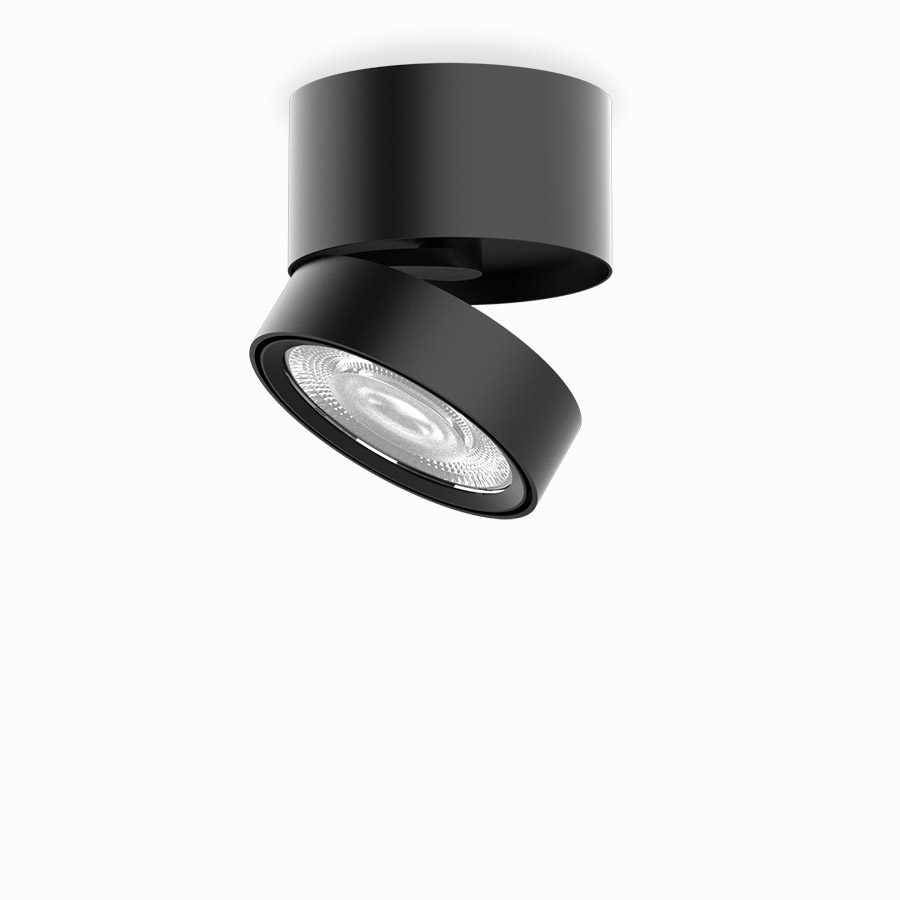

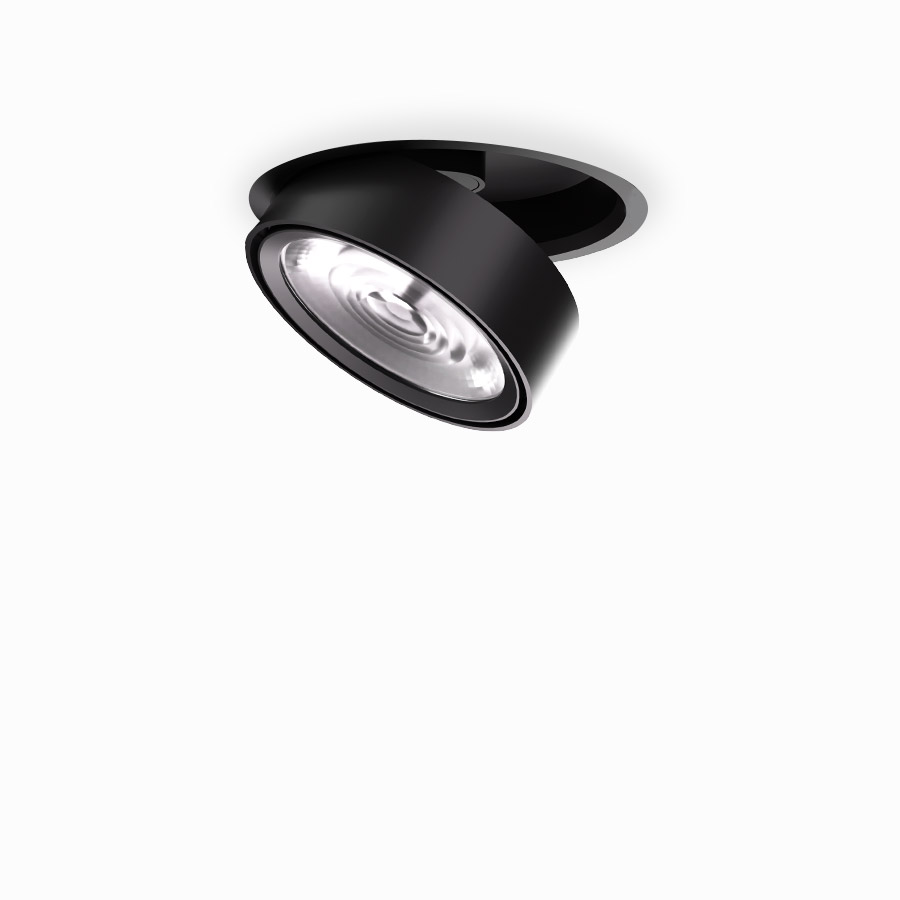

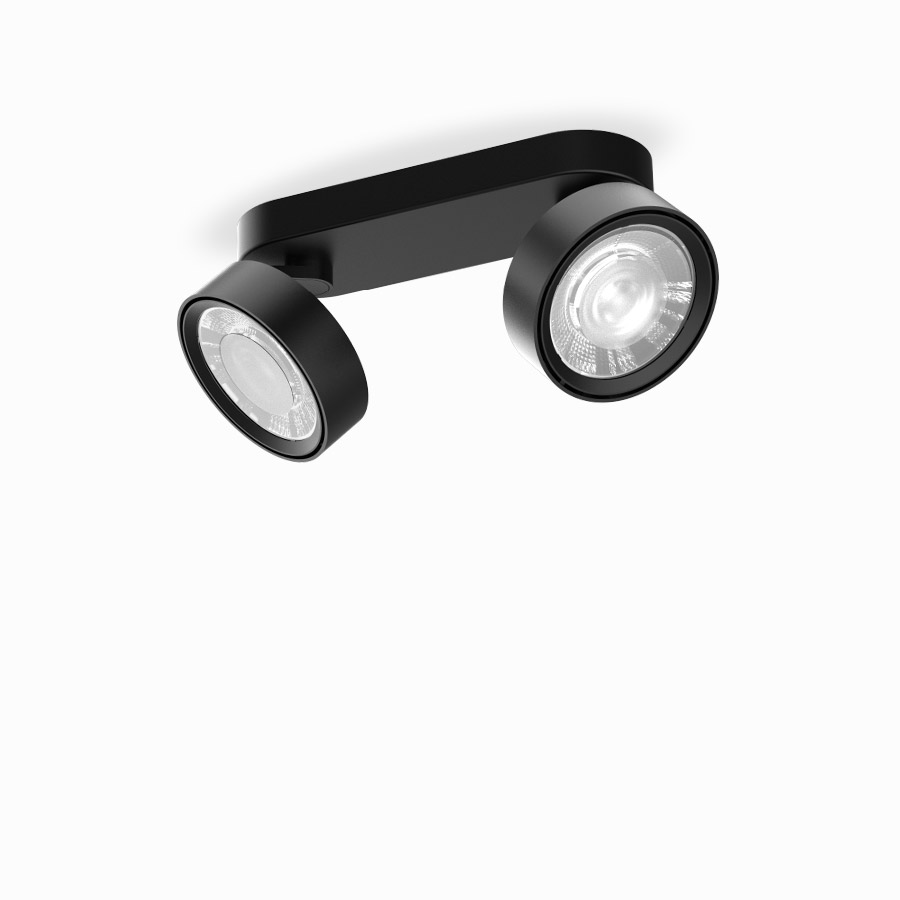

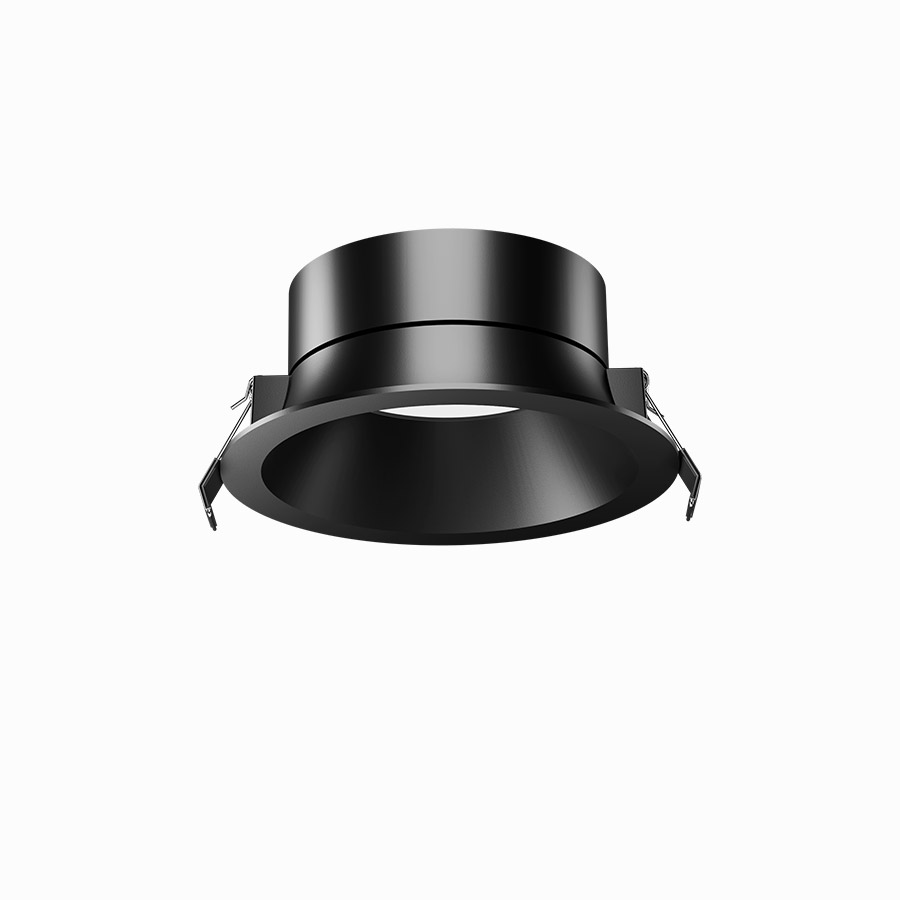

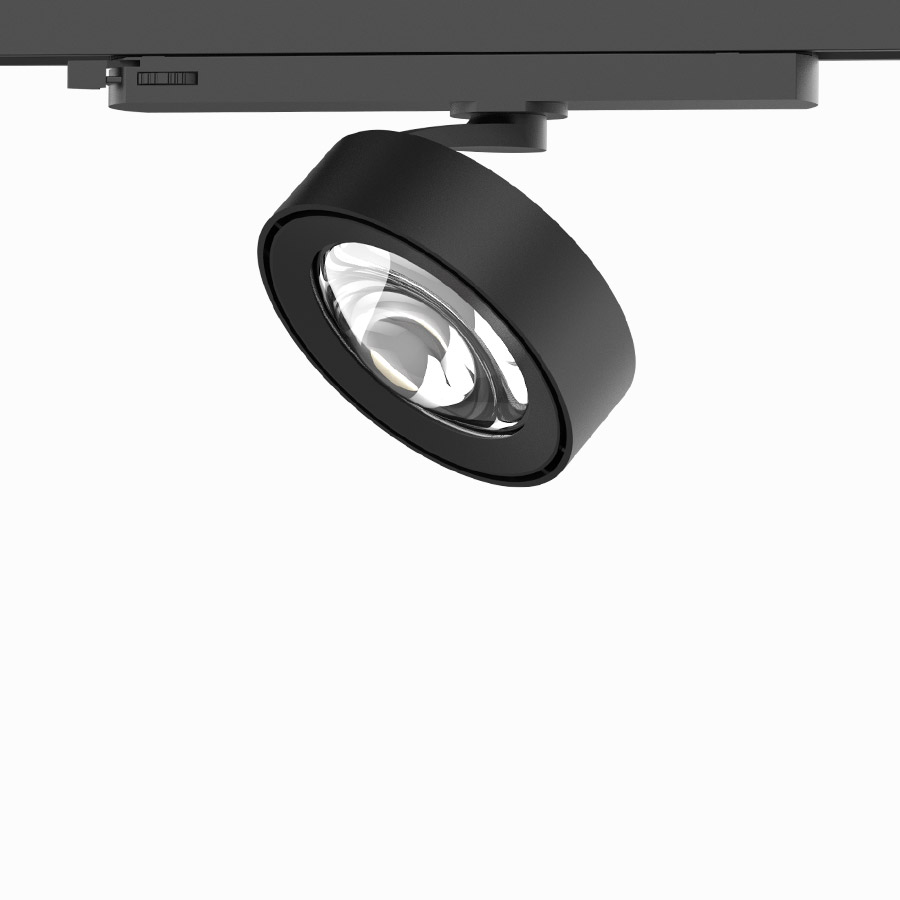

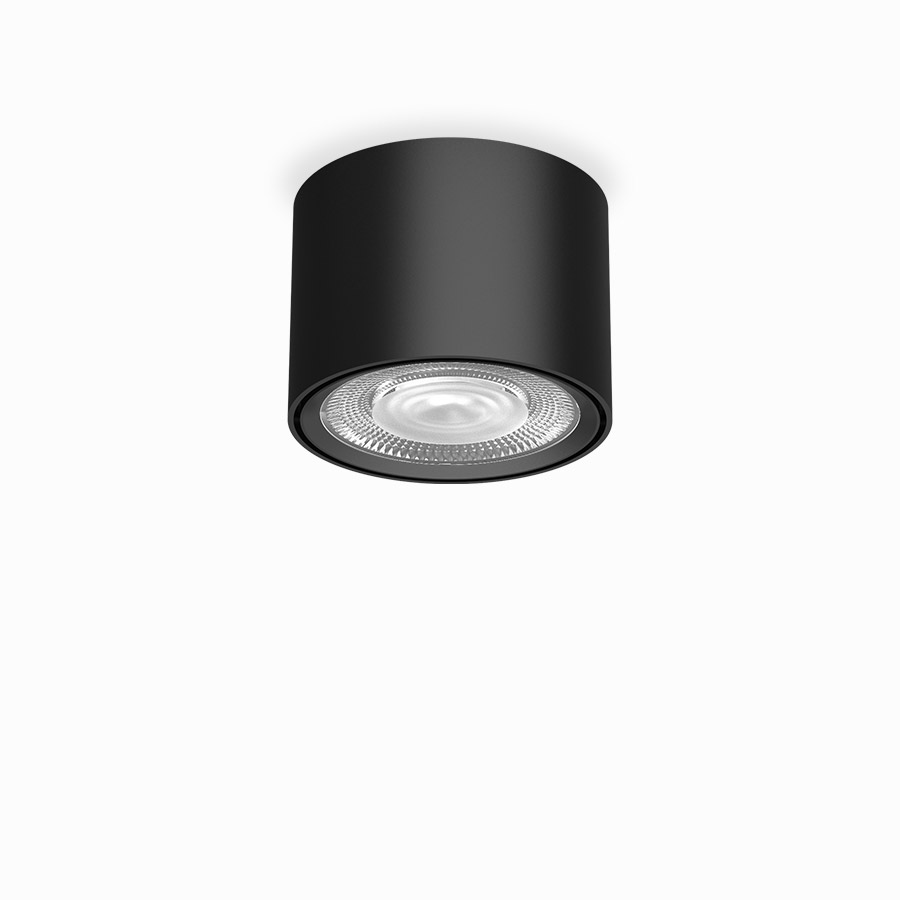

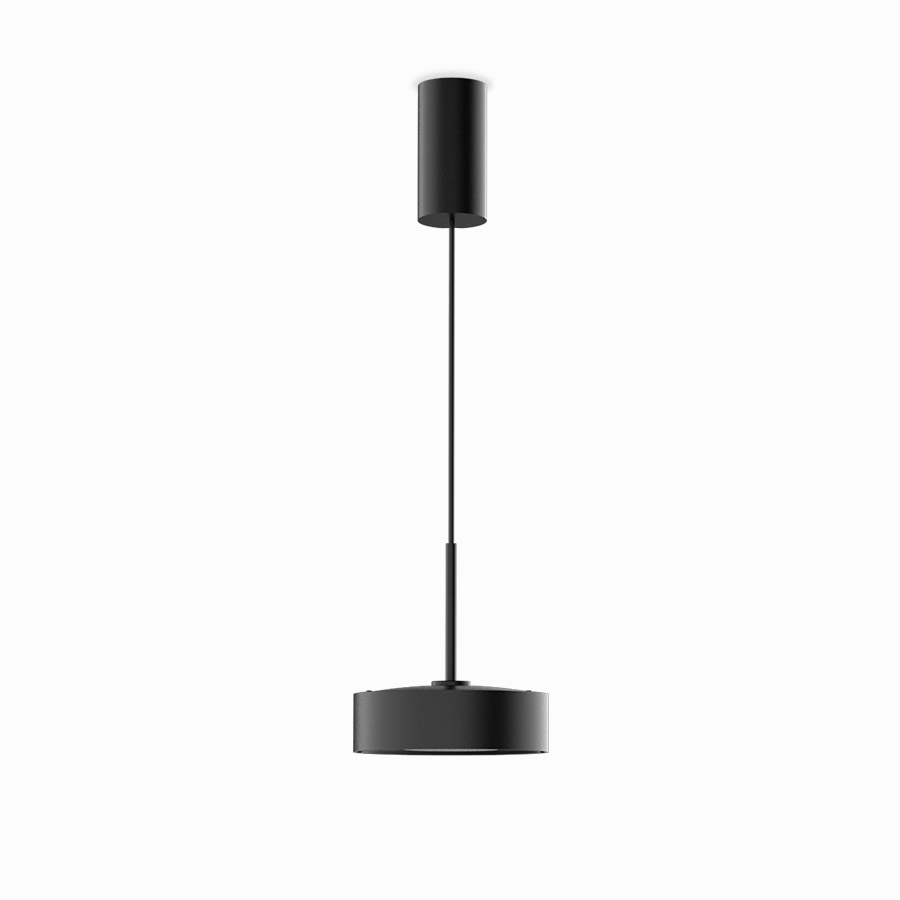

Different installation : track light, surface mounted, recessed and suspension type.
LOR 92%, 145lm/W.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
T1252	15° / 24° / 36°/ 60°	25 W	124 lm/W	3100 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
T1252A	75°	15 W	74 lm/W	1100 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
T1252B	60° / 80°	20 W	75 lm/W	1500 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
T1252C	120°	24 W	100 lm/W	2400 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
D1333	15° / 24° / 36°/ 60°	24 W	120 lm/W	2900 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
D1336	15° / 24° / 36°/ 60°	20 W	100 lm/W	2900 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1600	15° / 24° / 36°/ 60°	24 W	120 lm/W	2900 lm	125	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1603	15° / 24° / 36°/ 60°	24 W	120 lm/W	2900 lm	145	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
D1339	15° / 24° / 36°/ 60°	24 W	120 lm/W	2900 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
P1107B	60° / 80°	15 W	80 lm/W	1200 lm	/	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

Product application in Store Lighting, Mall Lighting

1.Install the track on the ceiling aspicture I1 ;
2.Turn the power supply to "0"position and rotate the shift as picture I2 ；
3.Assembly the track head into track as picture I3；
4.Rotate the shift to 90 degree as picture I4 , rotate "0/1/2/3 " as your requirement , switch can rotate 360 degree in clockwise and anticlockwise as picture I4 ;
5.Installation complete as picture I5 ;
