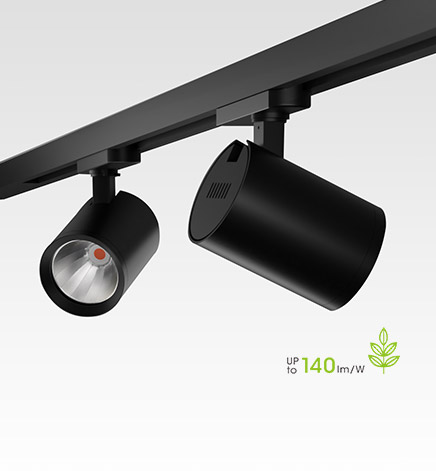

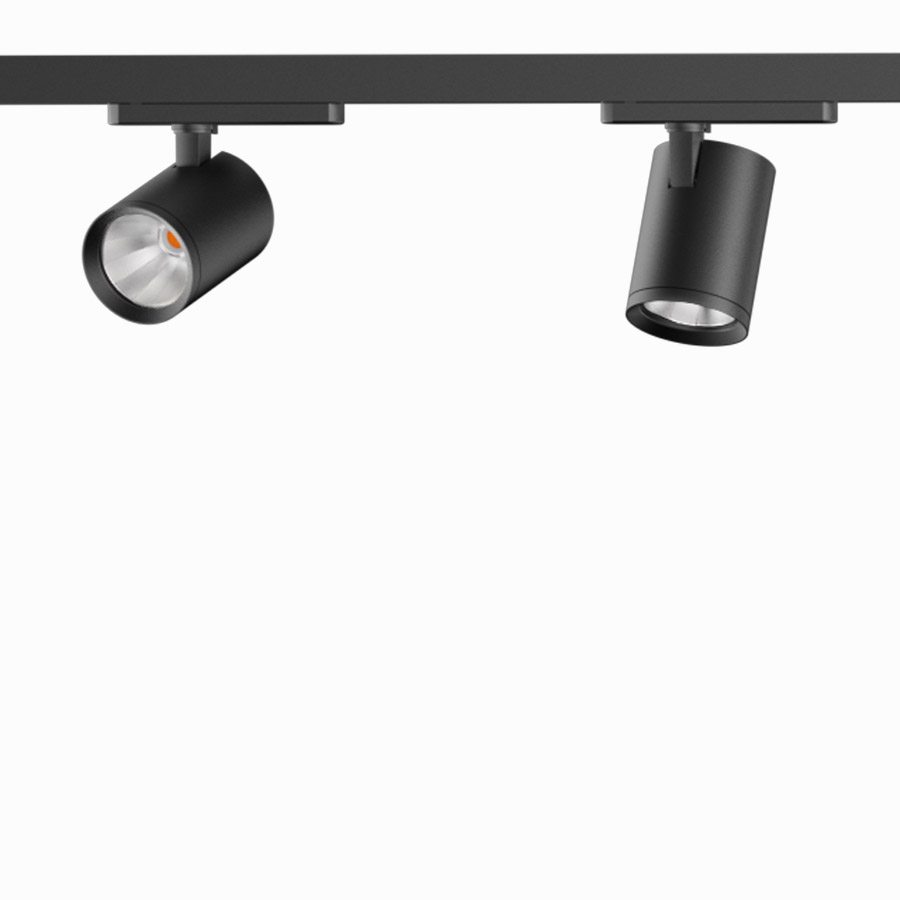

TUBO Series Track light T1114H / T1115H

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	CCT	CRI	COB	Drive	Control Method
T1114H	15° / 24° / 36°	20 W	132 lm/W	2600 lm	Ø85 x 198 mm	3000K / 4000K / 5000K	>90	TOYONIA COB	Tridonic	No
T1114H	15° / 24° / 36°	30 W	126 lm/W	3700 lm	Ø85 x 198 mm	3000K / 4000K / 5000K	>90	TOYONIA COB	Tridonic	No
T1115H	15° / 24° / 36°	24 W	135 lm/W	3200 lm	Ø99 x 198 mm	3000K / 4000K / 5000K	>90	TOYONIA COB	Tridonic	No
T1115H	15° / 24° / 36°	42 W	120 lm/W	5000 lm	Ø99 x 198 mm	3000K / 4000K / 5000K	>90	TOYONIA COB	Tridonic	No

High Performance LED CHIP
LOR92%.

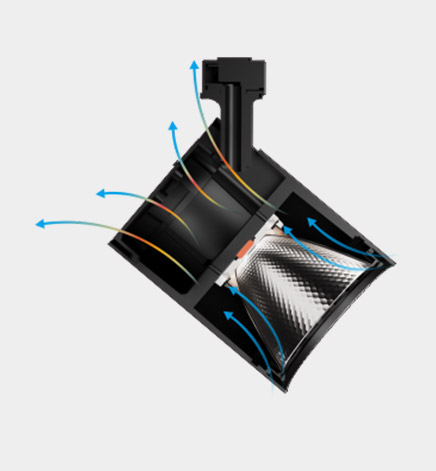

High efficiency heat dissipation
Die-casting aluminum lamp housing, integrated constructionto improve heat dissipation efficiency.

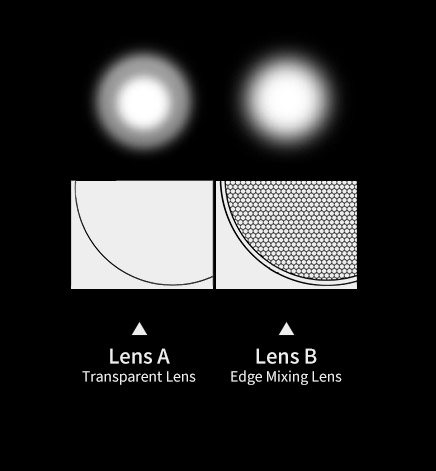

2 types lenses
3 beam angles, 2 types lenses for different beam effect.

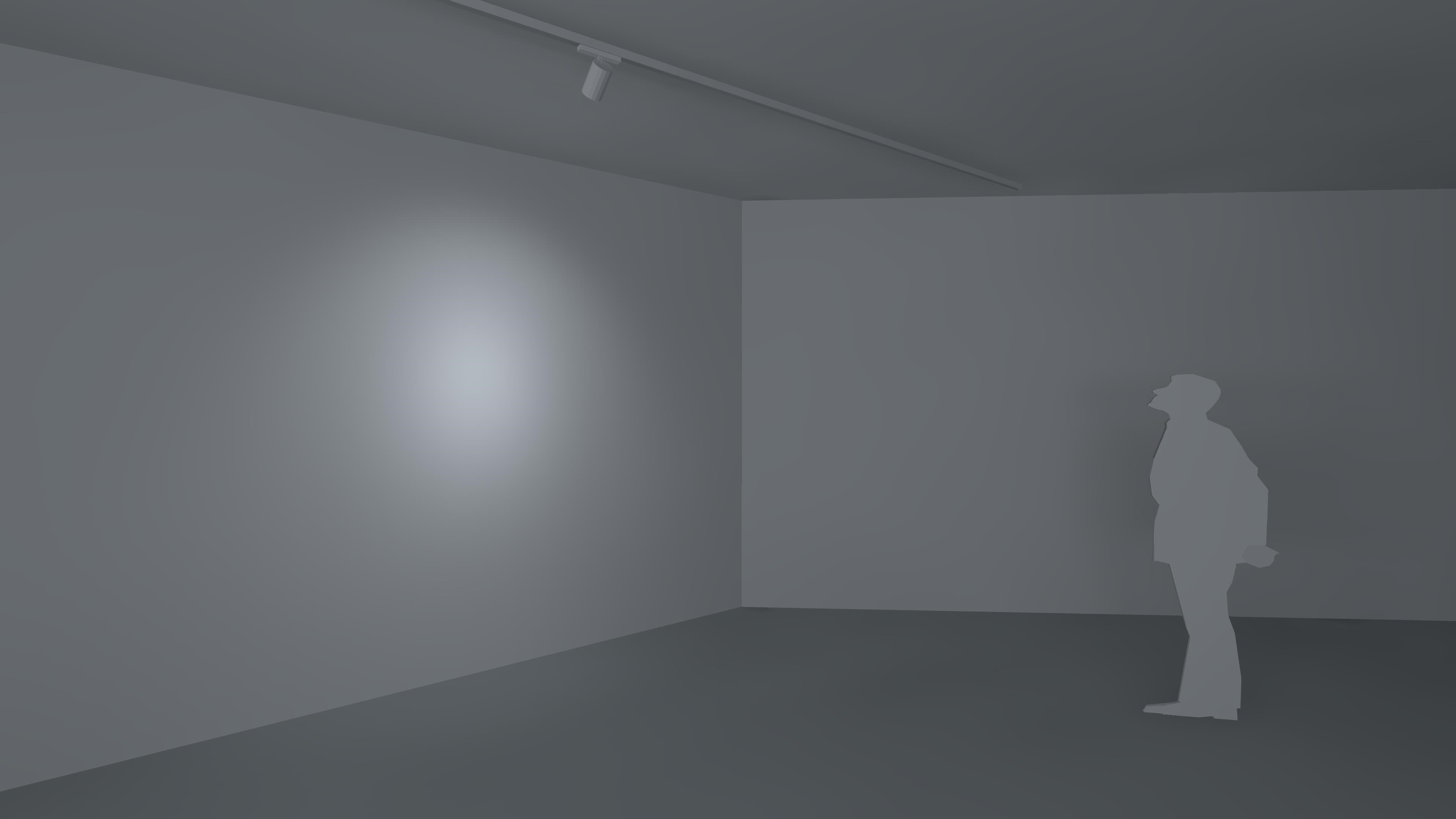

Accurate and efficient light control
The surface treatment technology with reflectivity up to 96% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

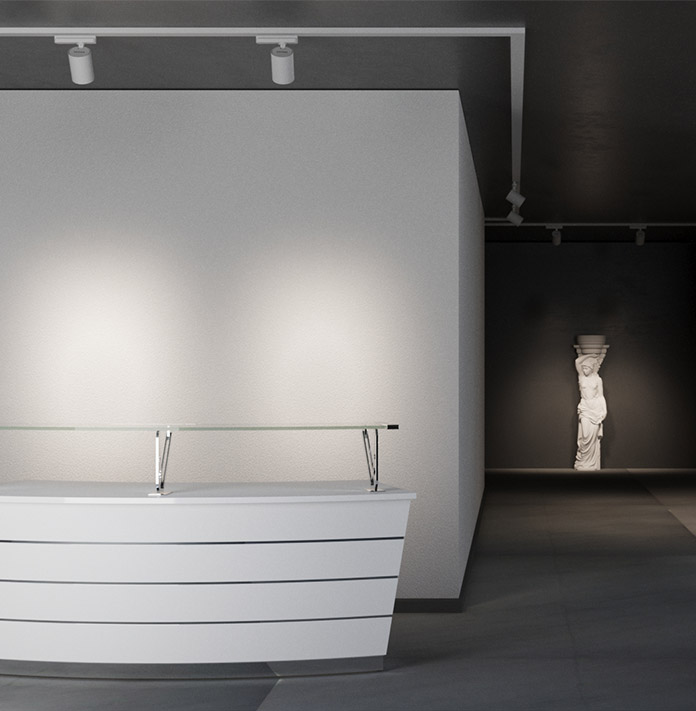

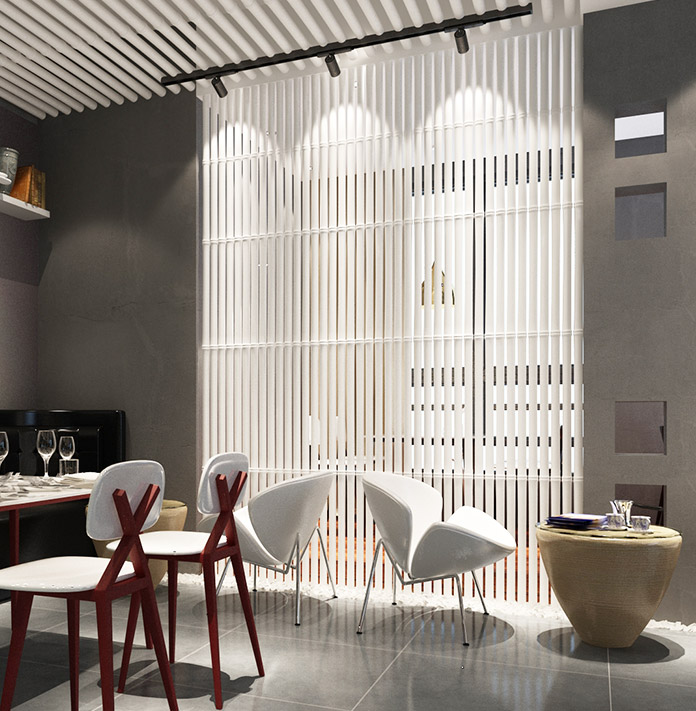

Product application in Store Lighting, Mall Lighting

Install the track on the ceiling
Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
Rotate the shift to 90 degree
Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
Installation complete
