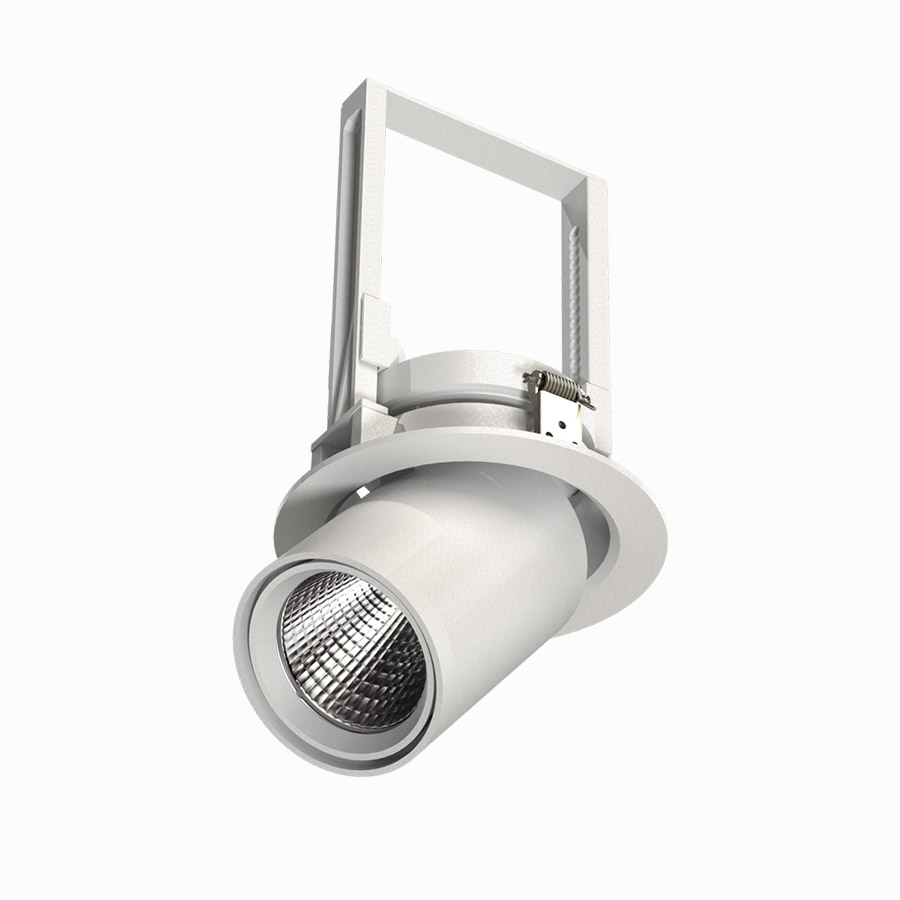

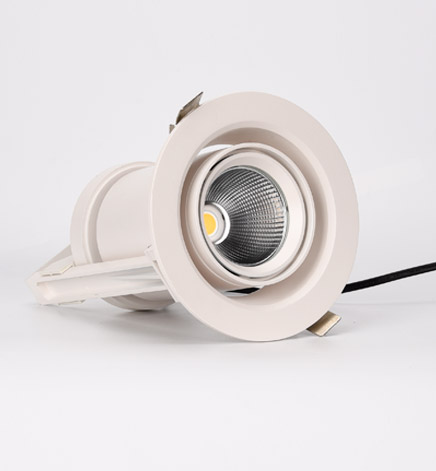

TUBO Series Surface mounted downlight R1057 / R1058 / R1059



SOTEN Downlight with high power 10-50W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1057 Product R1057 15° / 24° / 36° 25 W 110 lm/W 2750 lm Ø85 x 205 mm Ø135 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1058 Product R1058 15° / 24° / 36° 35 W 110 lm/W 3850 lm Ø110 x 259 mm Ø150 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1059 Product R1059 15° / 24° / 36° 40 W 113 lm/W 4520 lm Ø130 x 284 mm Ø160 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

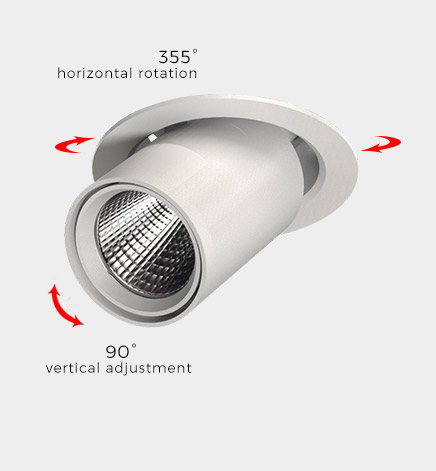

  • flexible adjust beam angles

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

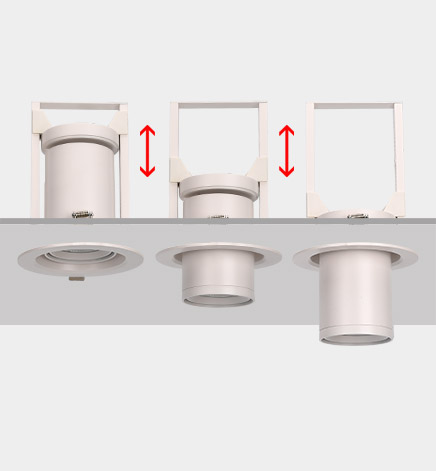

  • Vertical adjustment of height

    Special lamp construcion for flexible adjustment of height, to meet the demand of different application.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

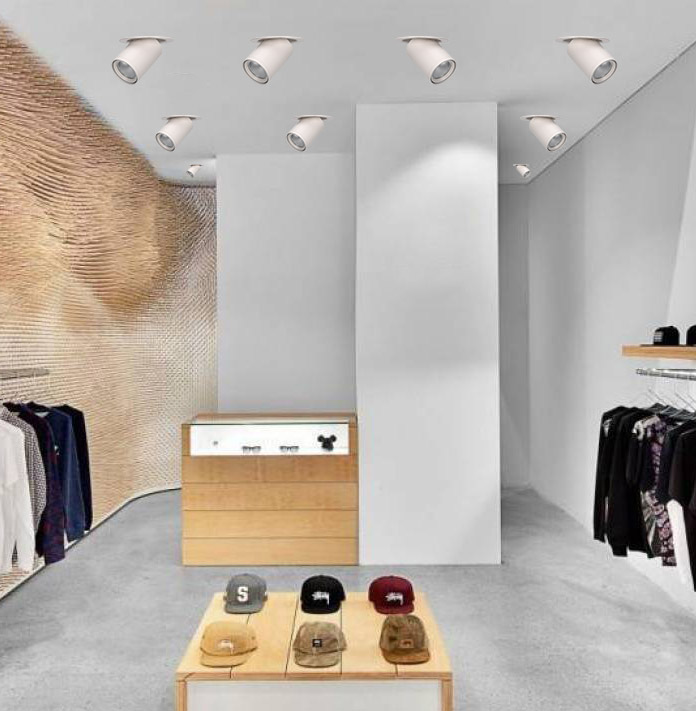

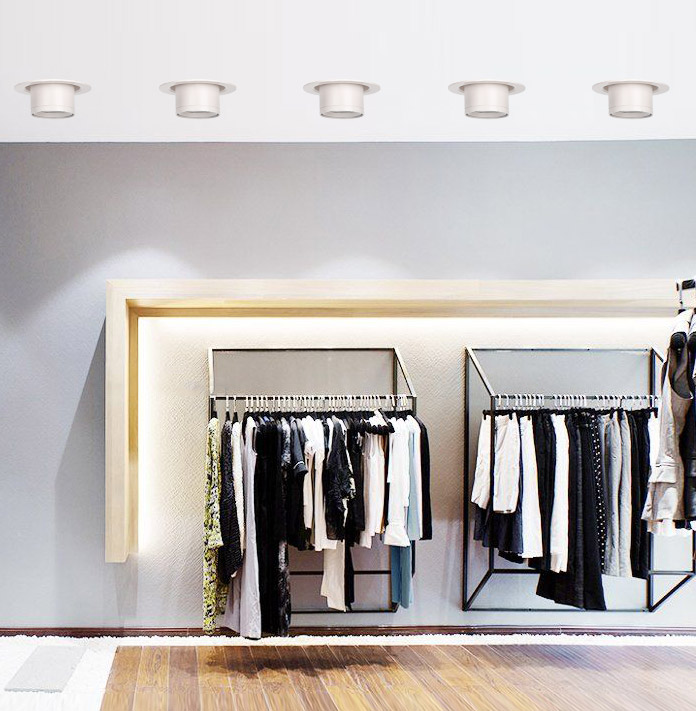

Product application in Store Lighting, Mall Lighting


  • First :Cutting a φ150mm hole on the ceiling
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third:Installation complete
  • Disassemble step: First:Catch and hold the lamp and pull it out
