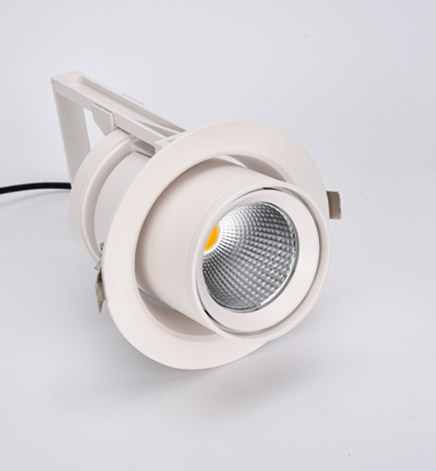

TUBO Series Surface mounted downlight R1051 / R1052 / R1053

Description

SOTEN Downlight with high power 10-50W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1051 25W 2200LM φ135mm 15° / 24° / 36° φ85 x 205 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1052 35W 3150LM φ150mm 15° / 24° / 36° φ110 x 259 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1053 40W 3600LM φ160mm 15° / 24° / 36° φ130 x 284 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Features

  • flexible adjust beam angles

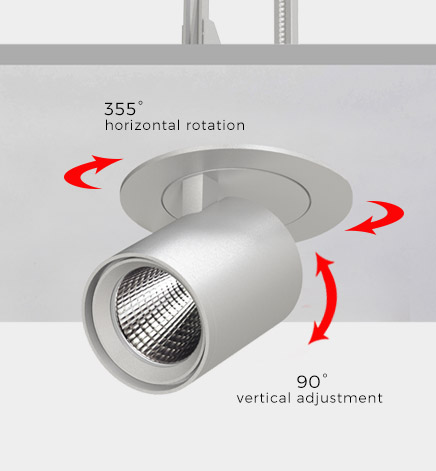

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

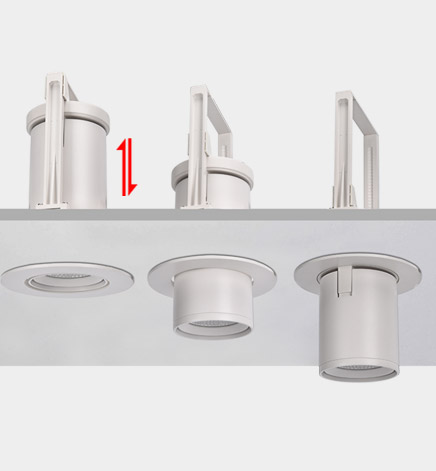

  • Vertical adjustment of height

    Special lamp construcion for flexible adjustment of height, to meet the demand of different application.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Application

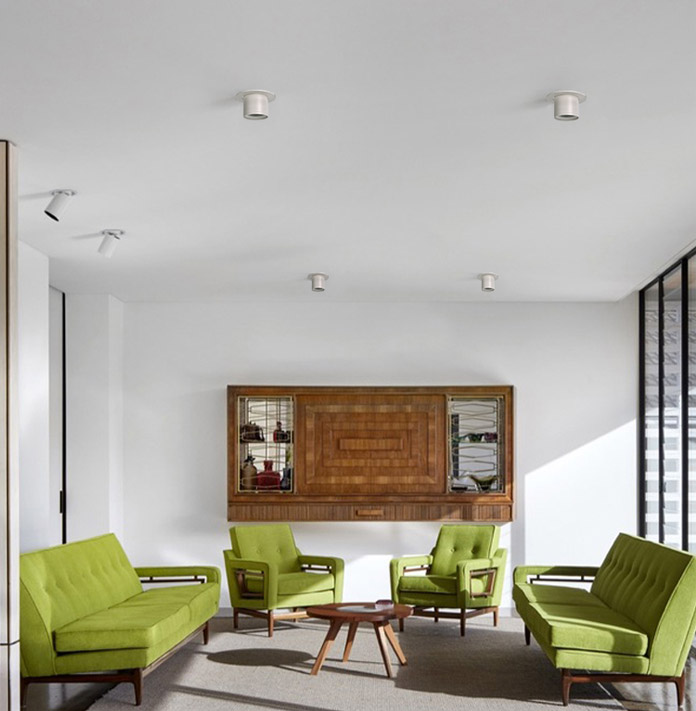

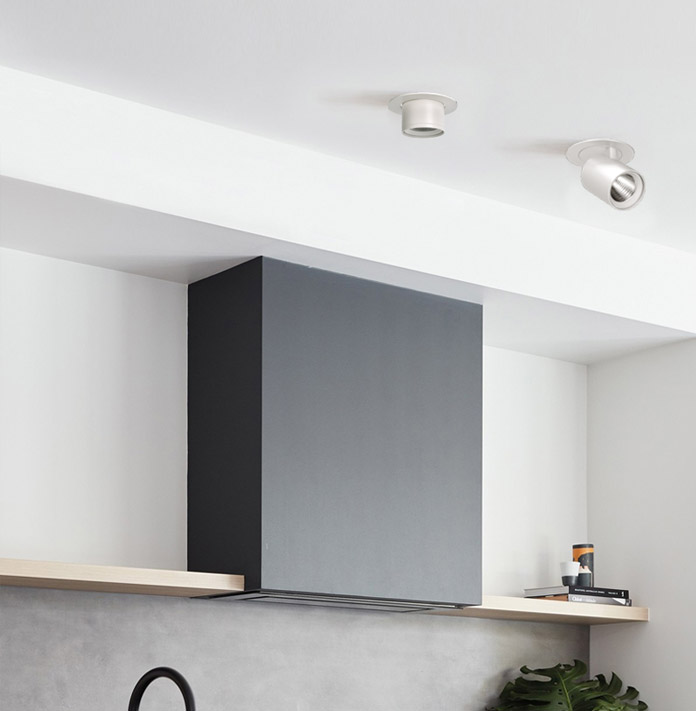

Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a φ150mm hole on the ceiling
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third:Installation complete
  • Disassemble step: First:Catch and hold the lamp and pull it out
