X-SYSTEM Series Linear light L1027/ L1021/ L1022

Share:

Description

SOTEN LED linear light X System is an integrated low voltage lighting system.

Thanks to advanced lighting technology, X series products could achieve its minimum size in construction and provide various installation ways such as recessed, surface mounted and pendant installation.

In the meantime, X System can provide different lighting resources such as base lighting, down lighting, accent lighting and wall washer(vertical) lighting to meet different project requirements.

SOTEN LED linear light X means containment and extension, X means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
L1027 Product L1027 15° - 36° 10 W 111 lm/W 1110 lm Ø60 x 190 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
L1021 Product L1021 15° - 36° 15 W 120 lm/W 1800 lm Ø70 x 205 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
L1022 Product L1022 15° - 36° 20 W 115 lm/W 2300 lm Ø80 x 230 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

  • Safety 48V voltage

    Free movement and combination.

  • X-SYSTEM ,Smart

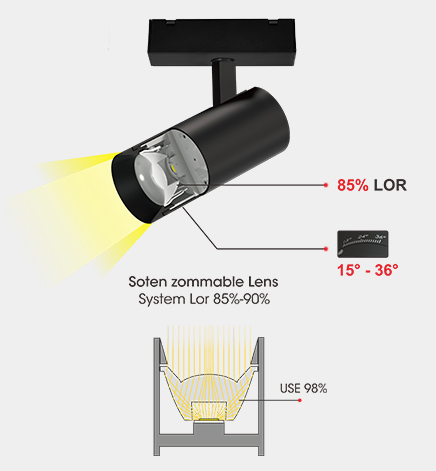

  • ZOOM BEAM ANGLE

    Stepless adjustment of 15-36° beam angle, LOR up to 85%, large shading Angle, better anti-glare effect.

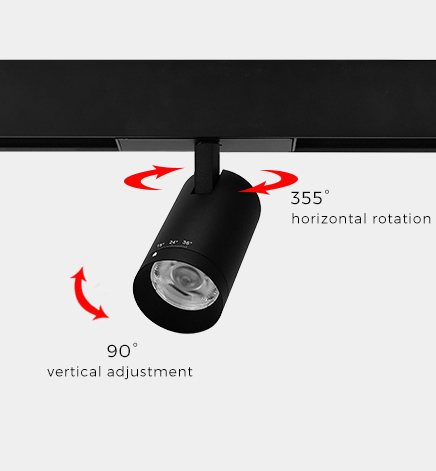

  • Flexible adjust beam angles

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Second: Press the button on both sides of the lamp and install it on the track
  • Installation complete
  • Pull out of the head of track downward
