X-SYSTEM Series Linear light L1010/ L1011/ L1012/ L1013

Description

SOTEN LED linear light X System is an integrated low voltage lighting system.

Thanks to advanced lighting technology, X series products could achieve its minimum size in construction and provide various installation ways such as recessed, surface mounted and pendant installation.

In the meantime, X System can provide different lighting resources such as base lighting, down lighting, accent lighting and wall washer(vertical) lighting to meet different project requirements.

SOTEN LED linear light X means containment and extension, X means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
L1010 3W 96LM 10° / 15° / 45° 137 x38 x 150 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1011 2x3W 210LM 10° / 15° / 45° 137 x38 x 150 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1012 7W 606LM 45° / 60° 137 x38 x 170 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1011 2x6.5W 1136LM 45° / 60°  137 x38 x 170 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No

Features

  • Safety 48V voltage

    Free movement and combination

  • X-System magnetic

  • Flexible adjust beam angles

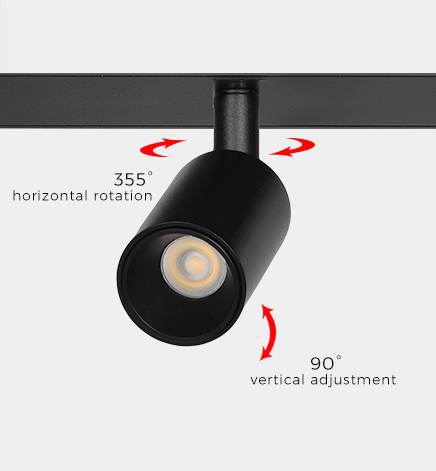

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

  • Flexible adjust beam angles

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

Application

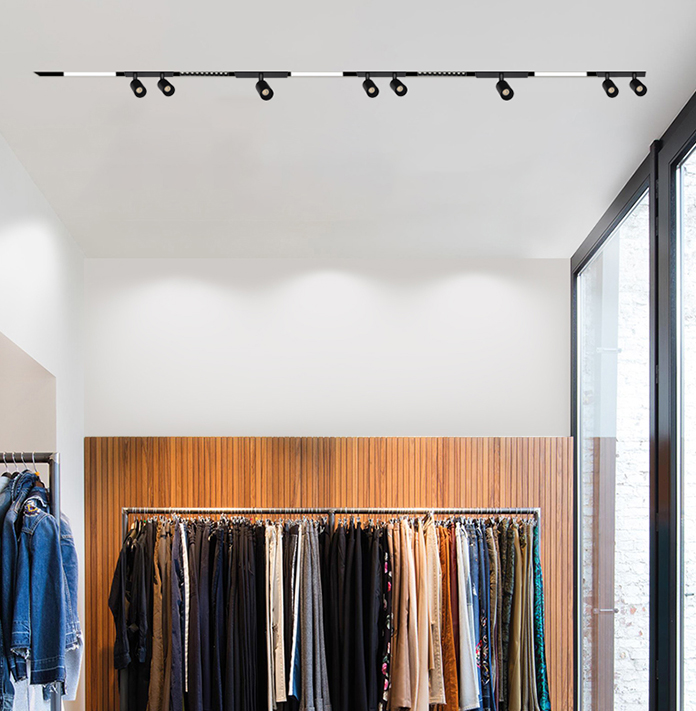

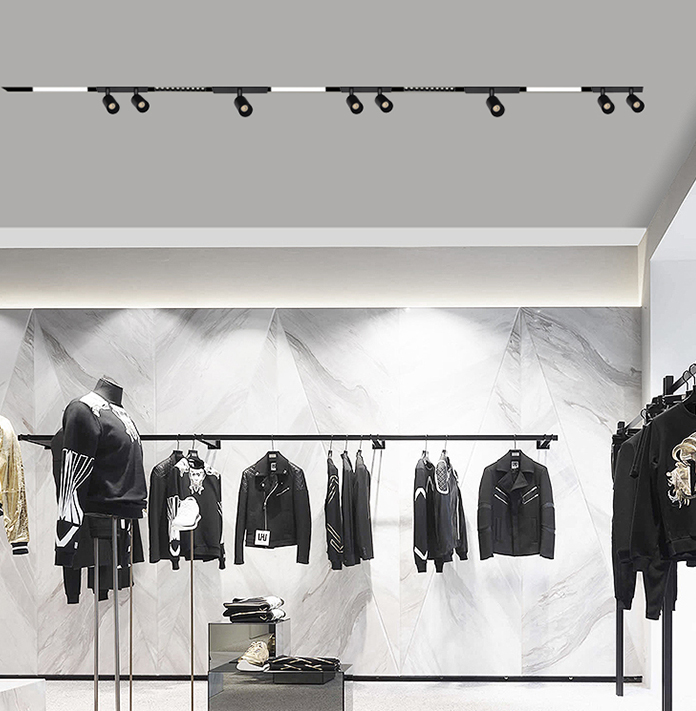

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Second: Press the button on both sides of the lamp and install it on the track
  • Installation complete
  • Pull out of the head of track downward
