X-SYSTEM Series Linear light L1006/ L1007

Description

SOTEN LED linear light X System is an integrated low voltage lighting system.

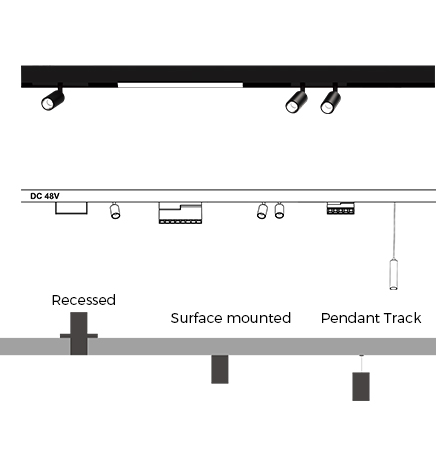

Thanks to advanced lighting technology, X series products could achieve its minimum size in construction and provide various installation ways such as recessed, surface mounted and pendant installation.

In the meantime, X System can provide different lighting resources such as base lighting, down lighting, accent lighting and wall washer(vertical) lighting to meet different project requirements.

SOTEN LED linear light X means containment and extension, X means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
L1006 12W 950LM Wall washer 160 x34 x 108 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No
L1007 20W 1444LM Wall washer 210 x34 x 108 3000K / 4000K / 5700K >80, >90 Black / White Lumileds SMD Alloking Aluminum Alloy No

Features

  • Safety 48V voltage

    Free movement and combination

  • X-System magnetic

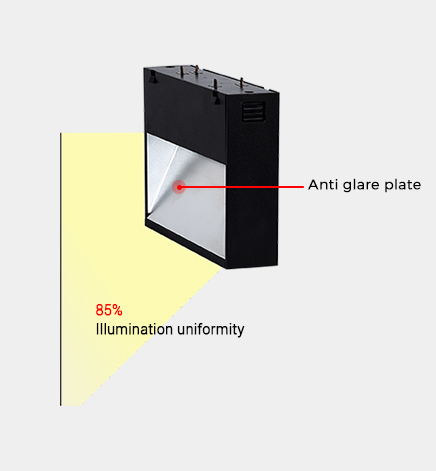

  • Unique optical design

    Epecially designed wall washer reflect lighting effects, to achieve perfect lighting

  • Easy installation

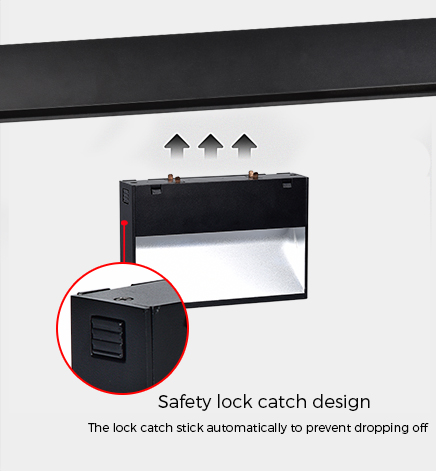

    Safety lock catch design,The lock catch stick automatically to prevent dropping off

Application

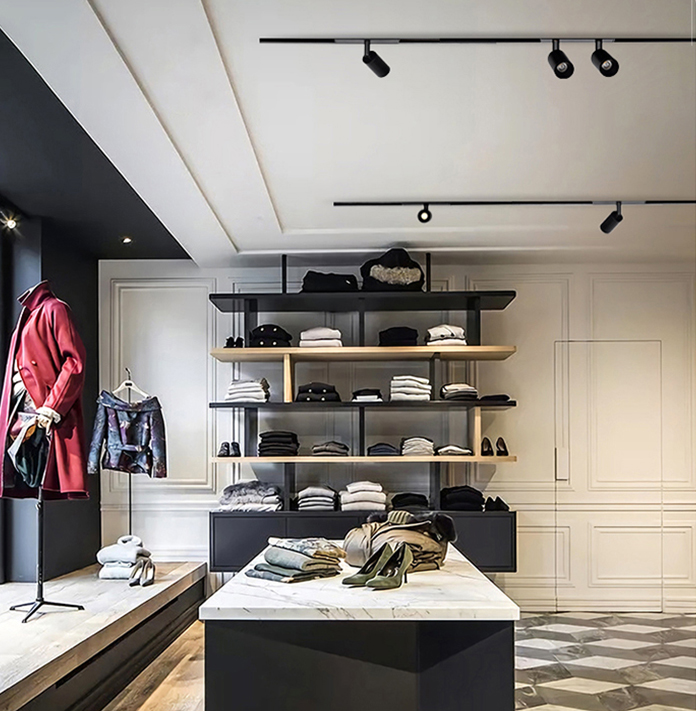

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Second: Press the button on both sides of the lamp and install it on the track
  • Installation complete
  • Pull out of the head of track downward
