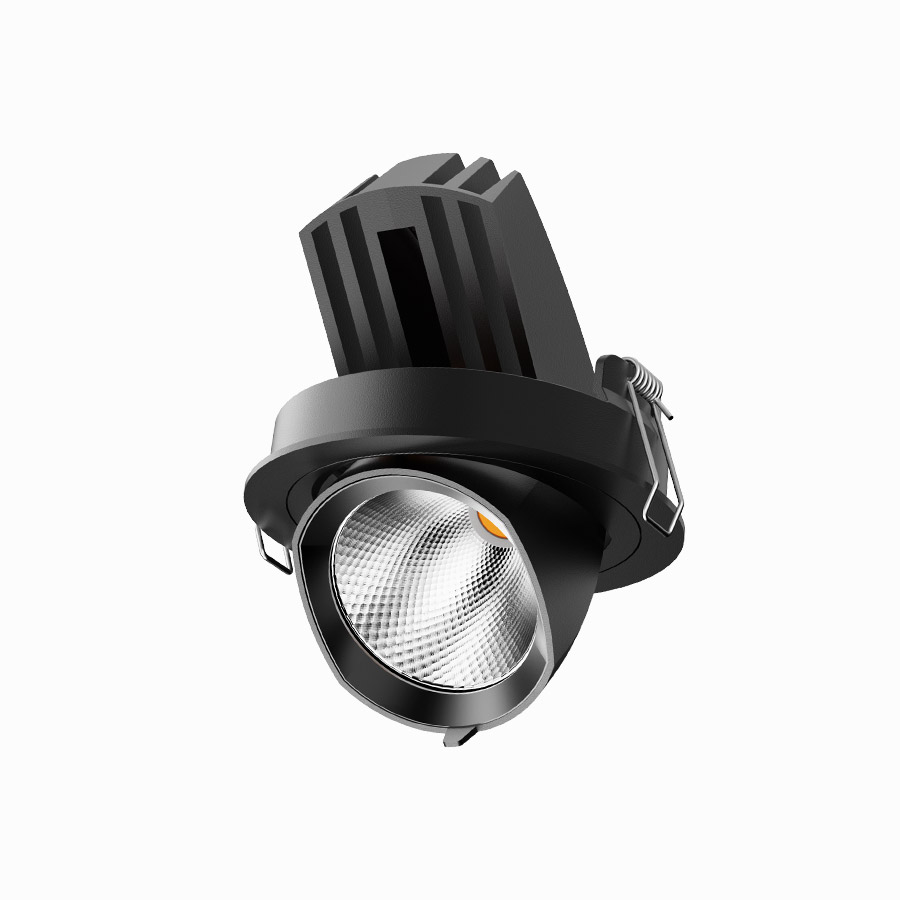

VENUS Series Downlight R1101 / R1102

LOR92%;
140lm/W;
Vertical pull out 55°, horizontal rotation 355°;
Built-in marble rotation damping;
Compact Integrated lamp body design, size reduce 20%, heat dissipation efficiency increased 20%;
4 beam angles, 3 types lenses for different light effects.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1101	15° / 24° / 36°/ 45°	20 W	130 lm/W	2600 lm	Ø116 x 89 mm	Ø105 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1101	15° / 24° / 36°/ 45°	24 W	125 lm/W	3000 lm	Ø116 x 89 mm	Ø105 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1102	15° / 24° / 36°/ 45°	24 W	129 lm/W	3100 lm	Ø137 x 103 mm	Ø125 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No
R1102	15° / 24° / 36°/ 45°	36 W	125 lm/W	4500 lm	Ø137 x 103 mm	Ø125 mm	3000K / 4000K / 5000K	>90	Philips COB	Tridonic	No

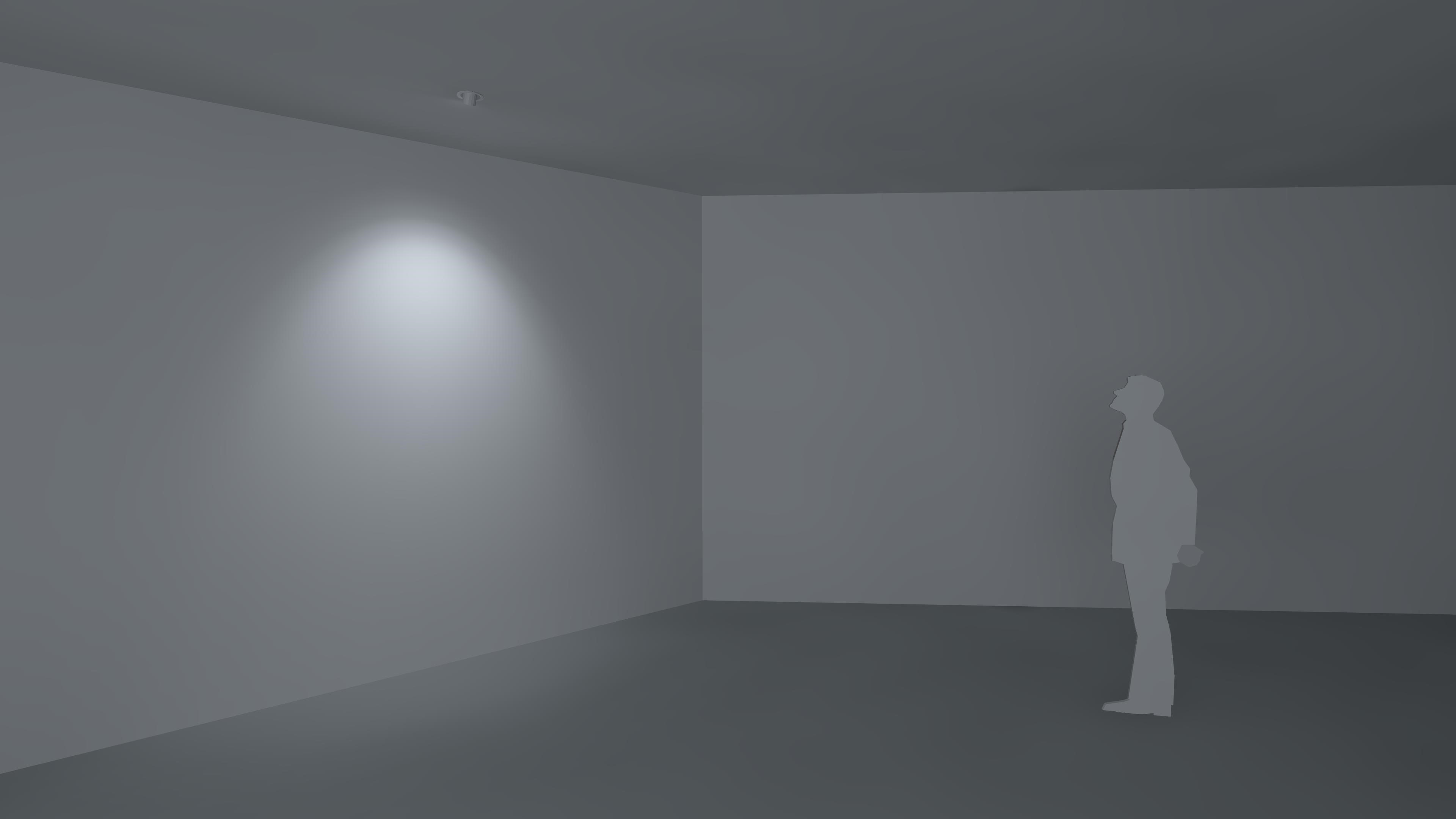

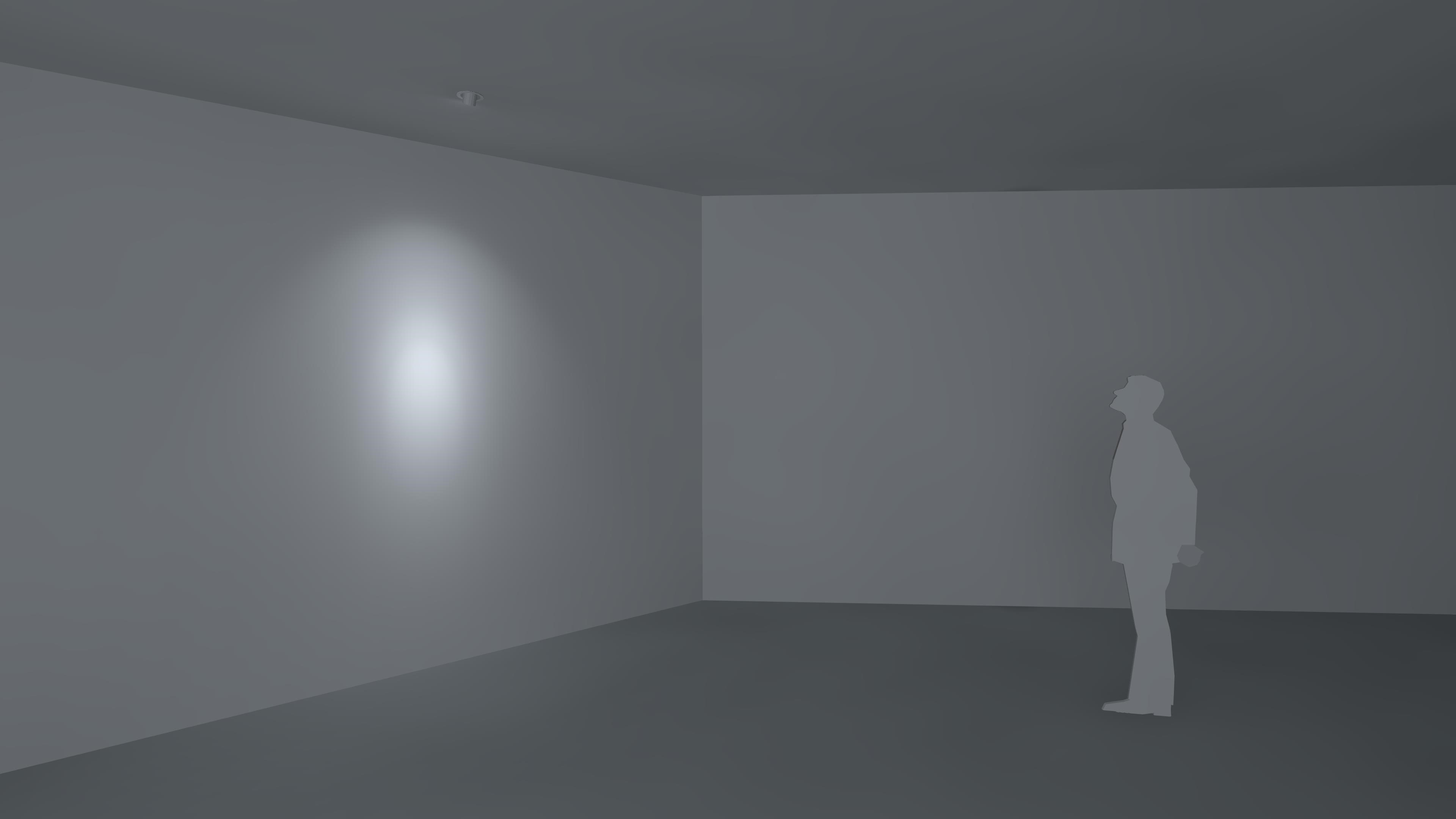

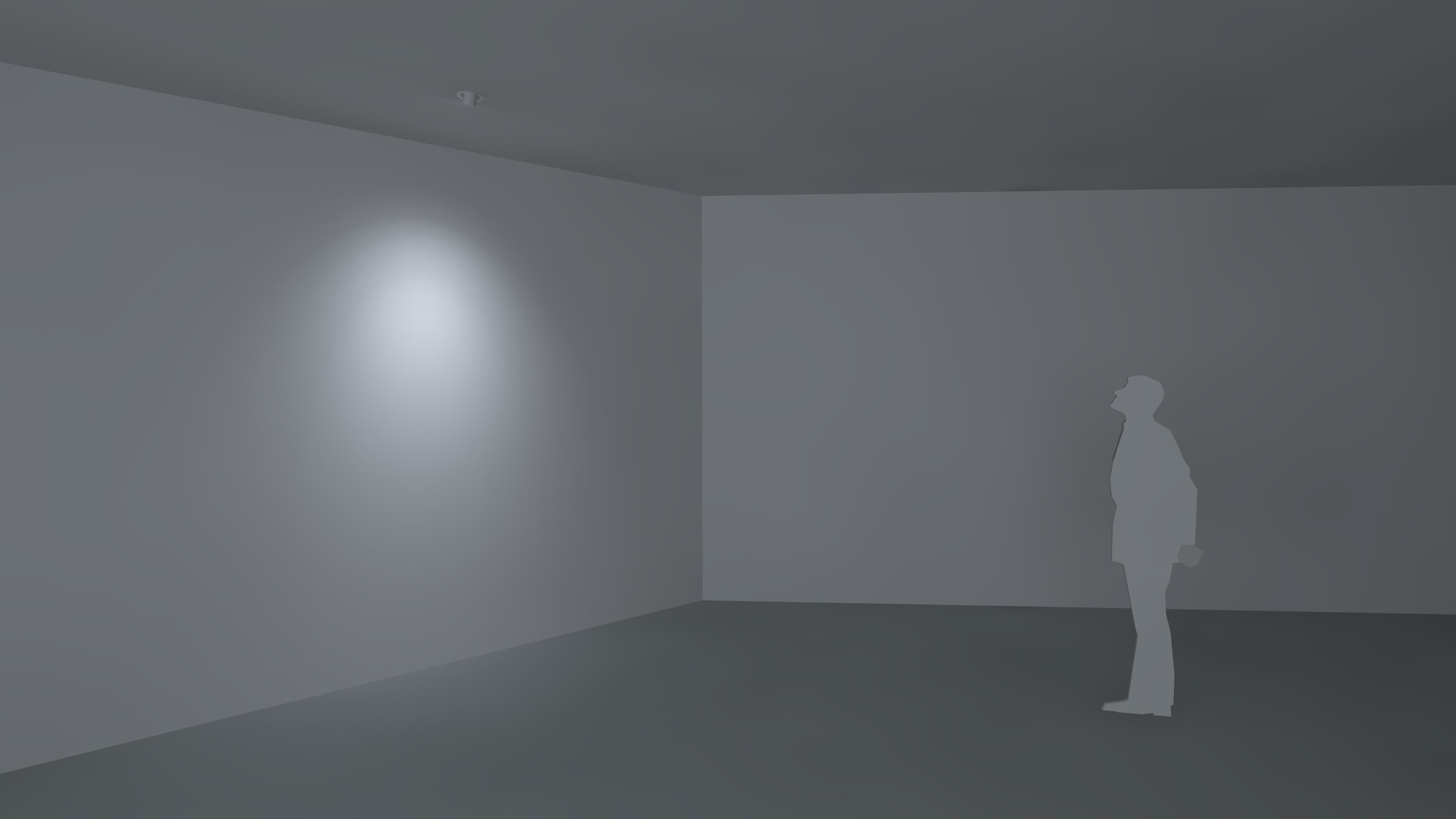

Flexible adjust beam angles

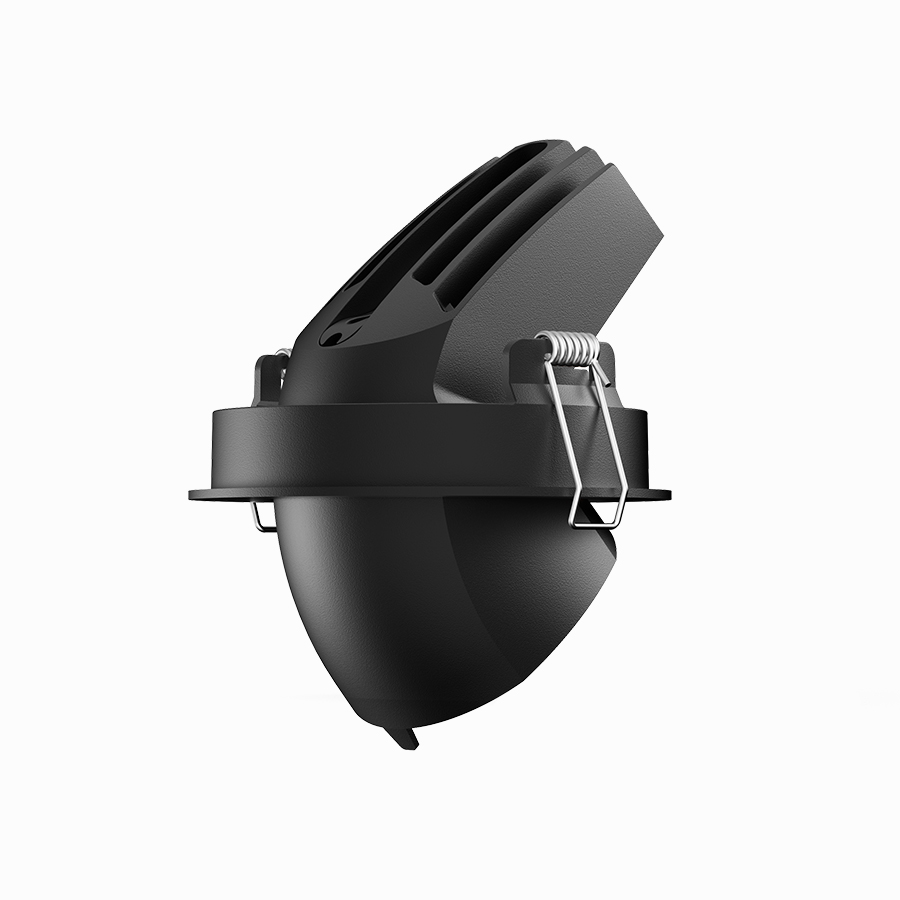

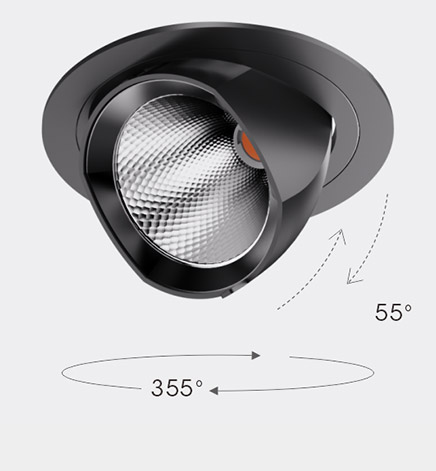

Tilt angle :55° Rotation angle :355°

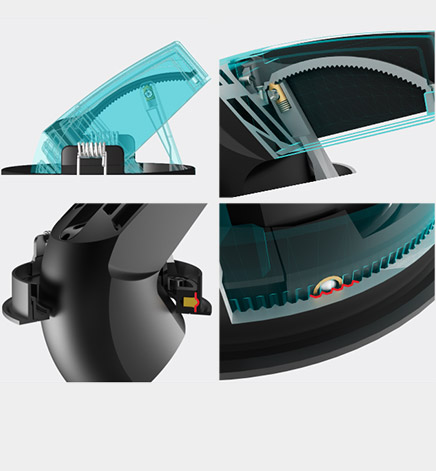

Built-in marble rotation damping
Compact lntegrated lamp body design, size reduce 20%, heat dissipation efficiency increased 20%.

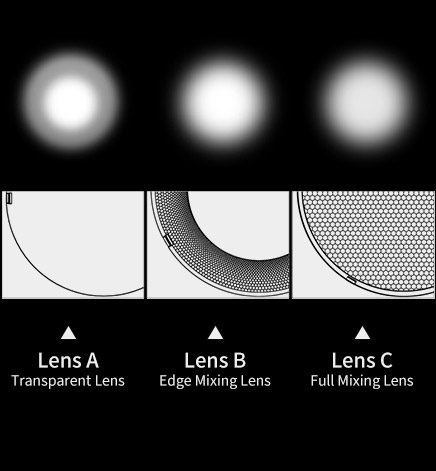

3 types lenses
4 beam angles,3 types lenses for options.

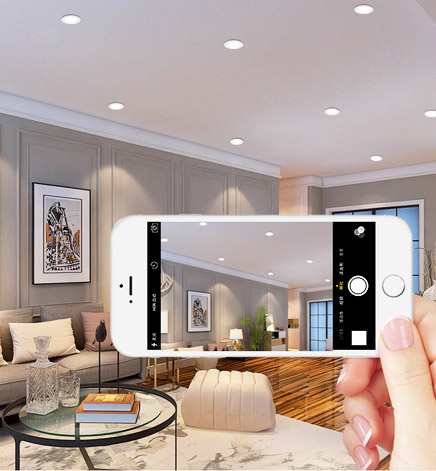

No visible flicker
Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

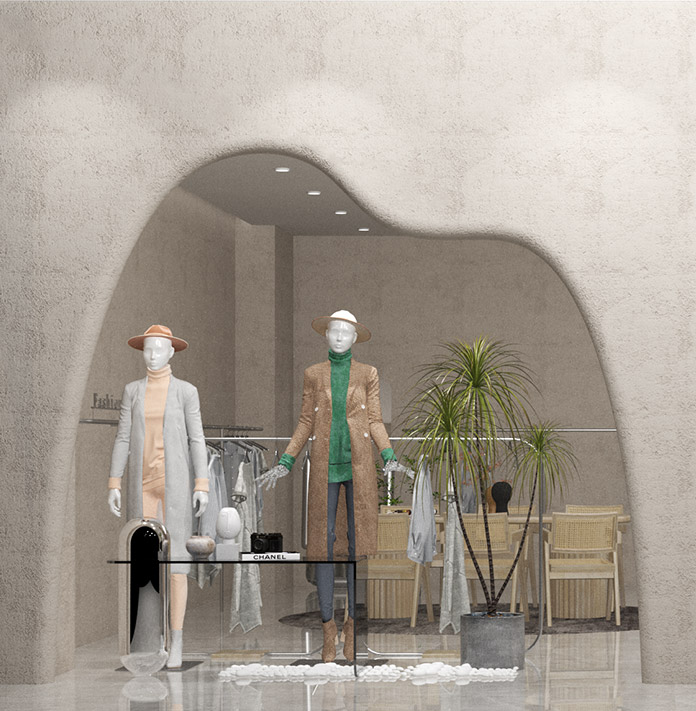

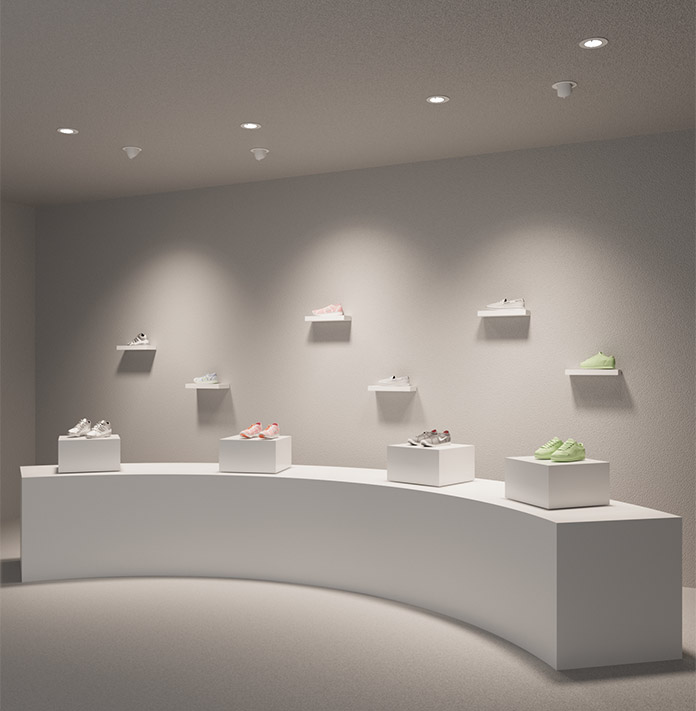

Product application in Store Lighting, Mall Lighting

First : Cutting a 125 hole on the ceiling.Application range of ceiling thickness: 5-15mm.
Second : Connect the Lamp with AC power and pushthe lamp into the ceiling.
Third: Installation complete.
Disassemble Step : Catch and hold the lamp and pull it out.
