VENUS Series Downlight R1001 / R1002 / R1003

Share:

Description

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1001 Product R1001 15° / 24° / 36° 20 W 112 lm/W 2240 lm Ø136 x 100 mm Ø125 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1002 Product R1002 15° / 24° / 36° 30 W 113 lm/W 3390 lm Ø168 x 122 mm Ø150 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1003 Product R1003 15° / 24° / 36° 40 W 110 lm/W 4400 lm Ø205 x 156 mm Ø156 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

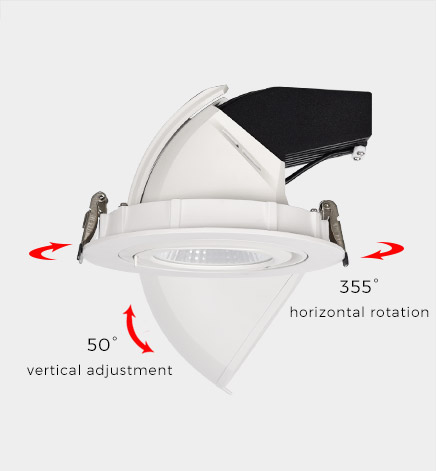

  • Flexible adjust beam angles

    355 degrees horizontal rotation, 50 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

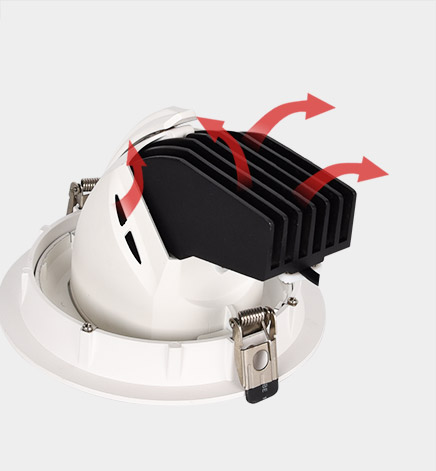

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

Light effect

  • 15°Spot
  • 24°Flood
  • 36°Spotlights

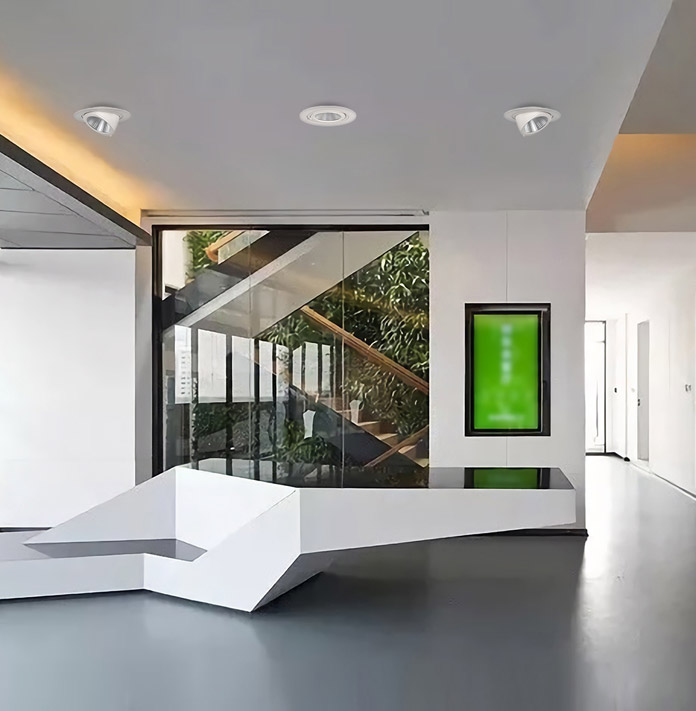

Application

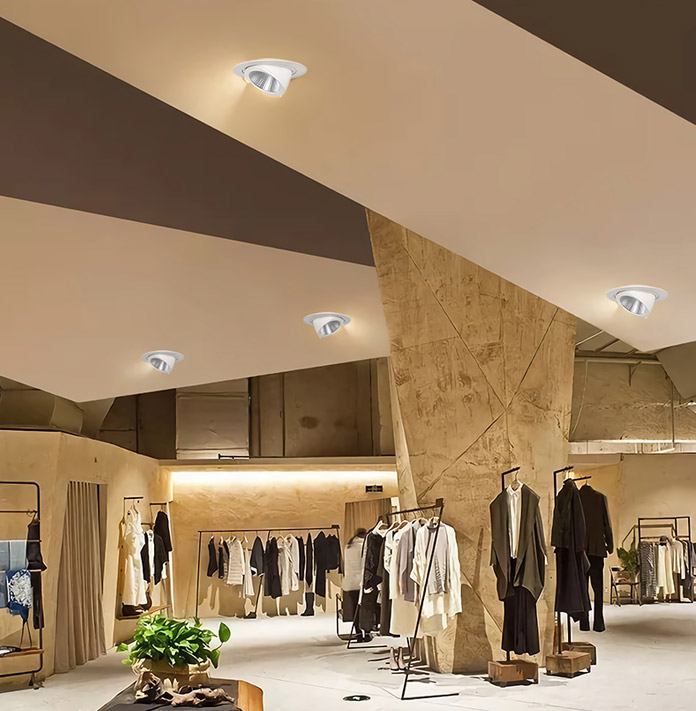

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ125mm or φ150mm or φ156mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
