VENUS Series Downlight R1014 / R1015 / R1016

Description

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1014	15° / 24° / 36°	20 W	112 lm/W	2240 lm	Ø145 x 132 mm	Ø135 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1015	15° / 24° / 36°	30 W	113 lm/W	3390 lm	Ø168 x 152 mm	Ø160 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1016	15° / 24° / 36°	40 W	117 lm/W	4615 lm	Ø200 x 180 mm	Ø190 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No

Features

Flexible adjust beam angles
355 degrees horizontal rotation, 50 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.
High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
No visible flicker
Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

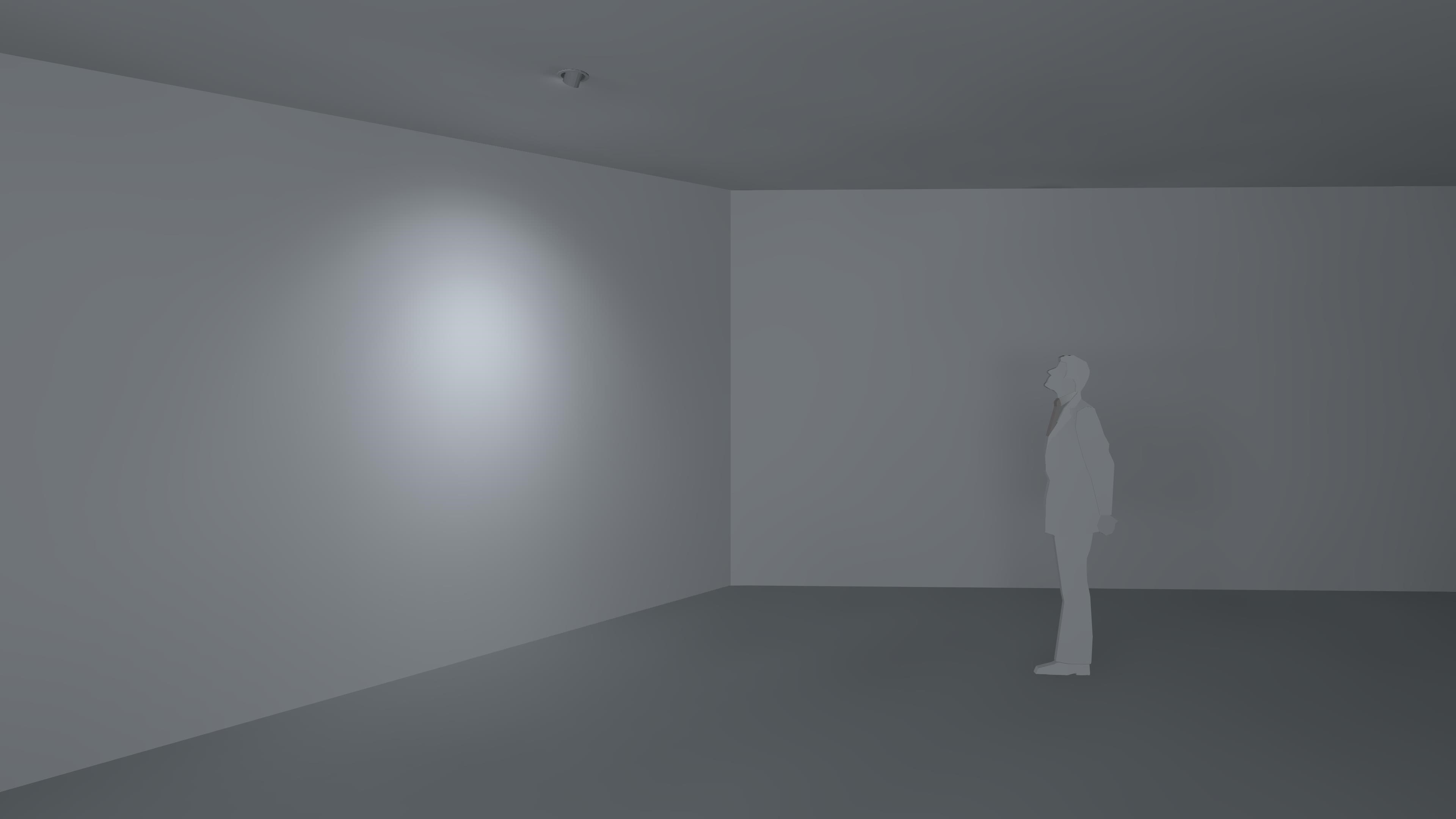

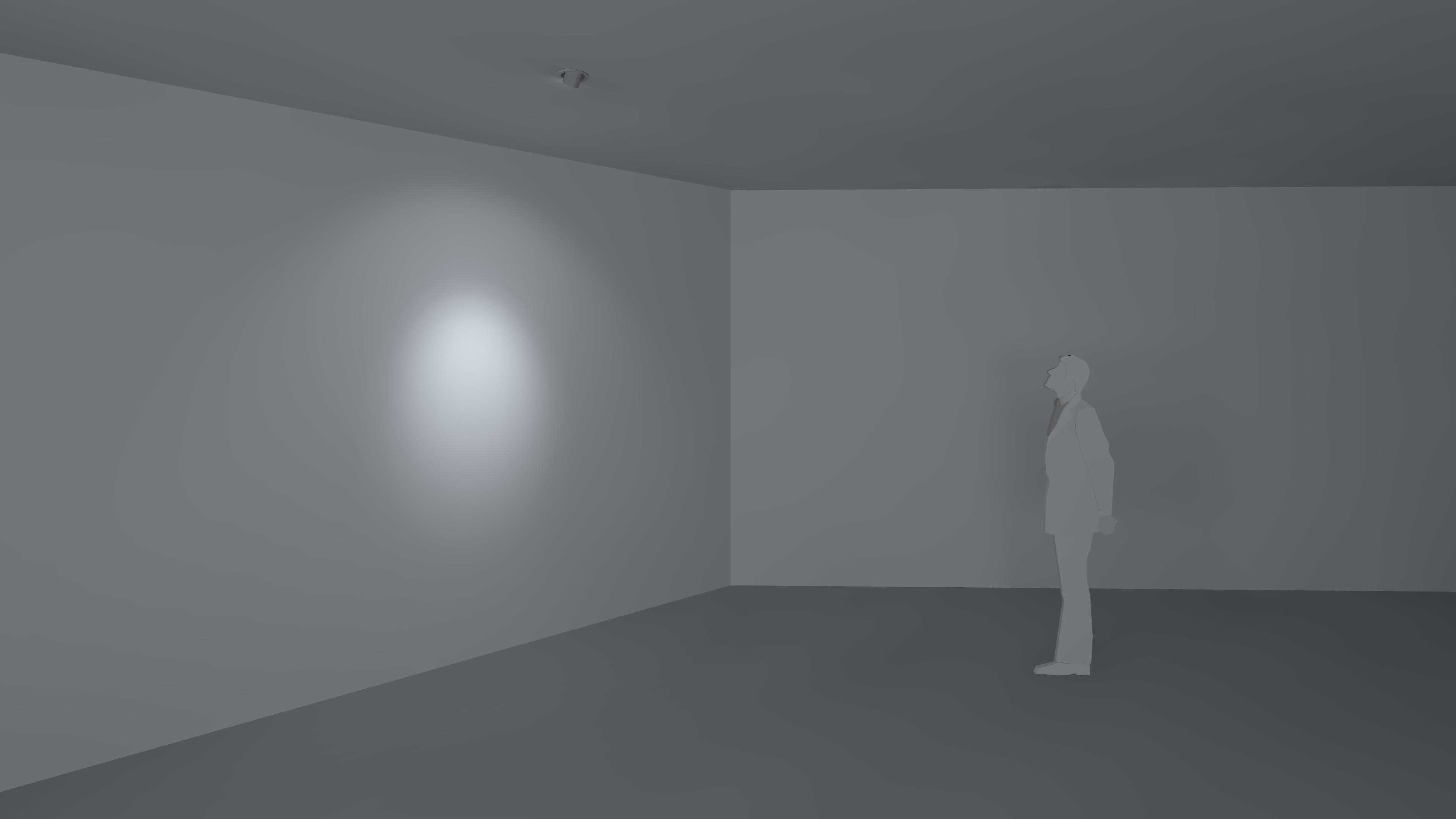

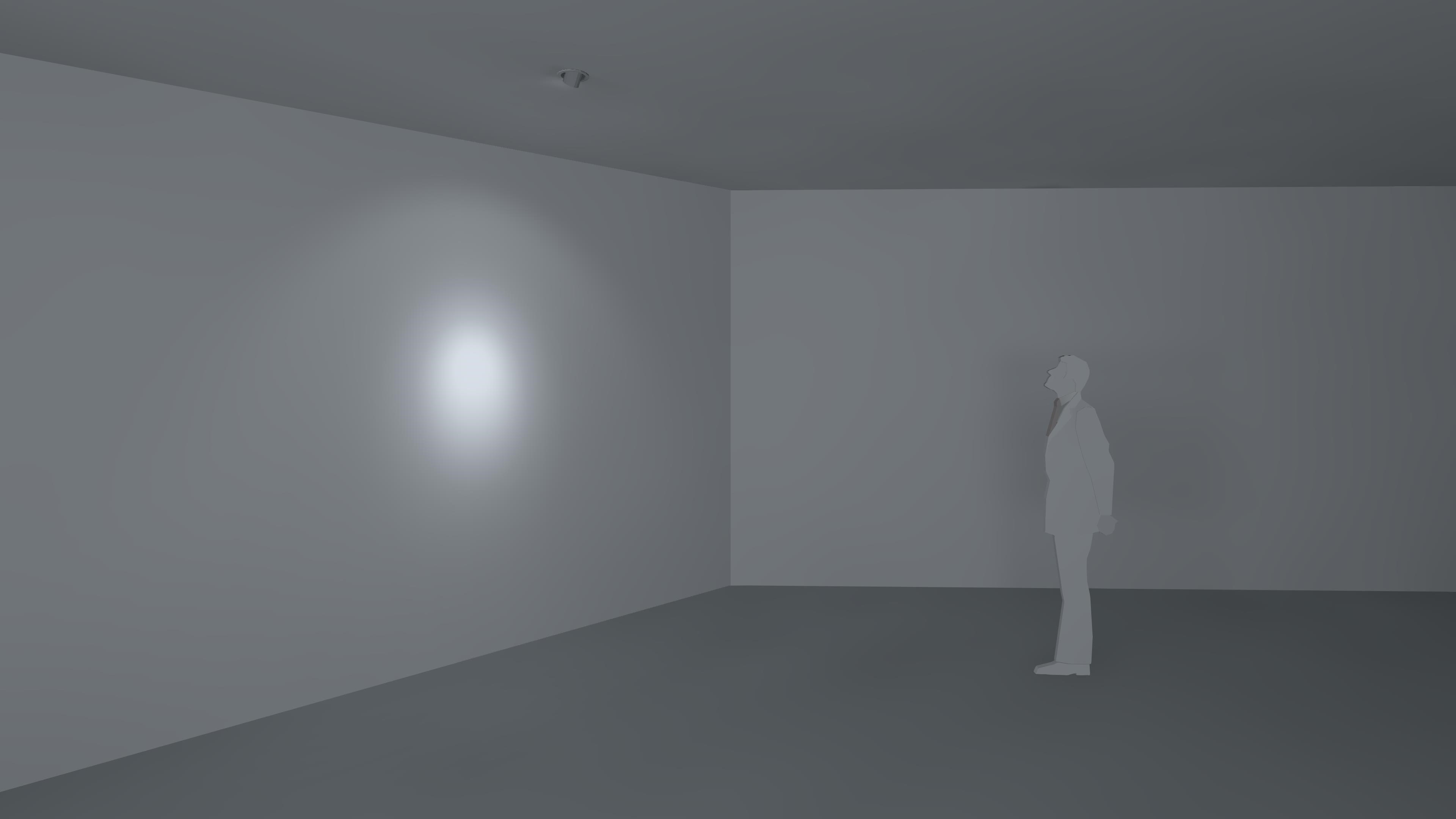

Light effect

15°Spot
24°Flood
36°Spotlights
°
°
°
°
°
°

Application

Product application in Store Lighting, Mall Lighting

Mounting

First: Cutting a φ135mm or φ160mm or φ190mm hole on the ceiling
Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
Third: Installation complete
Disassemble step: First: Catch and hold the lamp and pull it out
