MARS Series Downlight D1037 / D1038 / D1039

Description

SOTEN Downlight with high power 8-15W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Max Power	Luminous Flux	Ceiling Cut Out	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
D1039	8W	560LM	φ70mm	15° / 24° / 36°	φ83 x 80	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds COB	Tridonic	Aluminum Alloy	No
D1038	10W	750LM	φ85mm	15° / 24° / 36°	φ95 x 98	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds COB	Tridonic	Aluminum Alloy	No
D1037	15W	1000LM	φ95mm	15° / 24° / 36°	φ109 x 115	3000K / 4000K / 5000K	>80, >90	Black / White	Lumileds COB	Tridonic	Aluminum Alloy	No

Features

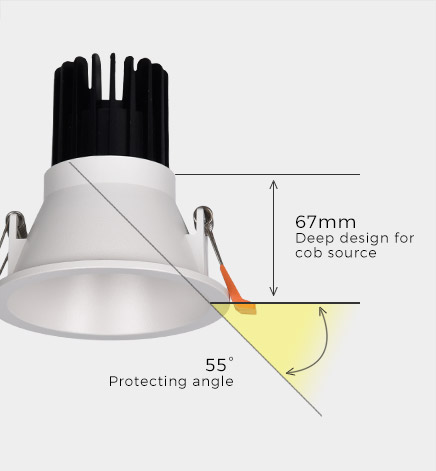

Triple anti-glare
Soft light effect, deep design (67mm) for cob source, large shading Angle 55°, better anti-glare effect.
High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

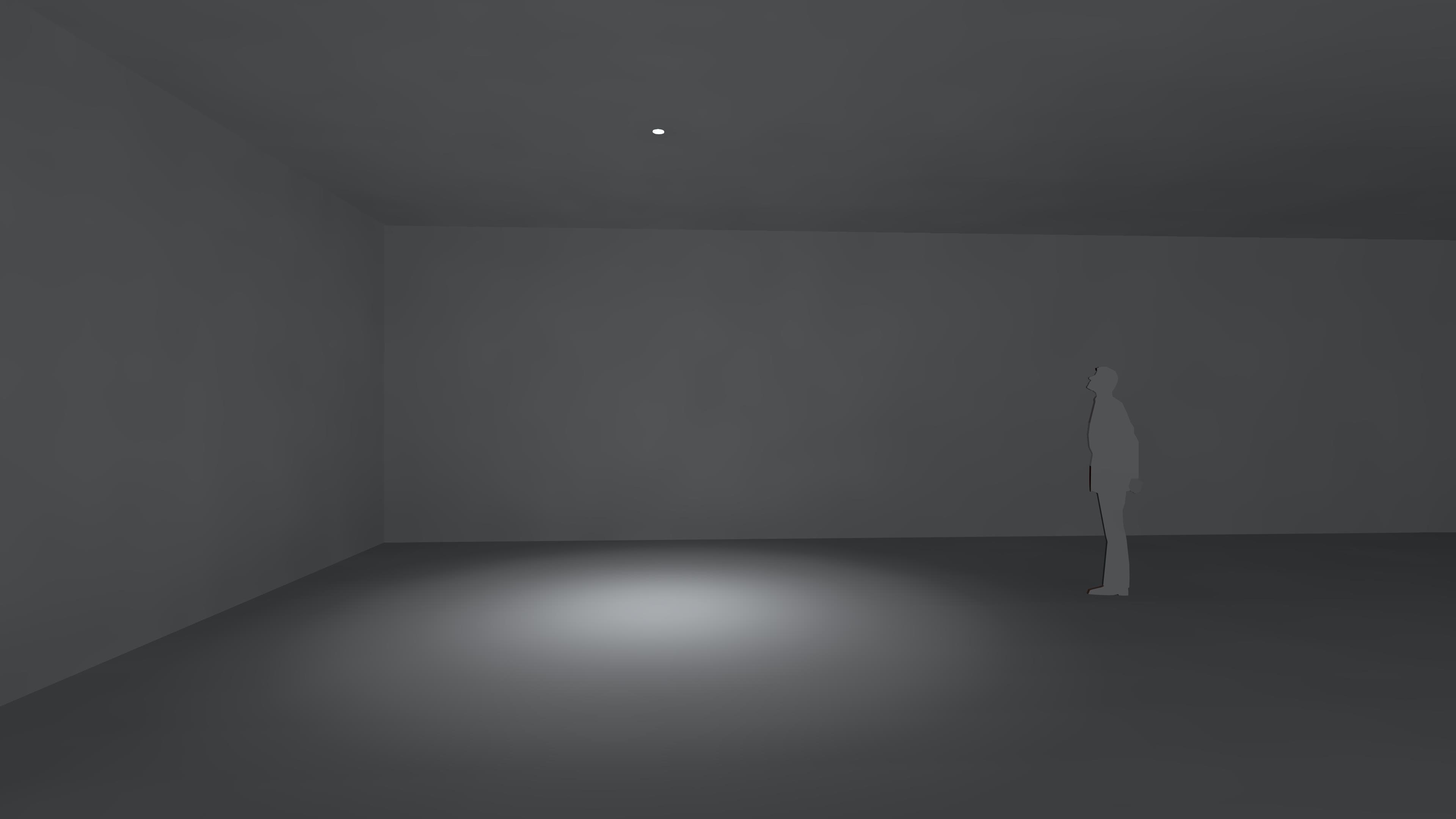

24°Spotlights

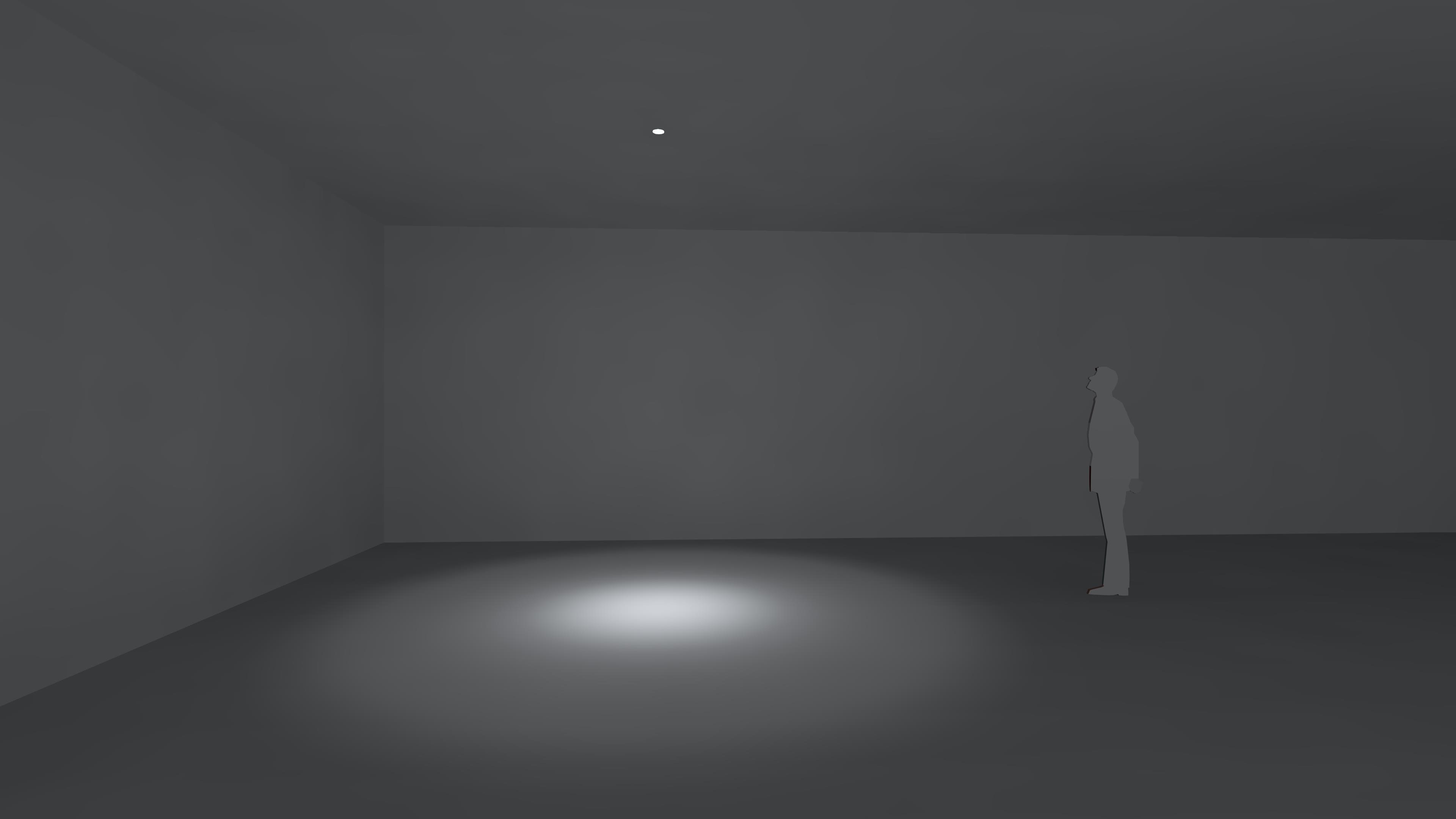

36°Spotlights
°
°
°
°
°
°
°

Application

Product application in Store Lighting, Mall Lighting

Mounting

First: Cutting a φ70-95mm hole on the ceiling
Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
Third: Installation complete
Disassemble step: First: Catch and hold the lamp and pull it out
