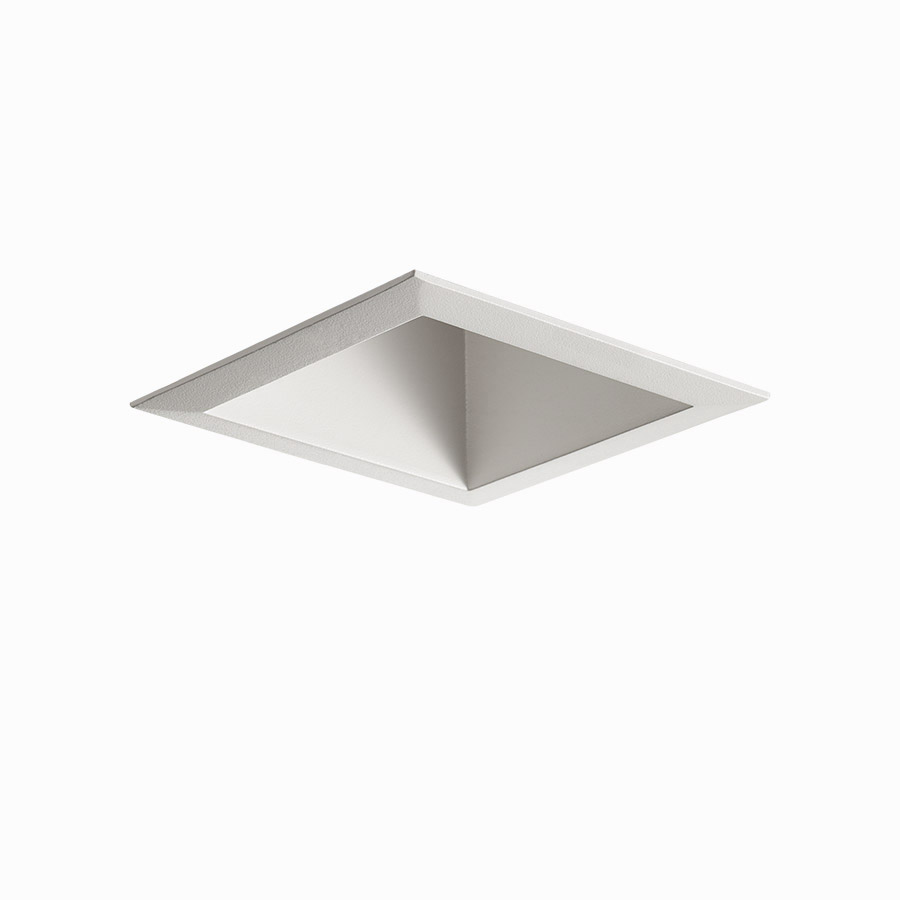

MARS Series Downlight D1015 / D1016 / D1017

Description

SOTEN Downlight with high power 9-15W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1015 9W 650LM φ120mm 80° φ80 x 40 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1016 12W 950LM φ140mm 80° φ108 x 47 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1017 15W 1200LM φ180mm 80° φ118 x 55 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Features

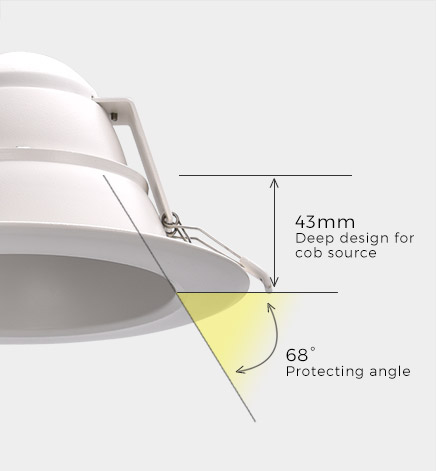

  • Triple anti-glare

    Soft light effect, deep design (43mm) for cob source, large shading Angle 68°, better anti-glare effect.

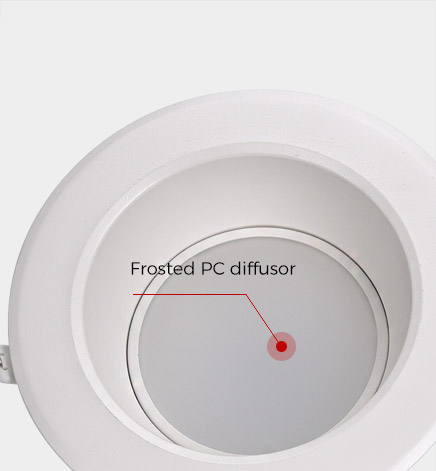

  • Optical diffusor plate

    Use frosted diffusor design, effectively filtering dazzling light source, anti-glare design, soft and comfortable.

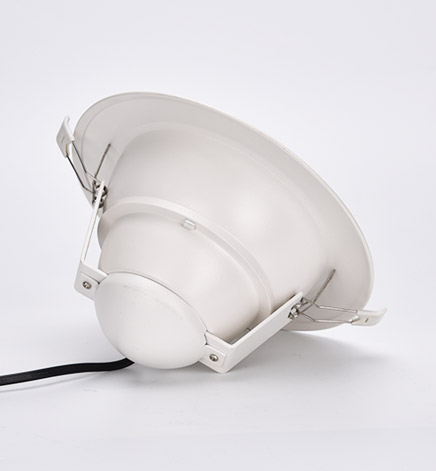

  • Integrated extrusion moulding

    With integrated spinning processto product thin and delicate housing.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

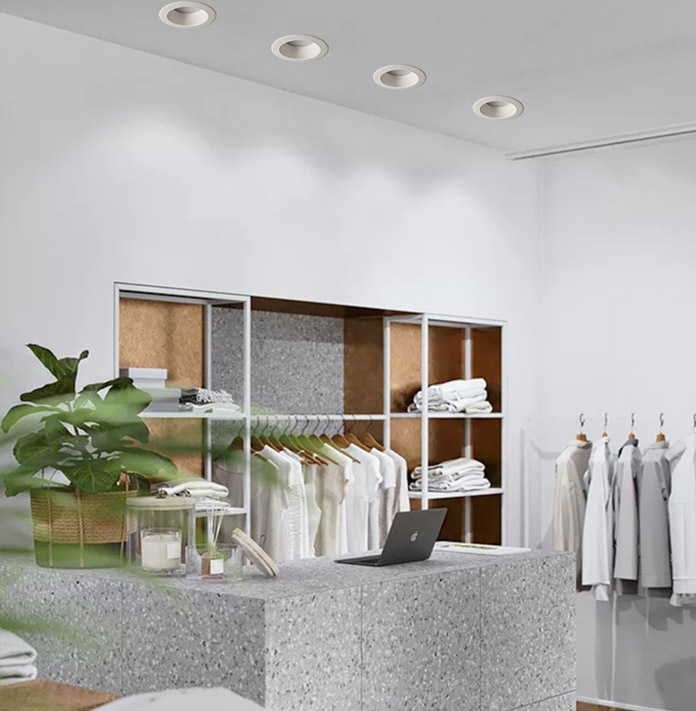

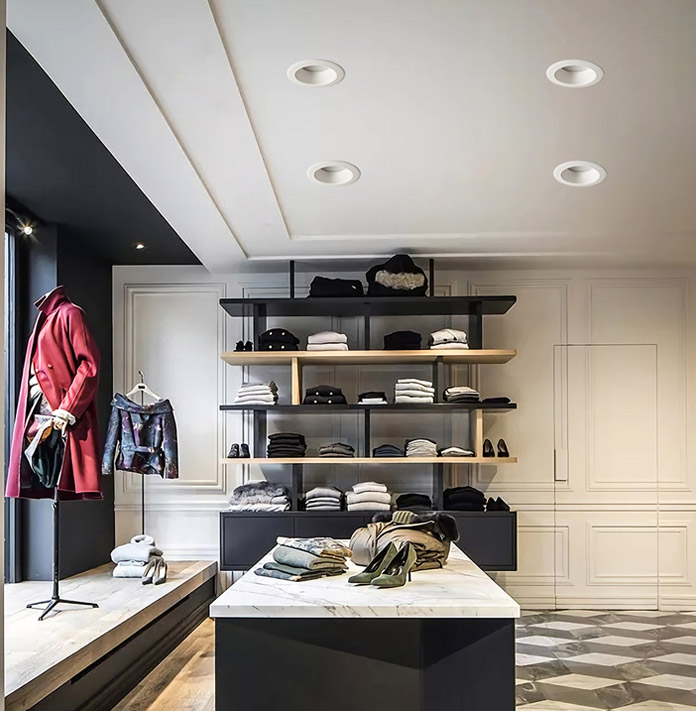

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ120-180mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
