Wall washer Wall washer R1185 / R1186

Description

SOTEN LIGHTING- Wall washer Led Downlight Series with high power with wide range dimentions for optional.The Led Downlight is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spot head and deep inner ring to ensure good anti-glare lighting effect to create a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficiency and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1185 8W 385LM φ85mm Wall-washer 139 x 78 x 62 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1186 14W 816LM φ105mm Wall-washer 159 x 98 x 77 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Features

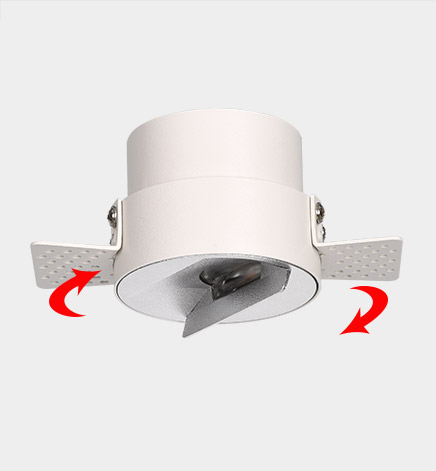

  • Flexible adjust beam angles

    355 degrees horizontal rotation, more accurate and professional multi-angle lighting beams.

  • Unique optical design

    With high transmittance sysmmetric lens, epecially designed wall washer reflect lighting effects, to achieve perfect lighting.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 85% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a φ85mm or φ105mm hole on the ceiling.
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling.
  • Install the luminaire into the open ceiling hole.
  • Third:Installation complete.
  • Disassemble step: First: Catch and hold the lamp and pull it out.
