Wall washer Wall washer R1182 / R1183



SOTEN LIGHTING- Wall washer Led Downlight Series with high power with wide range dimentions for optional.The Led Downlight is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spot head and deep inner ring to ensure good anti-glare lighting effect to create a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficiency and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1182 Product R1182 8W 385LM φ85mm Wall-washer φ94 x 62 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
R1183 Product R1183 14W 816LM φ105mm Wall-washer φ115x 77 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Product Video

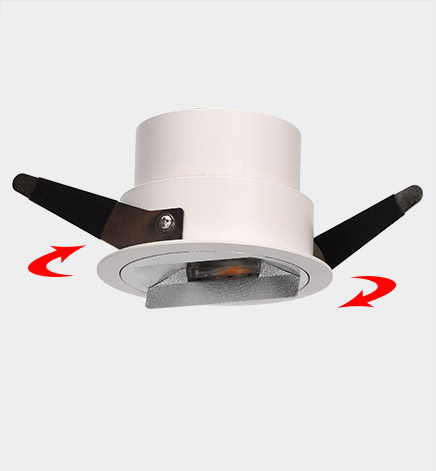

  • Flexible adjust beam angles

    355 degrees horizontal rotation, more accurate and professional multi-angle lighting beams.

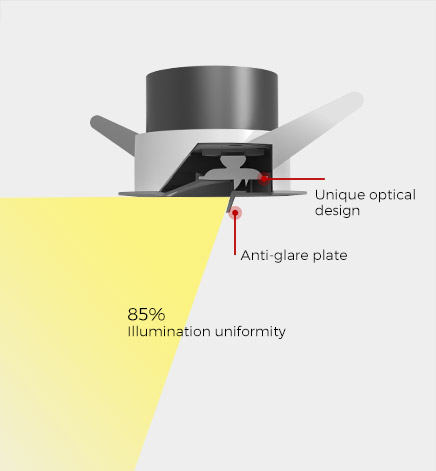

  • Unique optical design

    With high transmittance sysmmetric lens, epecially designed wall washer reflect lighting effects, to achieve perfect lighting.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 85% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

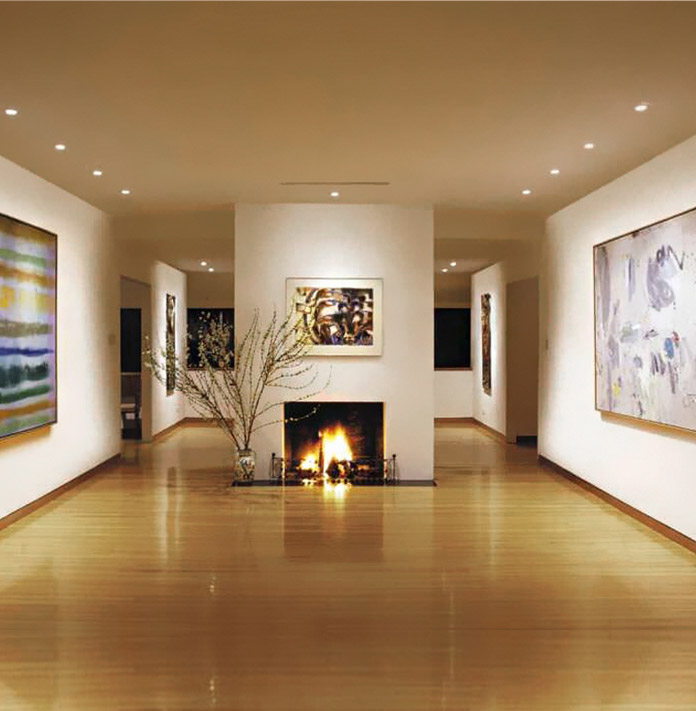

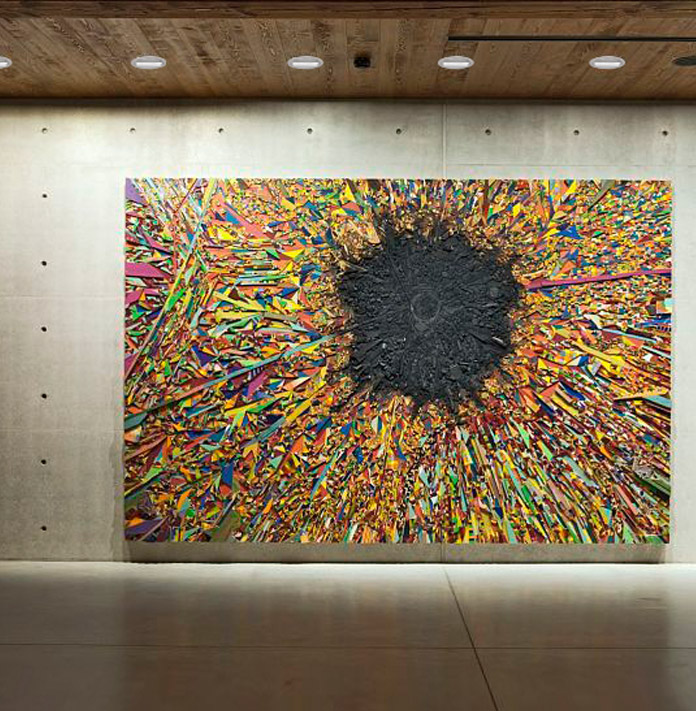

Product application in Store Lighting, Mall Lighting


  • First :Cutting a φ85mm hole on the ceiling.
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling.
  • Install the luminaire into the open ceiling hole.
  • Third:Installation complete.
