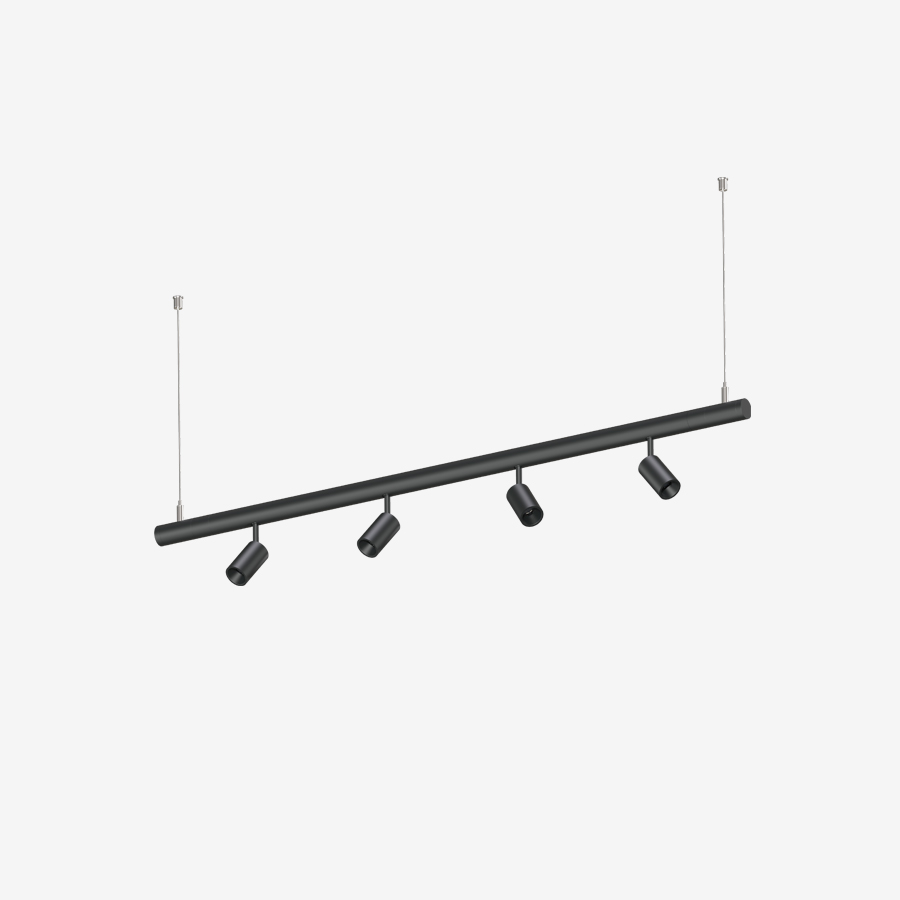

CIR LINEAR is an integrated low voltage lighting system,Plug-in link design, easy installation.

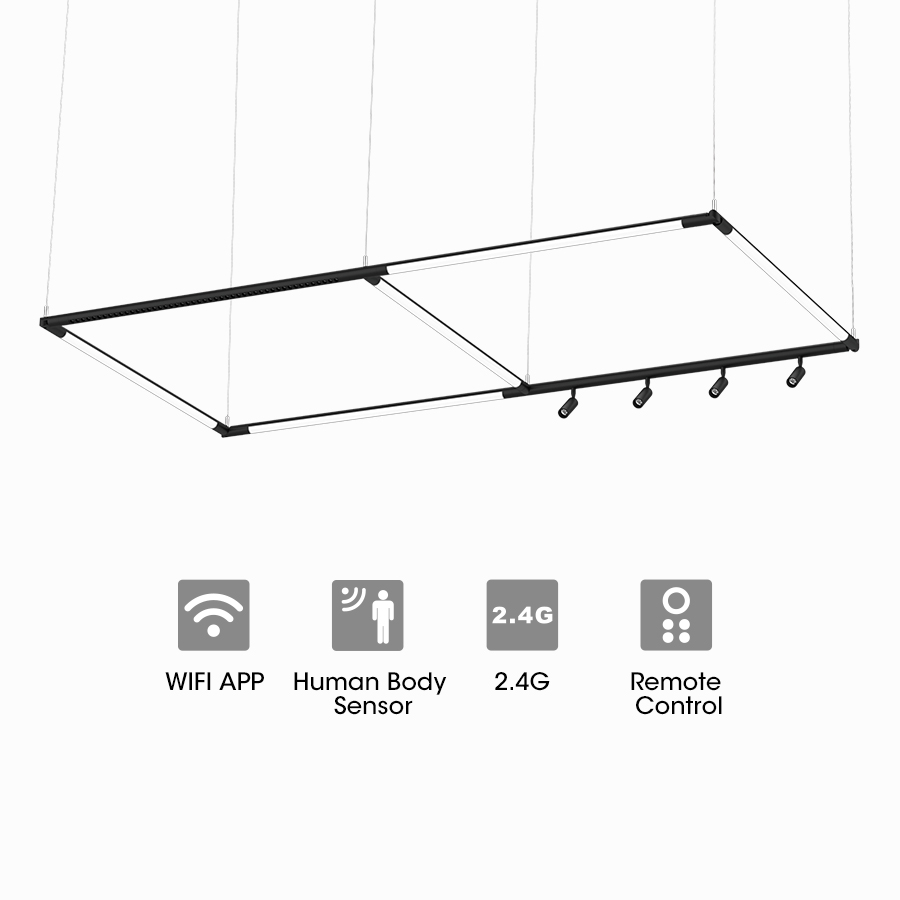

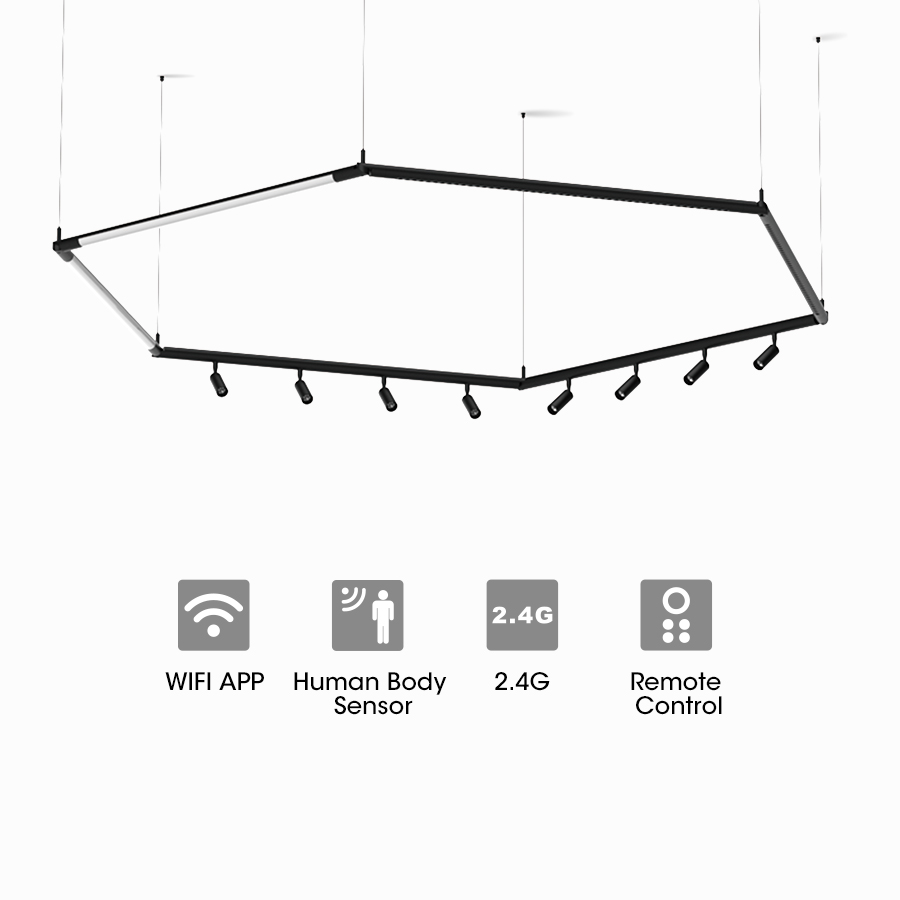

CIR LINEAR series compatible with a variety of intelligent dimming solution and 2.4G and other intelligent control requirements.

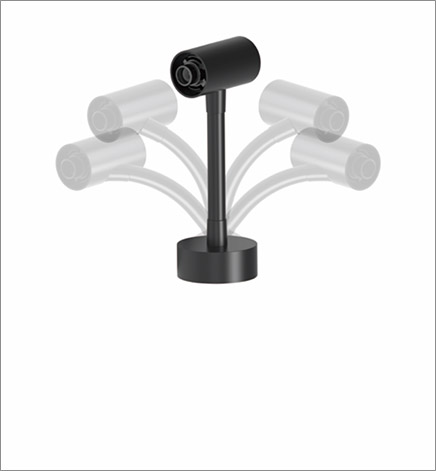

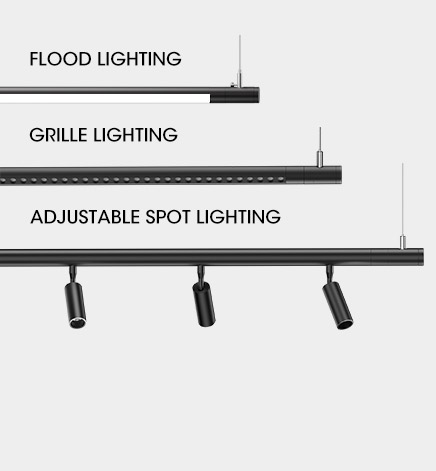

A variety of lighting options, Surface lighting, Grille lighting and Spot lighting.The lamp body can be adjusted 360° to create a unique lighting effect.
CIR LINEAR means containment and extension,CIR LINEAR means everything is possible.
I like this lamp, I need ODM service.
You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!
| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension(mm) | CCT | CRI | Color | LED | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L1200 | 30° / 45° | 18W | 75lm/W | 1350 lm | 859x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | SMD | Philips | No |
 |
L1203 | 30° / 45° | 24W | 79lm/W | 1900 lm | 1259x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | SMD | Philips | No |
| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension(mm) | CCT | CRI | Color | LED | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L1201 | 100° | 18W | 75 lm/W | 1350 lm | 859x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | SMD | Philips | No |
 |
L1204 | 100° | 24W | 88 lm/W | 2100 lm | 1259x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | SMD | Philips | No |
| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension(mm) | CCT | CRI | Color | LED | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L1202 | 15° / 24° /36° | 18W | 72lm/W | 1300 lm | 859x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | COB | Philips | No |
 |
L1205 | 15° / 24° /36° | 24W | 79lm/W | 1900 lm | 1259x30 mm | 3000K / 4000K / 6500K | ≥90 | Black / White | COB | Philips | No |
| Product | Item No | Dimension(mm) | Remarks | Color |
|---|---|---|---|---|
|
7.46.00414 |  |
Power feeder (200W MAX,48V) | Black / White |
 |
7.46.00761 |  |
Power feeder (200W MAX,48V) | Black / White |
 |
7.46.00413 |  |
Middle connector | Black / White |
|
7.46.00674 | |
Middle connector (non conductive) | Black / White |
 |
7.46.00412 |  |

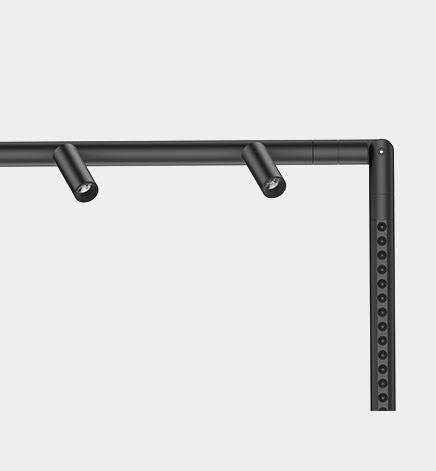

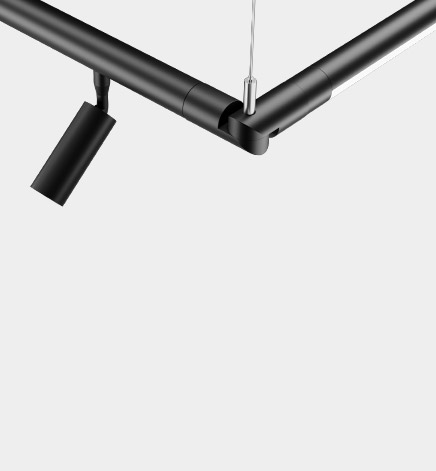

Adjustable corner connector | Black / White |
|
7.46.00675 | |
Adjustable corner connector (non conductive) | Black / White |
 |
7.46.00751 |  |
T-connector | Black / White |
 |
7.46.00752 |  |

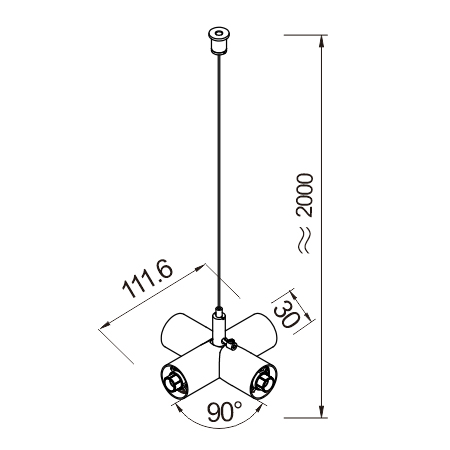

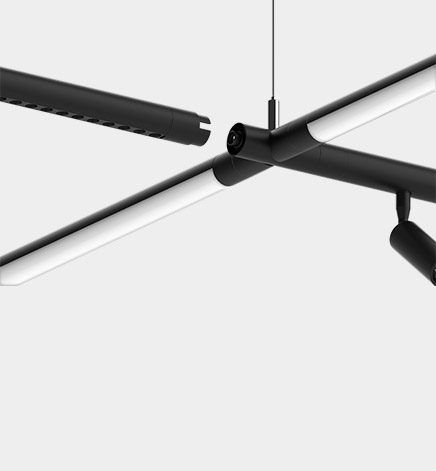

X-connector | Black / White |
 |
7.46.00982 |  |
Y-connector | Black / White |
| Product | Item No | Dimension(mm) | Remarks | Color |
|---|---|---|---|---|
|

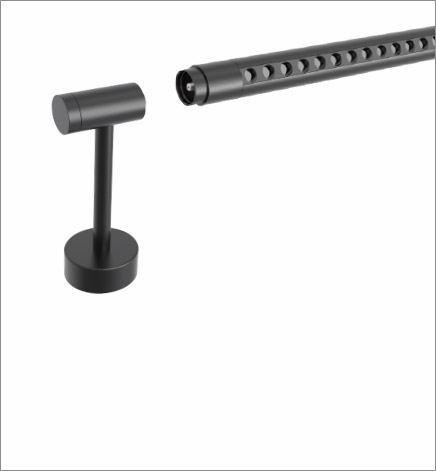

7.46.00490 |  |
Wall mounted Power feeder (200W MAX,48V) | Black / White |
 |
7.46.00755 |  |
Wall Mounted No DC plug connector (non conductive) | Black / White |
|
7.46.00489 | |
Wall mounted Middle connector | Black / White |
 |
7.46.00818 |  |
Wall mounted Power feeder (200W MAX,48V) | Black / White |
 |
7.46.00502 |  |
Wall mounted Adjustable corner connector | Black / White |
|
7.46.00757 | |
Wall mounted Adjustable corner connector (non conductive) | Black / White |
 |
7.46.00758 |  |
Wall mounted T- connector | Black / White |
 |
7.46.00759 |  |
Wall mounted X- connector | Black / White |
| Product | Item No | Dimension(mm) | Remarks | Color |
|---|---|---|---|---|
|
7.46.00984 |  |

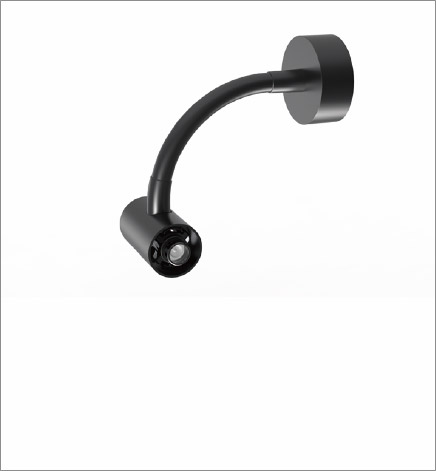

Wall mounted | Black / White |
| Product | Item No | Dimension(mm) | Remarks | Color |
|---|---|---|---|---|
 |
5.08.200.0404 |  |
End cap | Black / White |
1
2
3
4
5
6
7
8

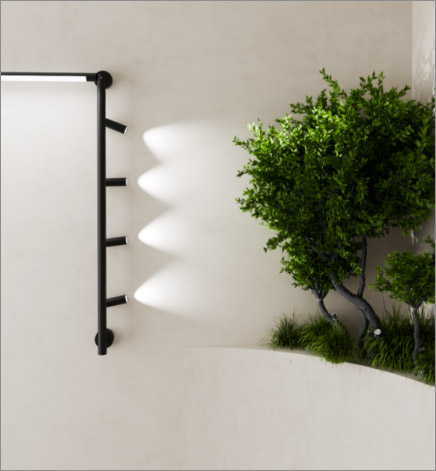

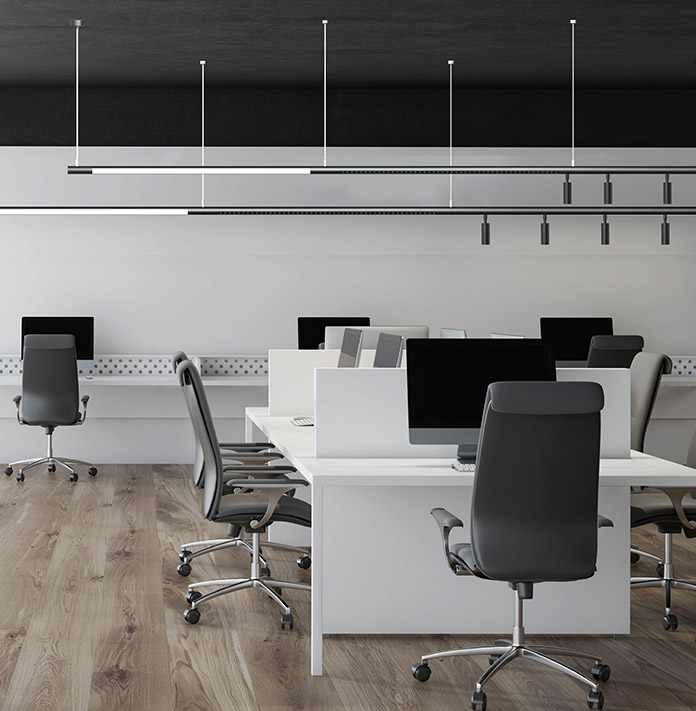

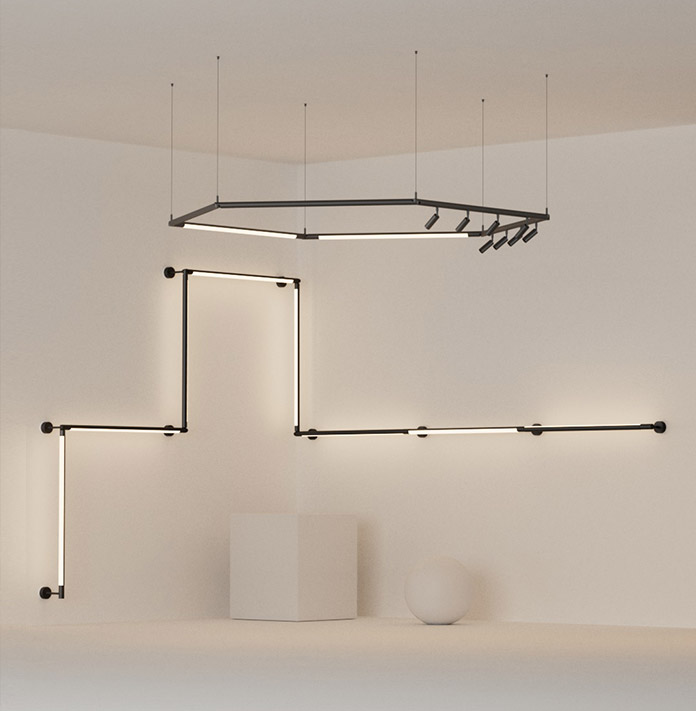

Product application in Store Lighting, Mall Lighting
Tel: +86-750-3778800 Fax: +86-750-3778811 E-mail: inquiry@soten.hk www.soten.hk Jinou Road, Jiangmen City, Guangdong, China
Hex SeriesDownlight 2918/2919/2920/2921
UGR19,CCT optional. High efficiency,save energy and power costs. A slim design with a thickness of 3cm. Preciselight control,60 or 80beam angle optional....
Read More
PRO LINE SeriesTrack light T1291/T1288/T1294
PRO LINE Series...
Read More
Shelf Light SeriesTrack light T1287
Up to 175lm/W. Combined optical system with 6 selectable angles suitable for various scenarios. Precisionlight control....
Read More
GYRO G2 SeriesRecessed Spot light R1639H/ R1640H/ R1641H/R1642H
The lamp bodyis stretchable. High performance refector,LOR98%,system90%. Trim or trimless optional....
Read More
TUBO LITE SeriesTrack light T1283/ T1284H / A
High performance reflector,LOR 96%,system92%. Savings of up to 50% are possible. Minimalist design....
Read More
SUN G2 SeriesD1352-T / D1347-T / D1342-T
IP54. Aluminium housing with good heat dissipation. Dip switch for 4 different wattages 3 CCT....
Read More
Slimline SeriesTrack light T1271 / T1276 / T1265 / T1268 / T1270 / P111
2.2cm Slim Design. UGR19. 180Im/W,LOR 90%. Light efficiency is over 95%. Application:office,shops....
Read More
TUBO-G2 SeriesTrack light T1241 / T1242 / INS /ZOOM
High performance reflector,LOR 96%,system92%. Up to 140lm/W,savings of up to 35% are possible. 4 beam angles, 3 types lenses for different light effects. Die-casting aluminum lamp housing with high heat dissipation efficiency. Minimalist ex...
Read More
Fly Family SeriesCeiling light D1093 / D1095 / D1094 / D1102 / D1107 / D1106
Compact design with wide range waffage options 3W-12W, Module design and combined for a wide range installation way-Embedded, Recessed, ajustable spothead, The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Go...
Read More
PUPIL SeriesTrack light T1252/T1252B/T1252C/D1333/D1336
Simple and thin appearance, thickness: 3.5cm. Integrated die casting body with convection heat dissipation design. 4 beam angles, 4 types lenses for options. Different installation : track light, surface mounted....
Read More
Drill holes on the ceiling,put the plug into the drilled hole,fixate the plateand suspension accessories,tigthen the connecting part to the iron part.
Connect to Dc48v
Insert the lamp into the connector or corner connector,install the end cap,then lamp installation is complete.
Pull out the lamp from the lamp connector or corner connector carefully.
