VENUS G2 Series

Share:

Description

  • Tilt angle :55° Rotation angle :355°.
  • Built-in marble rotation damping.
  • CompactIntegratedlamp body design,size reduce 20%.

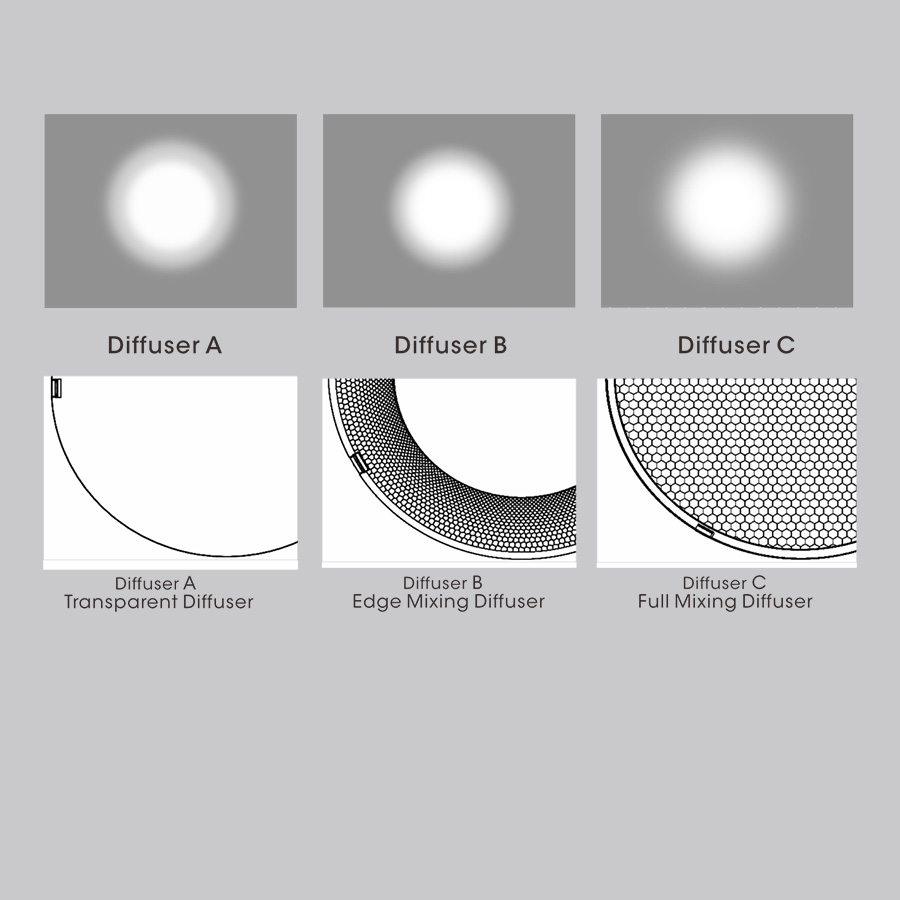

  • 4 beam angles, 3 types lenses for options.

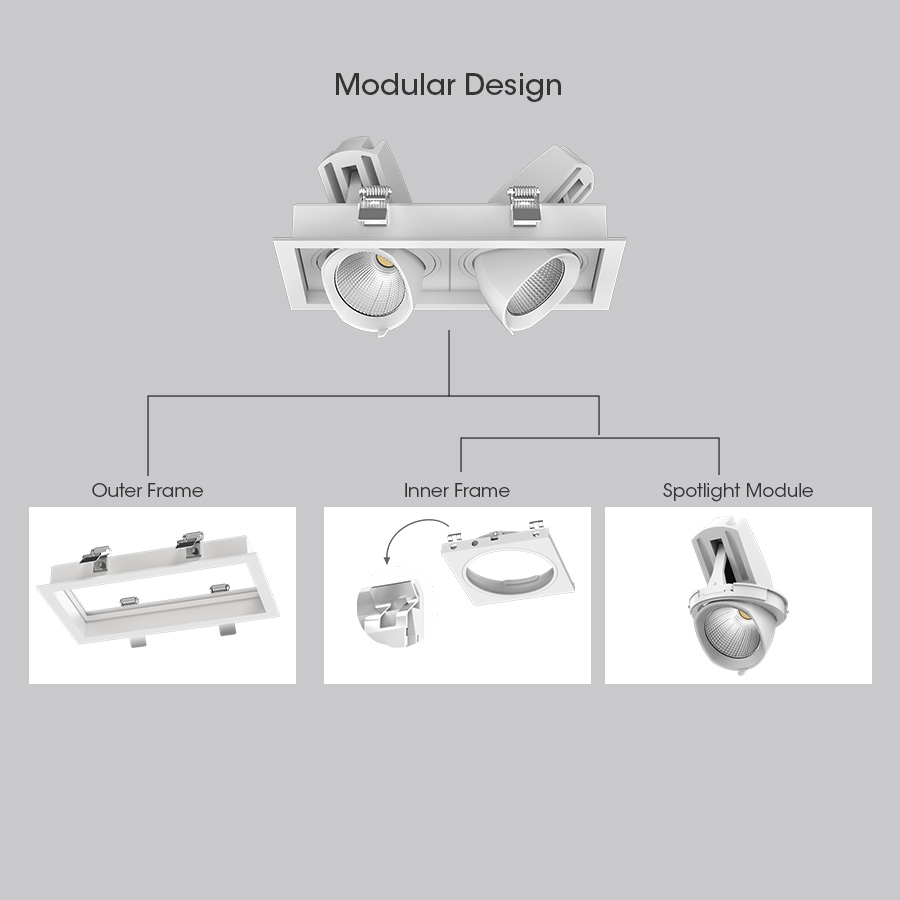

  • Modular design,easyinstallation.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

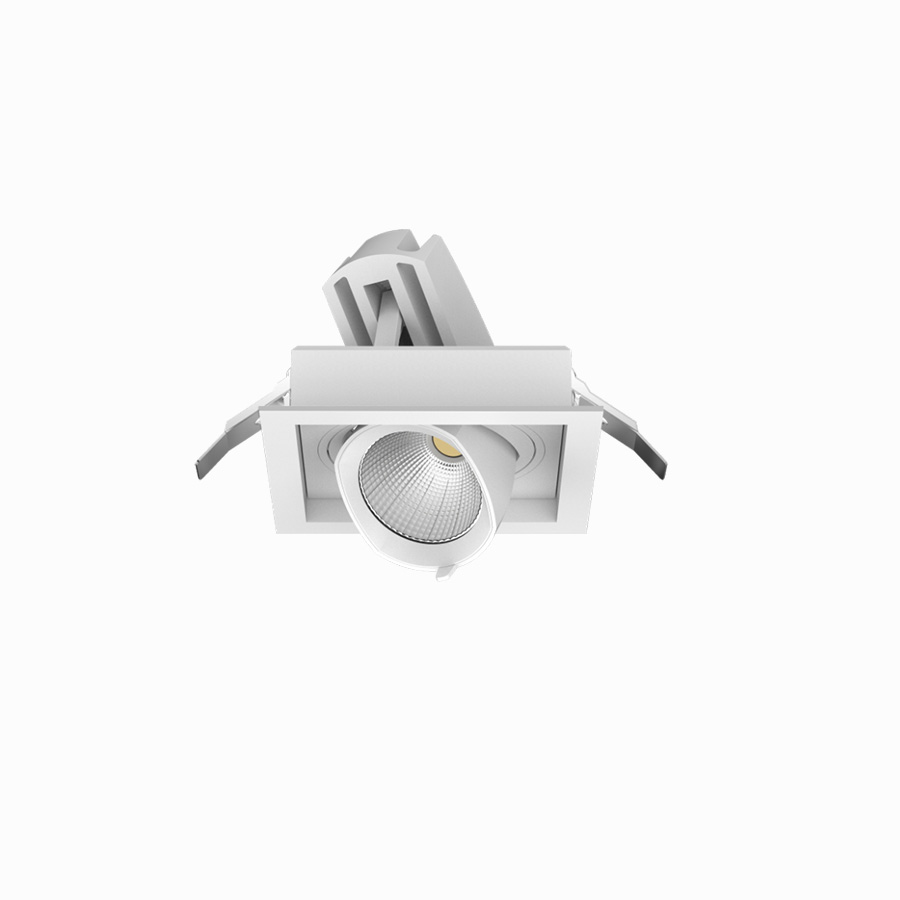

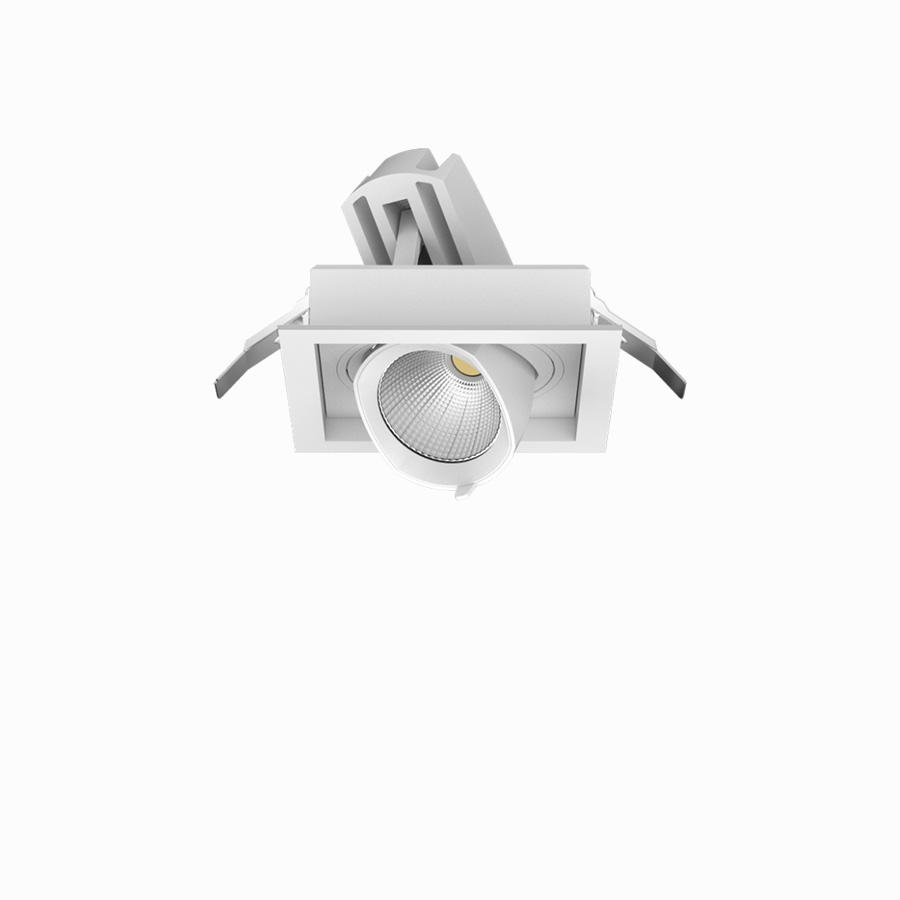

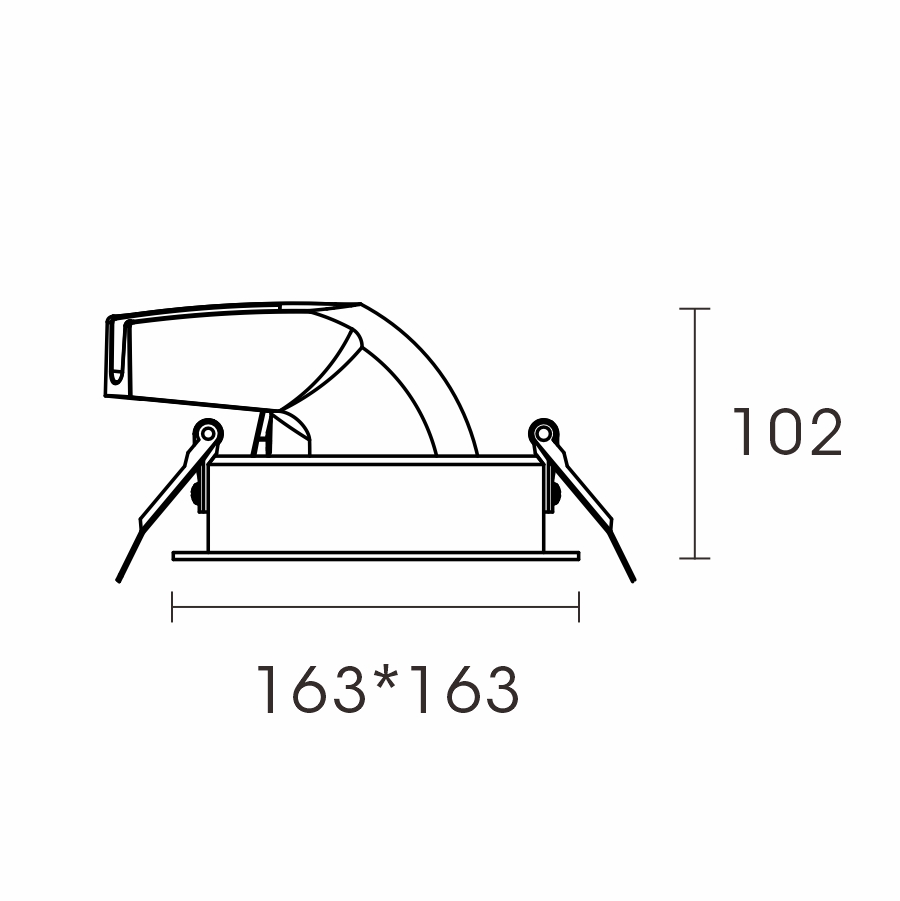

VENUS G2 Series G1181H/G1183H

Product Item No Max Power Efficiency Luminous Flux CCT Beam Angle Dimension(mm) Ceiling cut out CRI COB Drive Control Method
P1042 Product G1181H 24W 130lm/W 3120LM 3000K/4000K 18°/26°/38°/50° 125*125 >90 PHILIPS BOKE N/A
P1042 Product G1183H 36W 130lm/W 4680LM 3000K/4000K 18°/26°/38°/50° 150*150 >90 PHILIPS BOKE N/A

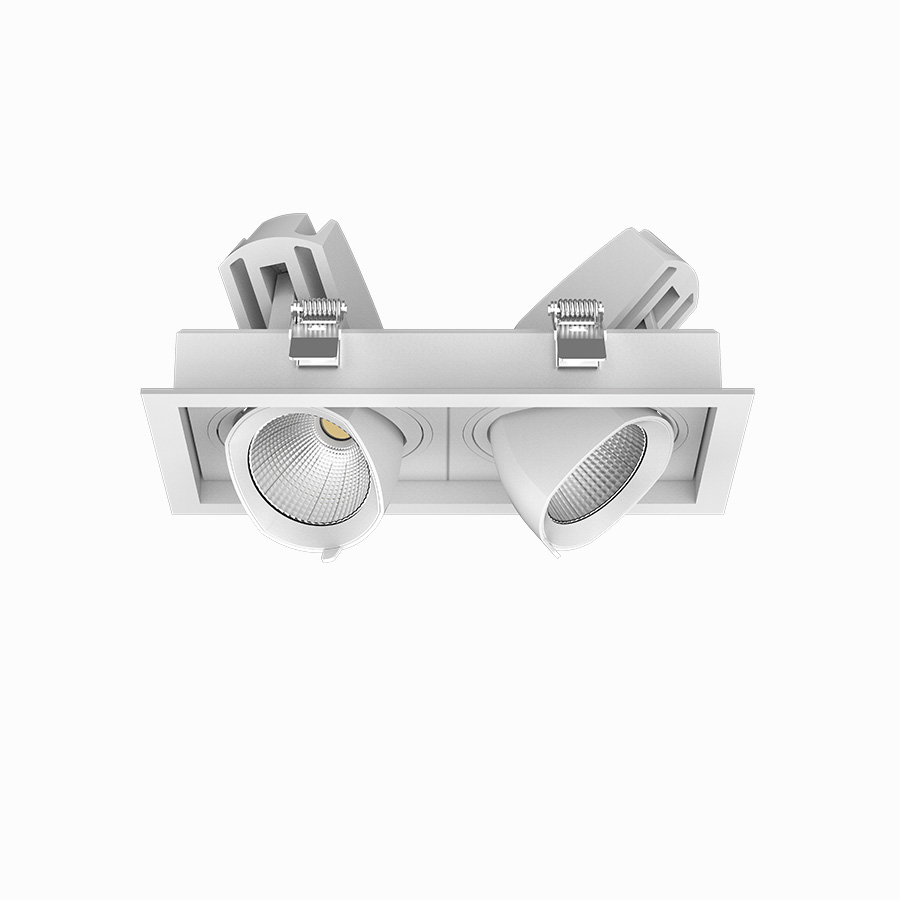

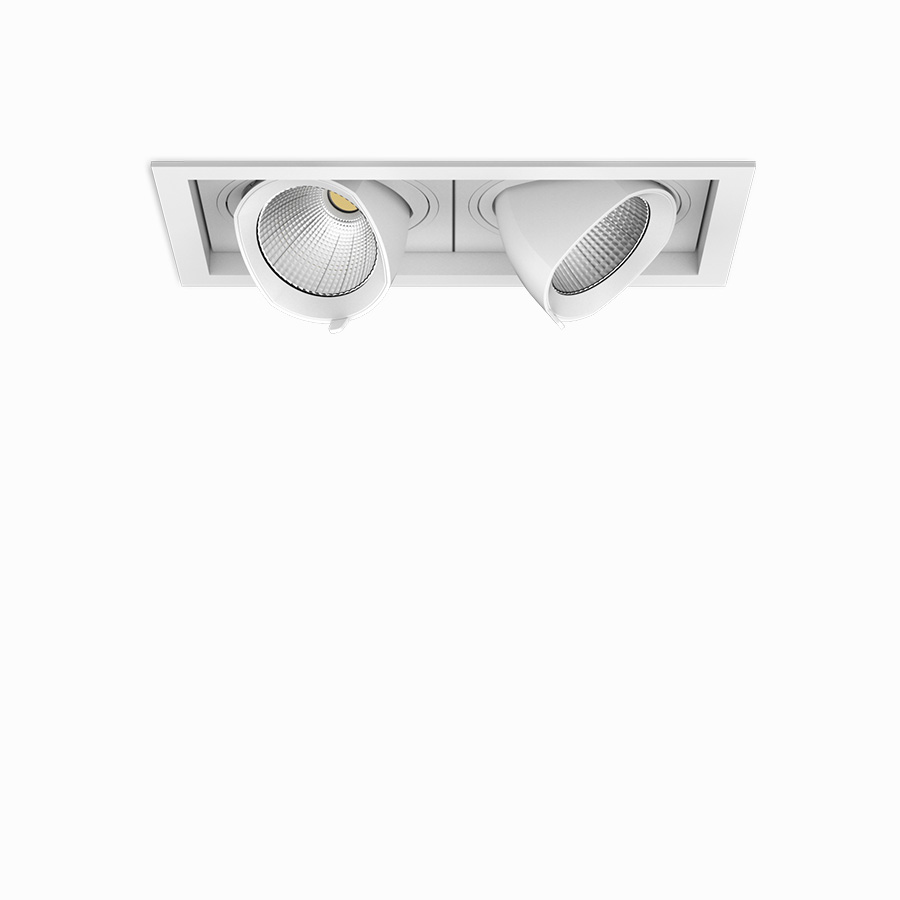

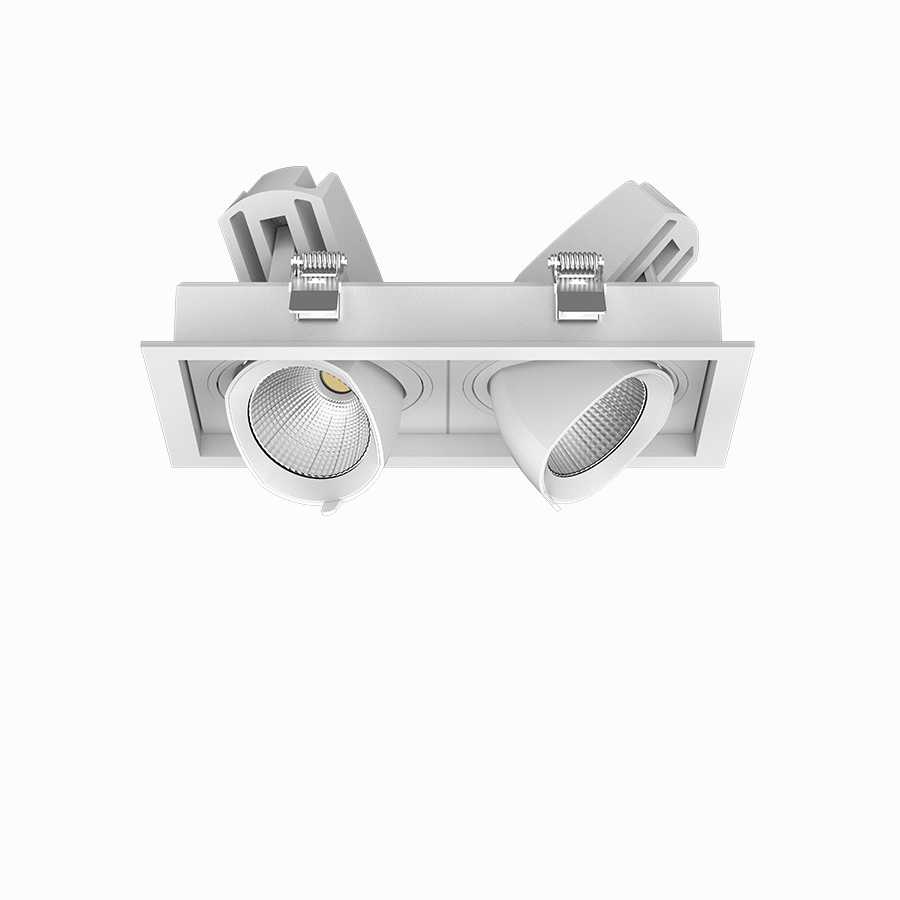

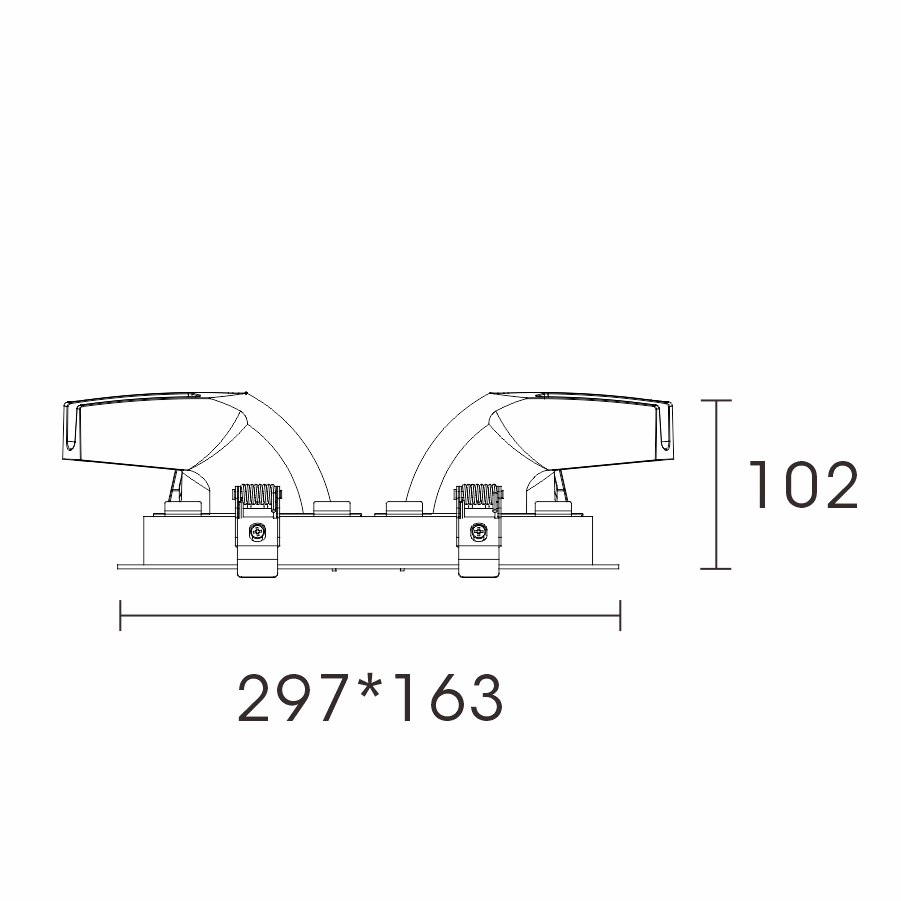

VENUS G2 Series G1182H/G1184H

Product Item No Max Power Efficiency Luminous Flux CCT Beam Angle Dimension(mm) Ceiling cut out CRI COB Drive Control Method
P1042 Product G1182H 2*24W 130lm/W 2*3120LM 3000K/4000K 18°/26°/38°/50° 235*125 >90 PHILIPS BOKE N/A
P1042 Product G1184H 2*36W 130lm/W 2*4680LM 3000K/4000K 18°/26°/38°/50° 285*150 >90 PHILIPS BOKE N/A

Product Video

Share:

Features

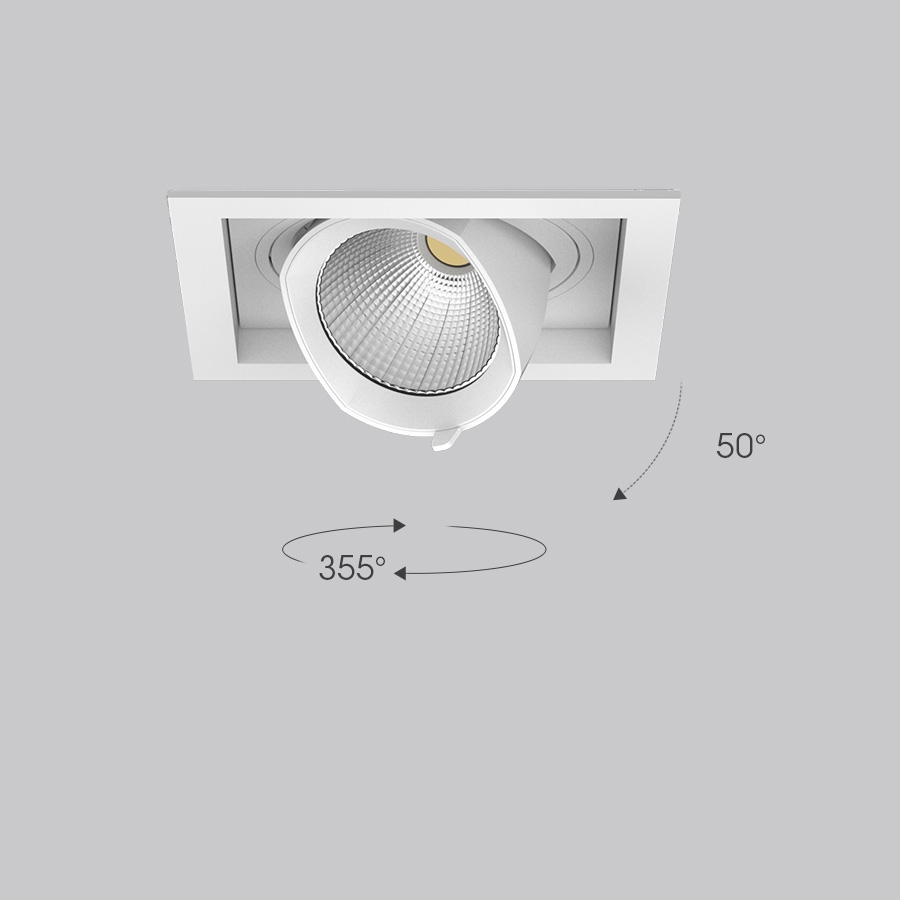

  • Tilt angle :55° Rotation angle :355°

  • Modular design,easyinstallation

  • 4 beam angles, 3 types lenses for options

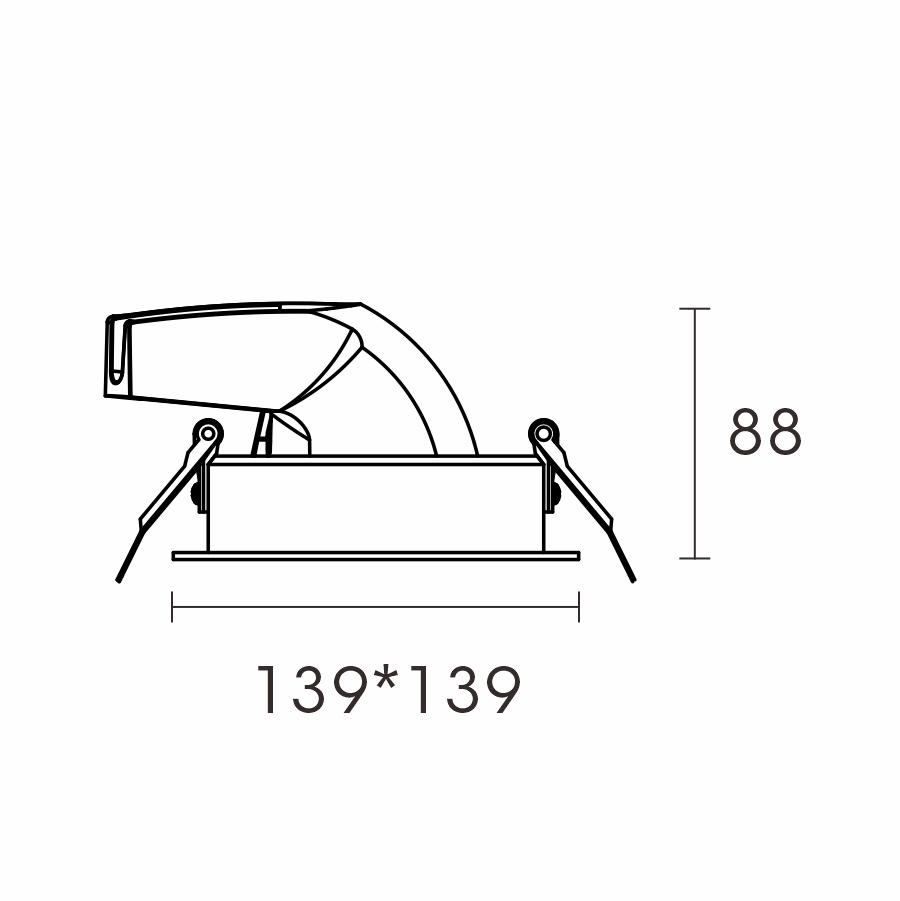

Mounting
