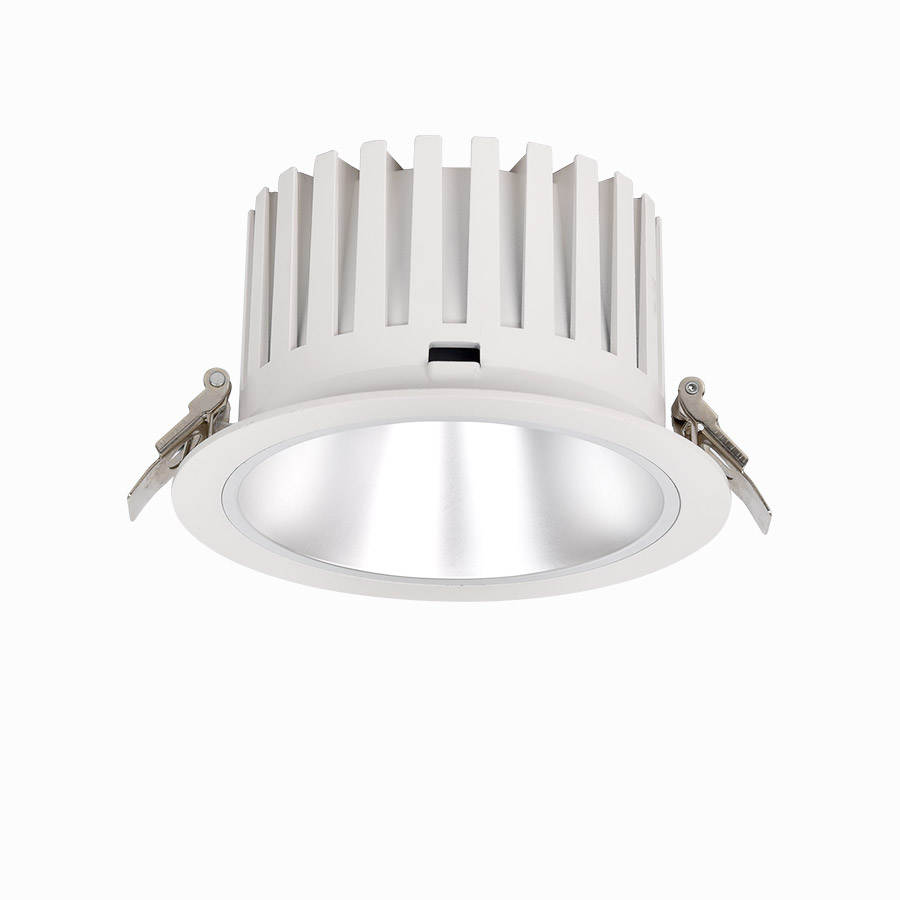

MERCURY Series Downlight D1058 / D1059 / D1060

Description

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1058 20W 1700LM φ125mm 25° / 38° / 60° φ132 x 75 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1059 40W 3800LM φ160mm 38° / 60° φ170 x 95 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1060 50W 4500LM φ215mm 45° / 60° φ230 x 115 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No


Multi-color anti-glare cover optional


Features

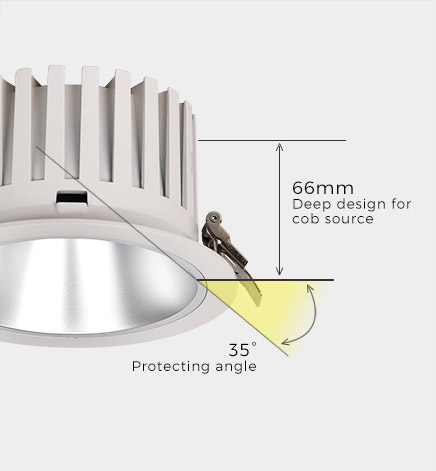

  • Triple anti-glare

    Soft light effect, deep design (66mm) for cob source, large shading Angle 35°, better anti-glare effect.

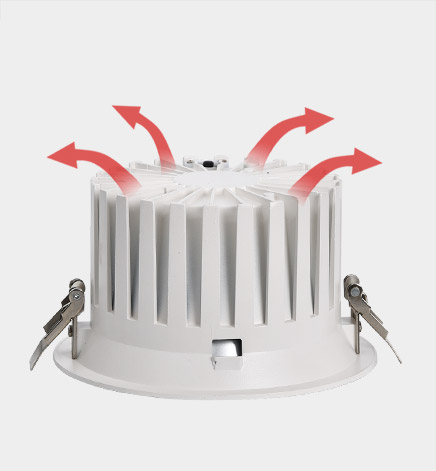

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light contro

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

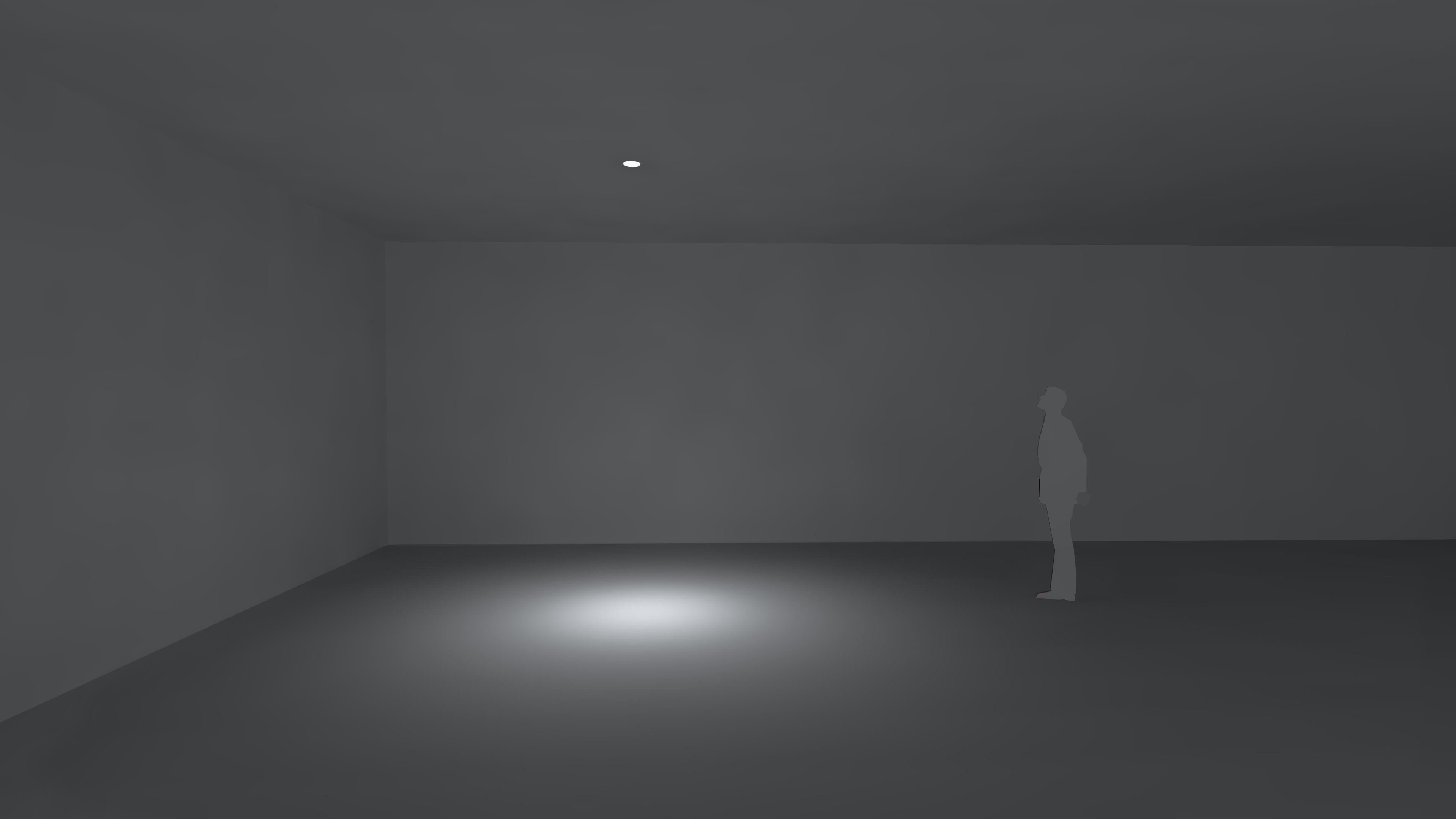

  • 12°Spotlights

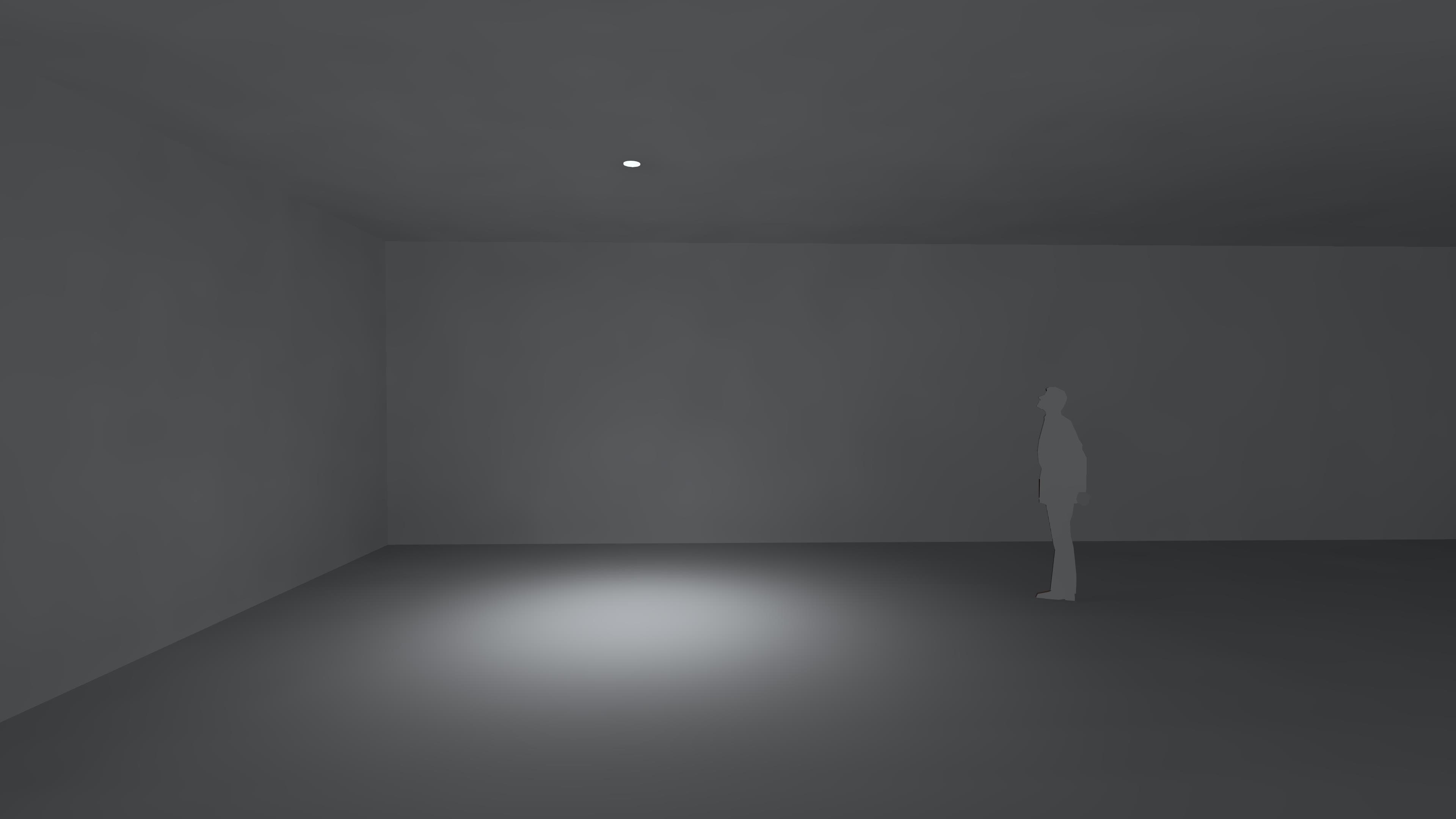

  • 25°Spotlights

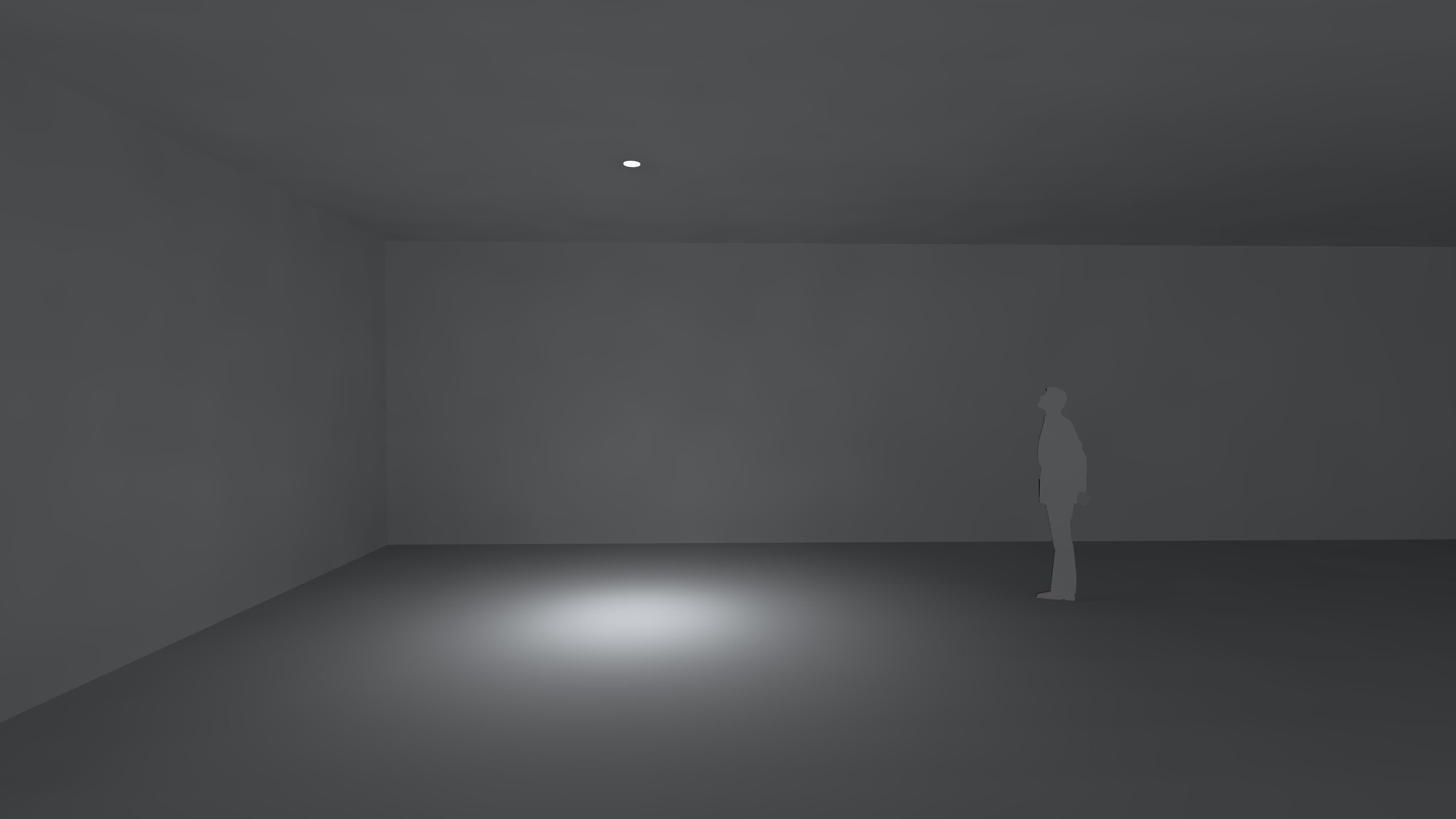

  • 38°Spotlights

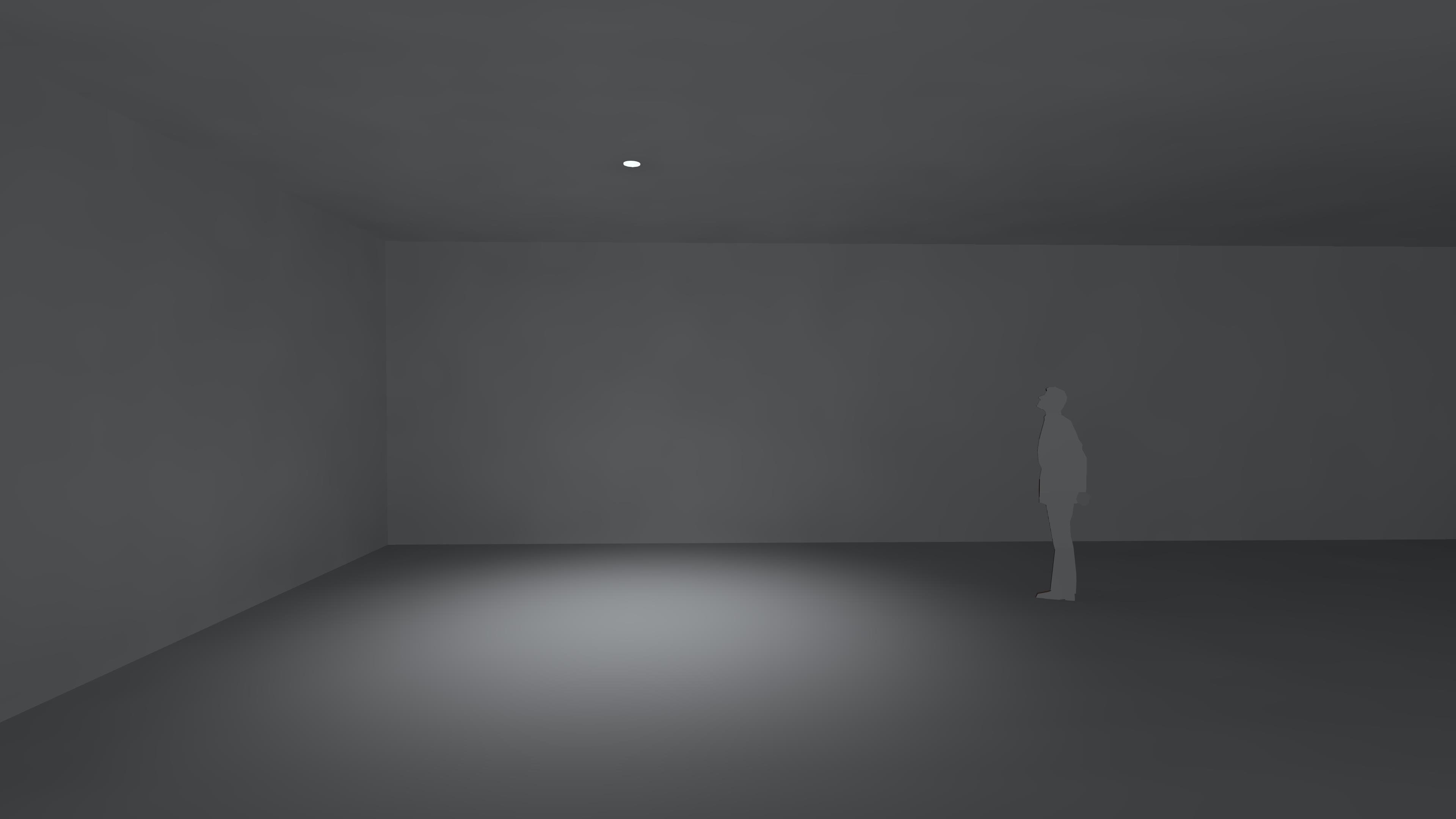

  • 60°Spotlights

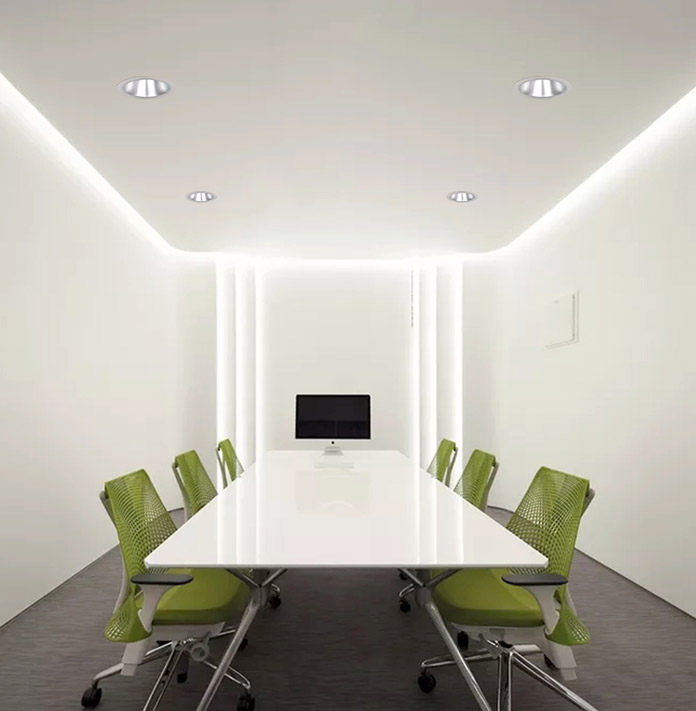

Application

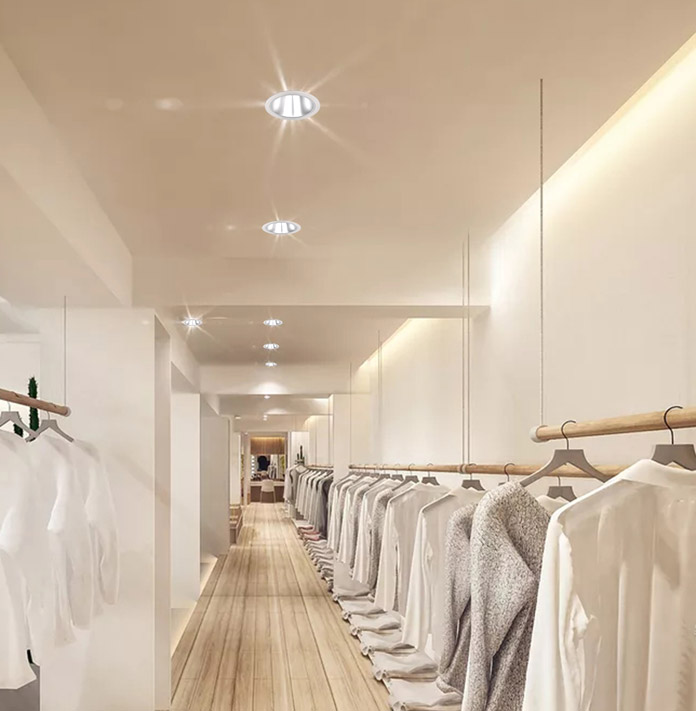

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ125mm or φ160mm or φ215mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
