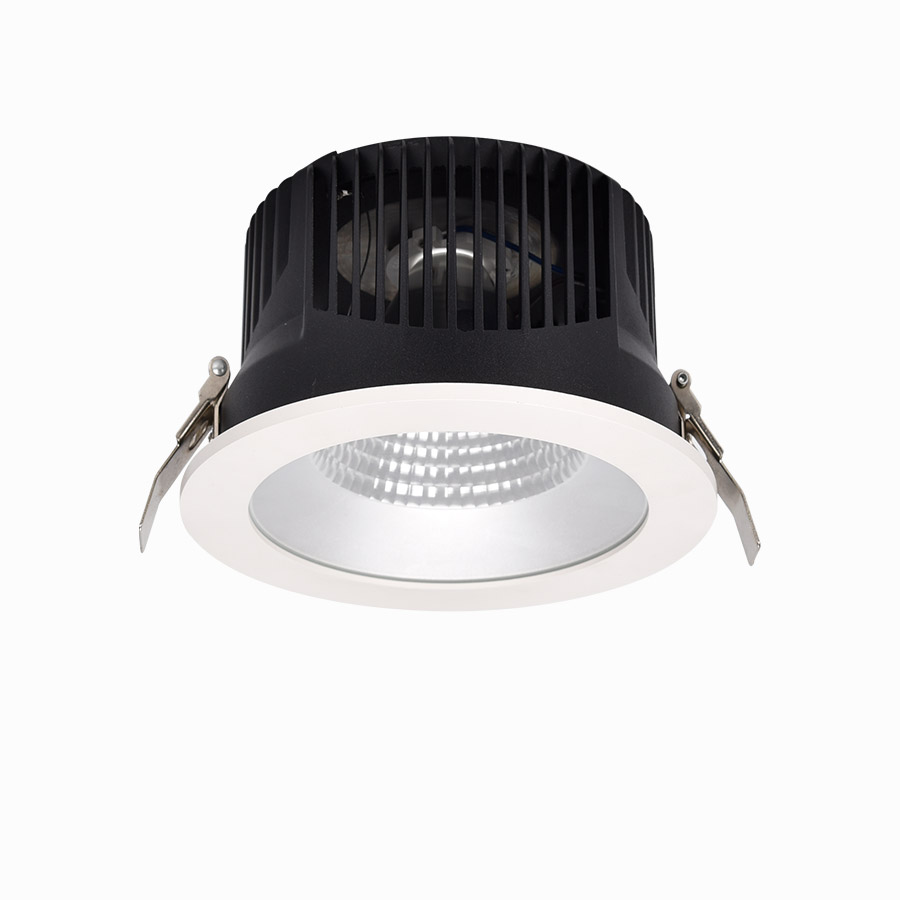

MERCURY Series Downlight D1012 / D1013 / D1014

Share:

Description

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
D1012 Product D1012 36° / 55° 25 W 120 lm/W 2797 lm Ø145 x 130 mm Ø110 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
D1014 Product D1014 36° / 60° 30 W 117 lm/W 3056 lm Ø160 x 150 mm Ø155 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
D1013 Product D1013 36° / 60° 40 W 121 lm/W 4747 lm Ø205 x 185 mm Ø190 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

  • Triple anti-glare

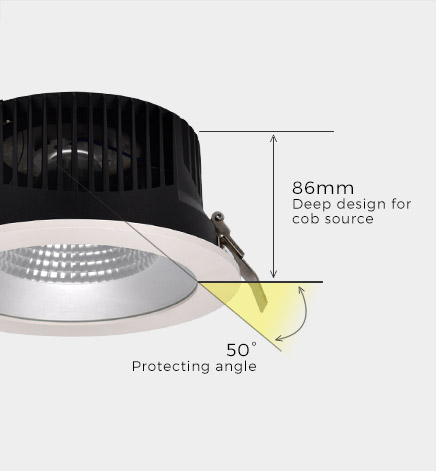

    Soft light effect, deep design (86mm) for cob source, large shading Angle 50°, better anti-glare effect.

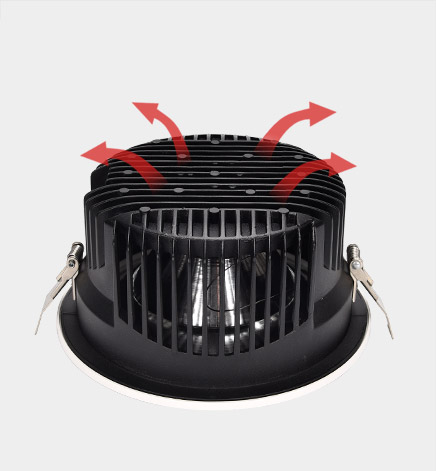

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

  • 36°Flood
  • 60°Flood

Application

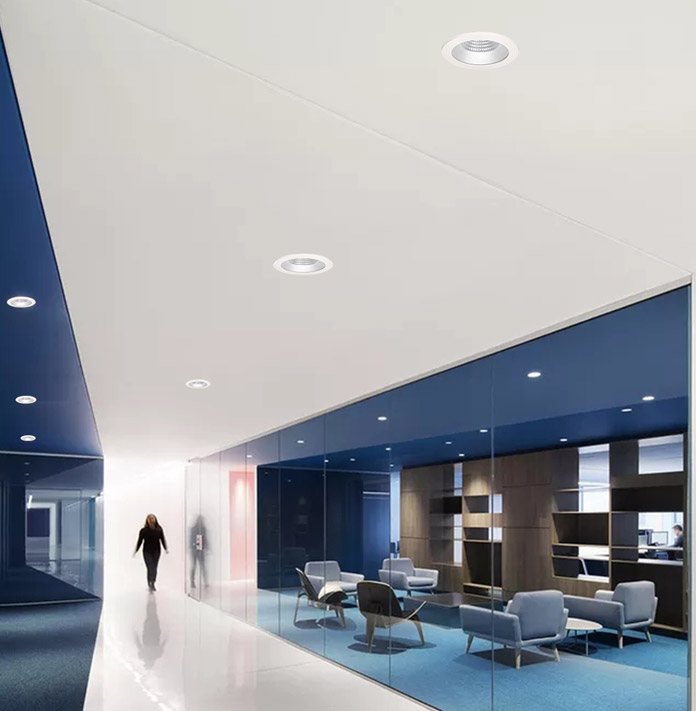

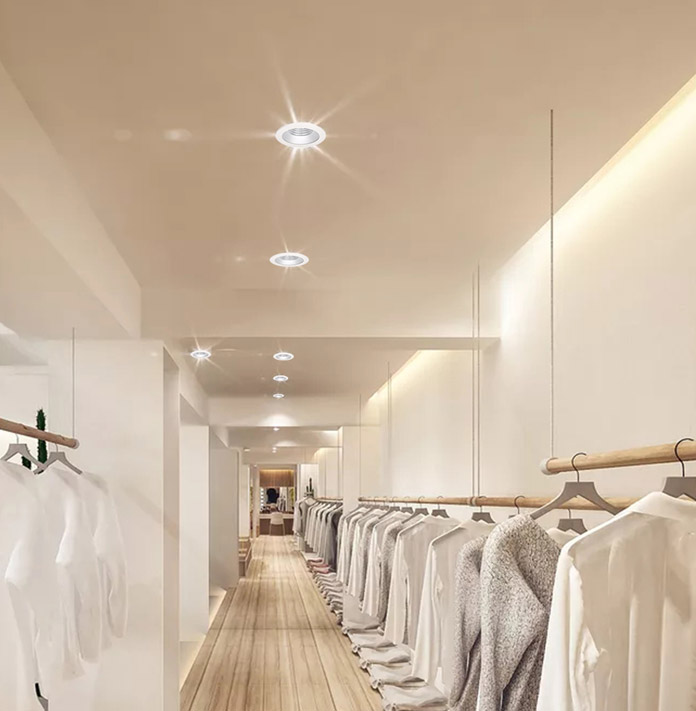

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ110mm or φ155mm or φ190mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
