JUPITER Series Downlight D1069 / D1070 / D1071

Description

SOTEN Downlight with high power 13-29W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1069 13W 1200LM φ105mm 15° / 24° / 38° φ150 x 101 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1070 20W 1900LM φ155mm 15° / 24° / 38° φ200x 131 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1071 29W 2900LM φ210mm 15° / 24° / 38° φ250 x 177 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No


Multi-color anti-glare cover optional


Features

  • Triple anti-glare

    Soft light effect, deep design (82mm) for cob source, large shading Angle 42°, better anti-glare effect.

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Stainless steel strain cover

    fire-proof, flxible cables, not easy to get out of shape, Softness and easy to install.

  • High quality COB light source

    High indication, high brightness, low light decay, no visible flicker, better eye protection. More accurate light control, more comfortable lighting.

Application

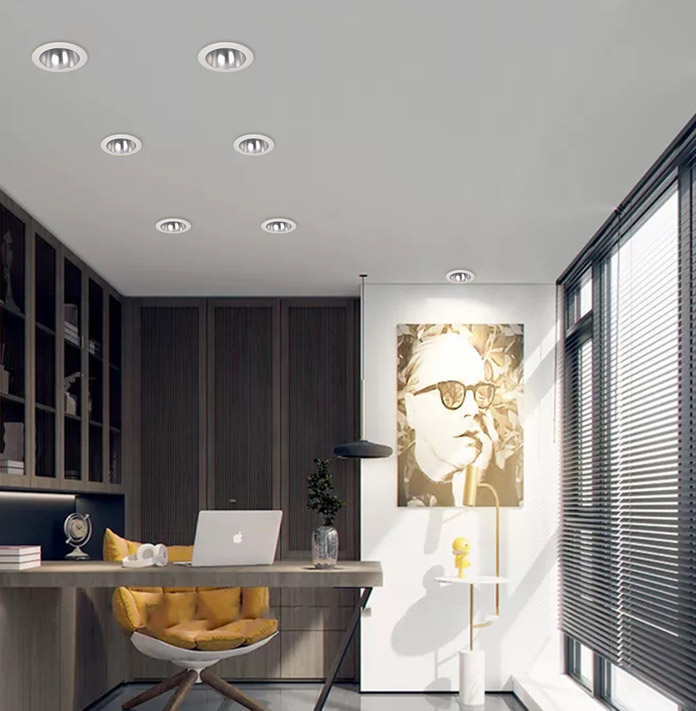

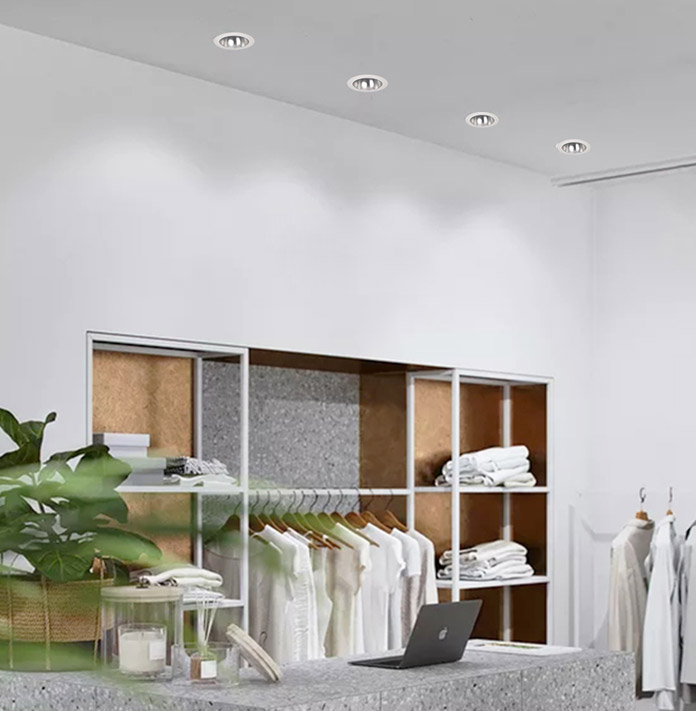

Product application in Store Lighting, Mall Lighting

Mounting

  • Cutting hole on ceiling, suitable ceiling thickness:between 5-25mm.
  • Connect the power wires, pay attention to connect the live wire with "L": connect the Null wire with "N".
  • Install the luminaire fixture into the ceiling hole.
  • Finish
