JUPITER Series

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Item No	Max Power	Luminous Flux	Ceiling Cut Out	Beam Angle	CCT	CRI	Color	COB	Drive	Material	Control Method
D1069	12W	1080LM	φ4 1/8"	24° / 40° / 60°	2700K-3000K-3500K-4000K-5000K	>90	Black / White	Bridgelux COB	ZenYuan	Aluminum Alloy	ON/OFF TRIAC
D1070	20W	1800LM	φ6 1/8"	24° / 40° / 60°	2700K-3000K-3500K-4000K-5000K	>90	Black / White	Bridgelux COB	ZenYuan	Aluminum Alloy	ON/OFF TRIAC
D1071	30W	2400LM	φ8 1/4"	24° / 40° / 60°	2700K-3000K-3500K-4000K-5000K	>90	Black / White	Bridgelux COB	ZenYuan	Aluminum Alloy	ON/OFF 0-10V

Multi-color anti-glare cover optional

Triple anti-glare

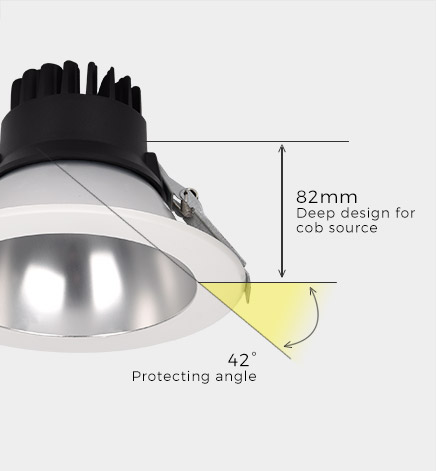

Soft light effect, deep design (82mm) for cob source, large shading Angle 42°, better anti-glare effect.

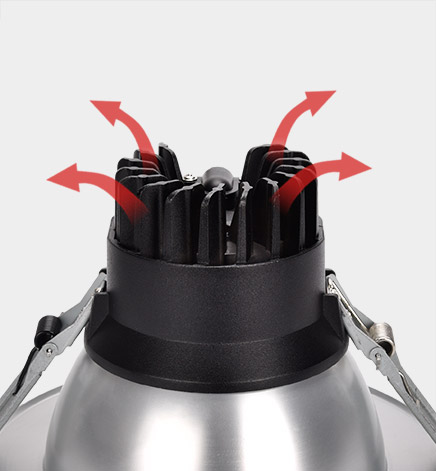

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Stainless steel strain cover
fire-proof, flxible cables, not easy to get out of shape, Softness and easy to install.
High quality COB light source
High indication, high brightness, low light decay, no visible flicker, better eye protection. More accurate light control, more comfortable lighting.

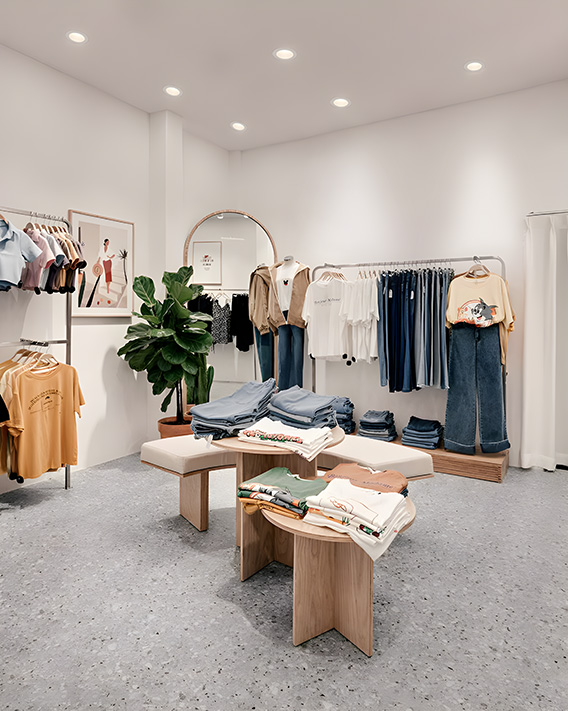

Product application in Store Lighting, Mall Lighting

Cutting hole on ceiling, suitable ceiling thickness:between 5-25mm.
Connect the power wires, pay attention to connect the live wire with "L": connect the Null wire with "N".
Install the luminaire fixture into the ceiling hole.
Finish
