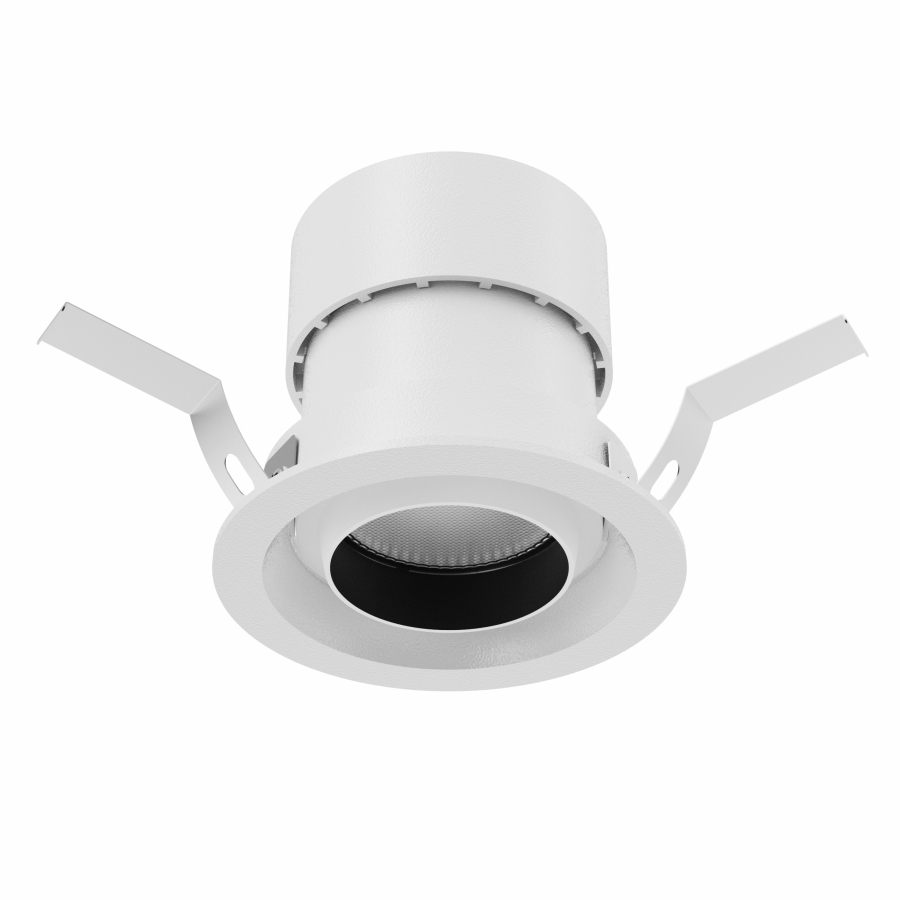

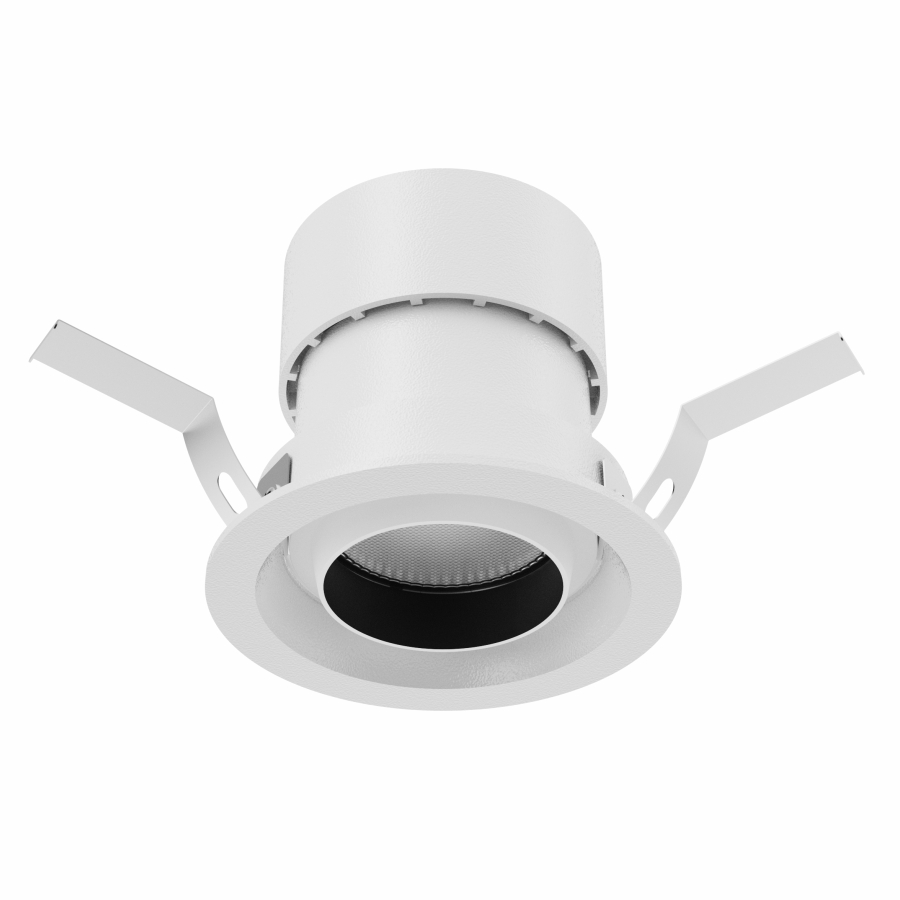

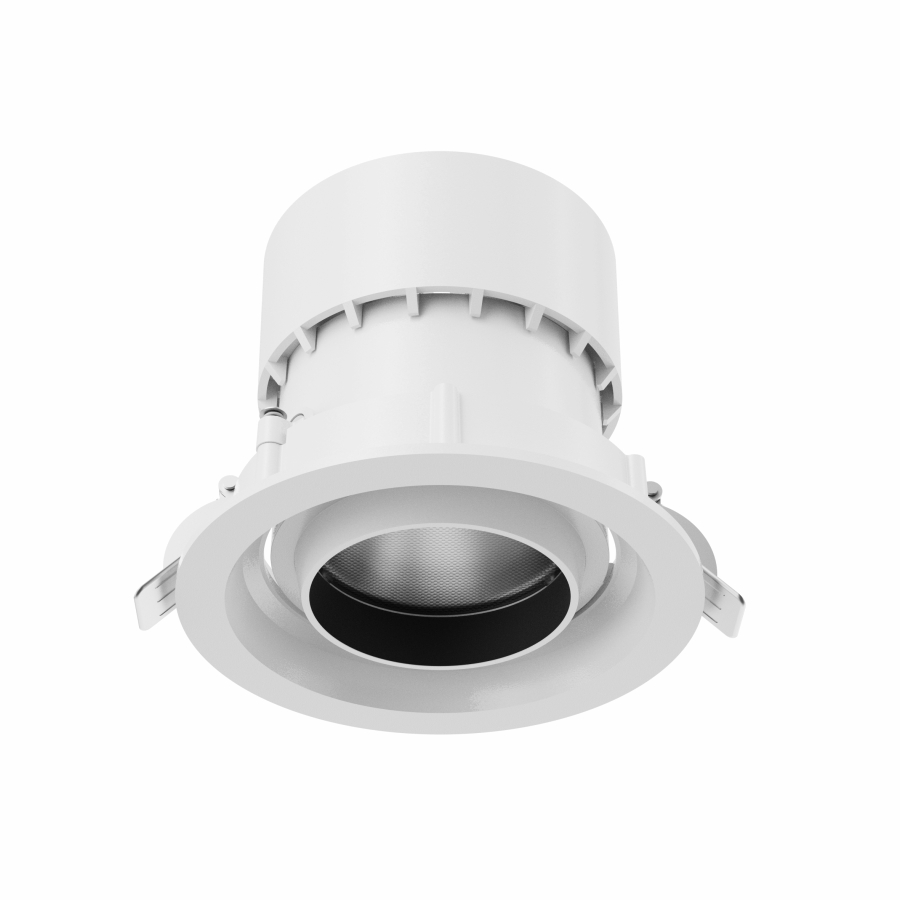

JOY Series Downlight R1060 / R1061 / R1062

Description

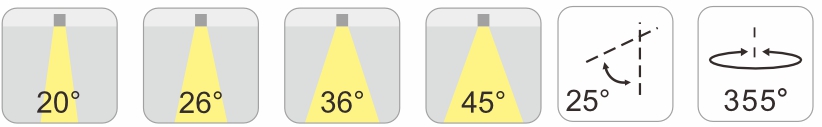

355 degrees horizontal rotation, 55 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1060	15° / 24° / 36°	20 W	80 lm/W	1621 lm	Ø120 x 96 mm	Ø105 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1061	15° / 24° / 36°	35 W	81 lm/W	2834 lm	Ø135 x 109 mm	Ø125 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1062	15° / 24° / 36°	40 W	95 lm/W	3727 lm	Ø170 x 122 mm	Ø160 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No

Features

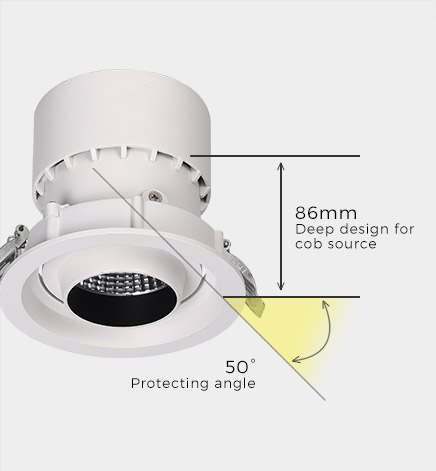

Triple anti-glare
Soft light effect, deep design (86mm) for cob source, large shading Angle 50°, better anti-glare effect.
Flexible adjust beam angles
355 degrees horizontal rotation, 55 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

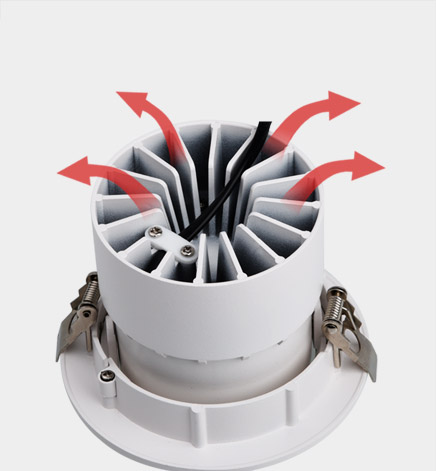

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

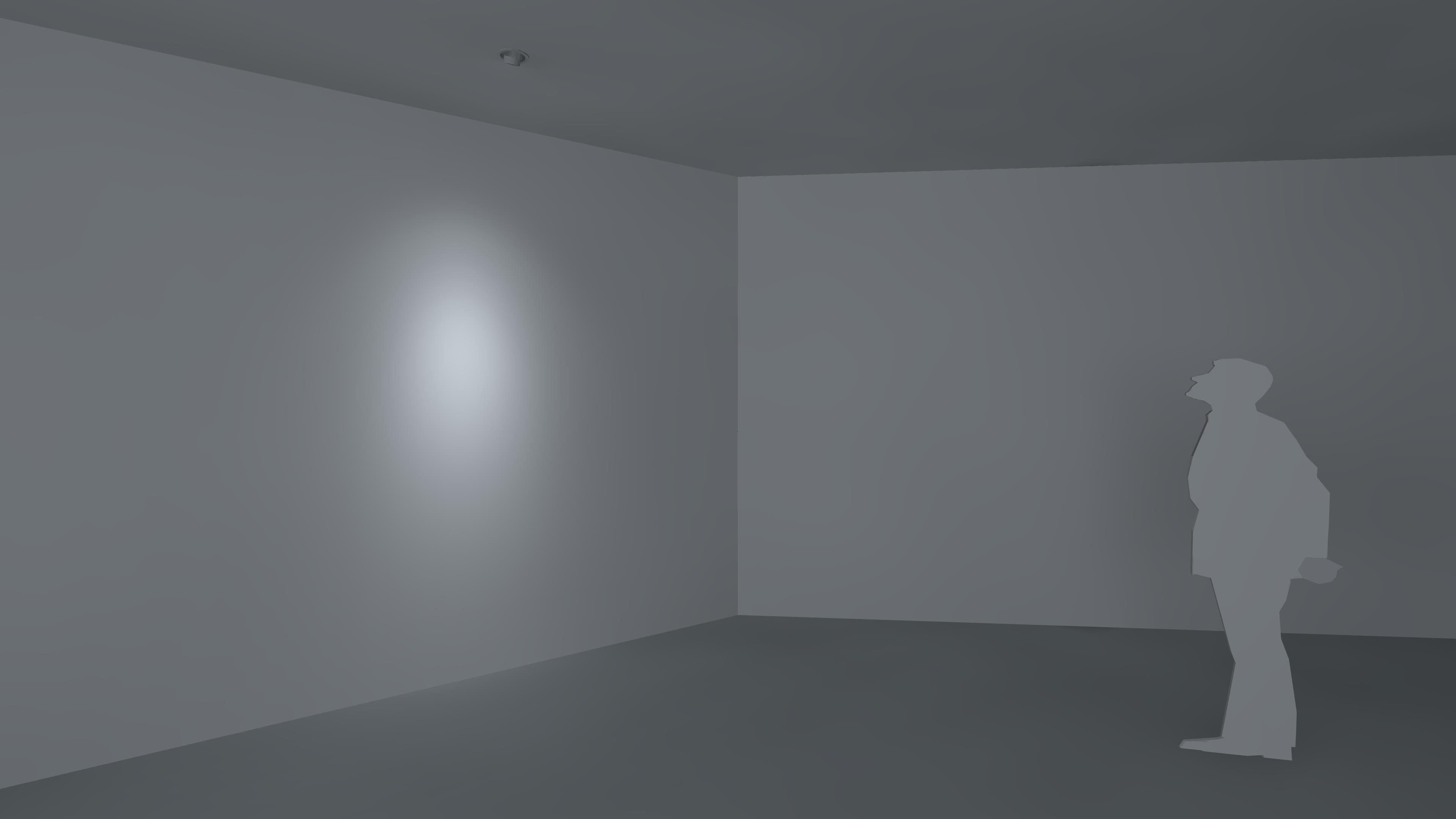

Light effect

15°Spot
24°Flood
36°Flood
°
°
°
°
°
°

Application

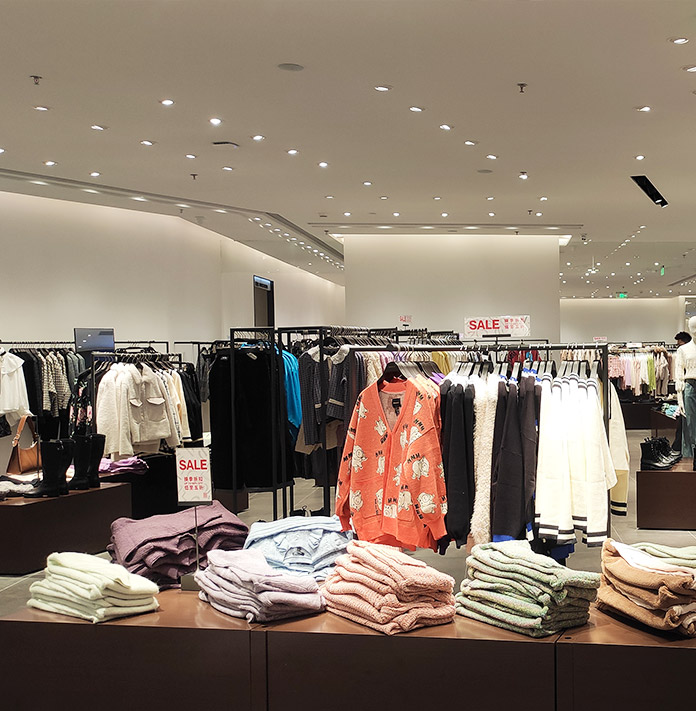

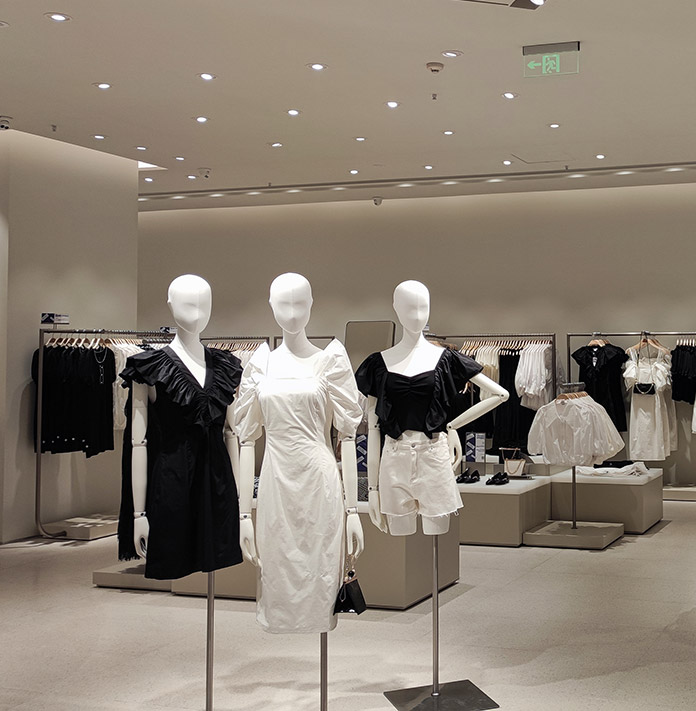

Product application in Store Lighting, Mall Lighting

Mounting

First: Cutting a φ110mm or φ125mm or φ160mm hole on the ceiling
Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
Third: Installation complete
Disassemble step: First: Catch and hold the lamp and pull it out

Downloads
