JOY Series Downlight R1032 / R1033 / R1034

Description

SOTEN Downlight with high power 20-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	Ceiling Cut Out	CCT	CRI	COB	Drive	Control Method
R1032	15° / 24° / 36°	20 W	86 lm/W	1745 lm	Ø120 x 85 mm	Ø105 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1033	15° / 24° / 36°	35 W	112 lm/W	3924 lm	Ø135 x 102 mm	Ø120 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No
R1034	15° / 24° / 36°	40 W	116 lm/W	4519 lm	Ø170 x 114 mm	Ø160 mm	3000K / 4000K / 5000K	>90	Lumileds COB	Tridonic	No

Features

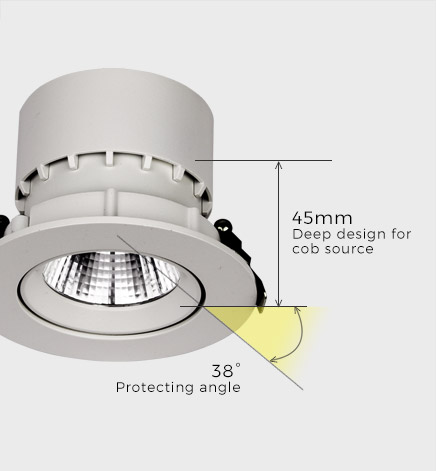

Triple anti-glare
Soft light effect, deep design (45mm) for cob source, large shading Angle 38°, better anti-glare effect.

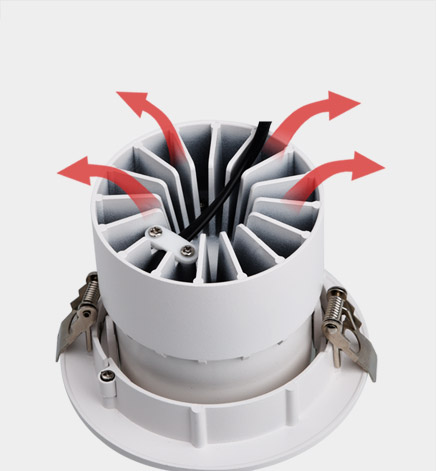

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.
Triple anti-glare
Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

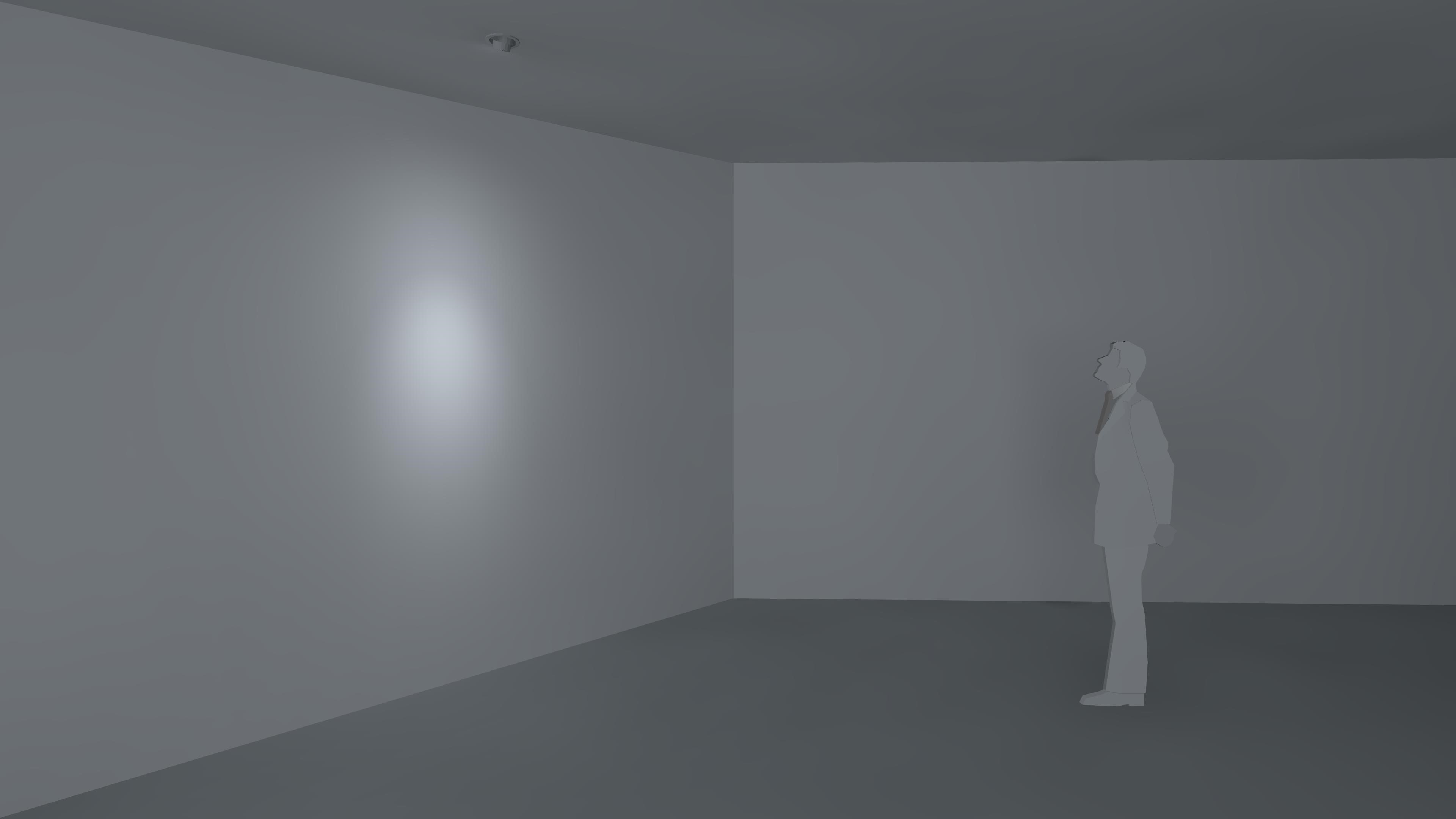

15°Spot

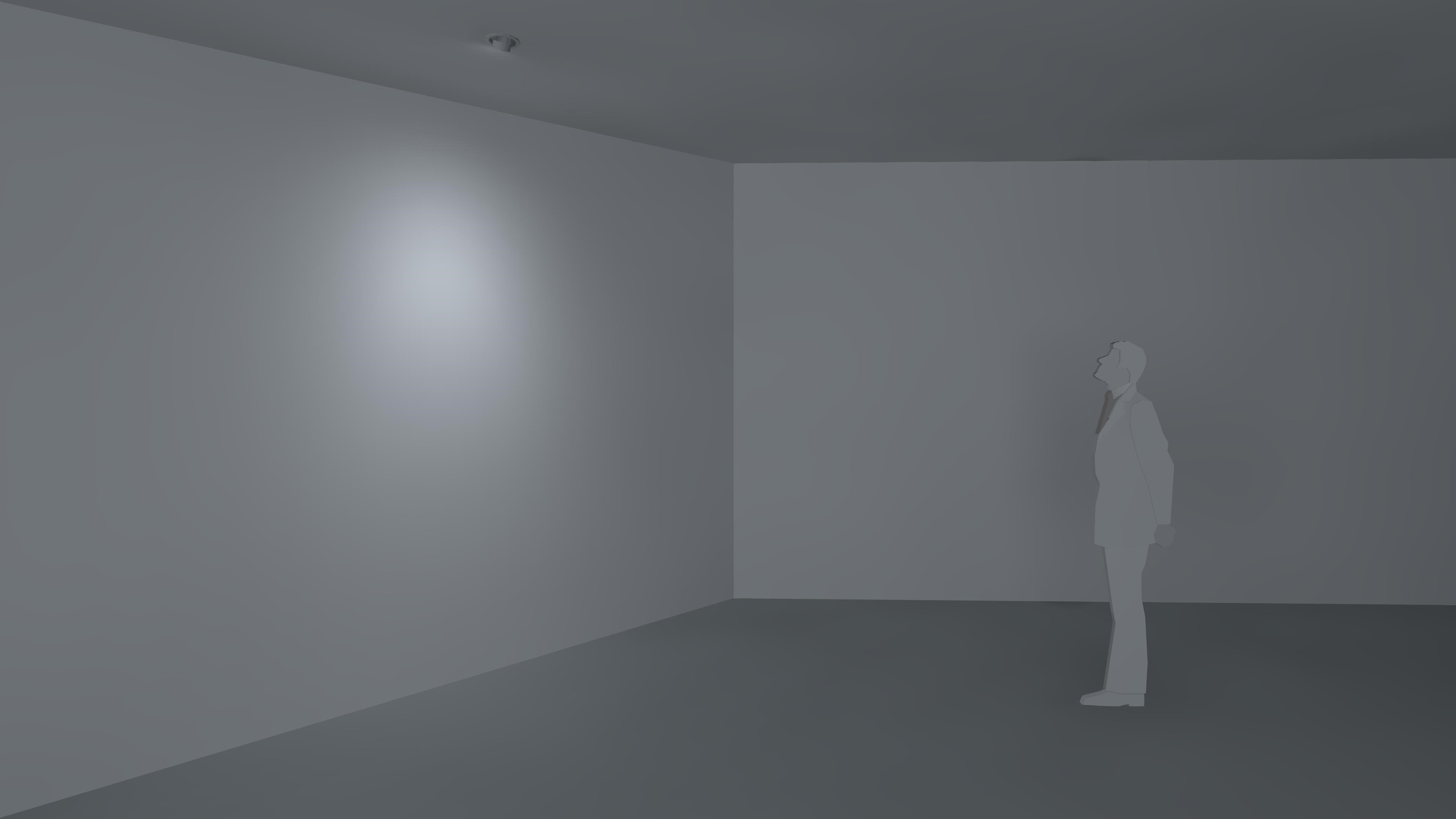

24°Flood

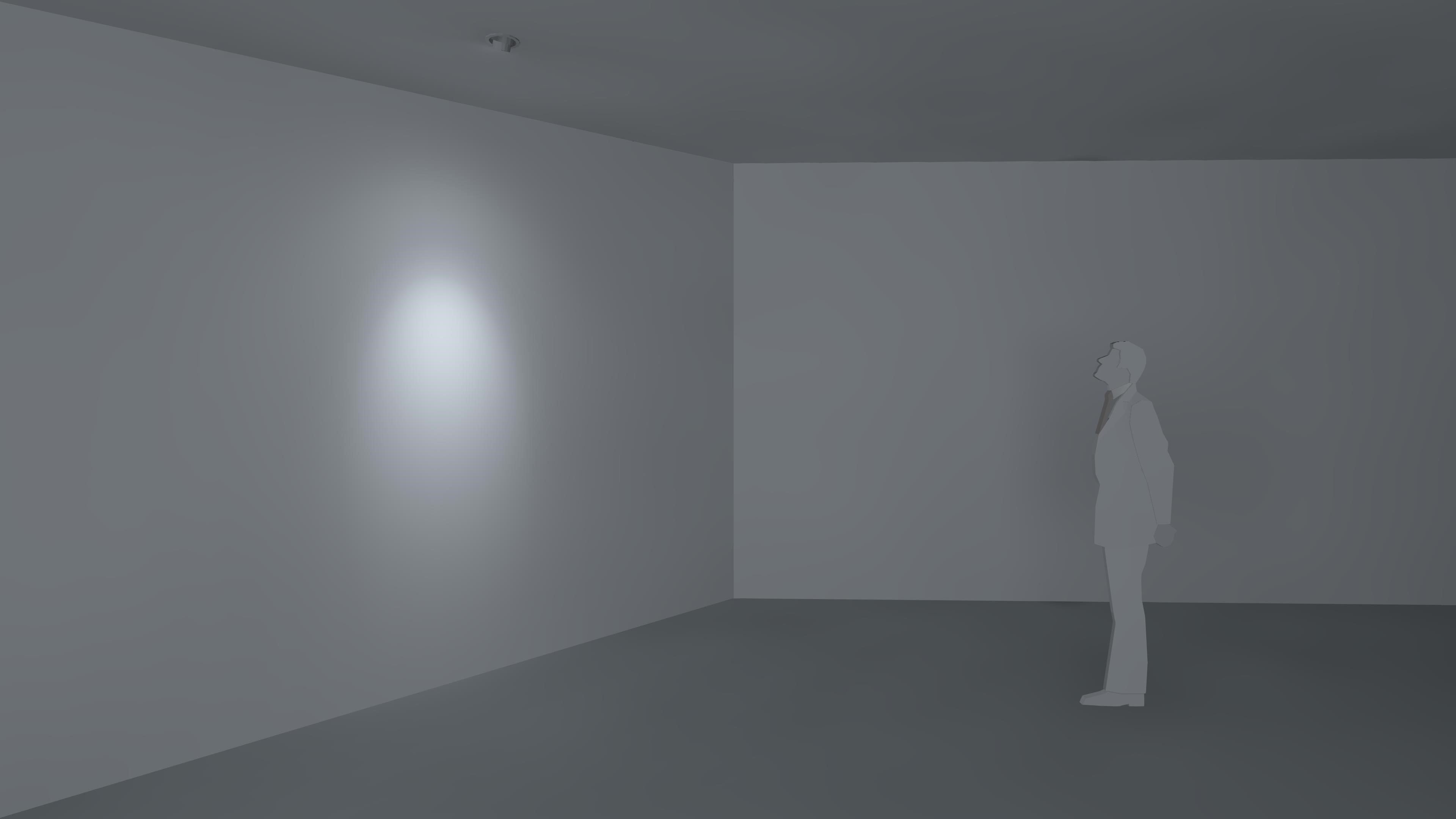

36°Flood
°
°
°
°
°
°

Application

Product application in Store Lighting, Mall Lighting

Mounting

First: Cutting a φ105mm or φ120mm or φ160mm hole on the ceiling
Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
Third: Installation complete
Disassemble step: First: Catch and hold the lamp and pull it out
