I like this lamp, I need ODM service.
You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

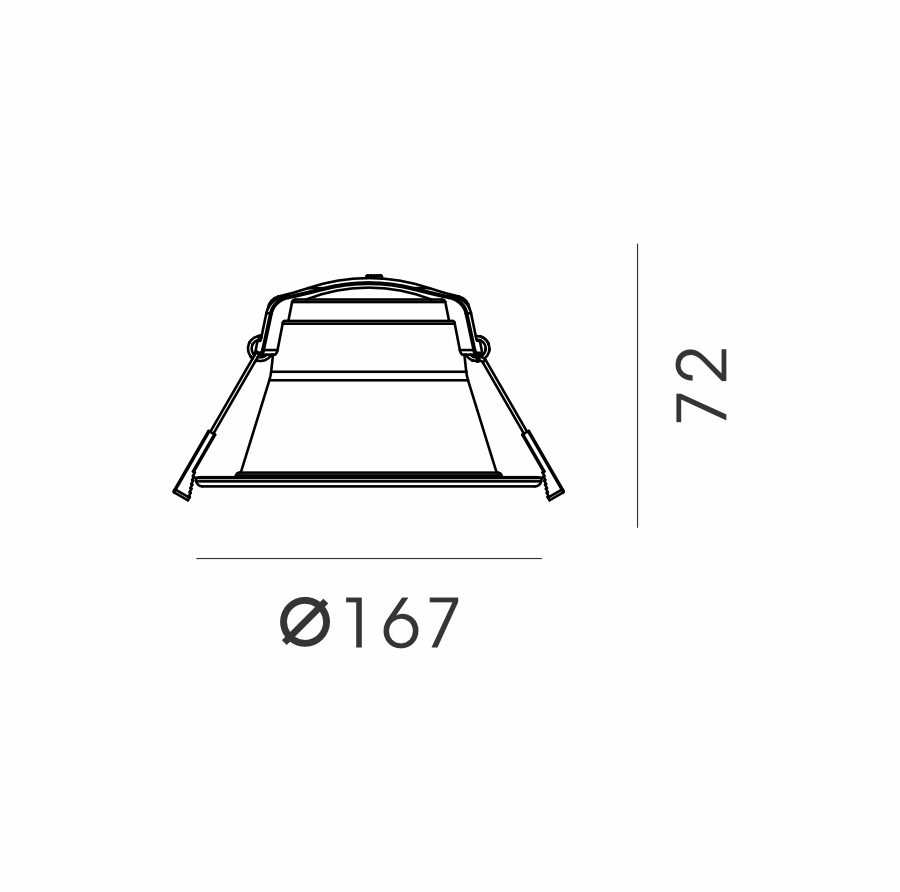

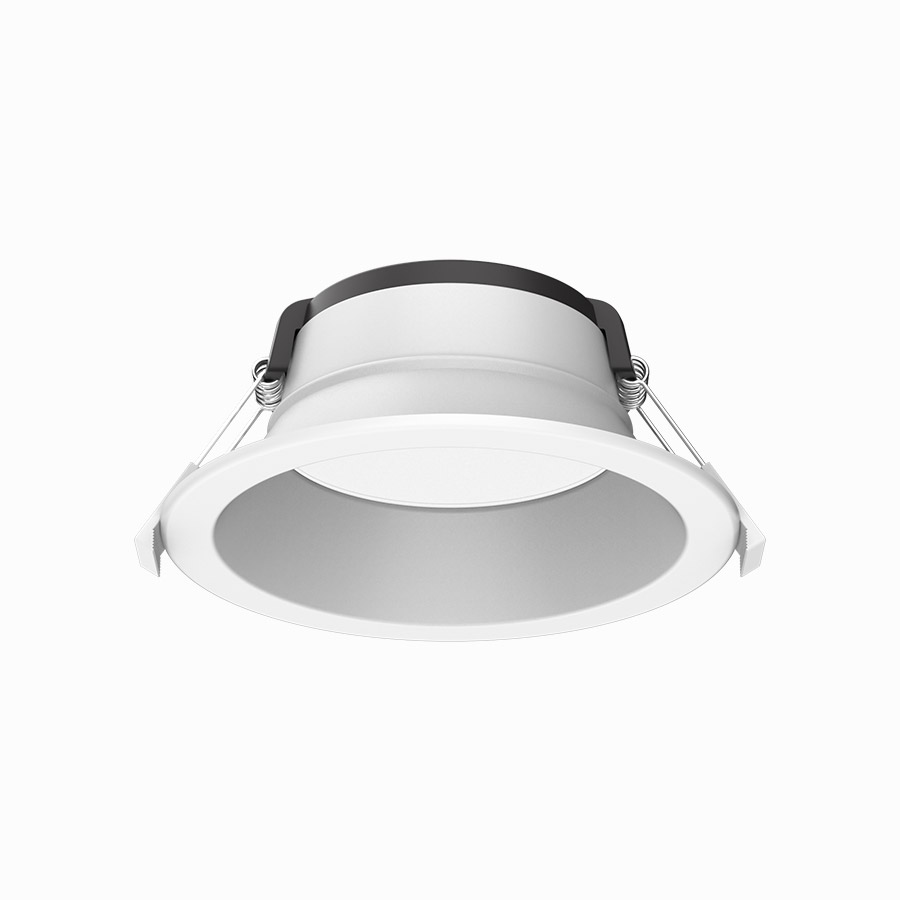

| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension | Ceiling Cut Out | CCT | CRI | COB | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D1342-T | 60° | 10W | 138 lm/W | 1336lm |  |
Ø90-100 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
 |
D1343-T | 60° | 15W | 142 lm/W | 2160 lm |  |
Ø125-135 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
 |
D1344-T | 60° | 20W | 130 lm/W | 2620 lm |  |
Ø145-155 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
 |
D1345-T | 60° | 30W | 142 lm/W | 4260 lm |  |
Ø175-190 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF 0-10V |
 |
D1346-T | 60° | 40W | 142 lm/W | 5700 lm |  |
Ø195-210 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF 0-10V |
| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension | Ceiling Cut Out | CCT | CRI | COB | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D1347-T | 90° | 10W | 139 lm/W | 1293 lm |  |
Ø90-100 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
 |
D1348-T | 90° | 15W | 150 lm/W | 2314 lm |  |
Ø120-130 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
 |
D1349-T | 90° | 20W | 152 lm/W | 2779 lm |  |
Ø140-150 | 3000K-4000K-5000K | >80 | Ebright SMD | Ledtu | ON/OFF TRIAC |
| Product | Item No | Beam Angle | Max Power | Efficiency | Luminous Flux | Dimension | Ceiling Cut Out | CCT | CRI | COB | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

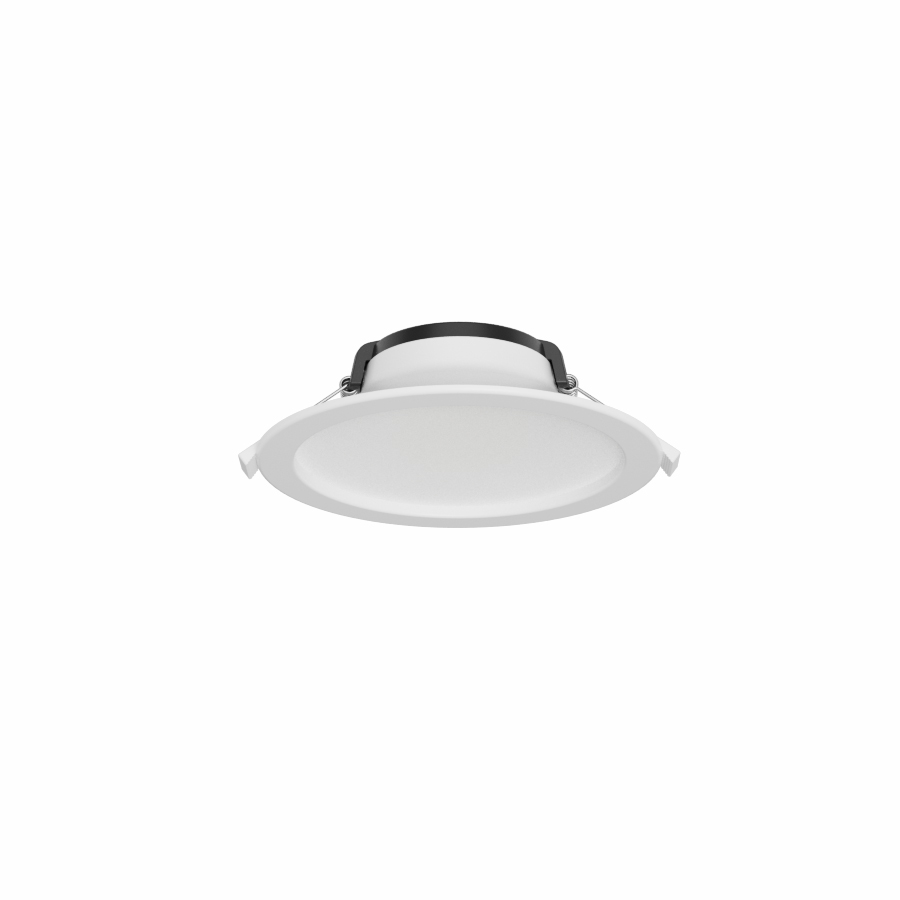

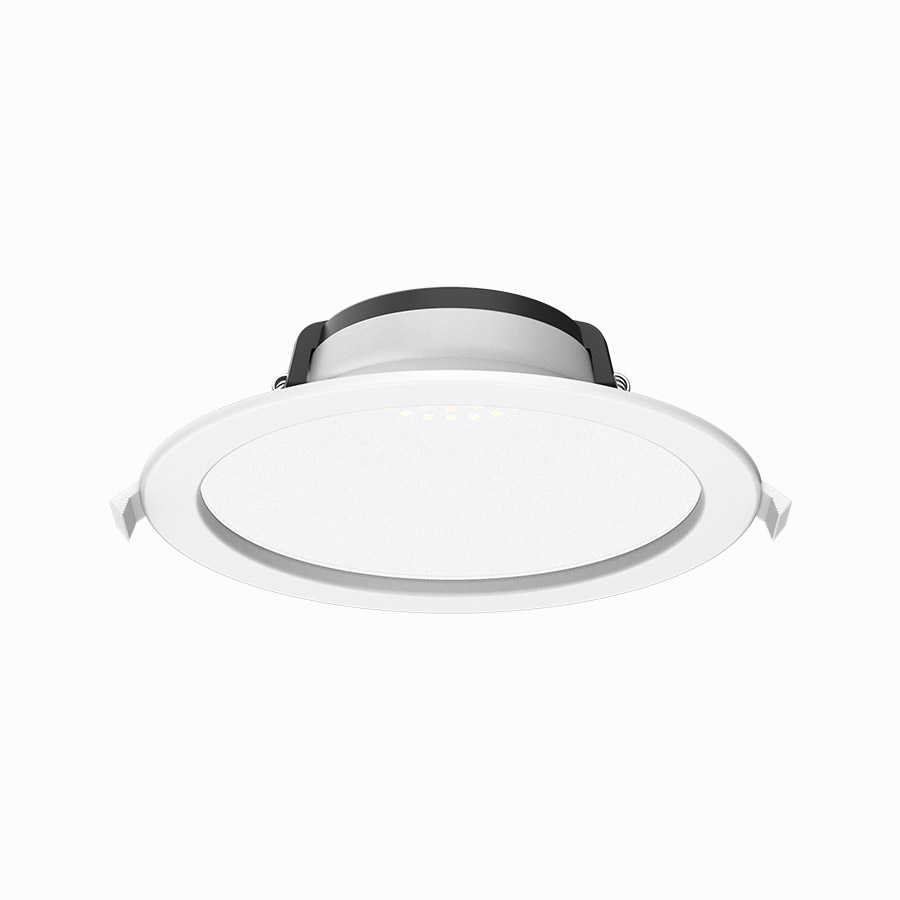

D1352-T | 90° | 10W | 153 lm/W | 1471 lm |  |
Ø90-100 | 3000K-4000K-5000K | >80 | Ebrigh SMD | Ledtu | ON/OFF TRIAC |
 |
D1353-T | 90° | 15W | 160 lm/W | 2405 lm |  |
Ø120-130 | 3000K-4000K-5000K | >80 | Ebrigh SMD | Ledtu | ON/OFF TRIAC |
 |
D1354-T | 90° | 20W | 153 lm/W | 2813 lm |  |
Ø145-155 | 3000K-4000K-5000K | >80 | Ebrigh SMD | Ledtu | ON/OFF TRIAC |

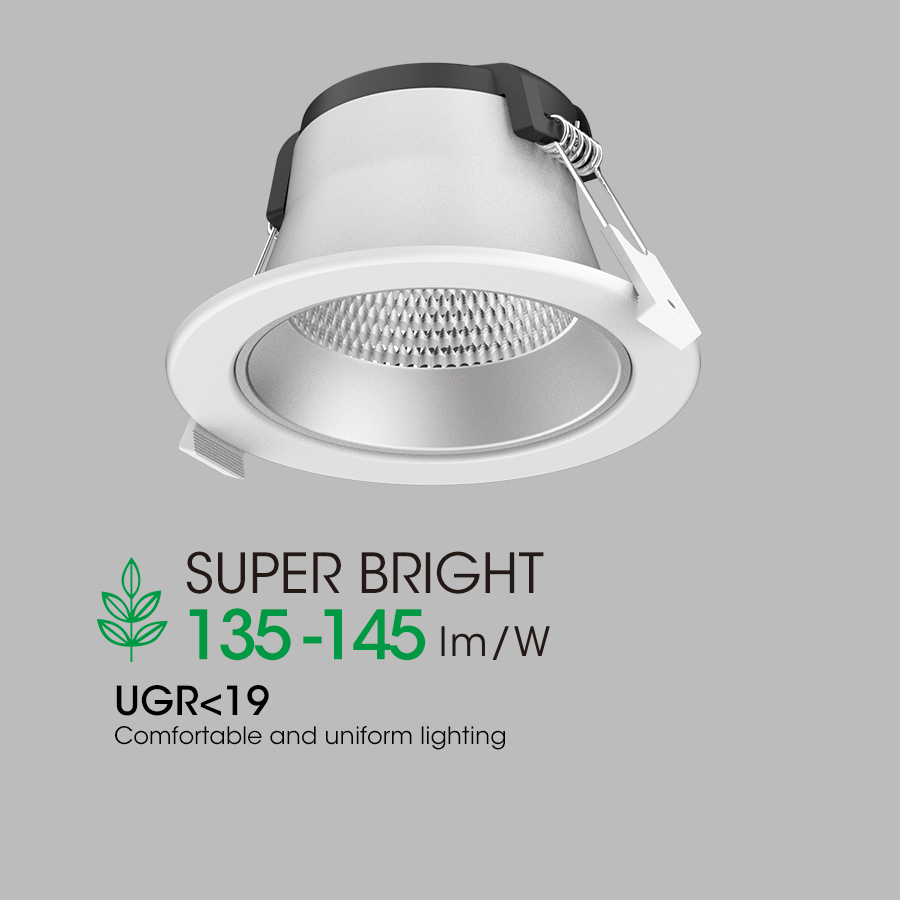

145lm/W, saving energy up to 30%.
UGR<19，IP54.
140-152 lm/W
150-160 lm/W
Aluminium heat sink with good heat dissipation.
Simple Appearance

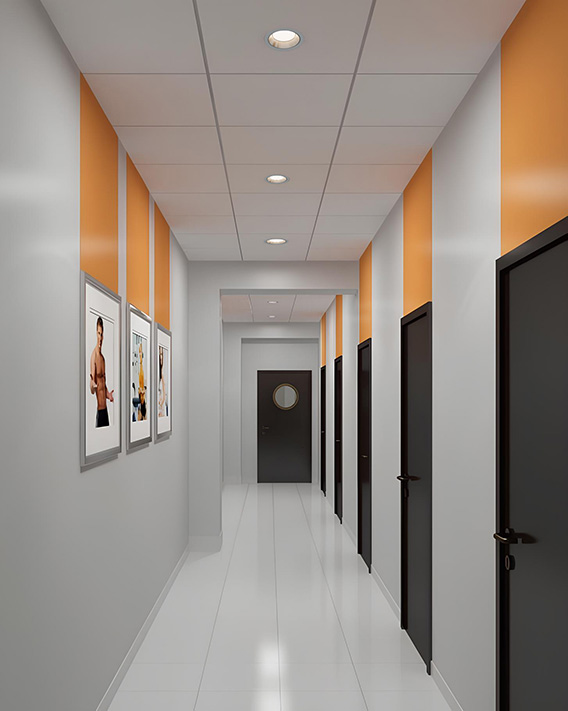

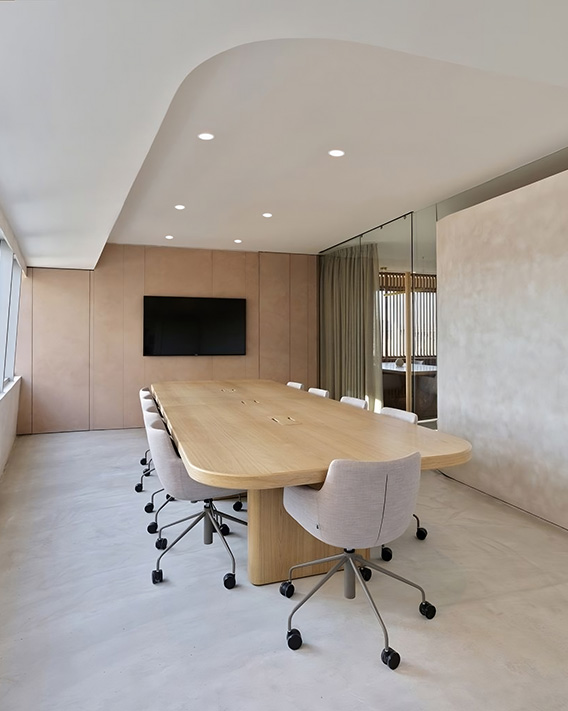

Product application in Store Lighting, Mall Lighting
