Fly Family Series

High-performance module design.

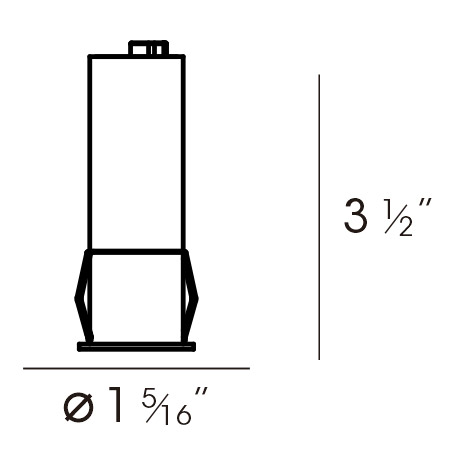

Height 55-110mm, suitable for different ceiling heights.
Power 5.5-12W, meeting the needs of high power applications with small openings.
Anti-glare angle greater than 45°, UGR < 13.

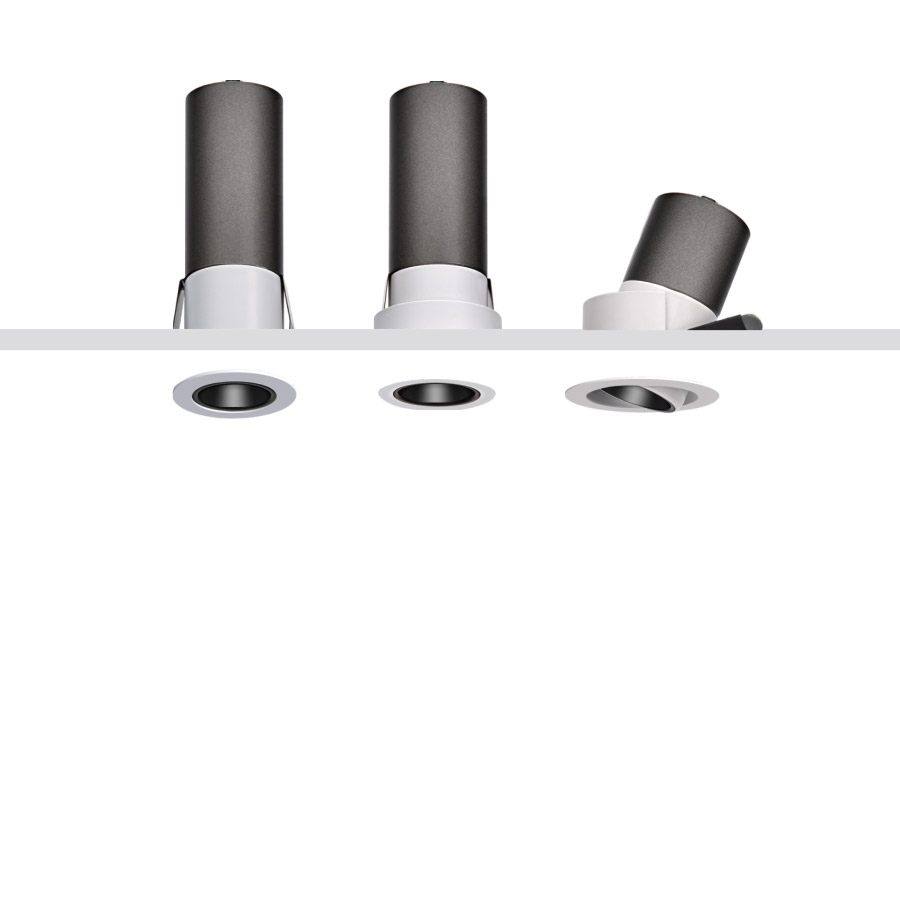

Three adjustment methods: downlight, embedded, adjustable angle.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

FLY FAMILY Series Ceiling light D1095 / D1097

Product	Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	Dimension	CCT	CRI	COB	Drive	Control Method
	D1095	15° / 24° / 36°	5.5 W	70 lm/W	385 lm		3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
	D1097	15° / 24° / 36°	9 W	75 lm/W	675 lm		3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF

FLY FAMILY Series Ceiling light D1094 / D1096 / D1098

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	COB	Drive	Control Method
D1094	26° / 37°	6 W	45 lm/W	270 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1096	15° / 24° / 36°	7.5 W	70 lm/W	525 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1098	15° / 24° / 36°	12 W	70 lm/W	900 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF

FLY FAMILY Series Ceiling light D1102 / D1103 / D1104

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	COB	Drive	Control Method
D1102	45°	6 W	45 lm/W	270 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1103	15° / 24° / 36°	7.5 W	70 lm/W	525 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1104	15° / 24° / 36°	12 W	75 lm/W	900 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF

FLY FAMILY Series Ceiling light D1107 / D1109

Item No	Beam Angle	Max Power	Efficiency	Luminous Flux	CCT	CRI	COB	Drive	Control Method
D1107	15° / 24° / 36°	5.5W	70lm/W	385 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1109	15° / 24° / 36°	9W	75lm/W	675 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1106	26° / 37°	6W	45lm/W	270 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1108	15° / 24° / 36°	7.5W	70lm/W	525 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF
D1110	15° / 24° / 36°	12W	75lm/W	900 lm	3000K / 4000K	>90	Luminus COB	Meanf	ON/OFF

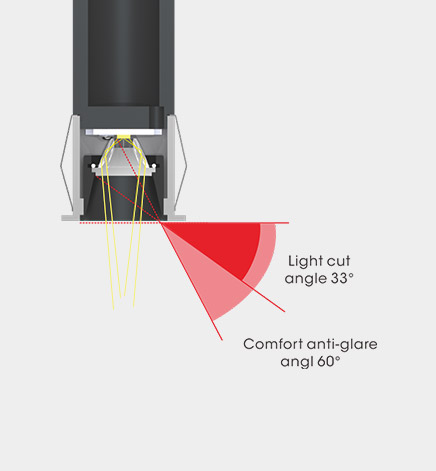

Triple anti-glare
Soft light effect, deep design (22.2mm) for cob source, large shading Angle 33°, better anti-glare effect.

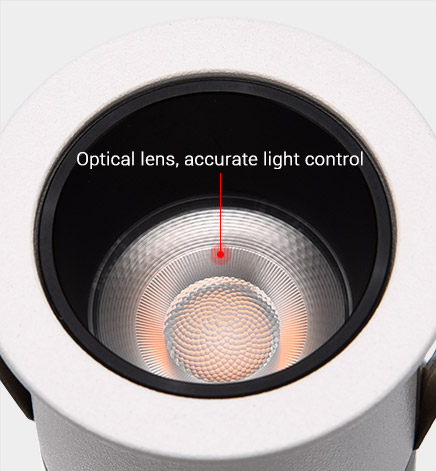

Professional optical lens
High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

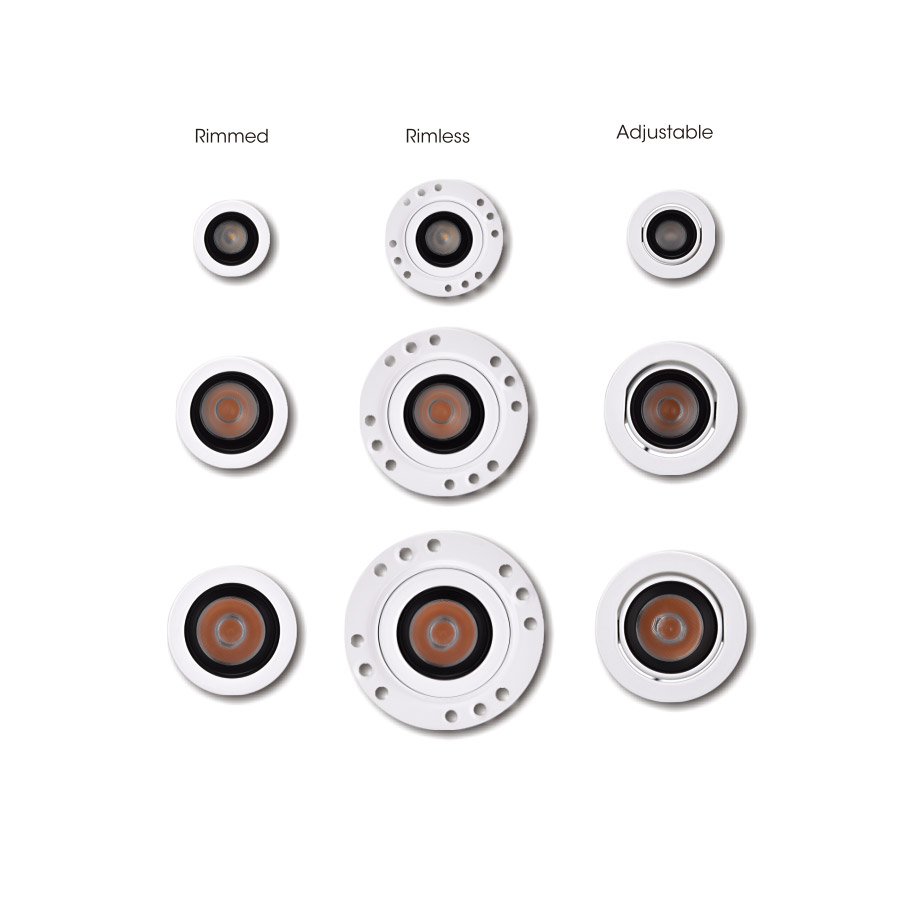

Flexible decoration
Small ceiling cut out compatble with free-style lighting fixture combination.

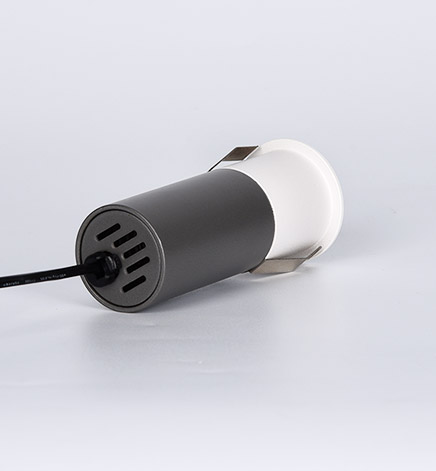

Die cast aluminum lamp body
Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

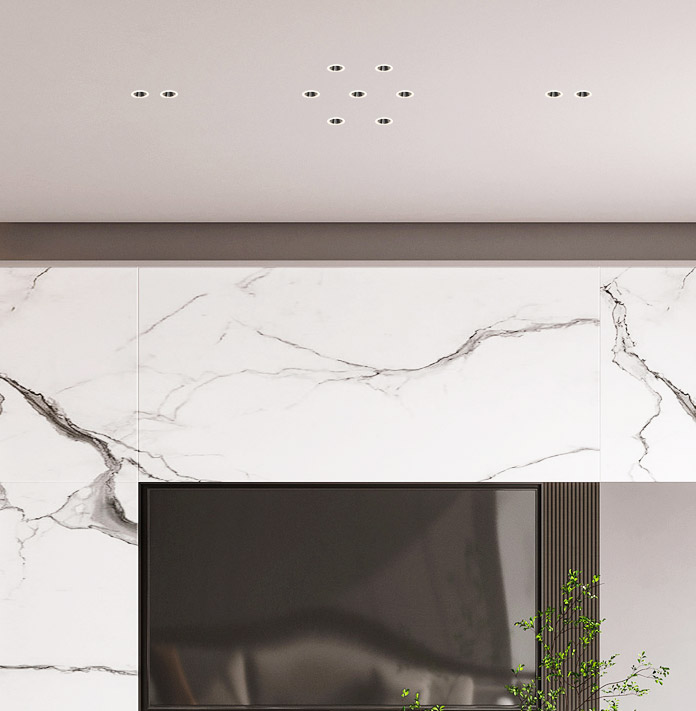

Product application in Store Lighting, Mall Lighting

Slide hanging bars onto assembled base plate.
Line up bottom edge of hanging bars with bottom of wood joist and hammer in tabs. Nail or screw hanging bars into place.
3a-Position trim hole to desired location by sliding housing. Horizontally or Vertically.
3b-Use centering holes on either side of base plate to line up a row of fixtures.
To hold housing in place,bend tab with pliers into hanging bar.
Cutting a φ1 1/2'' hole on the ceiling.
Connect the whole lamp connectors to wires.
Finally put the whole lamp into the pre-opened hole.
Installation complete.
