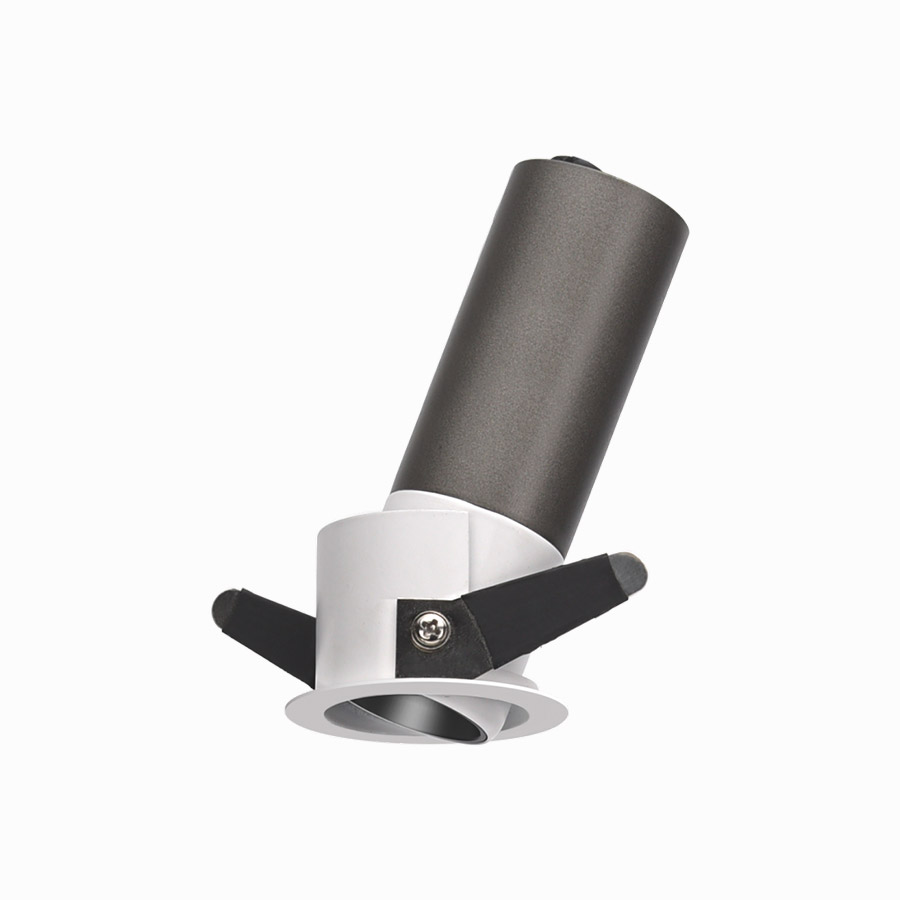

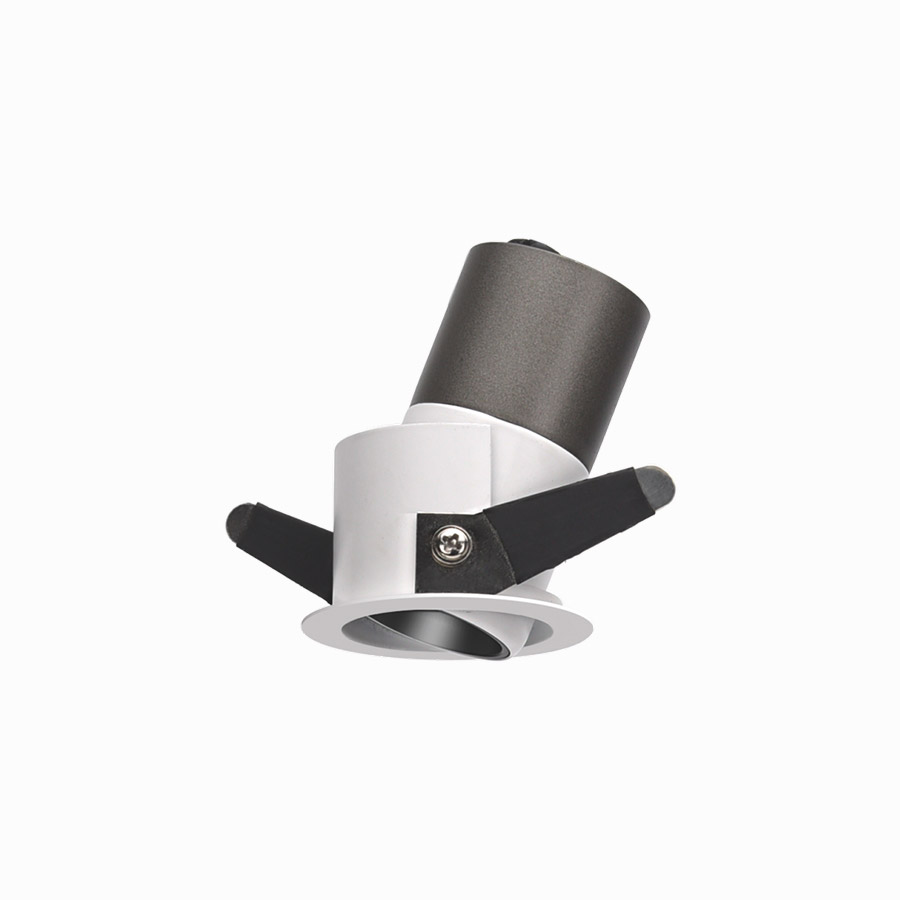

Fly Family Series Ceiling light D1105 / D1106 / D1107 / D1108 / D1109 / D1110

Description

Compact design with wide range waffage options 3W-12W, Module design and combined for a wide range installation way-Embedded, Recessed, ajustable spothead, The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1105 3W 104LM φ38mm 20° / 40° φ41 x 55 3000K / 4000K / 5000K >80, >90 Black / Gray / White OSRAM Lufid Aluminum Alloy No
D1107 5.5W 382LM φ46mm 15° / 24° / 36° φ50 x 70 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No
D1109 9W 677LM φ52mm 15° / 24° / 36° φ58.5 x 80 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No
D1106 6W 165LM φ38mm 20° / 40° φ41 x 87 3000K / 4000K / 5000K >80, >90 Black / Gray / White OSRAM Lufid Aluminum Alloy No
D1108 7.5W 517LM φ46mm 15° / 24° / 36° φ50 x 100 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No
D1110 12W 890LM φ52mm 15° / 24° / 36° φ58.5 x 110 3000K / 4000K / 5000K >80, >90 Black / Gray / White Luminus Lufid Aluminum Alloy No

Features

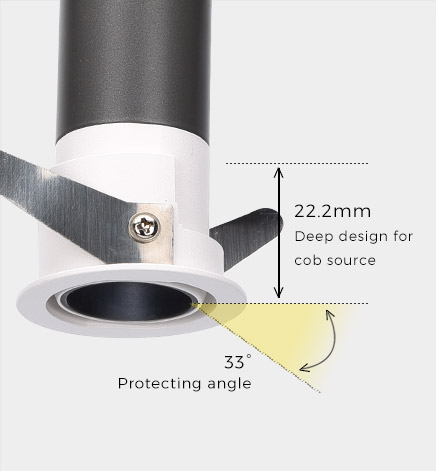

  • Triple anti-glare

    Soft light effect, deep design (22.2mm) for cob source, large shading Angle 33°, better anti-glare effect.

  • flexible adjust beam angles

    20 degrees horizontal adjustment , more accurate and professional multi-angle lighting beams.

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

  • Flexible decoration

    Small ceiling cut out compatble with free-style lighting fixture combination.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First :Cutting a φ38mm or φ46mm or φ52mm hole on the ceiling.
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling.
  • Third:Installation complete.
  • Disassemble step: First:Catch and hold the lamp and pull it out.
