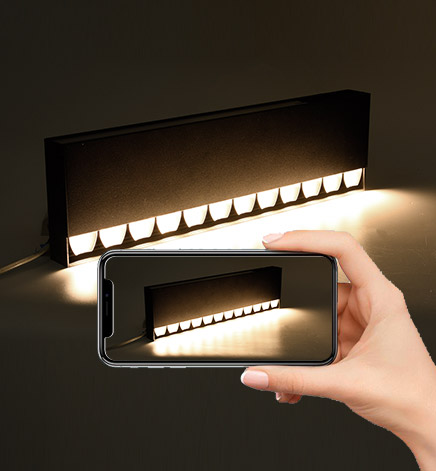

SHELL Series Wall washer D1099 / D1100 / D1101

Description

Efficient wall washing effect, Unique optical design, Deep structure design. Wall washing distance ratio: 1:5, 0.6 meters away from the wall can evenly light up a 3 meters high wall.

SOTEN Wall washer with high power 12-36W and wide range dimentions for optional.The Led Wall washer is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No	Max Power	Luminous Flux	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
D1099	12W	740LM	Wall washer	214 x 35 x 117	3000K / 4000K / 5000K	>80, >90	Black / White	Luminus	Lufid	Aluminum Alloy	No
D1100	24W	1480LM	Wall washer	414 x 35 x 117	3000K / 4000K / 5000K	>80, >90	Black / White	Luminus	Lufid	Aluminum Alloy	No
D1101	36W	2520LM	Wall washer	614 x 35 x 117	3000K / 4000K / 5000K	>80, >90	Black / White	Luminus	Lufid	Aluminum Alloy	No

Features

Unique optical design
Unique shell shaped reflector optical design, to reflect lighting evenly on the wall.

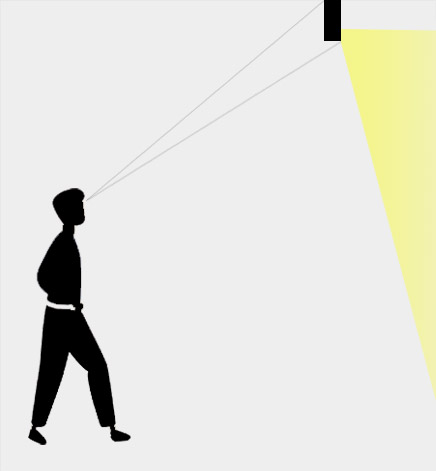

Deep structure design
The light source and reflector are hidden in the lamp body to prevent direct glare interference.
Efficient wall washing effect
Wall washing distance ratio: 1:5, 0.6 meters away from the wall can evenly light up a 3 meters high wall.
No visible flicker
Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

Application

Product application in Store Lighting, Mall Lighting

Mounting

Cutting a hole on the ceiling, suitable ceiling thickness:5-25mm.
drive rubber plug into the wall, and put the pan head cross tapping screw into the fixed shrapnel hanging plate.
Connect the lamp with AC power. Pay attention to connect "L" to the fire line and "N" to the zero line.
Installation copplete.
Installation complete.
