THOR Series Track light T1084 / T1085 / T1086

Description

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
T1084 20W 1800LM 15° / 24° / 36° φ90 x 239 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
T1085 30W 2400LM 15° / 24° / 36° φ100 x 264 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
T1086 50W 3400LM 15° / 24° / 36° φ110 x 279 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Features

  • flexible adjust beam angles

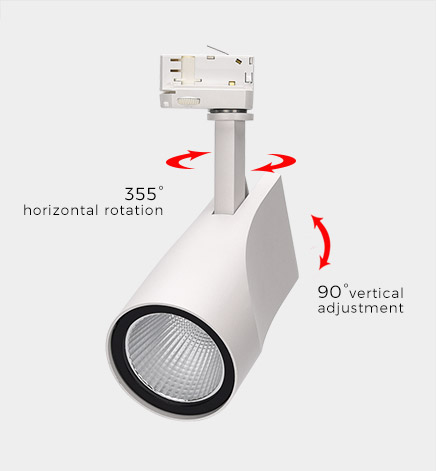

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

  • Simple and exquisite design

    The shark fin main body design, with embedded lamp ring design, simple and easy to install.

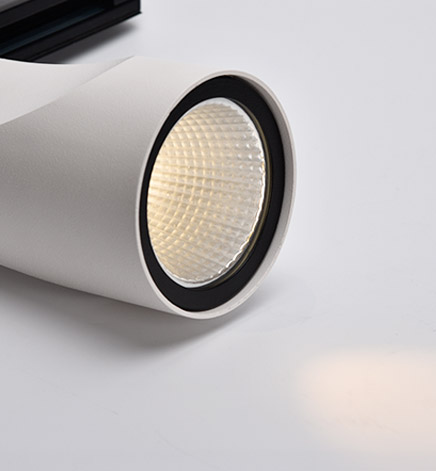

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

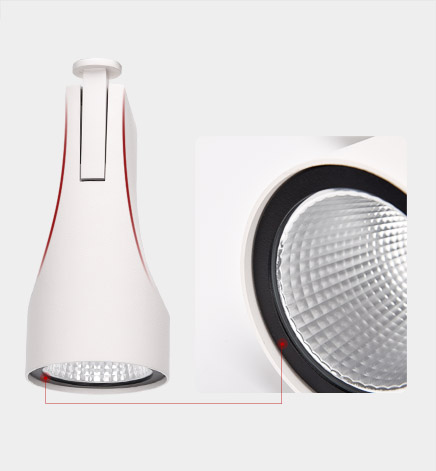

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Application

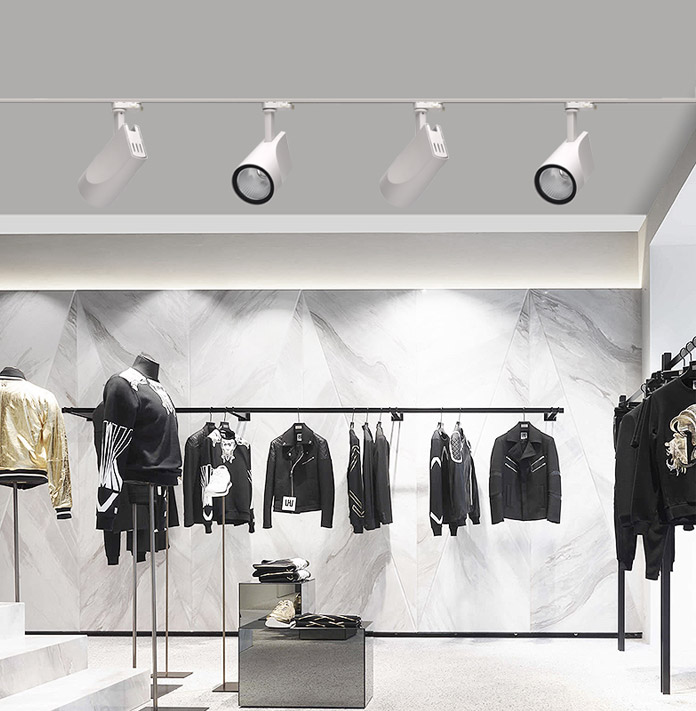

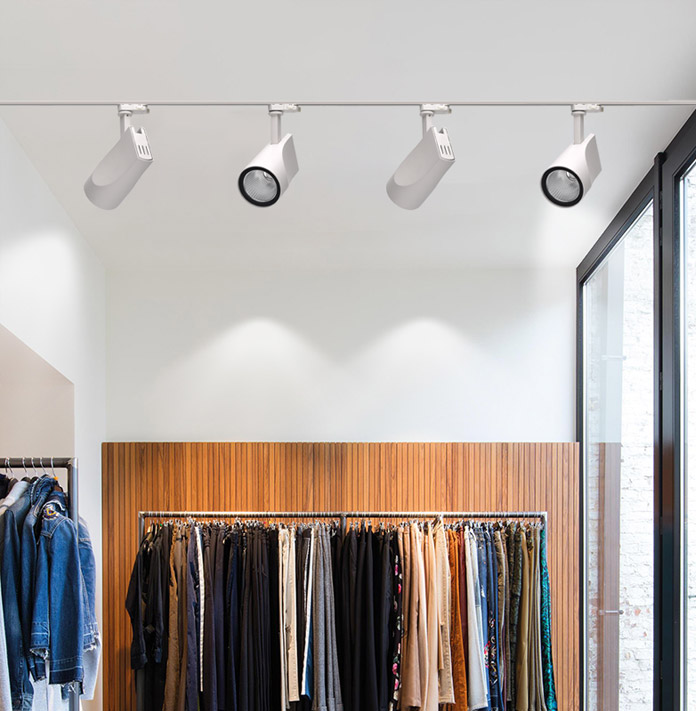

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
  • Rotate the shift to 90 degree
  • Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
  • Turn the power supply to "off" position
  • Rotate the shift to 90 degree
  • Pull out of the head of track downward
