LEO Series Track light T1025 / T1001

Share:

Description

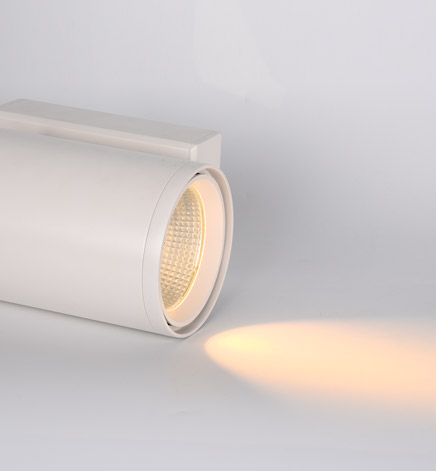

SOTEN LED track light with CRI90+,90-100lm per LED track light, dimmable is available.Flexible adjust beam angels, High efficiency heat dissipation, Accurate and efficient light control, Triple anti-glare led track spot light . Perfect for art gallery and fashion shop lighting.

Universal line voltage led track lighting heads, fit in 3 phase 4 wires track systems.Adjustable Angle track lights with 355 degrees horizontal rotation, 90 degrees vertical adjustment, more accurate and professional multi-angle lighting beams.

SOTEN track lights with High quality aluminum diecast light body, Cold forging process on high purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
T1025 Product T1025 15° / 24° / 36° 30 W 112 lm/W 3360 lm 140 x 99 x 235 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
T1001 Product T1001 15° / 24° / 36° 50 W 92 lm/W 4500 lm 162 x 110 x 264 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

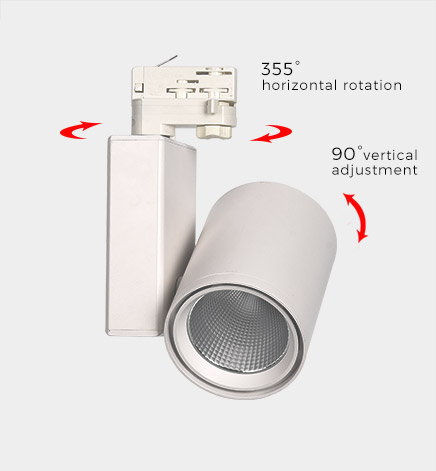

  • flexible adjust beam angles

    355 degrees horizontal rotation, 90 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

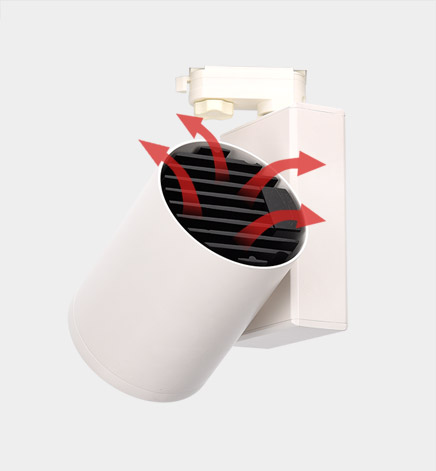

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

Light effect

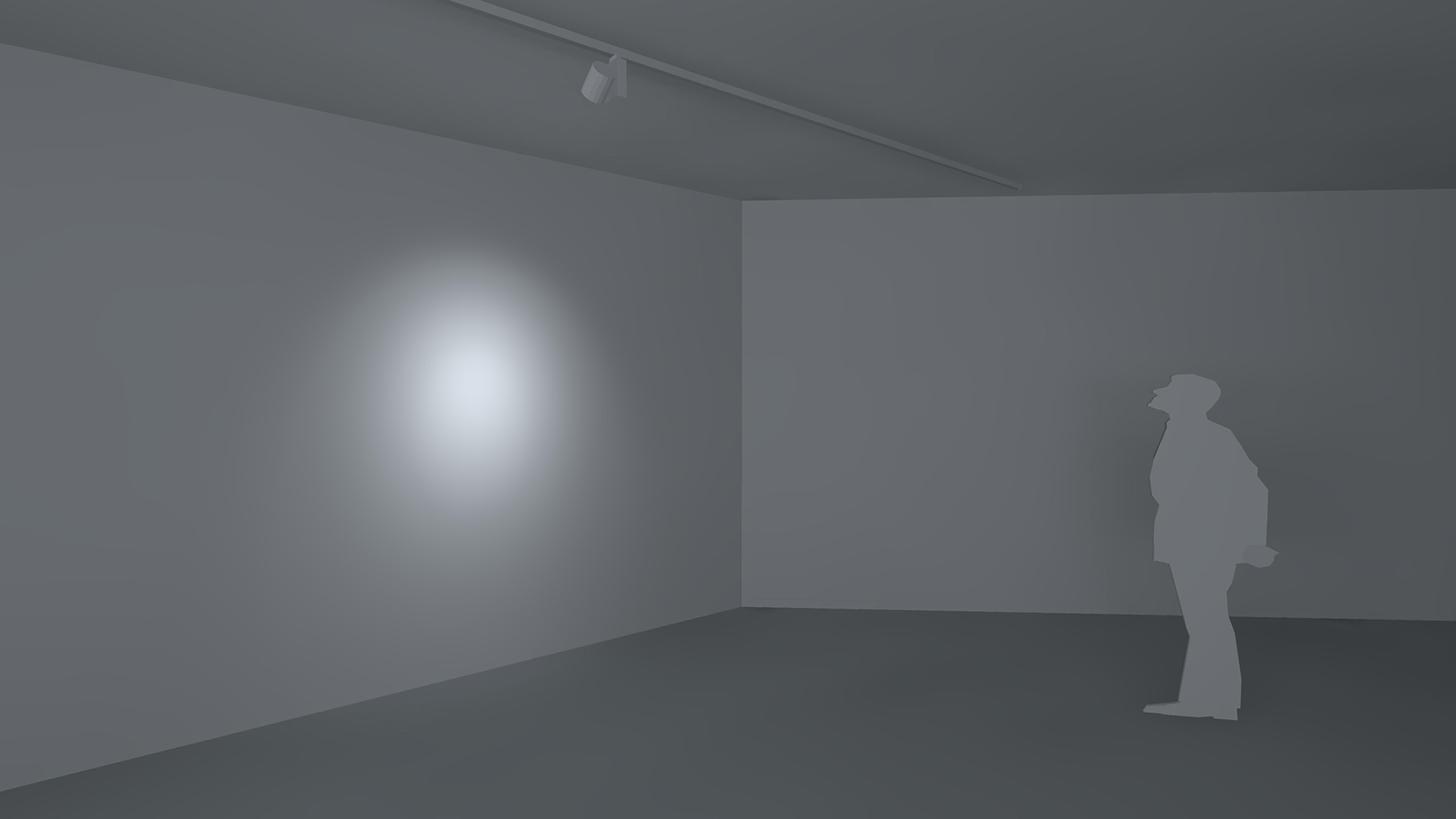

  • 15°Spot

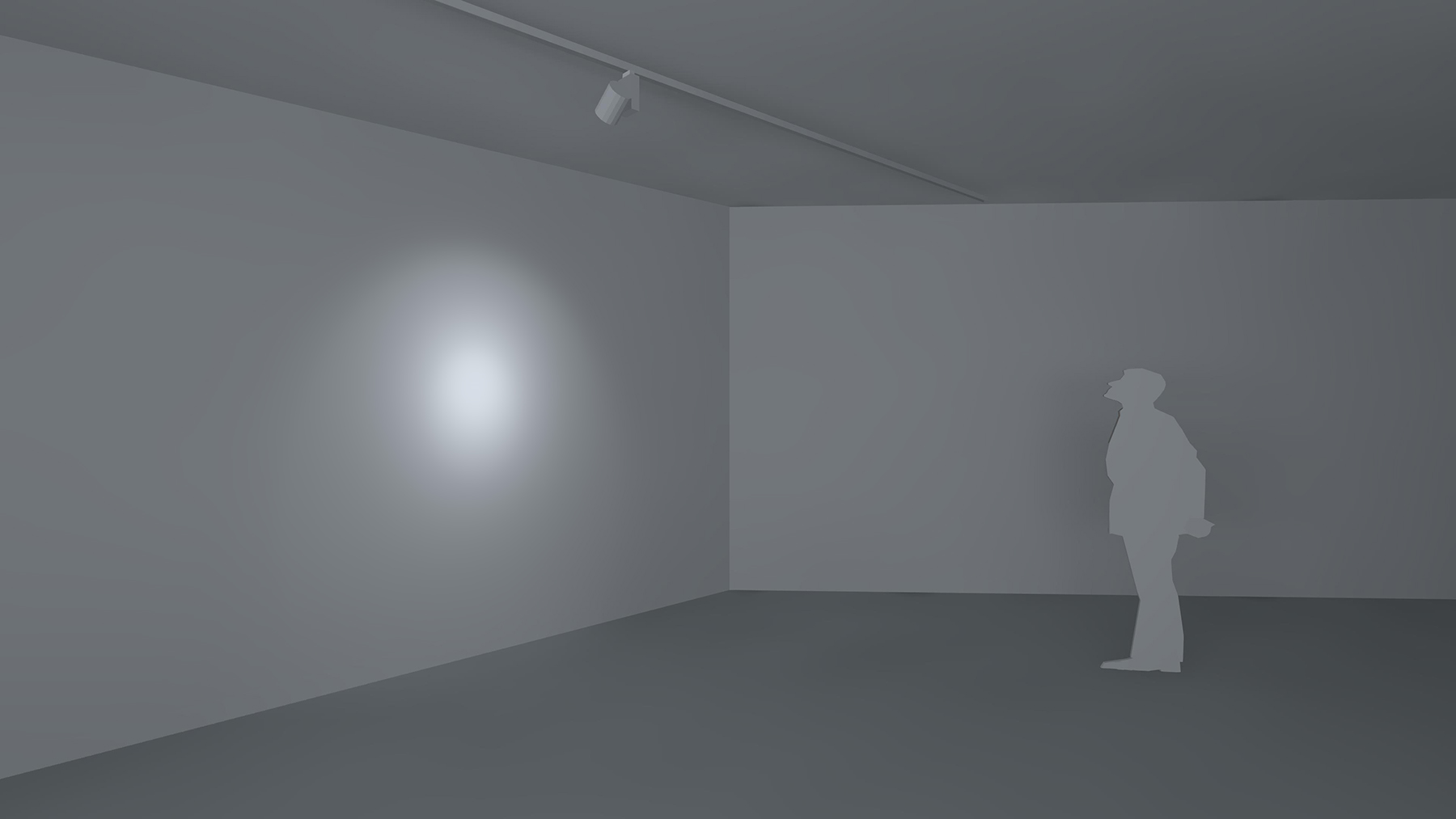

  • 24°Flood

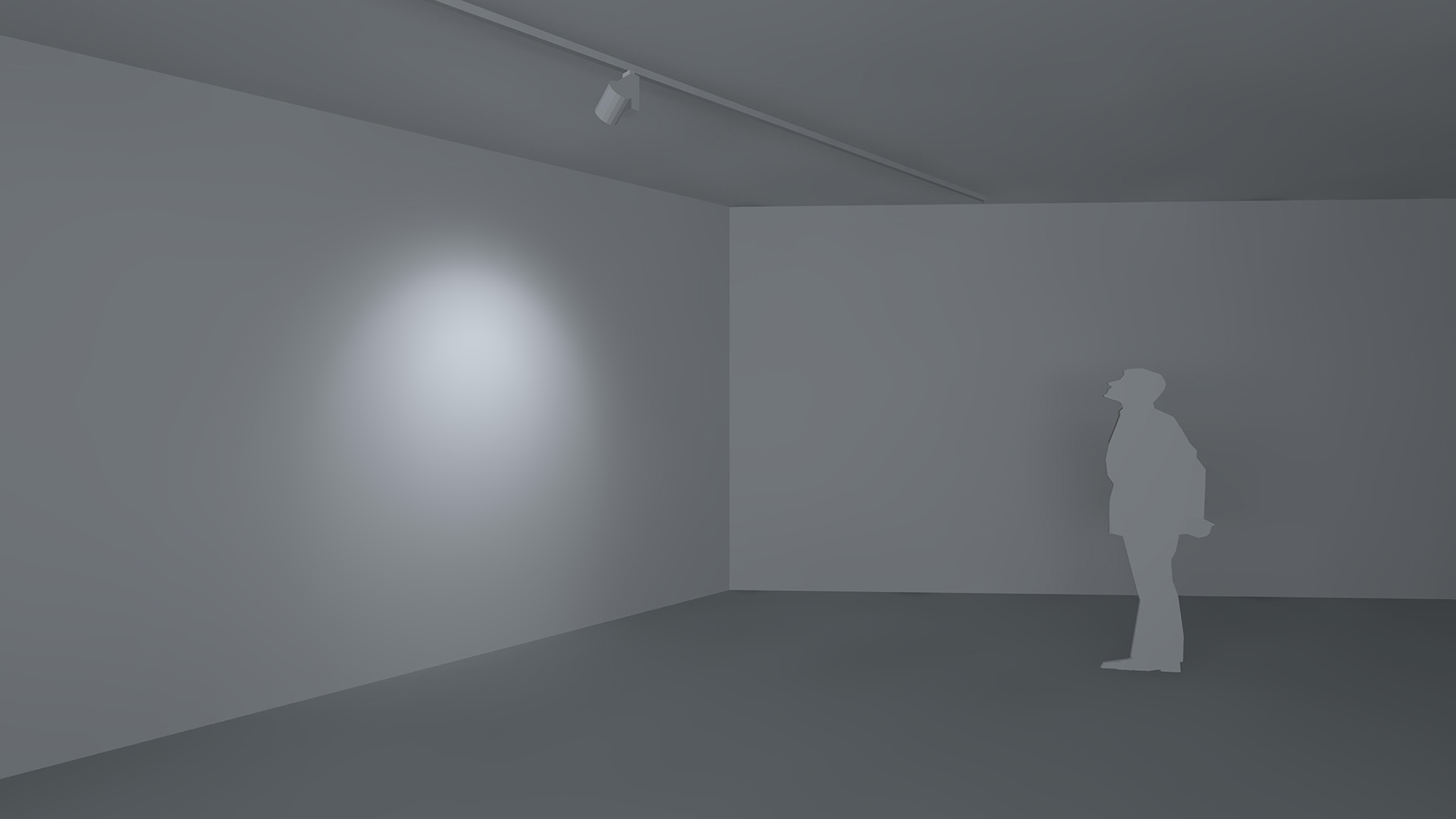

  • 36°Flood

Application

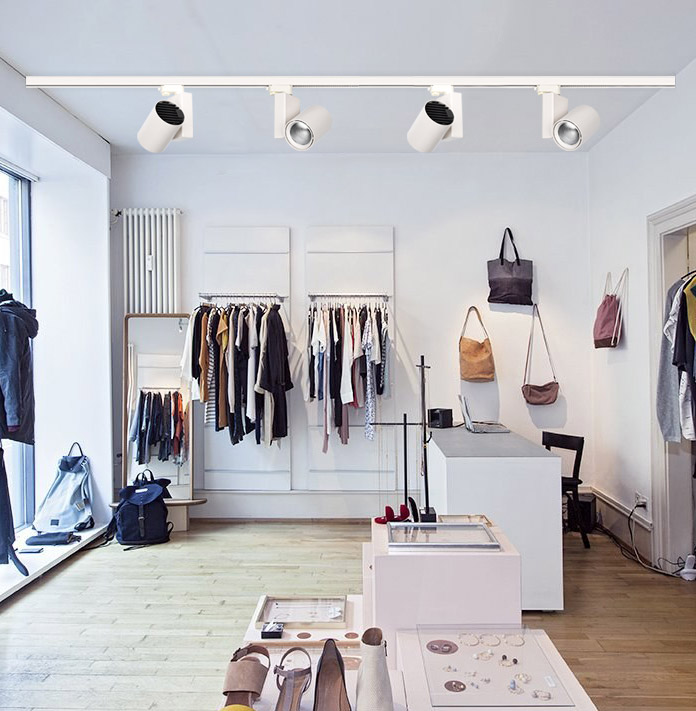

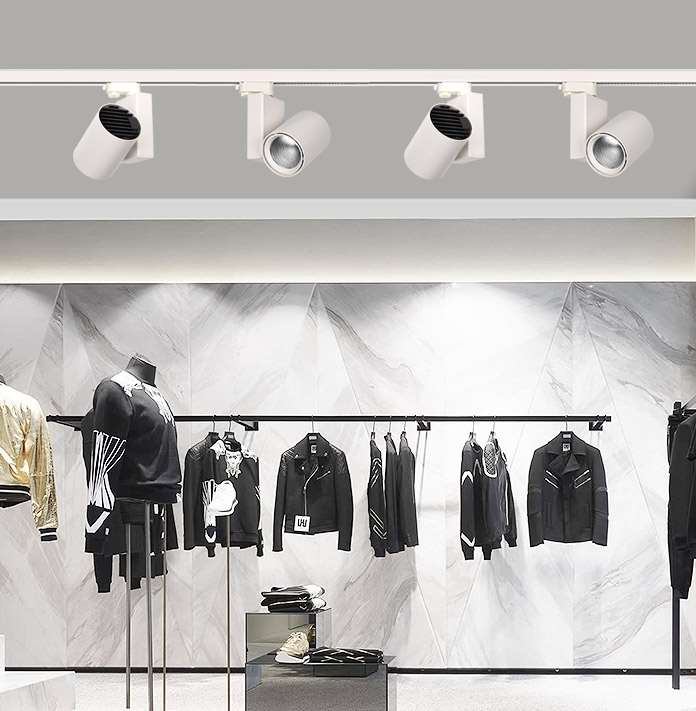

Product application in Store Lighting, Mall Lighting

Mounting

  • Install the track on the ceiling
  • Turn the power supply to "off" position as picture 2.1, Rotate the shift as picture 2.2, Assembly the trck head into track as picture 2.3
  • Rotate the shift to 90 degree
  • Rotate "off 1/2/3" as your requirement, switch can rotate 360 degree in clockwise and anticlockwise
  • Installation complete
  • Turn the power supply to "off" position
  • Rotate the shift to 90 degree
  • Pull out of the head of track downward
