TAURUS Series Panel light D1044 / D1045 / D1046 / D1047

Share:

Description

SOTEN Panel Light with high power 10-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension CCT CRI COB Drive Control Method
D1044 Product D1044 15° / 24° / 38° 10 W 110 lm/W 1100 lm Ø85 x 155 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
D1045 Product D1045 15° / 24° / 38° 20 W 112 lm/W 2240 lm Ø99 x 170 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
D1046 Product D1046 15° / 24° / 38° 30 W 113 lm/W 3390 lm Ø110 x 190 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
D1047 Product D1047 15° / 24° / 38° 40 W 110 lm/W 4400 lm Ø130 x 213 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

  • Triple anti-glare

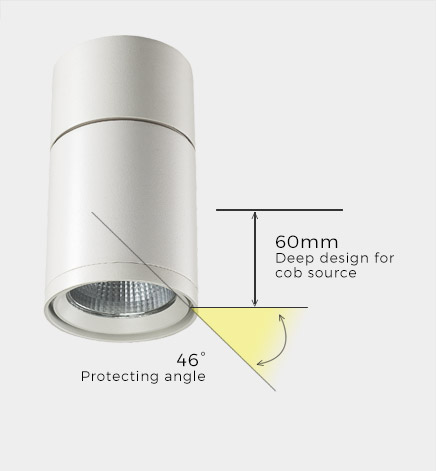

    Soft light effect, deep design (60mm) for cob source, large shading Angle 46°, better anti-glare effect.

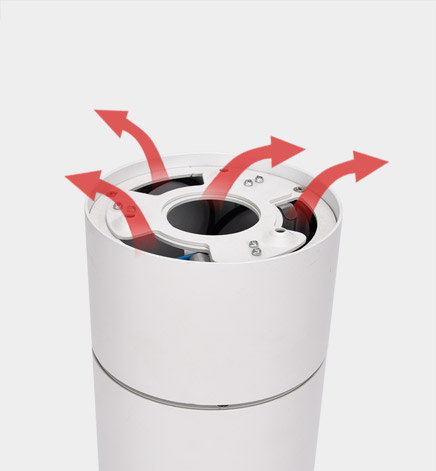

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

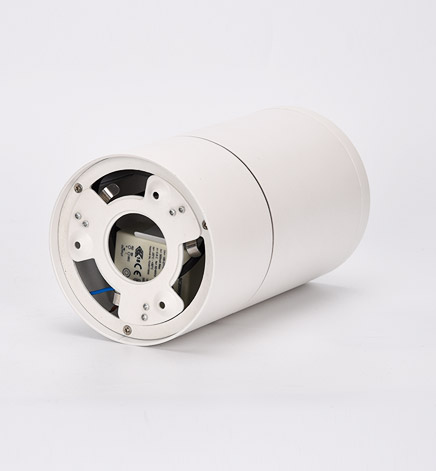

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

Application

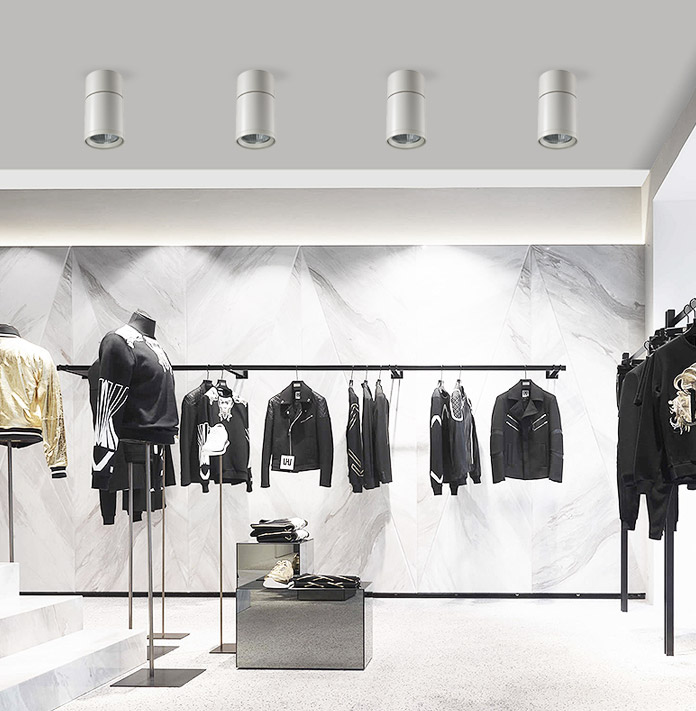

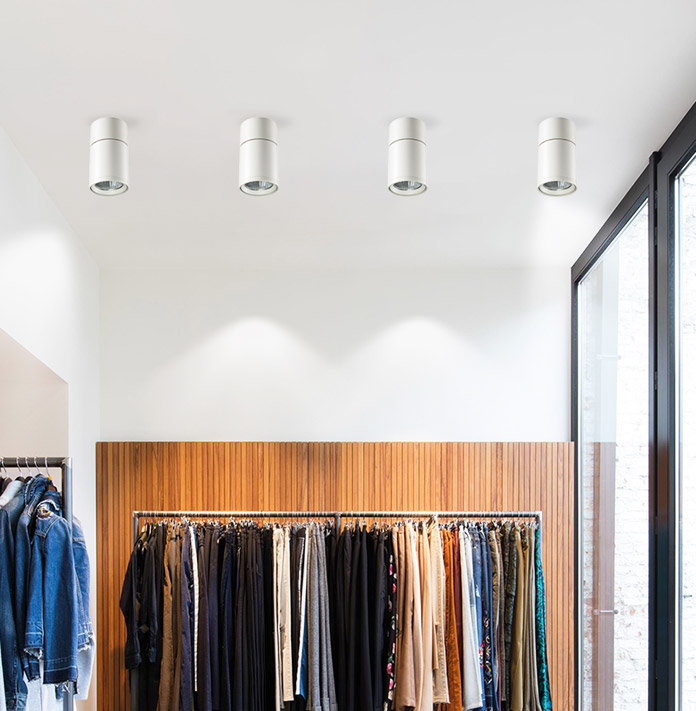

Product application in Store Lighting, Mall Lighting

Mounting

  • Loosen the cover
  • Mount the cover to the ceiling
  • Connect wires
  • Install the lamp body
  • Installation complete
