SOTEN Panel Light with high power 10-48W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.
With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.
I like this lamp, I need ODM service.
You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!
| Product | Item No | Beam Angle | Max Power | Luminous Flux | Dimension | CCT | CRI | COB | Drive | Control Method |
|---|---|---|---|---|---|---|---|---|---|---|
 |
D1281 | 20° / 40° | 10 W | 819 lm | Ø75 x 100 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |
|
D1282 | 20° / 40° | 15 W | 1158 lm | Ø95 x 100 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |
|
D1283 | 20° / 40° | 25 W | 1837 lm | Ø115 x 152 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |
|
D1284 | 20° / 40° | 32 W | 3343 lm | Ø140 x 162 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |
|
D1285 | 20° / 40° | 40 W | 3688 lm | Ø170 x 182 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |
|
D1286 | 20° / 40° | 48 W | 4527 lm | Ø205 x 212 mm | 3000K / 4000K / 5000K | >90 | Lumileds COB | Tridonic | No |

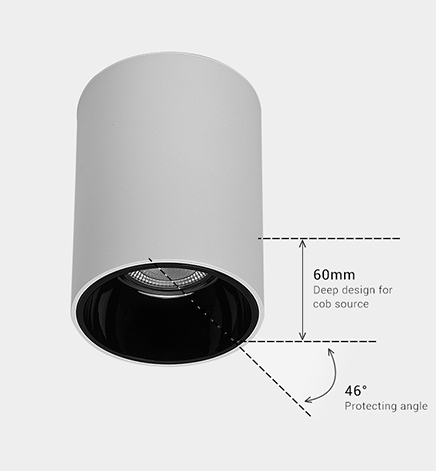

Triple anti-glare
Soft light effect, deep design (60mm) for cob source, large shading Angle 46°, better anti-glare effect.

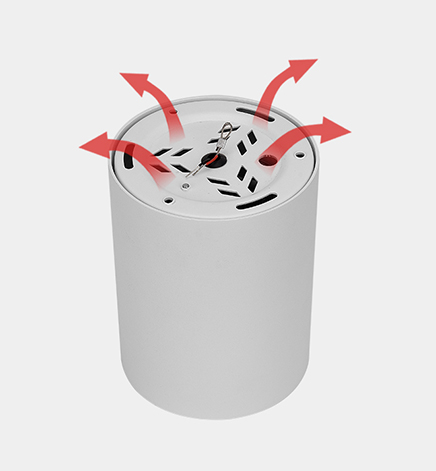

High efficiency heat dissipation
Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.
Accurate and efficient light control
The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

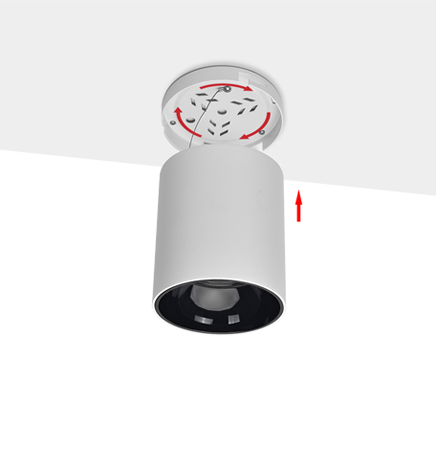

Easy installation
Safety rope structure to prevent falling.Clockwise buckle, easy installation.

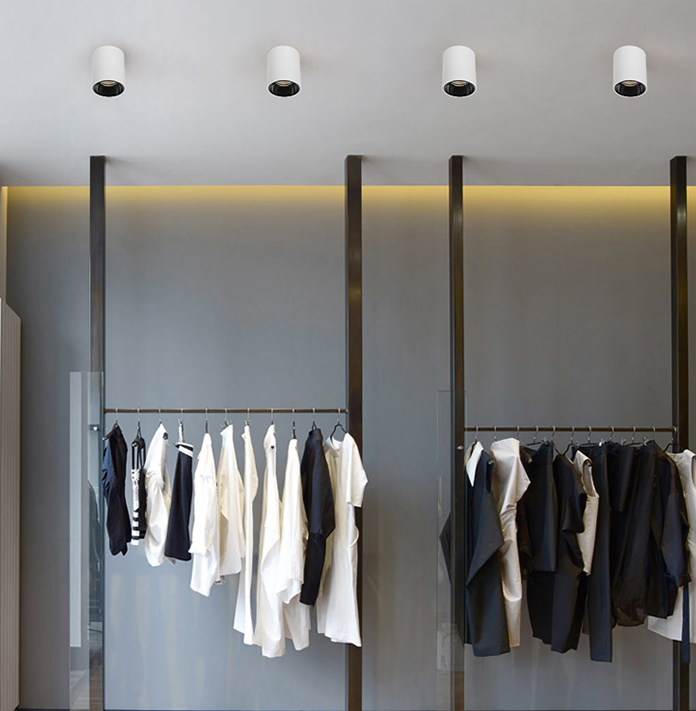

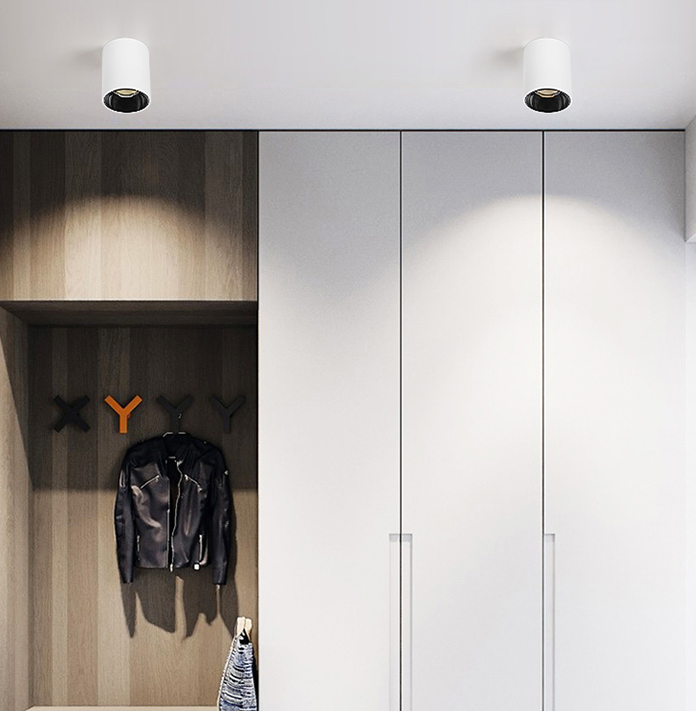

20°FloodProduct application in Store Lighting, Mall Lighting
Tel: +86-750-3778800 Fax: +86-750-3778811 E-mail: inquiry@soten.hk www.soten.hk Jinou Road, Jiangmen City, Guangdong, China
Loosen the cover
Mount the cover to the ceiling
Connect wires
Install the lamp body
Installation complete
