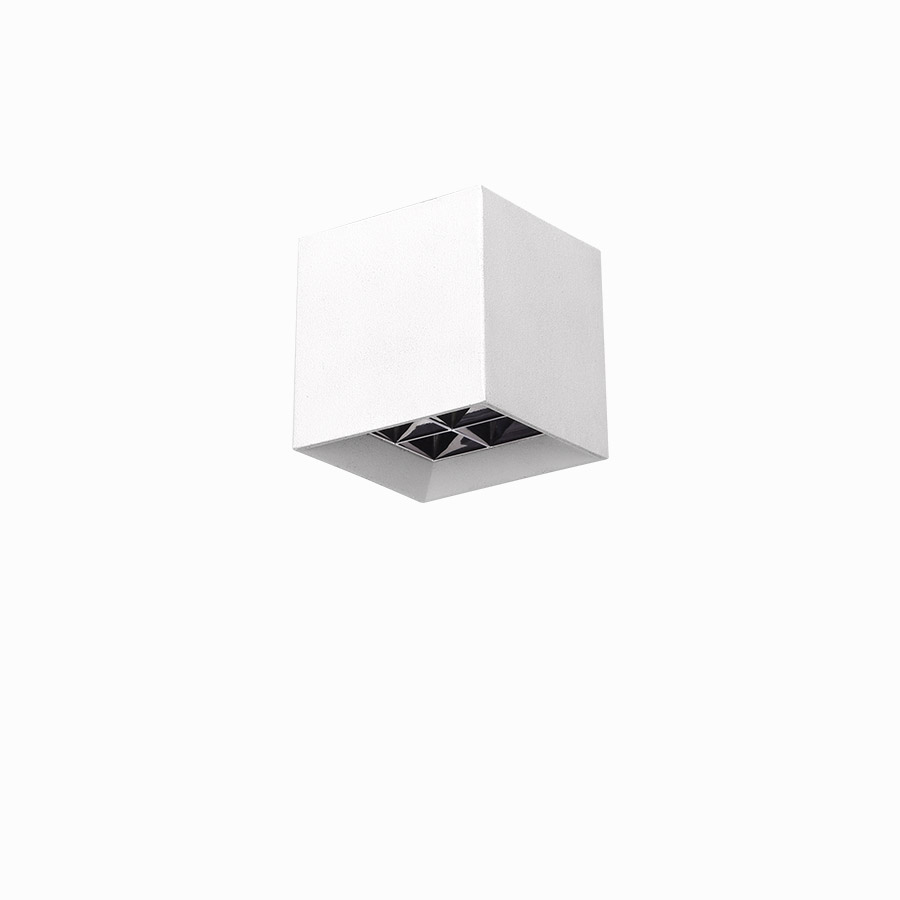

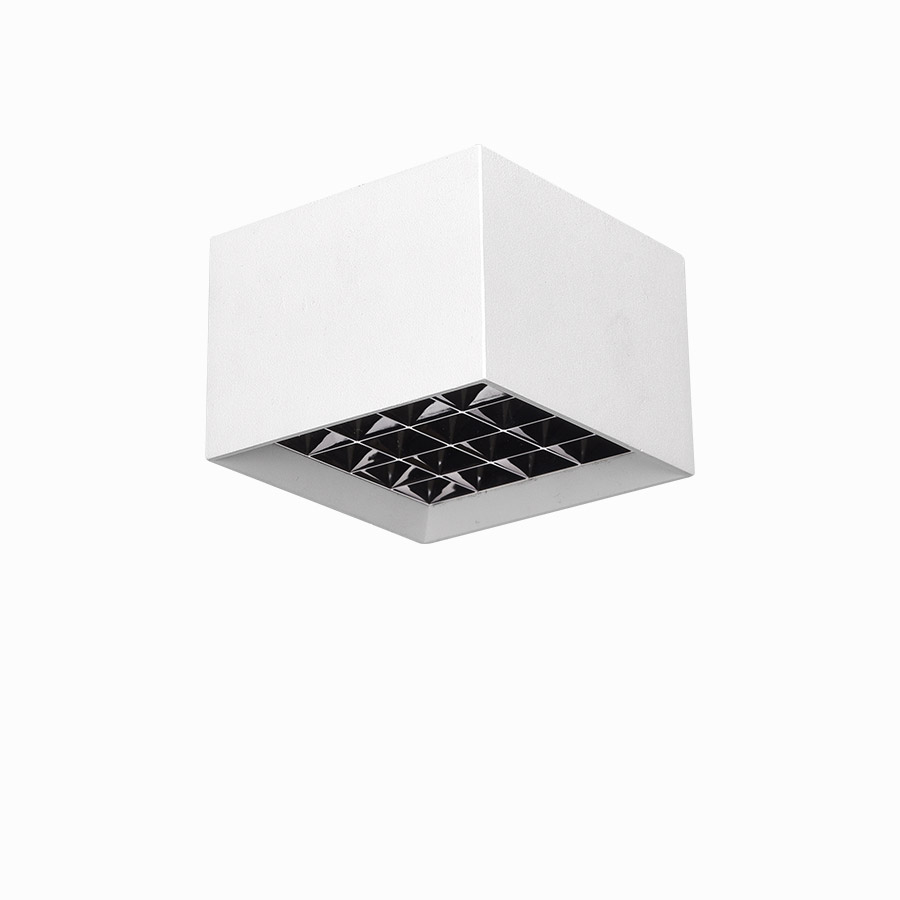

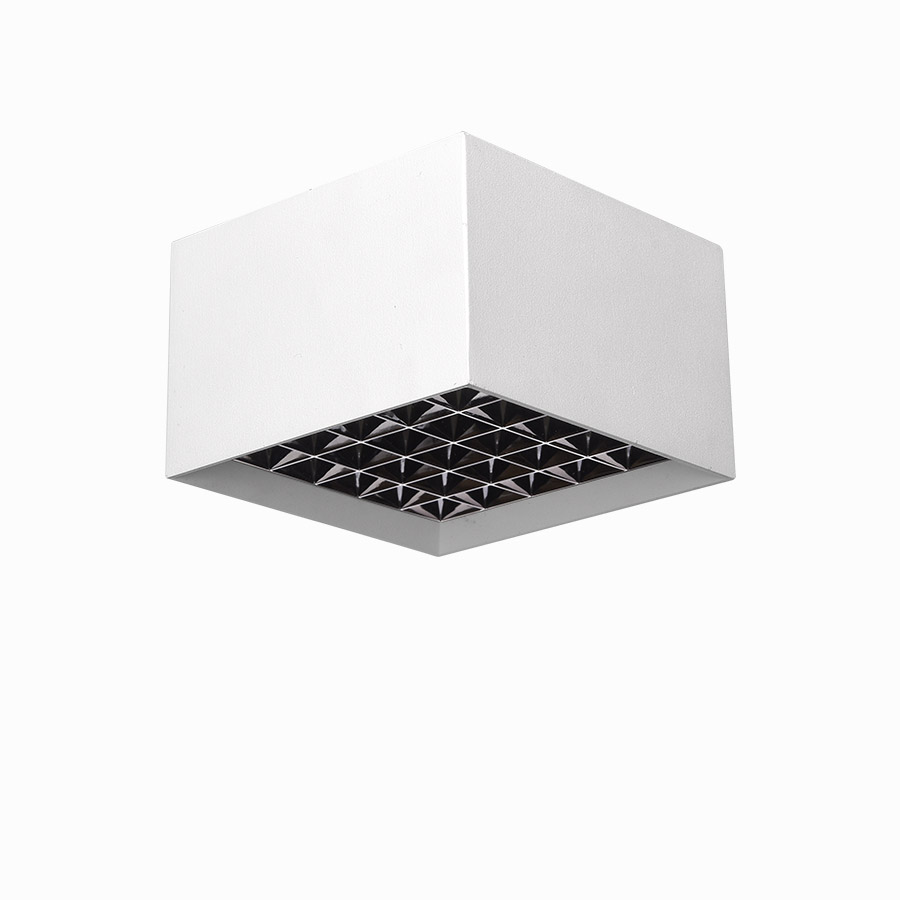

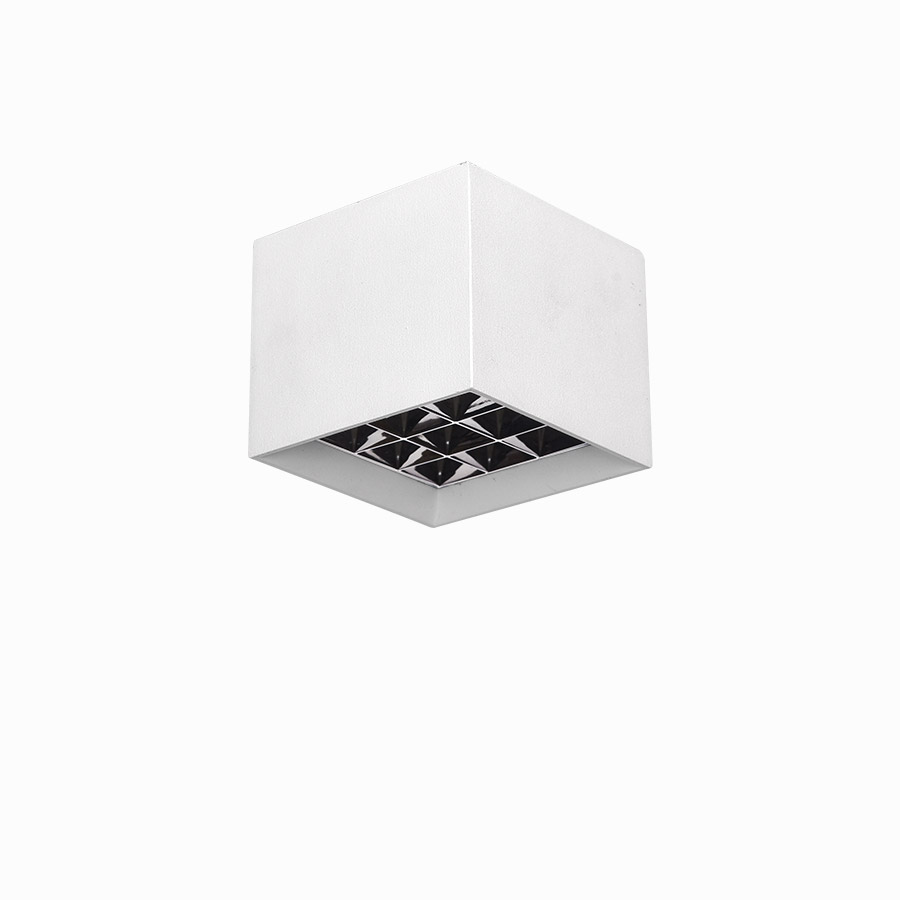

BOX Series Panel light G1102 / G1103 / G1104 / G1105

Description

SOTEN Panel Light with high power 10-40W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
G1102 5W 300LM 15° / 24° / 38° 62 x62 x 62 3000K / 4000K / 5000K >80, >90 Black / White Lumileds  Tridonic Aluminum Alloy No
G1103 10W 600LM 15° / 24° / 38° 81 x 81 x 81 3000K / 4000K / 5000K >80, >90 Black / White Lumileds  Tridonic Aluminum Alloy No
G1104 18W 1040LM 15° / 24° / 38° 100 x 100 x 70 3000K / 4000K / 5000K >80, >90 Black / White Lumileds  Tridonic Aluminum Alloy No
G1105 25W 1625LM 15° / 24° / 38° 119 x 119 x 75 3000K / 4000K / 5000K >80, >90 Black / White Lumileds  Tridonic Aluminum Alloy No

Features

  • Triple anti-glare

    Black anti-glare cover, bring the soft, not dazzling spot to you. Optical lens make the light smoothly and even.The shading angle of the LED chip is up to 38 degrees.

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ30 hole on the ceiling.
  • Second: Drill 6MM holes in the ceiling and stuff the rubber plug in. Lock hanging plate and wire rope on ceiling with M3 screw.
  • The steel wire rope of the lamp is connected with the steel wire rope of the hanging plate. Connect the lamp with AC power and push the lamp into the ceiling
  • Third:Installation complete.
  • Disassemble step: First:Catch and hold the lamp and pull it out.
