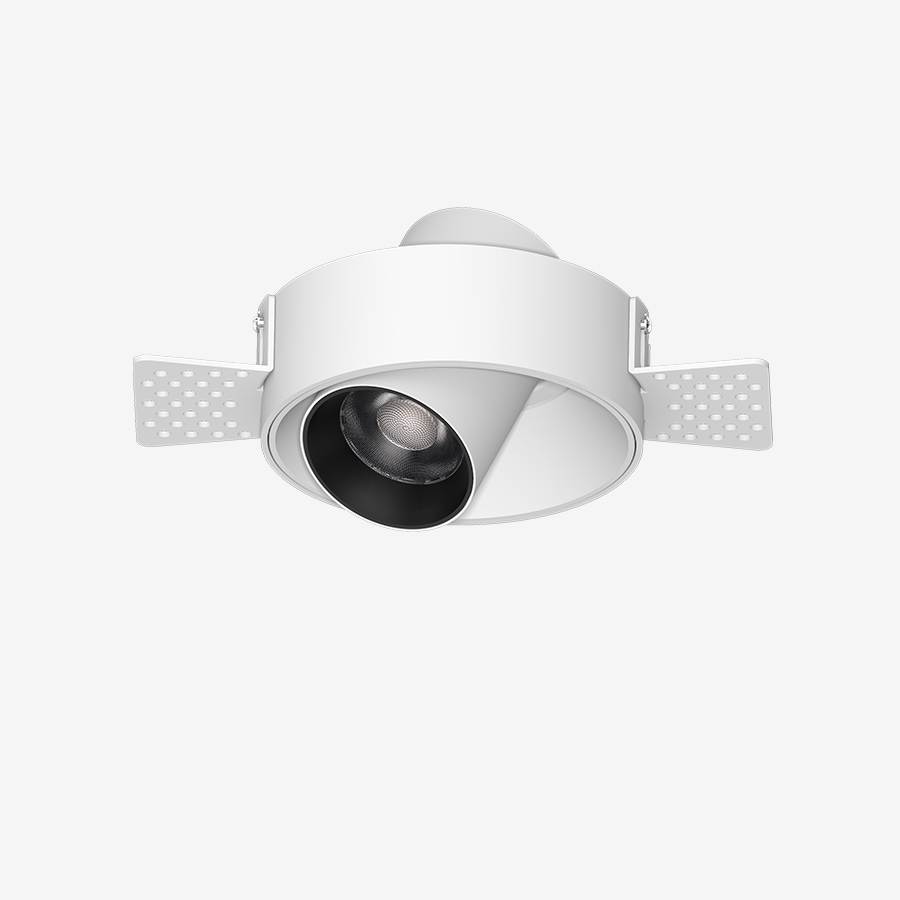

GYRO Series Recessed spot light R1079 / R1081

Share:

Description

355 degrees horizontal rotation, 30 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

SOTEN Recessed spot light with high power 20-35W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Beam Angle Max Power Efficiency Luminous Flux Dimension Ceiling Cut Out CCT CRI COB Drive Control Method
R1079 Product R1079 15° / 24° / 36°/ 50° 10 W 107 lm/W 985 lm 154 x 92 x 69 mm Ø95 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No
R1081 Product R1081 15° / 24° / 36°/ 50° 15 W 115 lm/W 1545 lm 174 x 112 x 99mm Ø115 mm 3000K / 4000K / 5000K >90 Lumileds COB Tridonic No

Product Video

Share:

Features

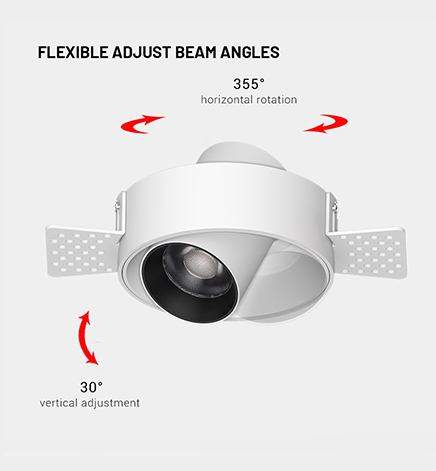

  • Flexible adjust beam angles

    355 degrees horizontal rotation, 30 degrees vertical adjustment , more accurate and professional multi-angle lighting beams.

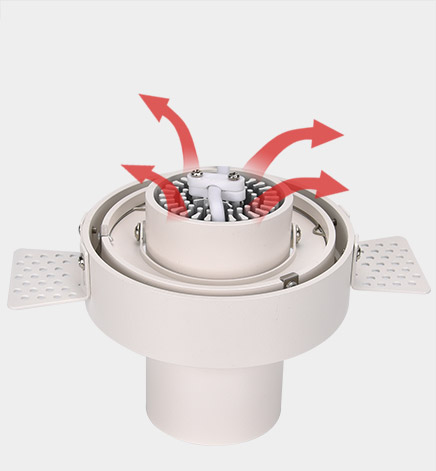

  • High efficiency heat dissipation

    Adopt strong air convection design, fast heat dissipation, ensure internal temperature stability and safety.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • Professional optical lens

    High efficiency, soft light, accurate light control, more uniform light spot, anti-glare.

Light effect

  • 24°Spotlights

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ125mm or φ150mm hole on the ceiling
  • Second: Use screw to fixate the outer frame in ceiling plate.
  • Third: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • four: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
