CIR LINEAR Series

Description

CIR LINEAR is an integrated low voltage lighting system,Plug-in link design, easy installation.

CIR LINEAR series compatible with a variety of intelligent dimming solution and 2.4G and other intelligent control requirements.

A variety of lighting options, Surface lighting, Grille lighting and Spot lighting.The lamp body can be adjusted 360° to create a unique lighting effect.

CIR LINEAR means containment and extension,CIR LINEAR means everything is possible.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product	Item No	Max Power	Luminous Flux	Beam Angle	Dimension(mm)	CCT	CRI	Color	COB	Drive	Material	Control Method
	L1200	18W	1350LM	30°/45°	859x30	3000K / 4000K / 6500K	>80, >90	Black / White	Lumileds SMD	Alloking	Aluminum Alloy	No
	L1203	24W	1900LM	30°/45°	1259x30	3000K / 4000K / 6500K	>80, >90	Black / White	Lumileds SMD	Alloking	Aluminum Alloy	No

Features

CIR LINEAR SERIES
360 degree rotating lighting
CIR LINEAR,SMART

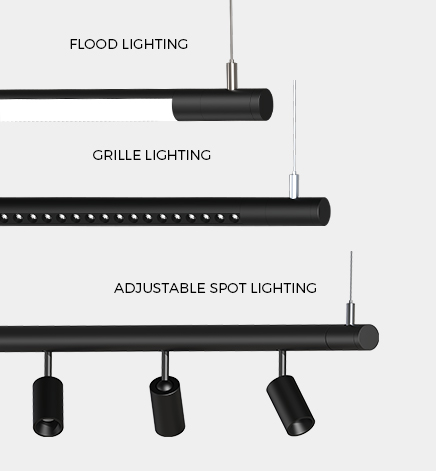

Flood lighting,Grille lighting,Adjustable spot lighting

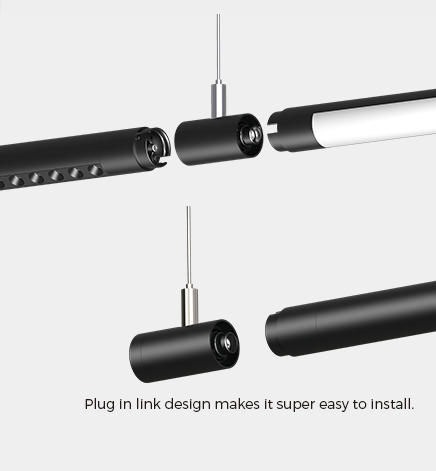

Plug in link design
Unlimited combination design to accommodate any design shape and length.

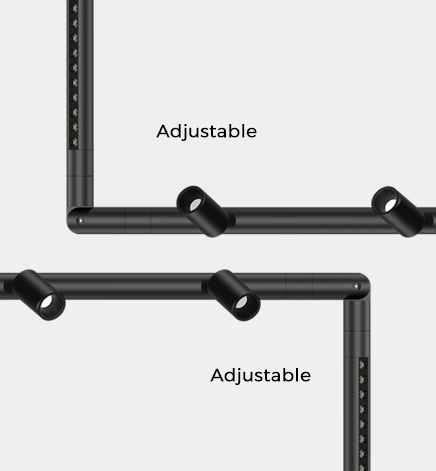

180° adjustable corner connector
Adjustable corner connector

Light effect

30°Flood
45°Flood

Application

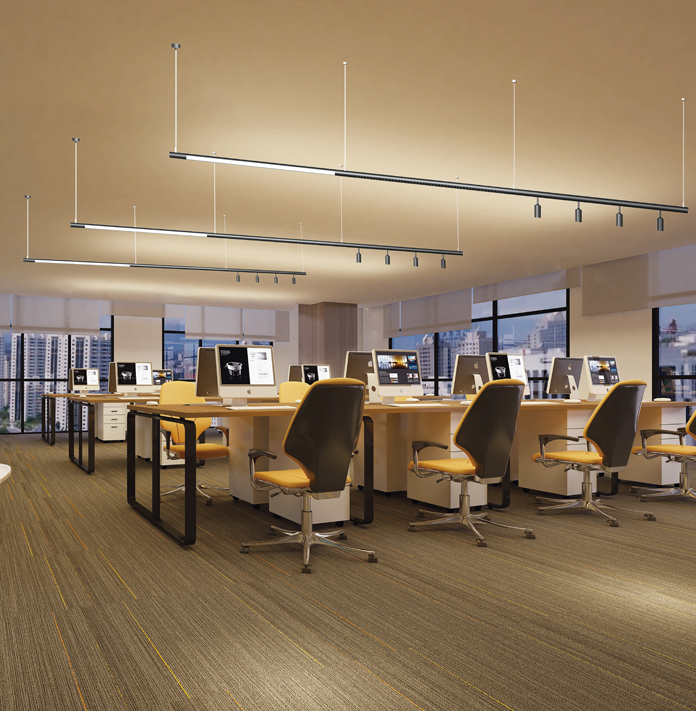

Product application in Store Lighting, Mall Lighting

Mounting

Drill holes on the ceiling,put the plug into the drilled hole,fixate the plateand suspension accessories,tigthen the connecting part to the iron part.
Connect to Dc48v

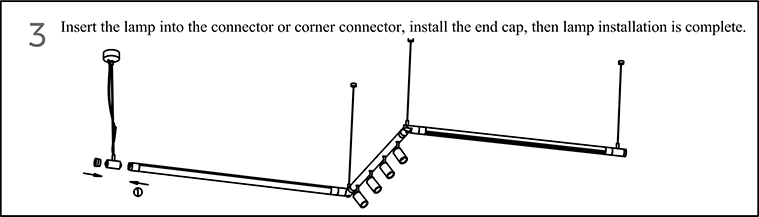

Insert the lamp into the connector or corner connector,install the end cap,then lamp installation is complete.

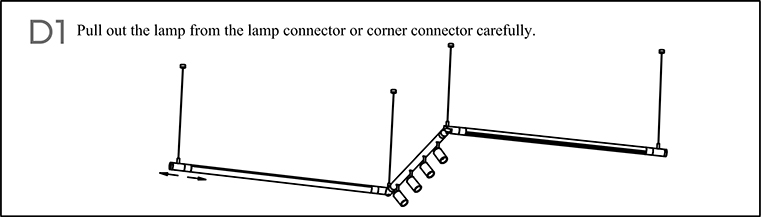

Pull out the lamp from the lamp connector or corner connector carefully.
