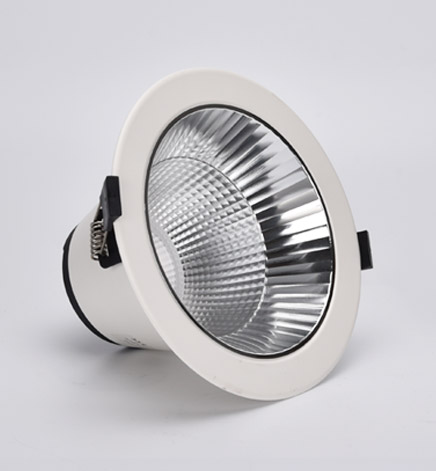

SUN Series Downlight D1079 / D1180 / D1081 / D1082

Description

SUN Series, Simple appearance, Large cut-off angle, deep light source, Three levels color temperature regulation.

SOTEN Downlight with high power 10-30W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1079 10W 980LM φ90mm 56° / 60° φ110 x 80 2700K / 4000K / 6000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
D1080 15W 1250LM φ115mm 56° / 60° φ140x 90 2700K / 4000K / 6000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
D1081 20W 1700LM φ145mm 56° / 60° φ180 x 110 2700K / 4000K / 6000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No
D1082 30W 2300LM φ195mm 56° / 60° φ234 x 130 2700K / 4000K / 6000K >80, >90 Black / White Lumileds SMD Tridonic Aluminum Alloy No

Features

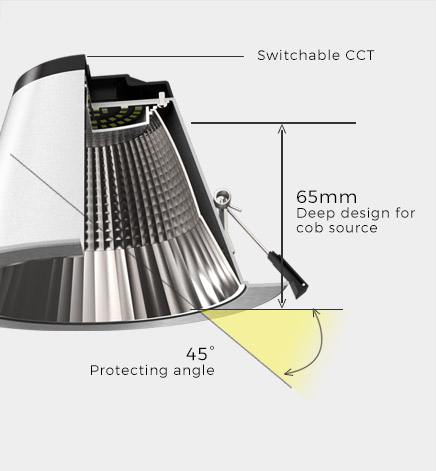

  • Triple anti-glare

    Soft light effect, deep design (65mm) for cob source, large shading Angle 45°, better anti-glare effect.

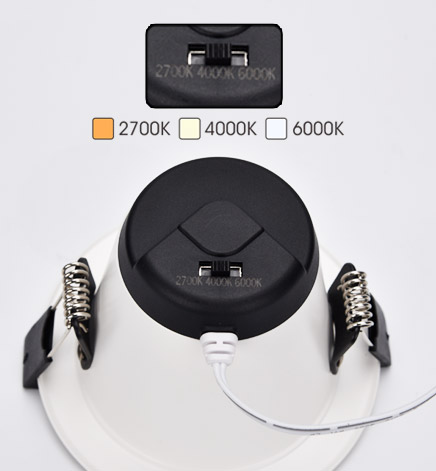

  • Switchable CCT

    Double output channel, quick switch for 3 different CCT; 1.Options with switch or not with it; 2.Intelligent Dimming and Color changeable Power Supply(Switch on and off, ZIGBEE Control dimming, WIFI dimming, these suitable for small batch installation) High quality aluminum reflector.

  • Die cast aluminum lamp body

    Aluminum material, increase heat dissipation area, air convection, improve heat dissipation efficiency, effectively reduce light source light decay.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

Light effect

  • 60°Spotlights

Application

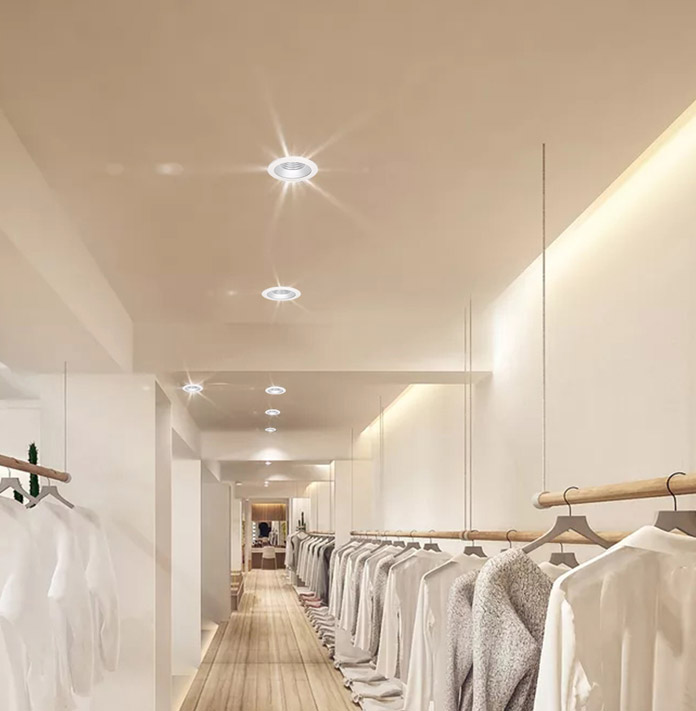

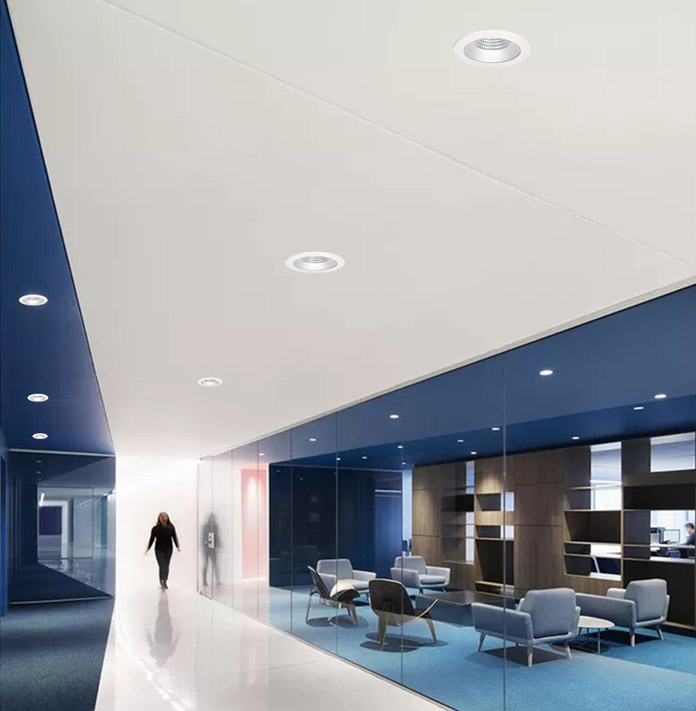

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ90mm or φ115mm or φ145mm or φ190mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
