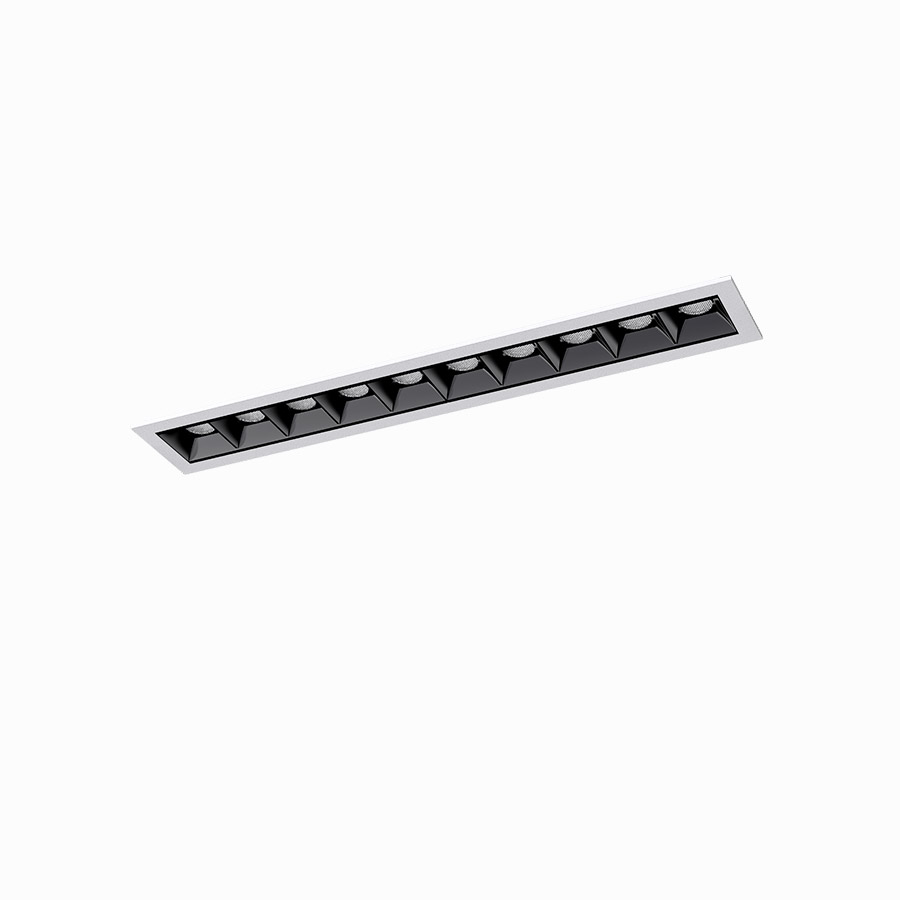

STAR Series Downlight R1085 / R1086 / R1087


SOTEN Downlight with high power 10-24W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to or fill the inquiry form here. We will response within 12 hours!

Product parameters

Product Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
R1085 Product R1085 10W 600LM 137 x 35mm 15° / 30° / 45° 149 x 46 x 44 3000K / 4000K / 5000K >80, >90 Black / White Luminus Lufid Aluminum Alloy No
R1086 Product R1086 16W 1110LM 275 x 35mm 15° / 30° / 45° 282 x 46 x 44 3000K / 4000K / 5000K >80, >90 Black / White Luminus Lufid Aluminum Alloy No
R1087 Product R1087 24W 1717LM 415 x 35mm 15° / 30° / 45° 415 x 46 x 44 3000K / 4000K / 5000K >80, >90 Black / White Luminus Lufid Aluminum Alloy No

Product Video

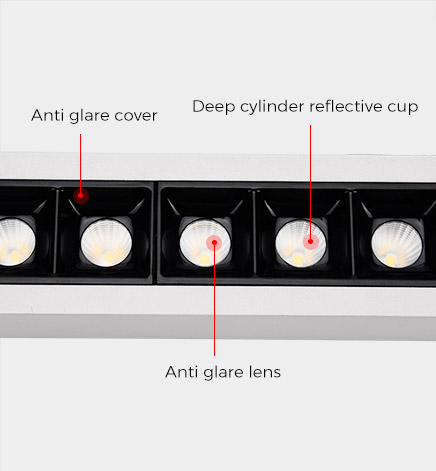

  • Triple anti-glare

    Soft light effect, deep design for cob source, large shading Angle, better anti-glare effect.

  • High efficiency heat dissipation

    Adopt strong air convection design, fast heat dissipation, ensure internal temperature stability and safety.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

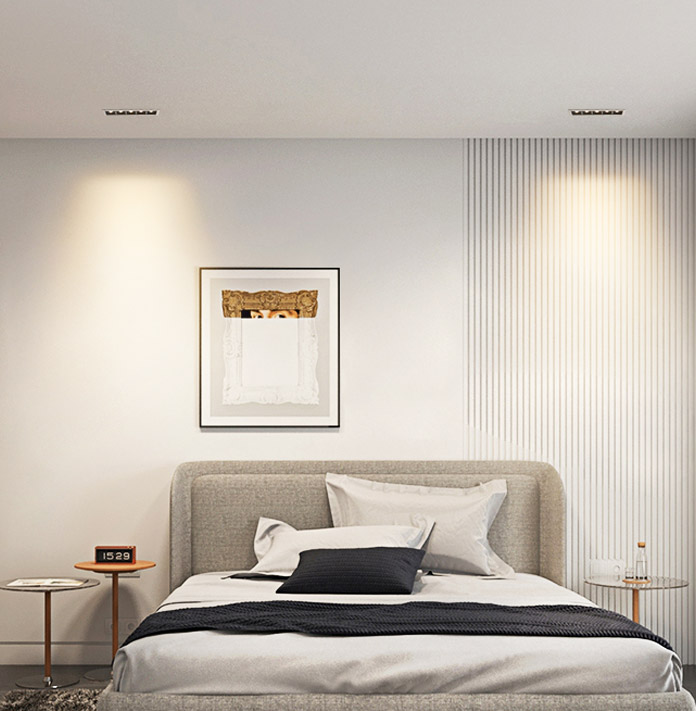

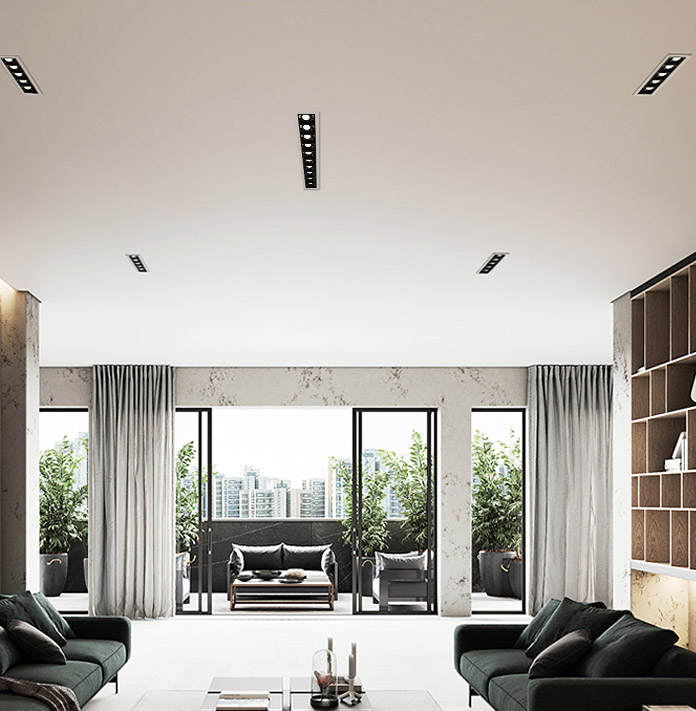

Product application in Store Lighting, Mall Lighting


  • First :Cutting a 137 x 35mm or 275 x 35mm or 415 x 35mm hole on the ceiling.
  • Second:Connect the Lamp with AC Power and Push the lamp into the ceiling.
  • Third:Installation complete.
  • Disassemble step: First:Catch and hold the lamp and pull it out.
