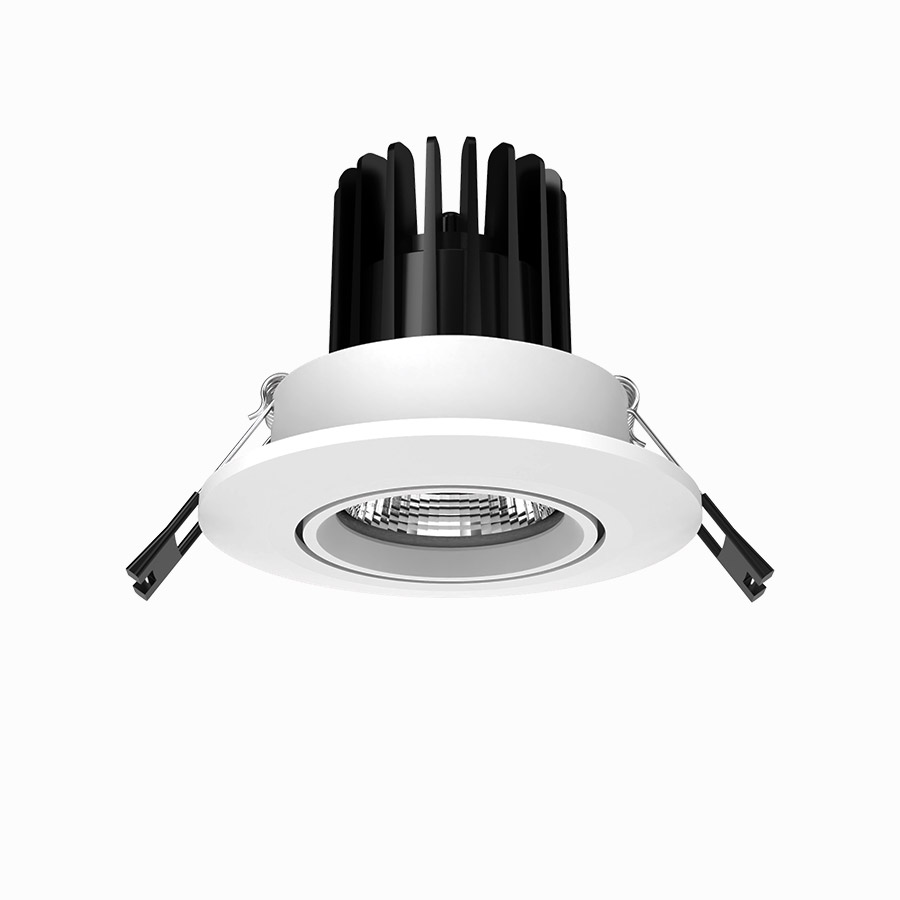

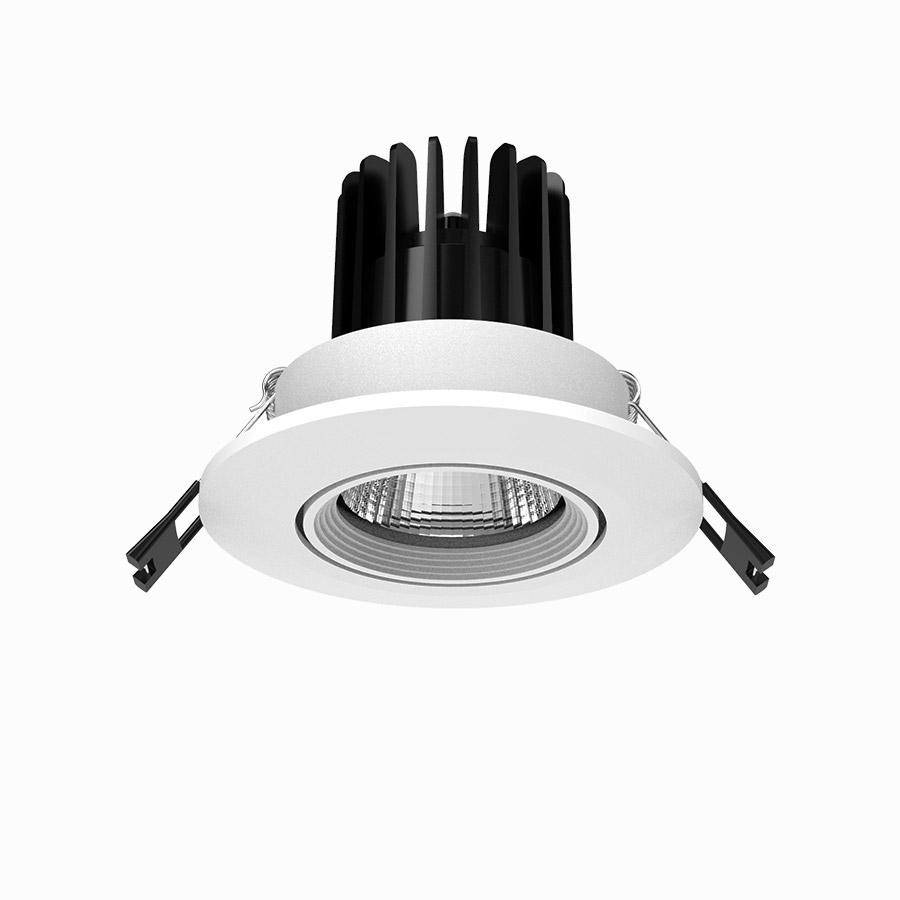

ELFIN Series Downlight D1034 / D1035 / D1036

Description

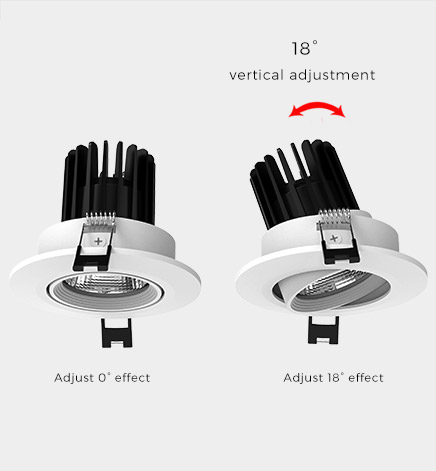

SOTEN Downlight with high power 10W and wide range dimentions for optional.The Led Downlights is with high quality cob and driver to ensure 5 Year warranty. Good quality aluminium housing and special inner construction design to achieve excellent heat dissipation. Ajustable spothead and deep inner ring to ensure good anti-glare lighting effect to creat a comfortable lighting.

With experienced optic R&D team to offer professional optic design for high efficieny and uniform lighting. OEM/ODM services available.

I like this lamp, I need ODM service.

You can send the request to inquiry@soten.hk or fill the inquiry form here. We will response within 12 hours!

Product parameters

Item No Max Power Luminous Flux Ceiling Cut Out Beam Angle Dimension(mm) CCT CRI Color COB Drive Material Control Method
D1034 10W 800LM φ65mm 15° / 24° / 36° φ75 x 75 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1035 10W 800LM φ65mm 15° / 24° / 36° φ75 x 75 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No
D1036 10W 800LM φ65mm 15° / 24° / 36° φ75 x 75 3000K / 4000K / 5000K >80, >90 Black / White Lumileds COB Tridonic Aluminum Alloy No

Features

  • Triple anti-glare

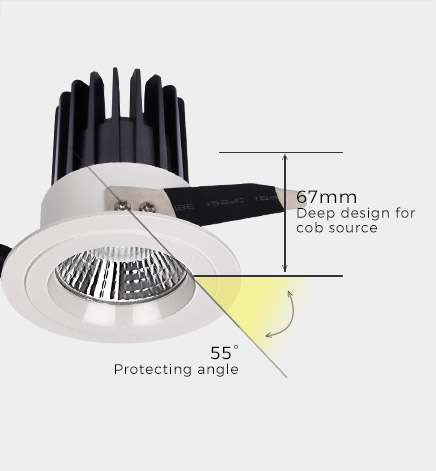

    Soft light effect, deep design (67mm) for cob source, large shading Angle 55°, better anti-glare effect.

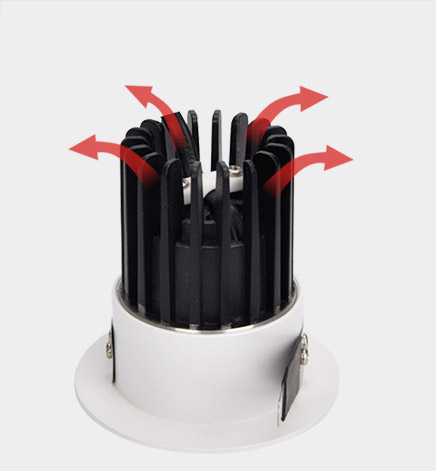

  • High efficiency heat dissipation

    Cold forging process on high-purity metal, which have good heat dissipation and strengthen the housing surface, makes precise and good quality products.

  • Accurate and efficient light control

    The surface treatment technology with reflectivity up to 90% can not only obtain excellent light output efficiency, but also provide comfortable lighting environment.

  • No visible flicker

    Photovoltaic glass to improve lighting efficiency, bring out soft and comfortable lighting.

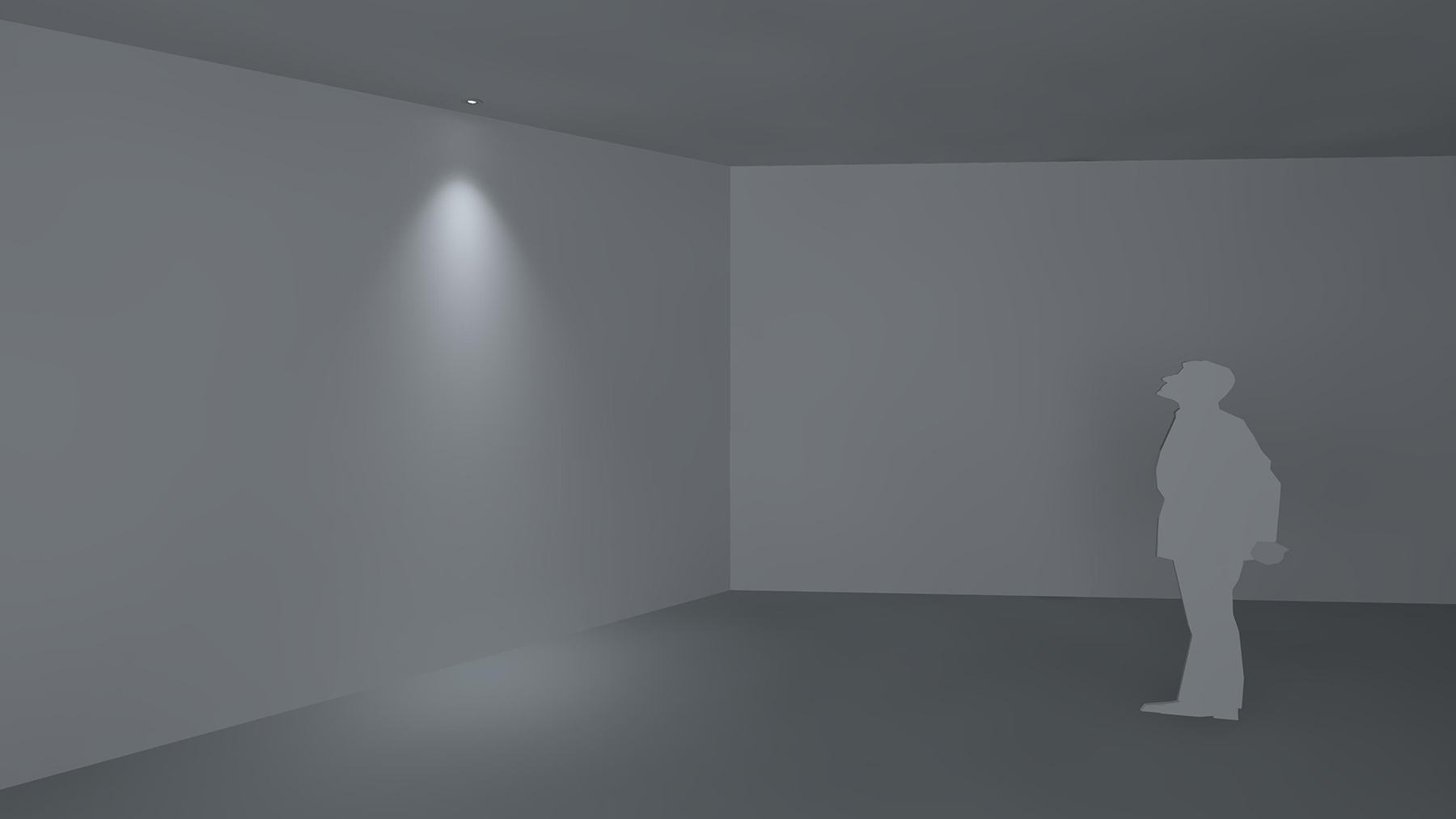

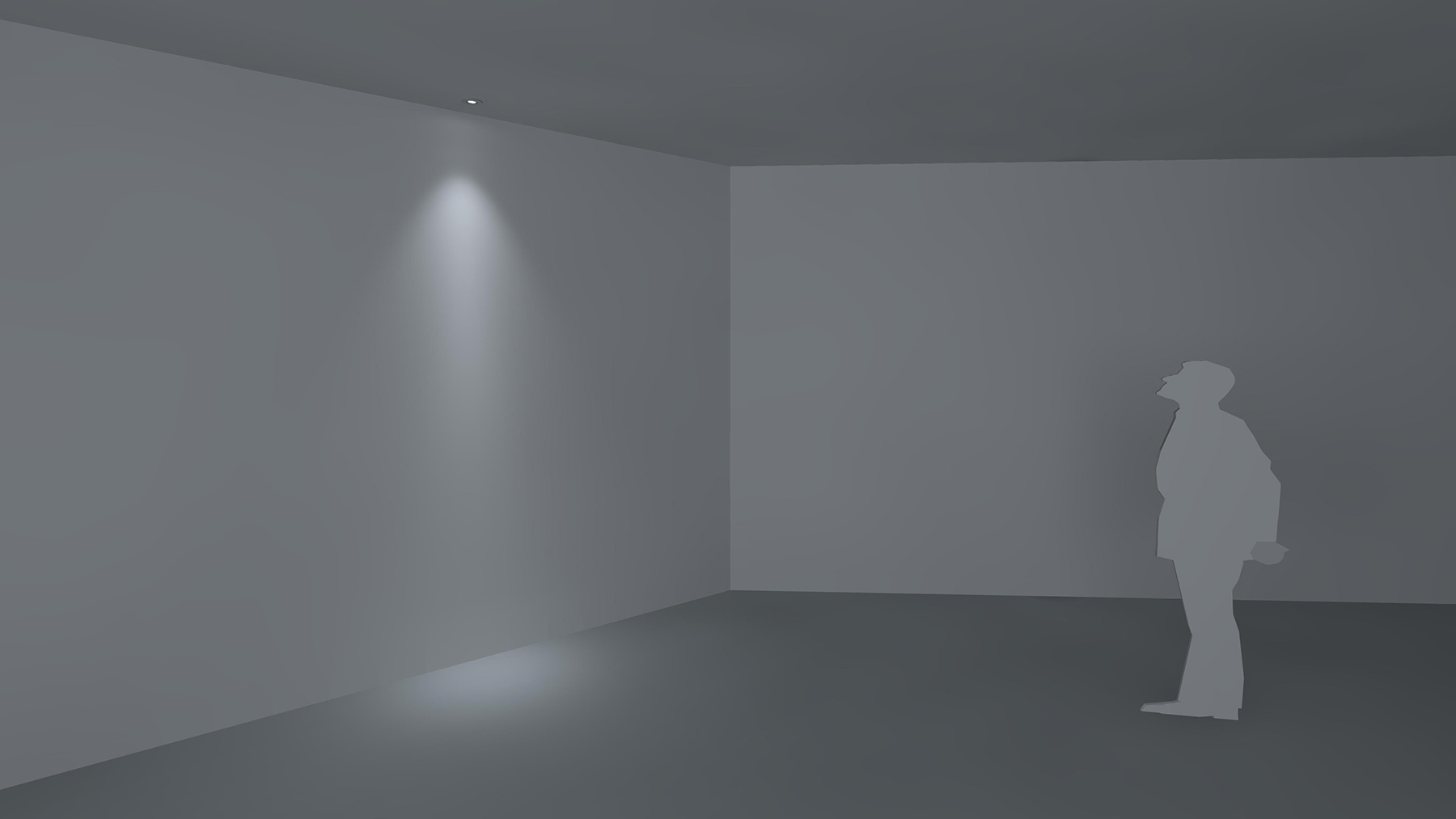

Light effect

  • 15°Spotlights
  • 24°Spotlights
  • 36°Spotlights

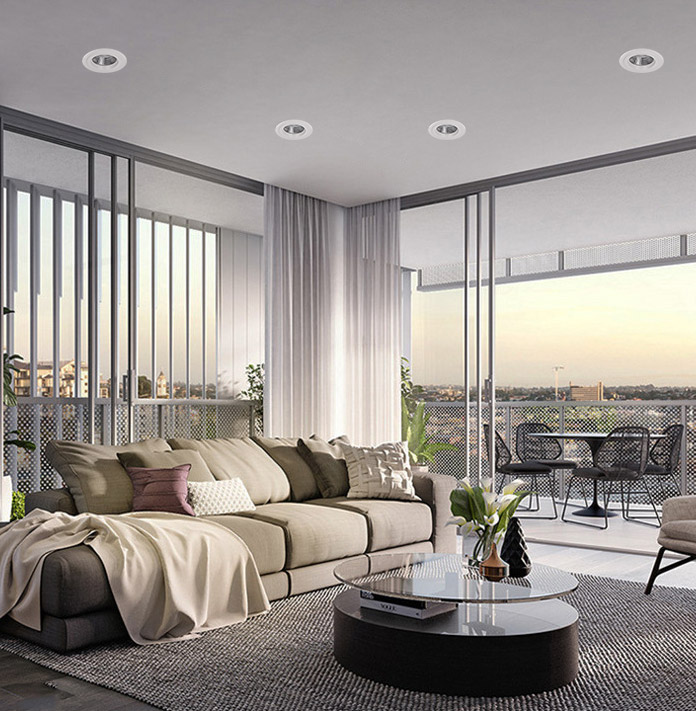

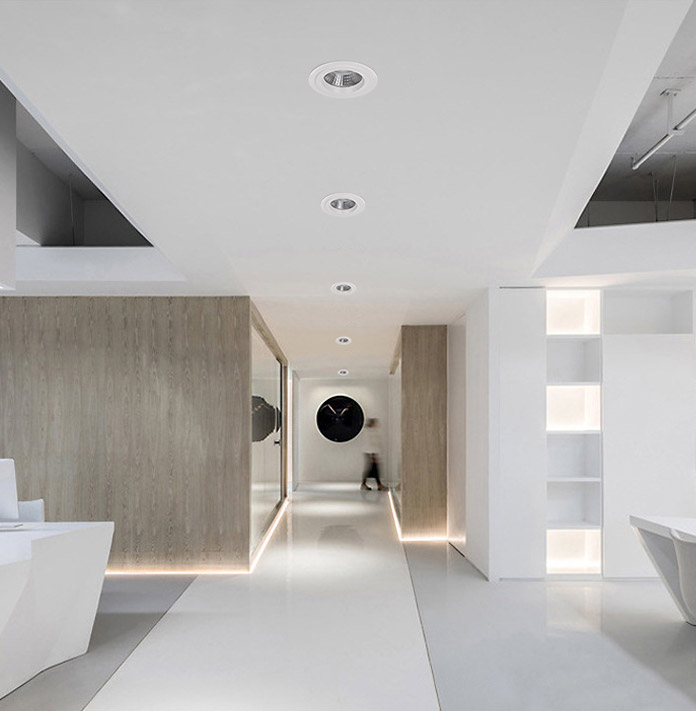

Application

Product application in Store Lighting, Mall Lighting

Mounting

  • First: Cutting a φ65mm hole on the ceiling
  • Second: Connect the Lamp with AC Power and Push the lamp into the ceiling
  • Third: Installation complete
  • Disassemble step: First: Catch and hold the lamp and pull it out
